SKU:BANDA-VIKING5001

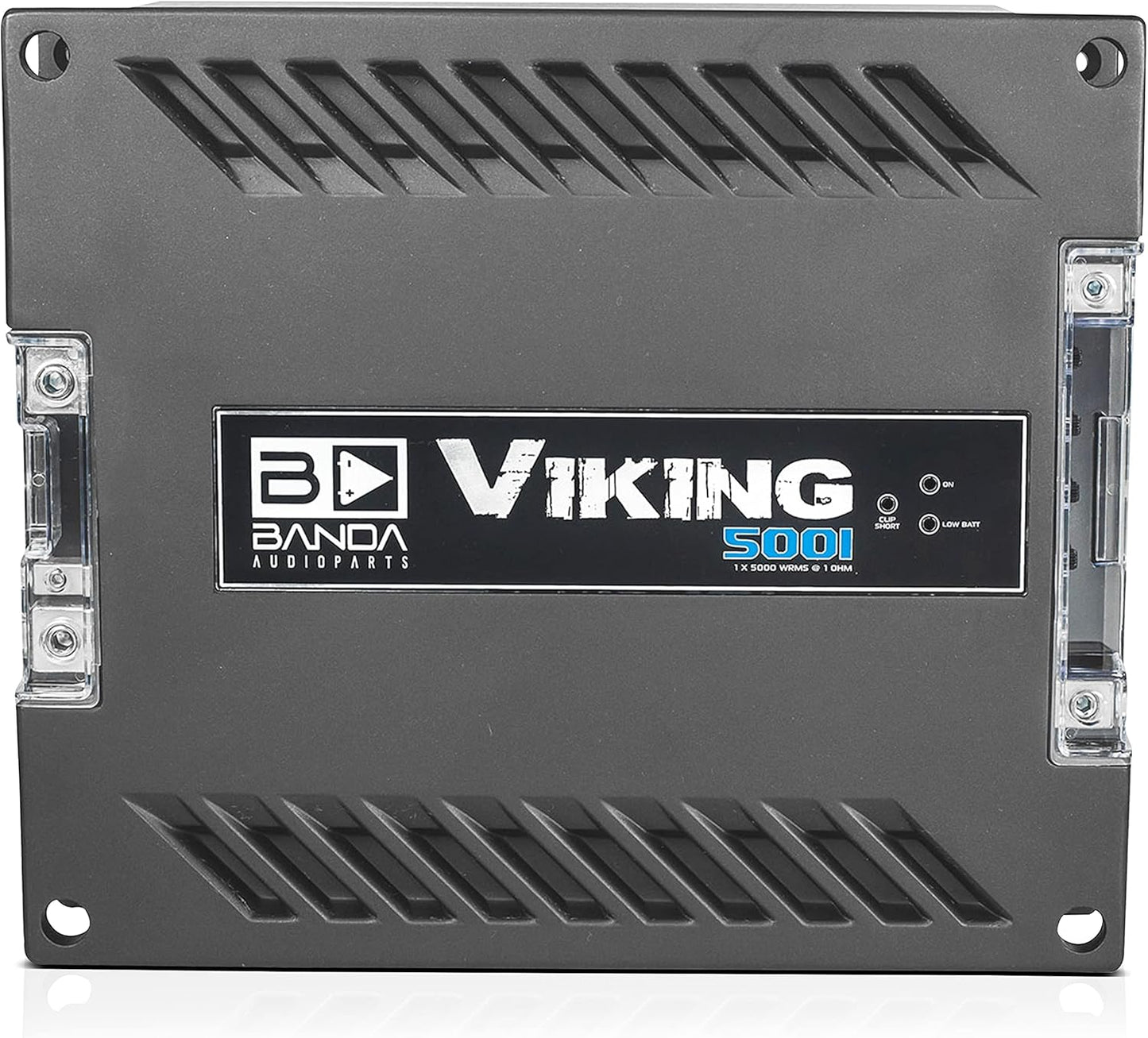

Banda Viking 5001 Car Amplifier 5000 WATTS RMS 1 OHM
About the Product
The VIKING Line is intended for those who really seek a powerful sound. In this line we have some models that are featured in major championships worldwide.
It also has a 100% aluminum chassis that offers better heat dissipation, resulting in low battery consumption and great performance.
The Viking 5000 delivers 5000 Wrms on 1 channel at 1 Ohm. Used in medium and large projects as it is a high performance amplifier, it has a frequency response of (5Hz – 5kHz) and can be used to play various types of speakers, such as Subwoofer, Woofers and Mid-Bass.
|
lass |
D |
|
Total Power 14,4 @ 1 Ohm |
6200 WRMS |
|
Total Power 14,4 @ 2 Ohms |
4300 WRMS |
|
Total Power 12,6 @ 1 Ohm |
5500 WRMS |
|
Total Power 12,6 @ 2 Ohms |
3600 WRMS |
|
Efficiency @ 2 Ohms |
77% |
|
Efficiency @ 1 Ohm |
67% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+Noise |
<1% |
|
Input Sensitivity |
40mV – 2V |
|
SNR |
90dB |
|
Frequency Response (Key OFF) |
5 to 5KHz (-3dBs) |
|
Frequency Response |
20 to 5KHz (-3dBs) |
|
Bass Bosst @ 45Hz |
Variable 0 to +18dBs |
|
HPF (Subsonic) |
20 to 80Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Crossover) |
80 to 5kHz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
250 A |
|
Current at Rest |
3,5 A |
|
Average Current Draw (Sinusoidal) |
600 A |
|
Average Current Draw (Music) |
270 A |
|
Power Wire Gauge (min. Recommended) |
50mm / 0 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 6mm / 2 x 3 AWG |
|

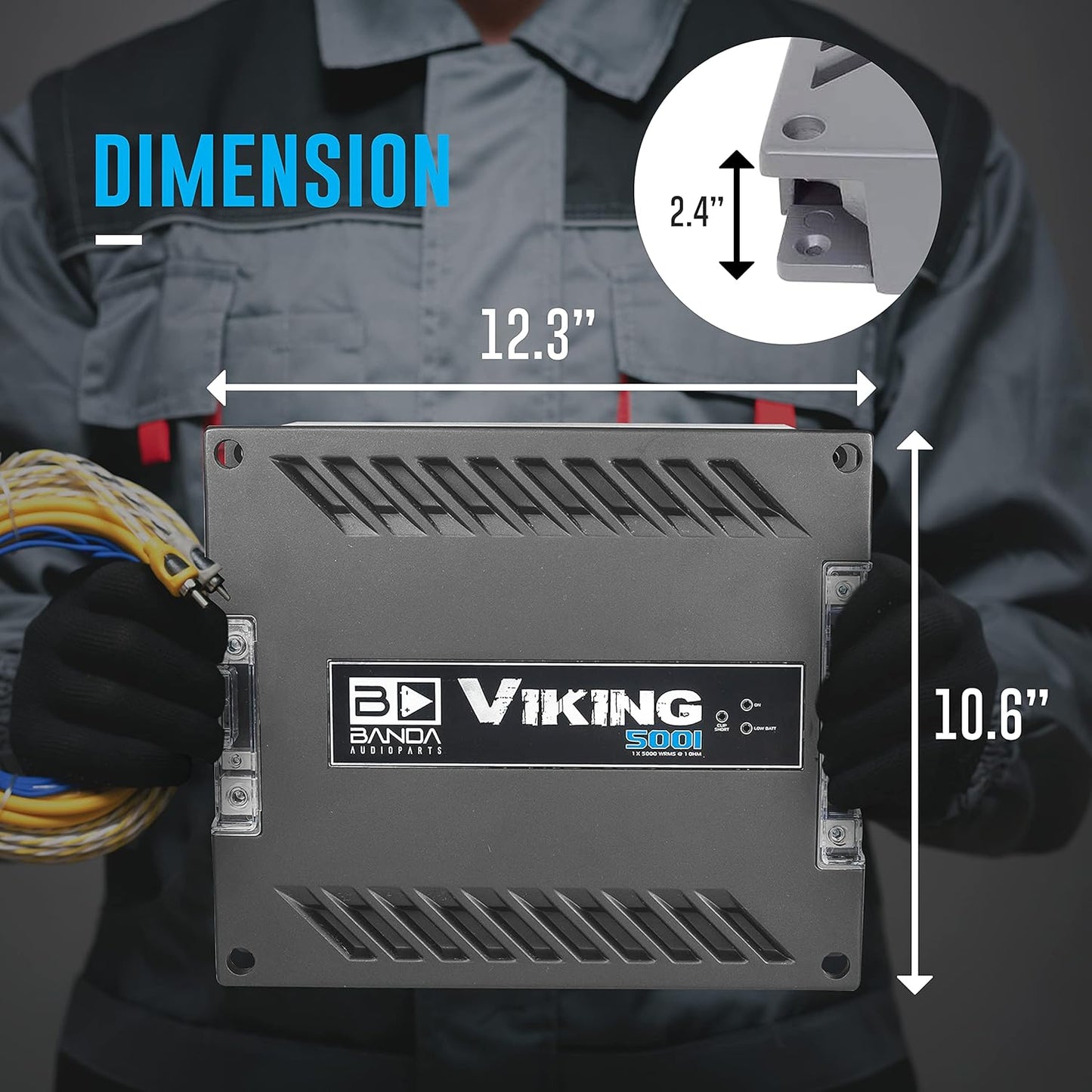

Weight (Lb) |
11,9 |
|
Height (in) |
2,4 |
|
Width (in) |
10,6 |
|
Depth (in) |
12,3 |
