SKU:PRV-6MB200-V2
PRV AUDIO 6.5 Inch Midbass Speaker 6MB200 v2 8 Ohm
About the Product
The PRV Pro Audio 6MB200 v2 midbass woofer offers exceptional durability and smooth punch of mid bass response in a small enclosure. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.
- A deep midbass response along with a strong vocal response
- Outstanding durability and strong impactful midbass even in small enclosures
- Natural paper cone and double-roll surround for smooth response
- Handles 200 Watts, guaranteeing endurance at loudest volumes
- Impressive choice for high output home, car, and professional audio systems – 8 Ohm
The 6MB200 v2 now has a more extended midrange response, up to 6.5 kHz giving it clean vocals. A perfect option for mid bass speaker replacements in three-way cabinets.
The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment.
Its light weight of only 3.3 Lbs helps to keep your enclosure light, making it perfect for portable audio applications.
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 100 Watts |
| Continuous Program Power (RMS) | 200 Watts |
| Max Peak Power | 400 Watts |

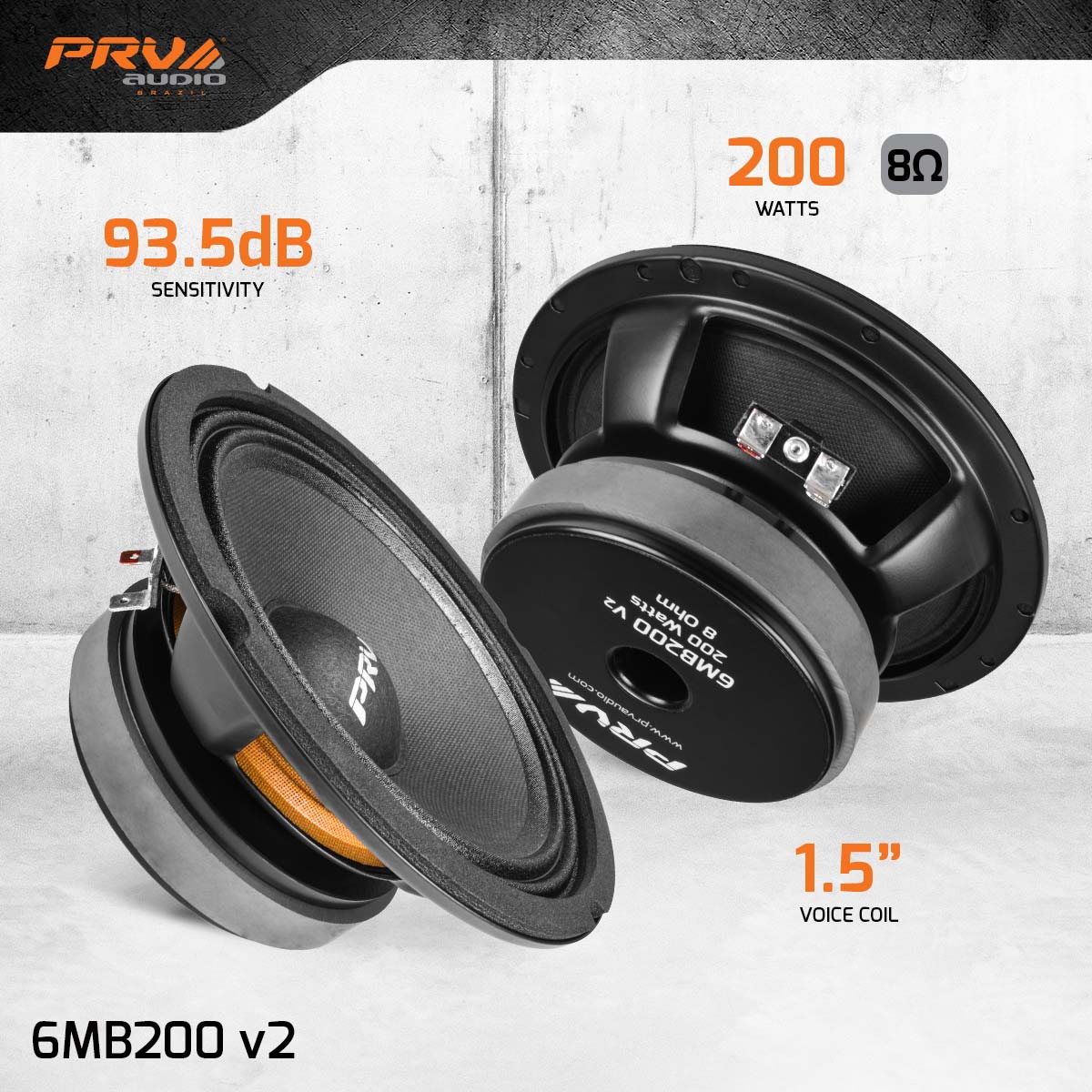

| Sensitivity 2.00V at 1m | 93.5 dB |
| Recommended Hi Pass Crossover* *For Full Power Handling | 125 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 125 – 6,500 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 12.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.8 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 4.13 l |
| Excursion (mathematical)*** | Xmax | 4.80 mm |
| Free Air Resonance | Fs | 123.28 Hz |
| Mechanical Factor | Qms | 20.81 |
| Electrical Factor | Qes | 1.20 |
| Total Factor | Qts | 1.13 |
| Cone Area | Sd | 154 cm² |
| Mechanical Mass | Mms | 11.57 g |
| Bl Factor | Bl | 7.05 Tm |
| Dc Resistance | Re | 6.7 Ohms |
| Inductance | Le | 0.25 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 10.55 g |
| Mechanical Compliance | Cms | 0.144 mm/N |
EXTRA INFO

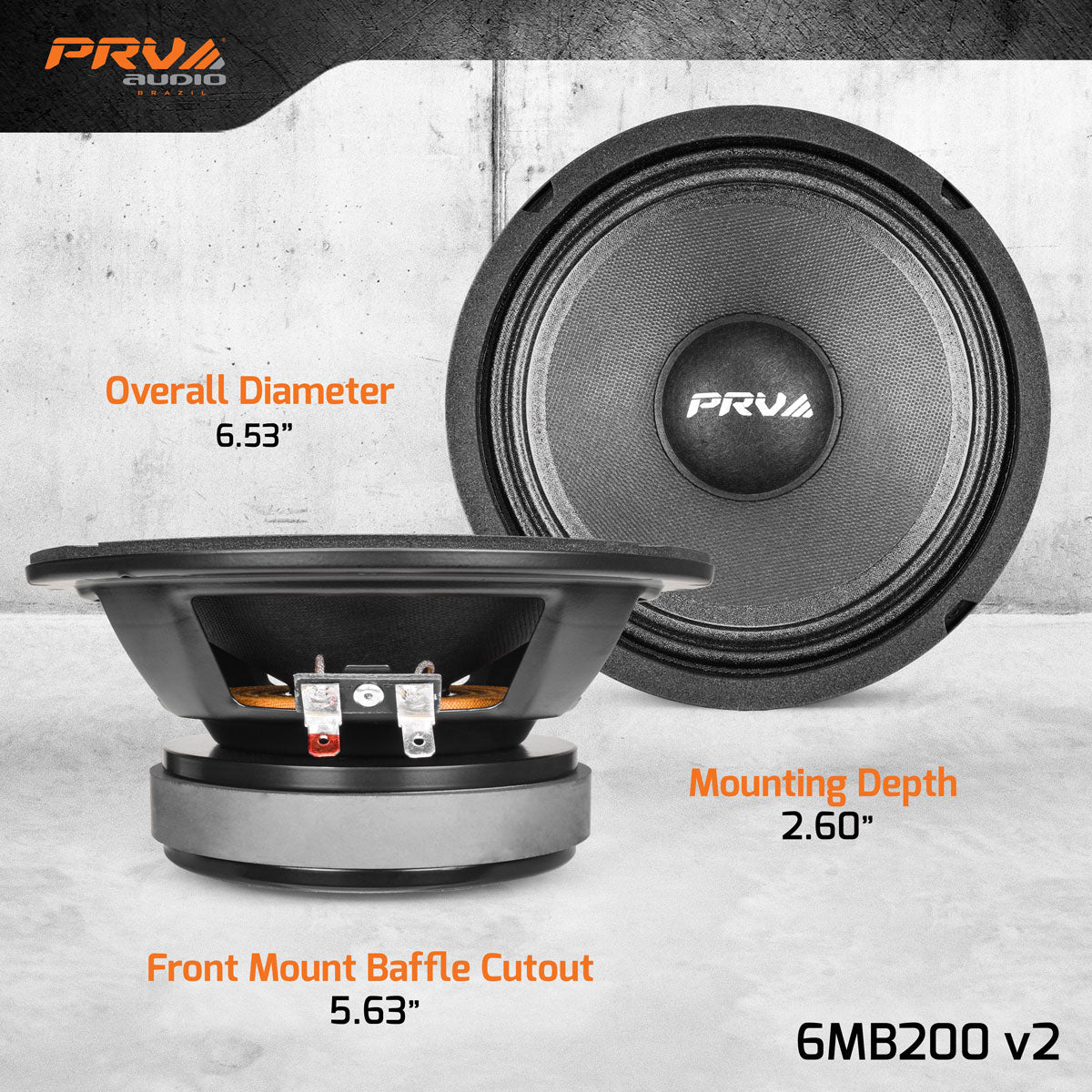

| Overall Diameter | 6.53″ (166 mm) |
| Front Mount Baffle Cutout | 5.63″ (143 mm) |
| Mounting Depth | 2.6″ (66 mm) |
| Overall Depth | 2.91″ (74 mm) |
| Net Weight | 3.30 Lbs (1.50 kg) |
| Shipping Weight | 3.62 Lbs (1.64 kg) |
| Carton Dimensions W x L x H | 7.17″ x 7.17″ x 4.13″ (182 x 182 x 105 mm) |
