SKU:PRV EQ7-15

PRV EQ7-15 15 Volts 7 Band Car Audio Equalizer

About the Product

PRV Audio Group has engineered the EQ7-15 equalizer for car audio enthusiasts to finally be able to take full control of their custom and competition sound system in the highest quality of sound amplification. its 7 bands of equalization allow you to fine-tune your sound, dialing your music into perfection.

  • 1/2 – DIN Graphic Equalizer with 2 Selectable inputs
  • 7- Band Graphic Equalizer: 50Hz, 125Hz, 320Hz, 750Hz, 2,200Hz, 6,000Hz, 16,000Hz
  • 6-Channel / 15-Volt RCA Line-Level Output ( Front, Rear and Subwoofer)

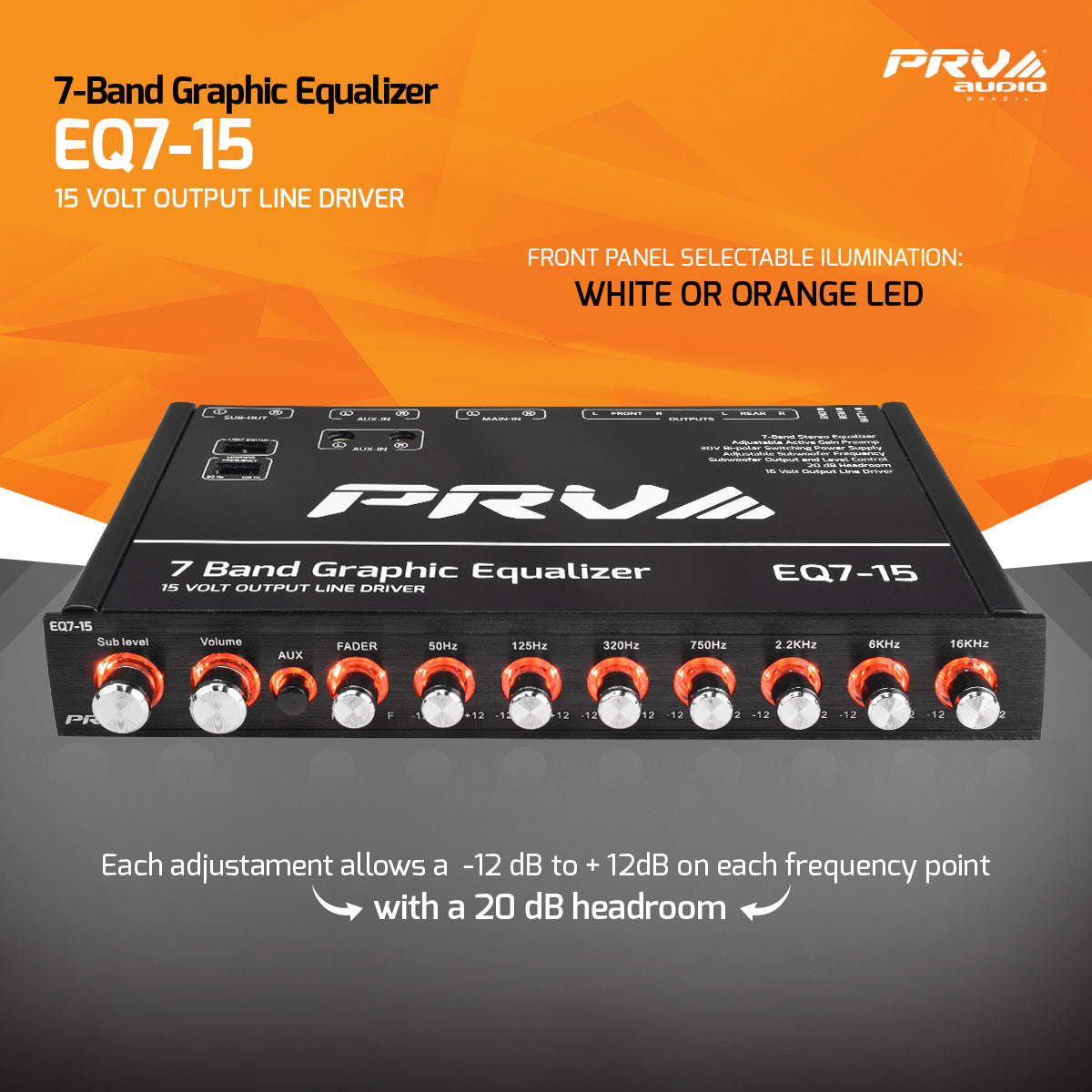

  • Front Panel Selectable illumination: White or Orange LED
  • RCA AUX Input with Variable Gain Adjustment
  • Subwoofer level control with a Selectable 12dB Low-Pass Filter (60Hz or 120Hz)
  • Fader Control (Right/ Left)
Number of bands 7 Band Equalizer (-12 dB to +12 dB)
Adjustable Bands 50Hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
Eq Adjustment -12dB to +12dB
Frequency Response 10Hz to 50kHz
Maximum Output Voltage 15 Volts
THD / S/N ratio 0.005% / 100dB
Stereo Separation 82dB/ 1kHz
Headroom 20dB
Operating Voltage 11 to 15 volts
Input Sensitivity 50mV to 3V

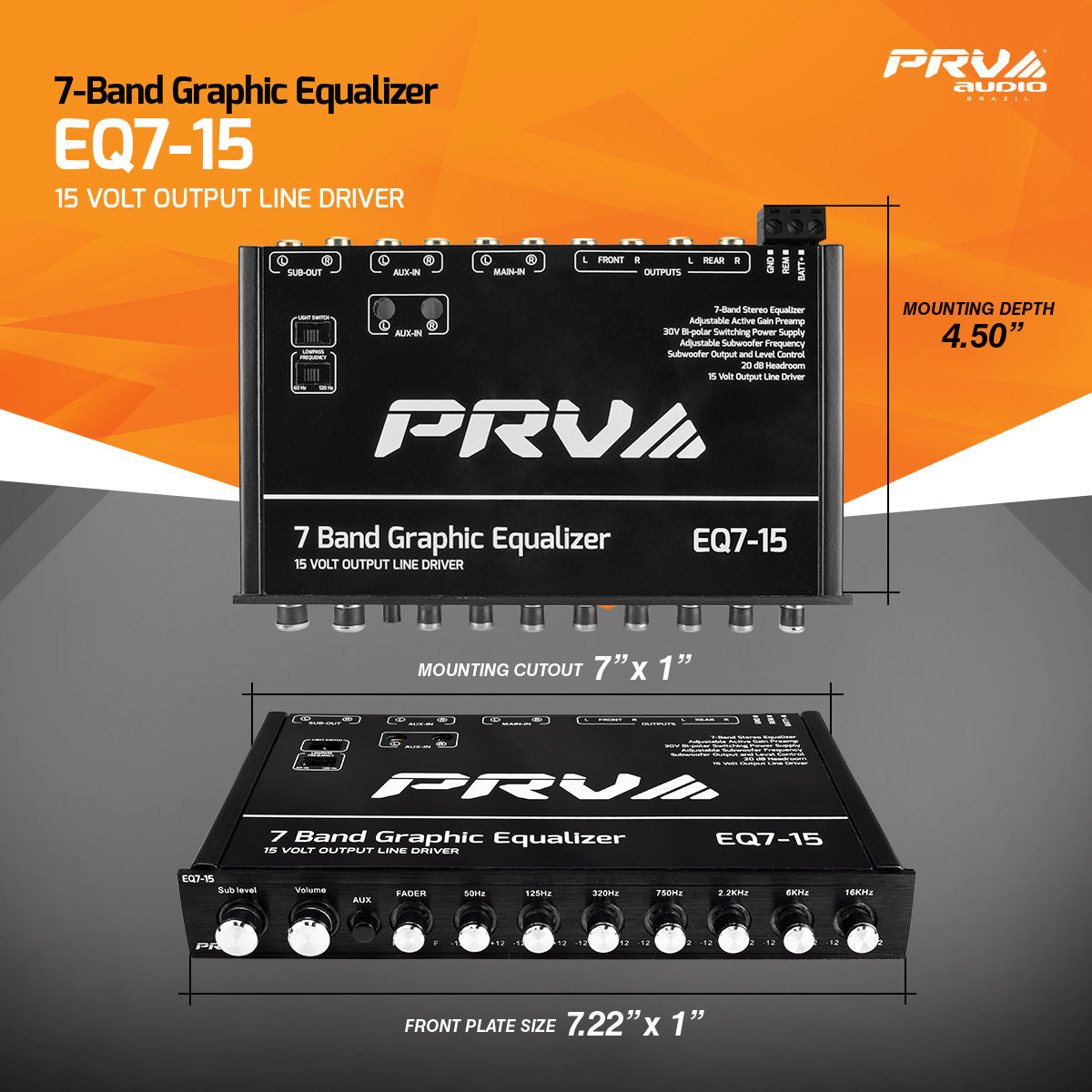

Overall Size 7.22″ wide x 5″ deep x 1″ height
Mounting Cutout 7″ wide by 1″ height
