SKU:PRV EX4.6 PRO

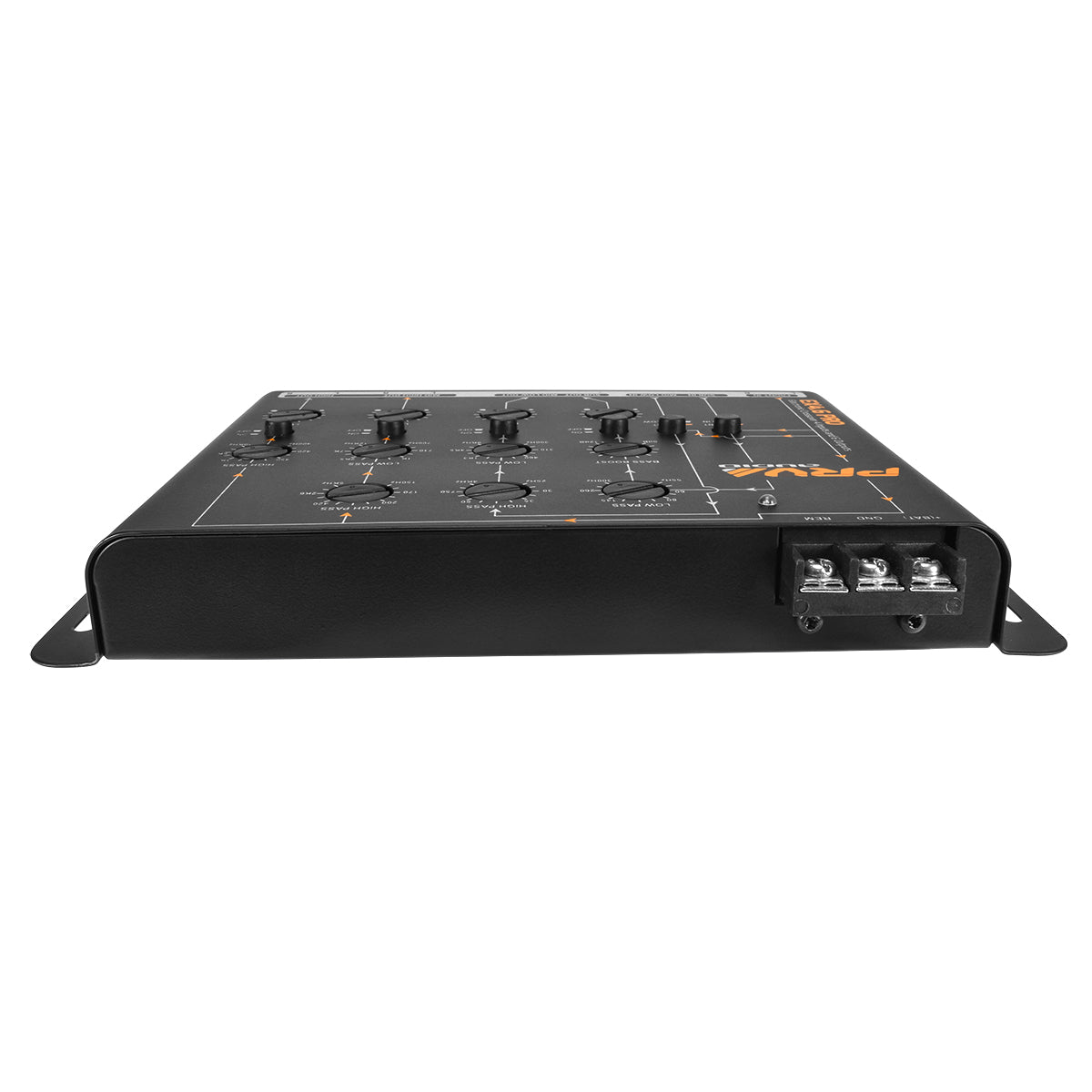

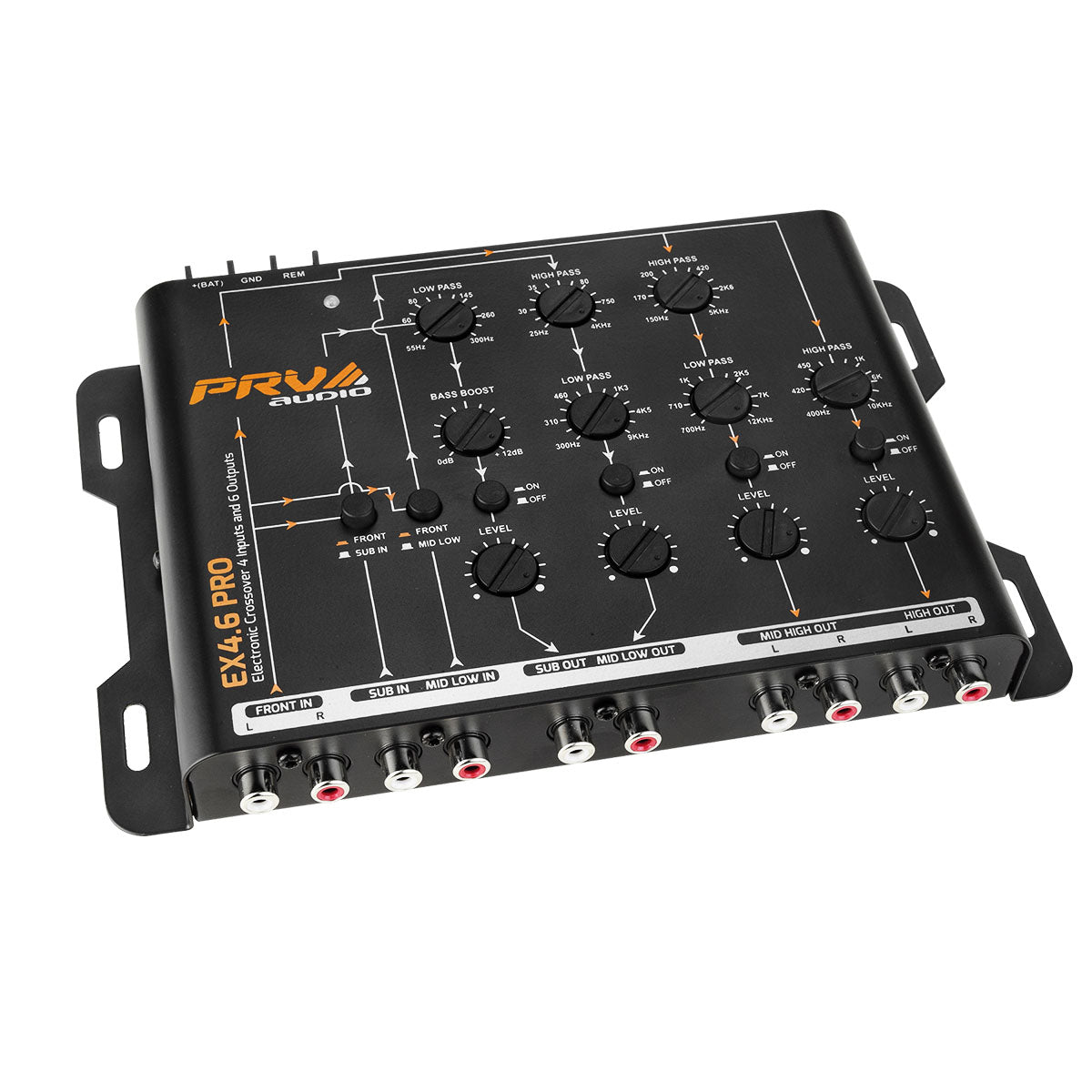

Electronic Crossover PRV EX4.6 PRO

About the Product

Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX4.6 PRO electronic crossover, giving you the power to customize your sound with a wide frequency of filter adjustments. Featuring 4-way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus adjustable BASS-BOOST option on the Sub Out channel. Enhancing Your Audio System!

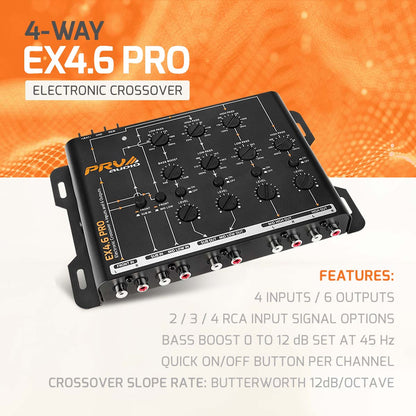

  • 2/3/4 RCA Input Signal Options
  • 9 Volts RMS maximum output
  • Bass Boost 0 to 12dB set at 45Hz
  • Quick On/Off button for each channel
  • Crossover slope rate: Butterworth 12 db/Octave

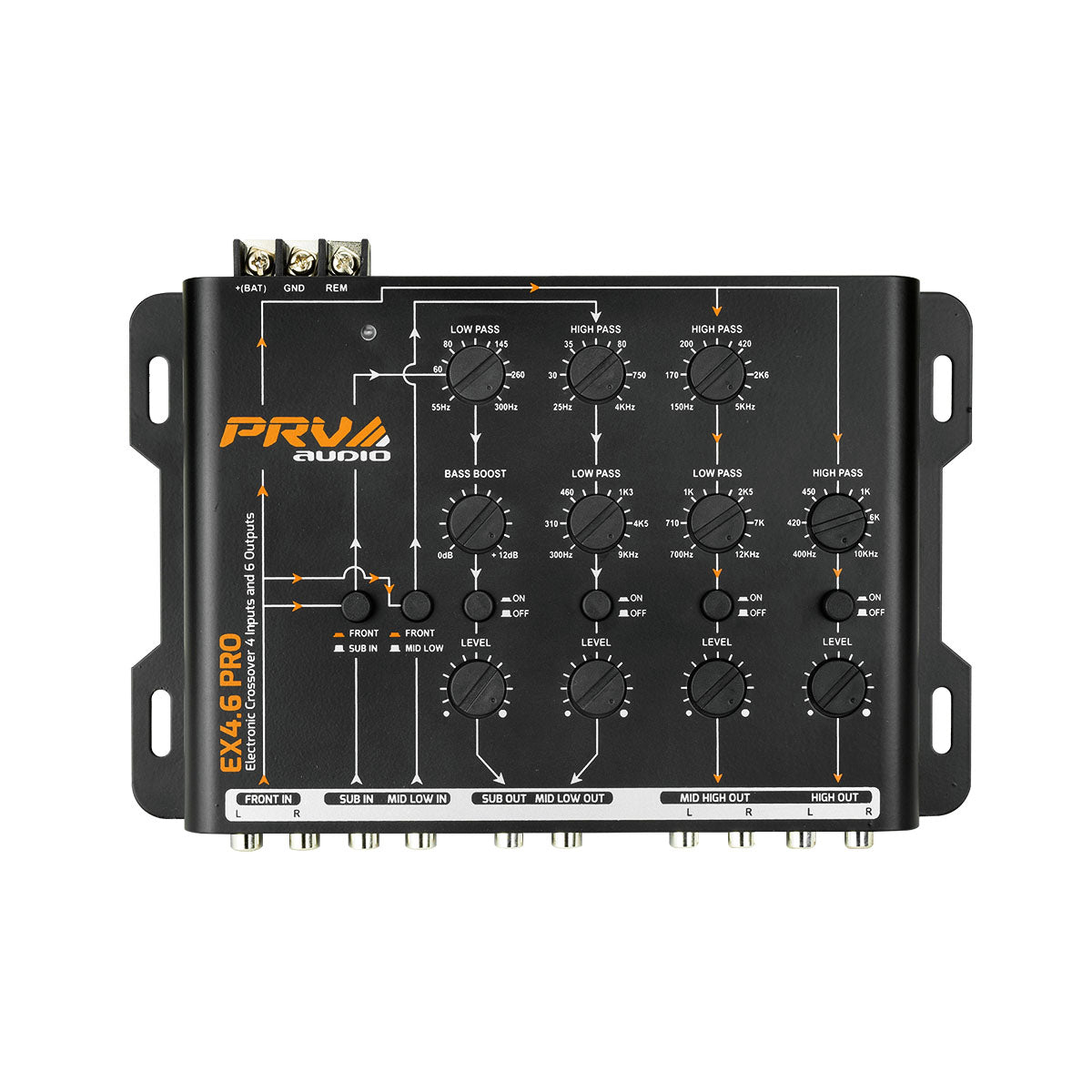

Input and output Functions:
– 2/3/4 RCA inputs for 3 Channels – 1 Stereo and 2 Mono

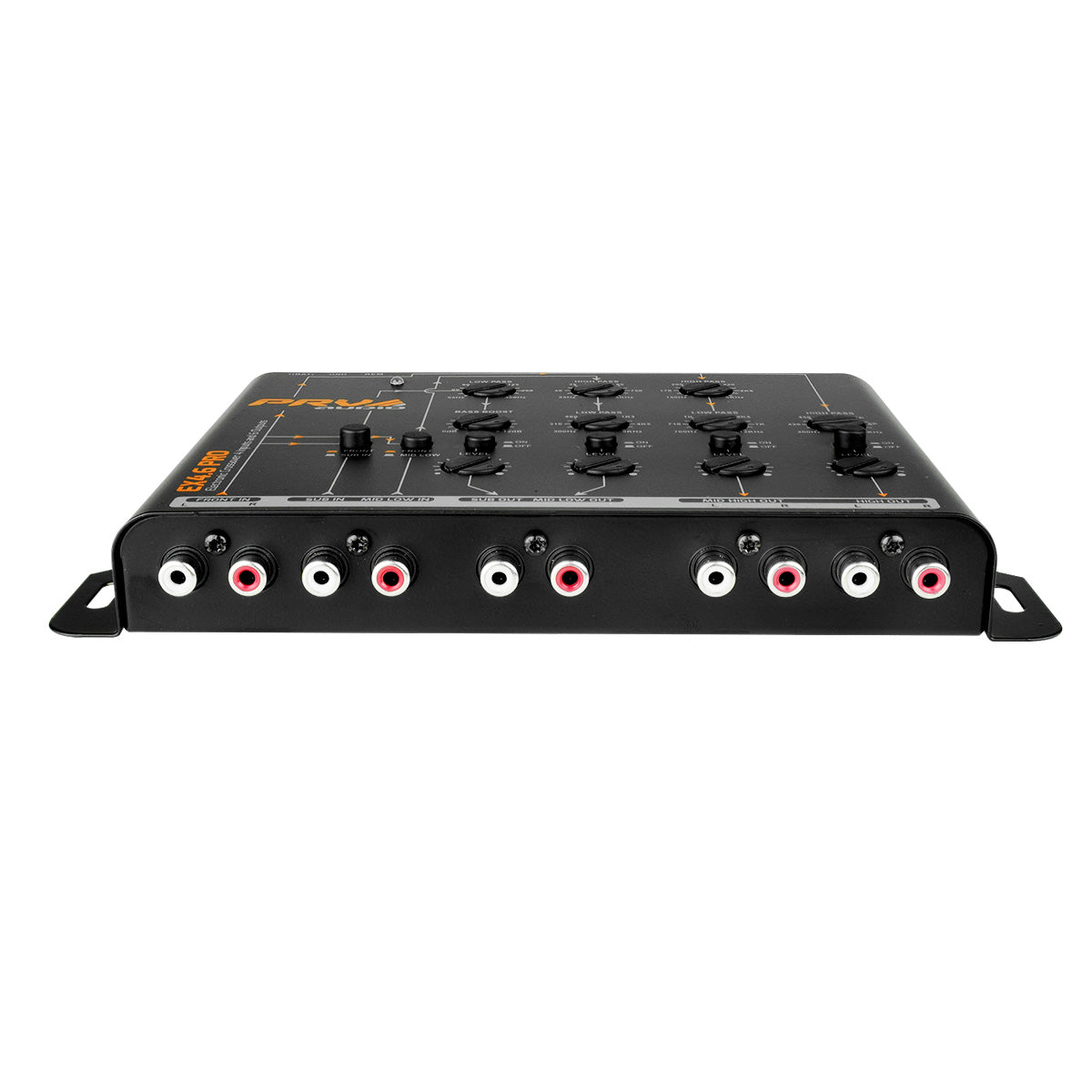

– 6 RCA outputs for 4 Channels – 2 Stereo and 2 Mono

Crossover Functions:
– High Pass Filter allows adjustment:
It determines the beginning of the channel operating frequency.
This filter allows the amplifier to work with many different applications such as: Woofer / Midbass / Midrange / Compression Driver components allows the elimination of low frequency sounds, delivering the right frequency range to avoid damage to the components.
– Low Pass Filter allows adjustment:
It determines the end of the channel operating frequency.
This filter allows you to fine tune the amplifier frequency response to match to the components’ frequency response. This ensures that only the lowest frequencies are reproduced by the amplifier.
– Bass Boost allows adjustment:
Bass Equalizer: provides a “gain attenuation” 0 to + 12dB at center frequency of 45Hz .
– On/Off Buttons:
This button allows to quick turn On and Off each individual channel.
– Level knobs:
This control adjusts the output signal on channel; which allows an optimal adjustment to the output signal levels to the amplifiers.

GENERAL SPECIFICATIONS



High Out Channel High Pass – 400Hz – 10KHz (12dB/8a)
Mid High Out Channel High Pass – 150Hz – 5KHz (12dB/8a)
Mid Low Out Channel High Pass – 25Hz – 3KHz (12dB/8a)
Sub Out Channel Low Pass – 50Hz – 250KHz (12dB/8a) Bass Boost – 25Hz – 110Hz (0 – +12dB; 45Hz)
Maximum Output Voltage 9V RMS
Maximum Input Voltage 4V RMS
Signal to Noise >90dB
Input Impedance 10K Ohms
Harmonic Distortion < 0.02% THD
Channel Separation > 80dB
Frequency Response 20Hz-200KHz
Supply Voltage 10V – 16V DC
Current Consumption 200mA
Impedance Output 470 Ohms
Dimensions (H x W x L) 1.30″ x 9″ x 6.30″
Weight 1.45 Lbs
