SKU:PRV QS3000 2 Ohm

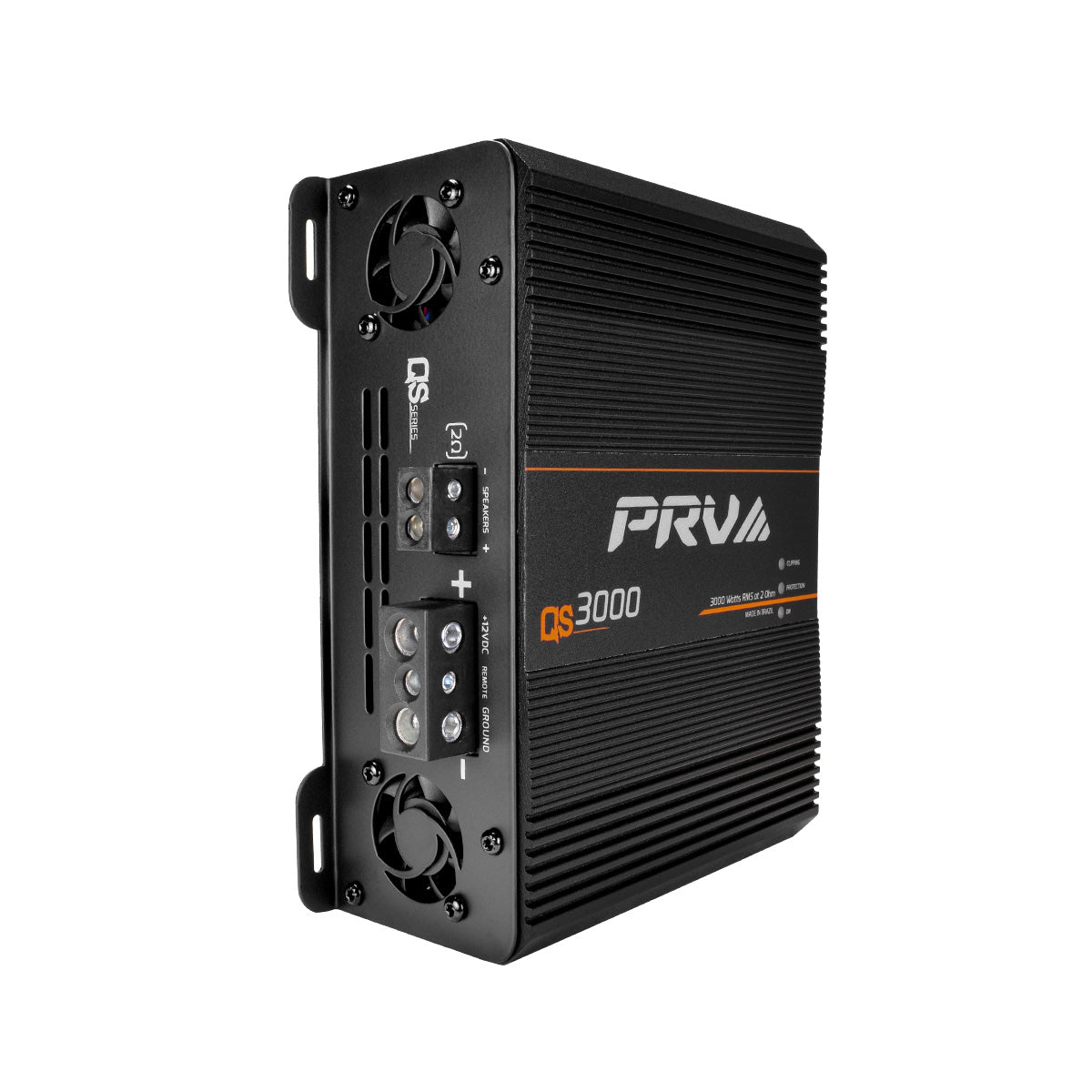

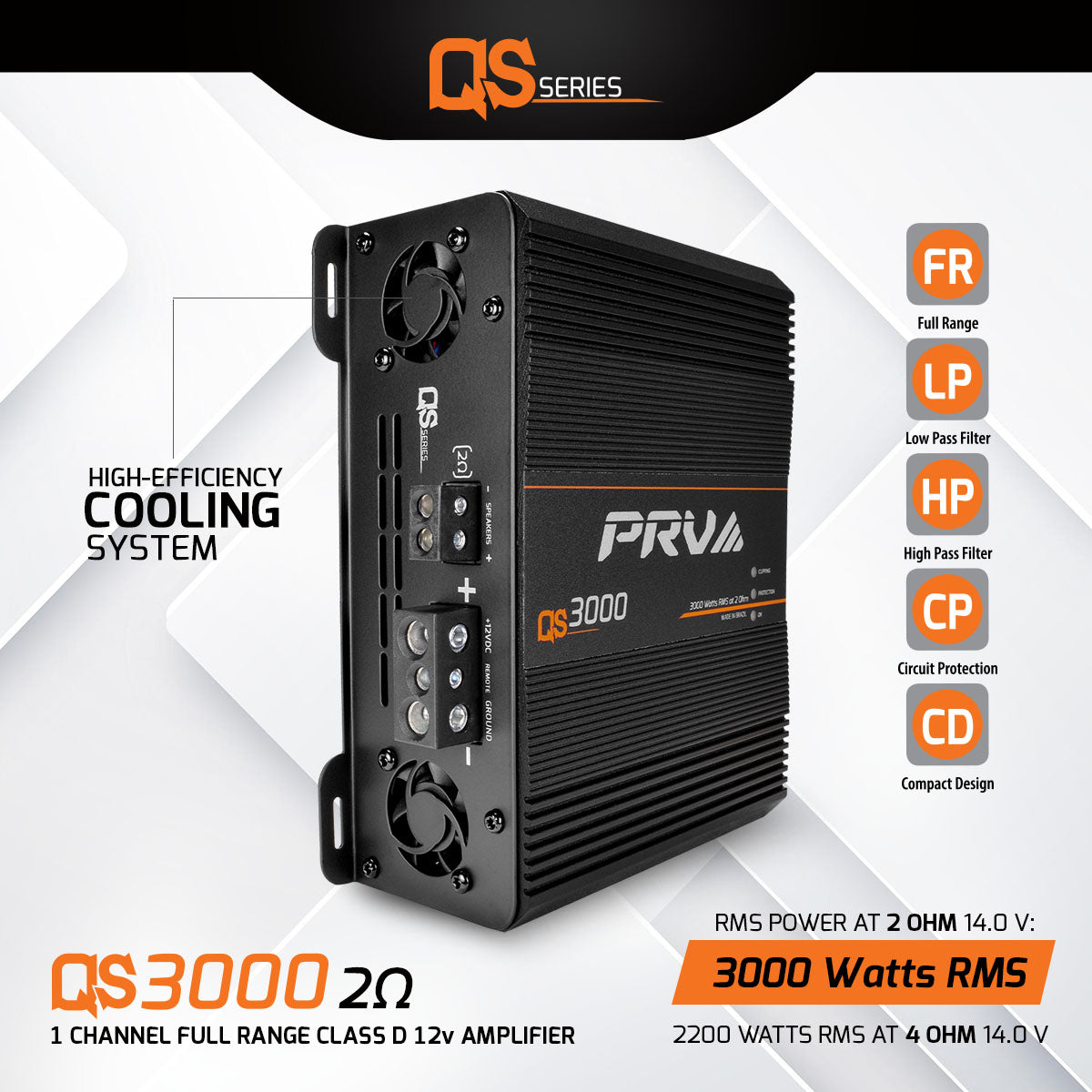

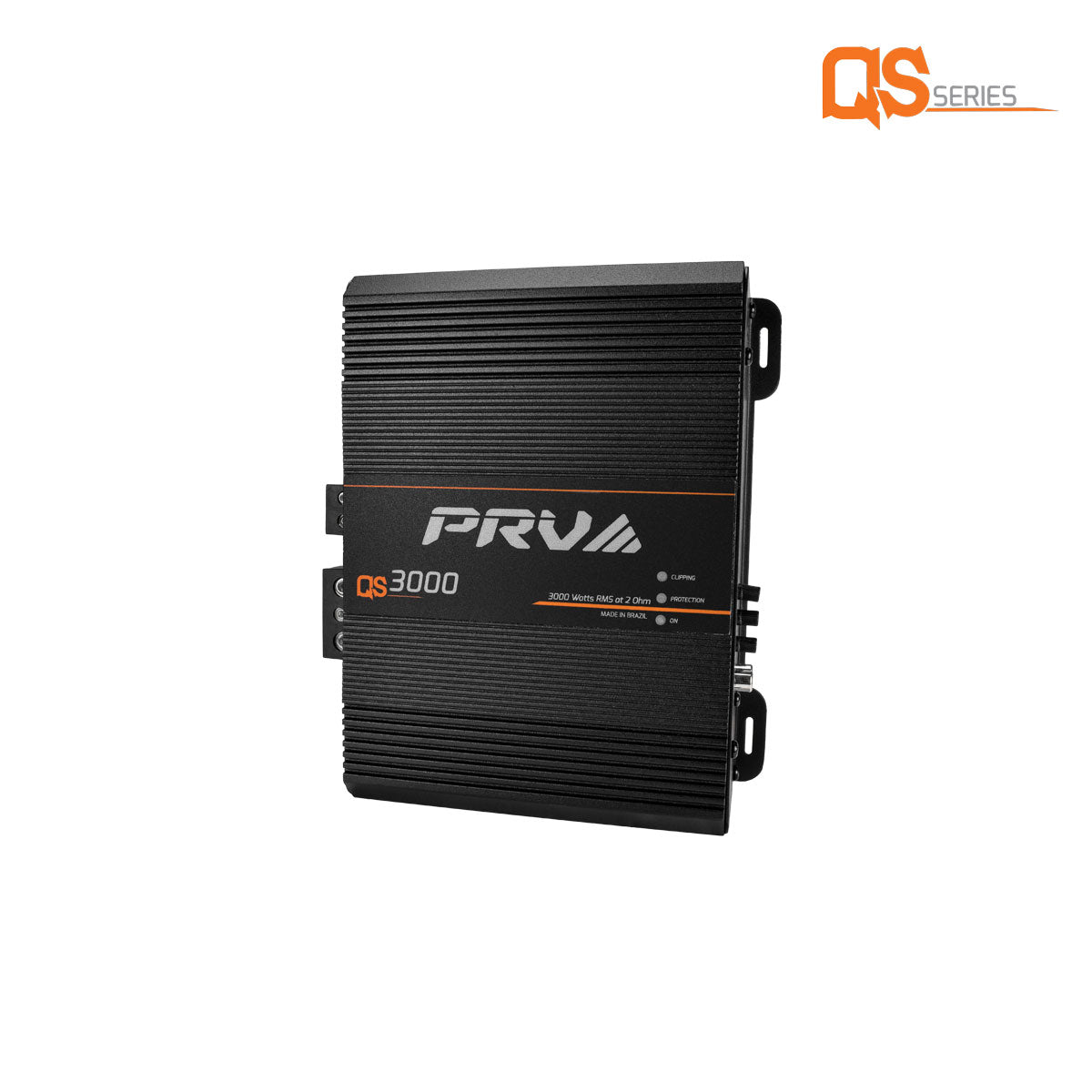

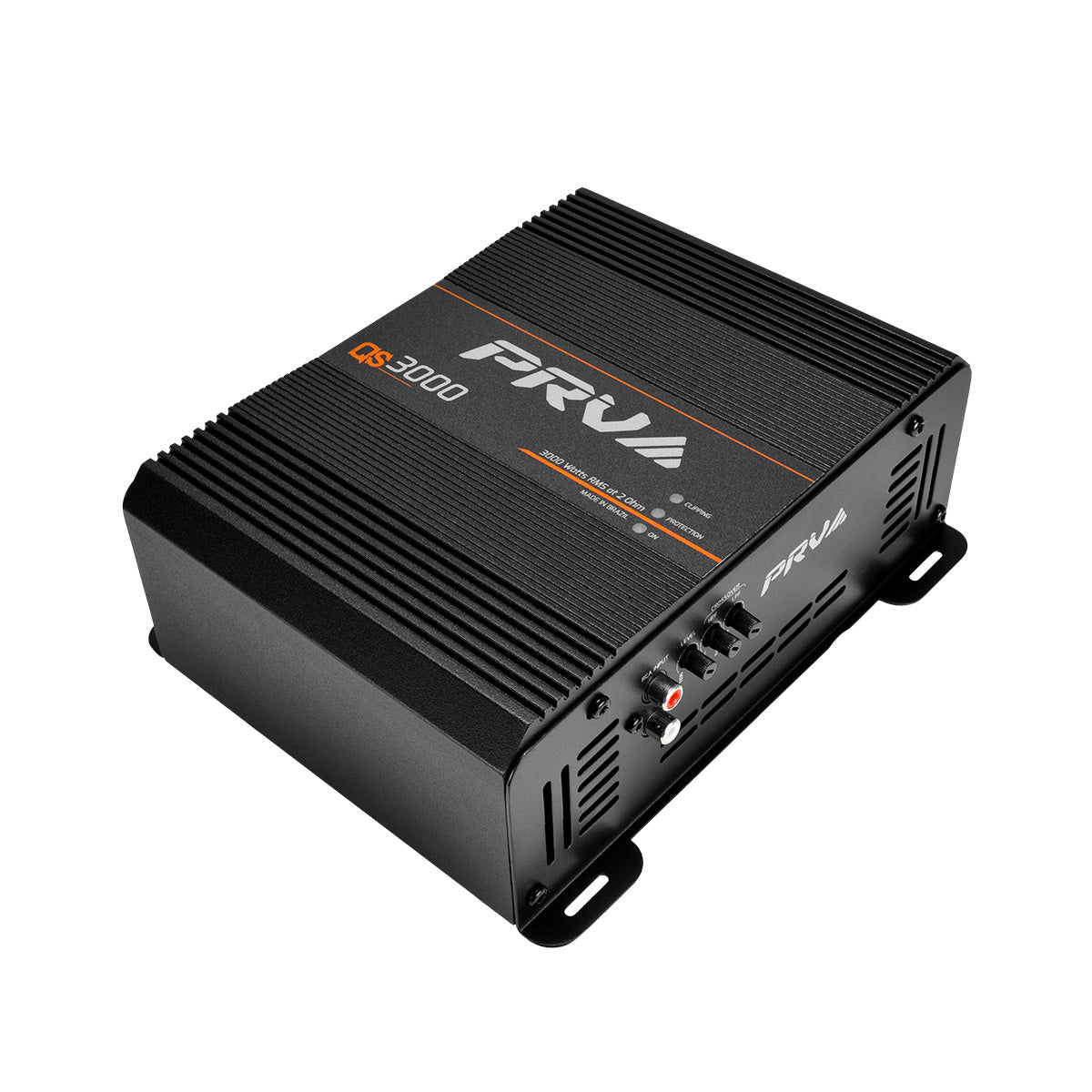

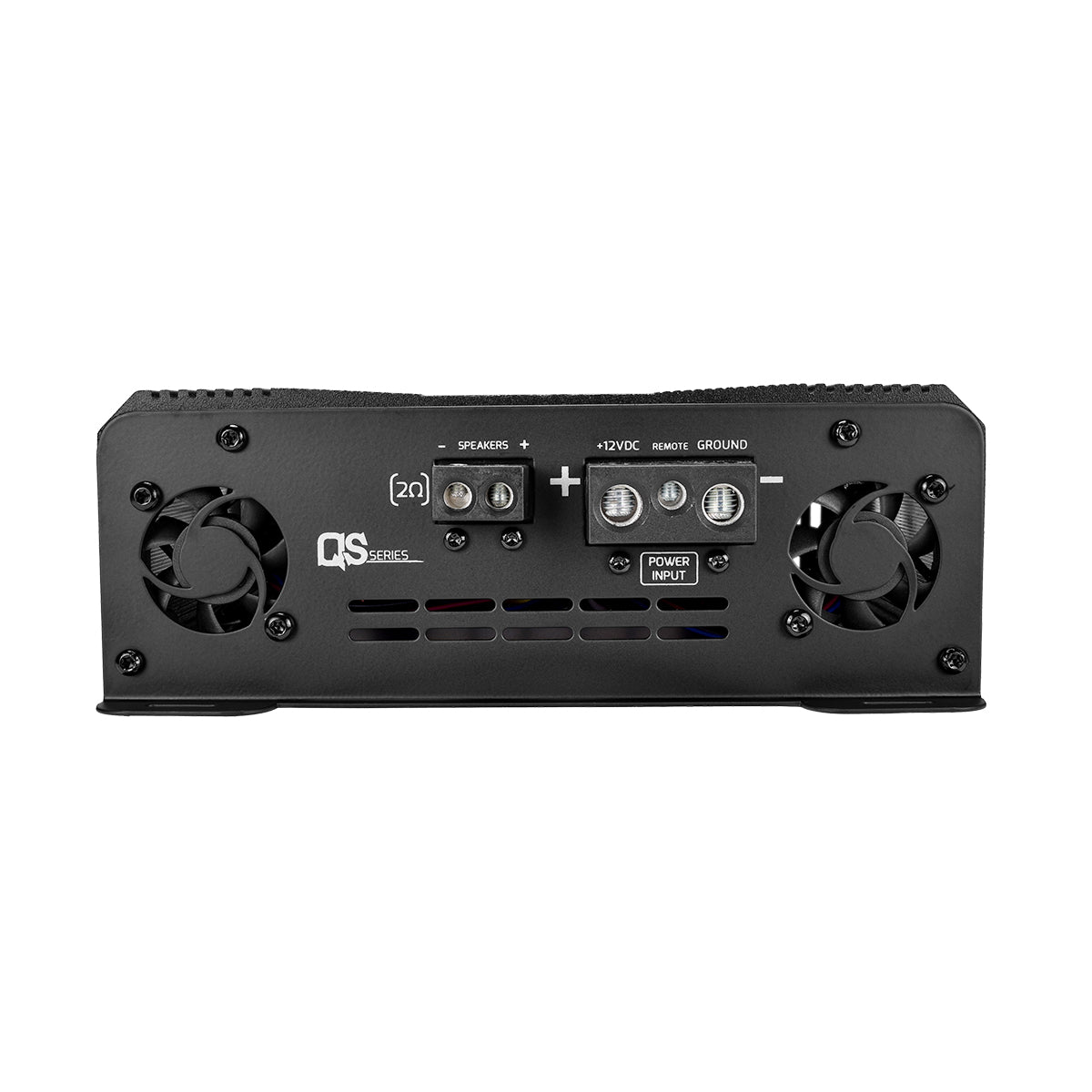

PRV Audio QS3000 2 Ohm 3000 Watt Amp Car Audio Amplifier Full Range
About the Product
QS Series amplifiers are all about efficient design capable of full-range frequency response at a great price!
The QS3000 features a regulated power supply that is able to constantly deliver power and provides an unsurpassed efficiency rate of 80–90% in a small aluminum heatsink.
- 3000 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology
- 1 Channel car audio amplifier stable at 2 Ohm gives you the benefit of wiring multiple speakers and dividing the power.
- Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicle’s electrical system!

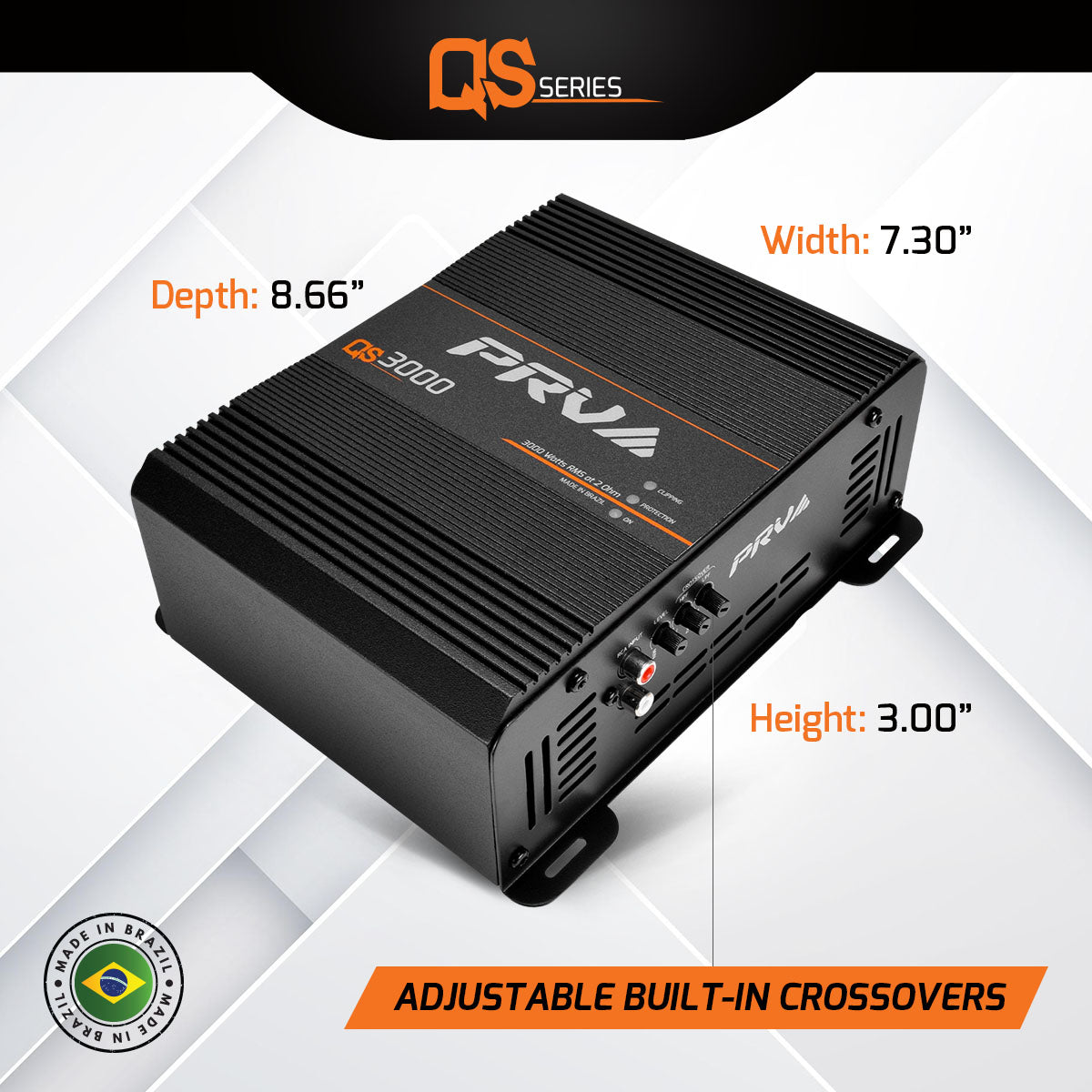

- A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 7.30″ Wide x 8.66″ Length x 3.00″ Height
- 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.
| Channels | 1 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 3000 Watts |
| Rated RMS Power at 14.0 V at 4 Ohm | 2200 Watts |
GENERAL SPECIFICATIONS
| Impedance | 2 Ohm |
| Channels | 1 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 3000 Watts |
| Rated RMS Power at 14.0 V at 4 Ohms | 2200 Watts |
| Average Efficiency | 80% |
| Operating Voltage | 9 to 16 Volts |
| Musical Current Draw | 150 A |
| Minimum Power Wire Input | (OFC) 4 Gauge |
| Protection Fuse or Circuit Breaker | 150 Amps |
| Minimum Speaker Wire Output | 14 Gauge |
| Frequency Response(-3dB) | 20 – 20,000 Hz |
| Min. Input Sensitivity for Max. Output | 200 mV |
| Signal Input | 1 Pair RCA |
| Signal to Noise | >90 dB |
| Protection System | Low & High Supply Voltage / Shortage on Output / Low Impedance on Output |
| Heat Sink Type | Heavy Duty Cast Aluminum |
| Dimensions ( W x D x H ) | 7.30″ x 8.66″ x 3.00″ |
| Weight | 5.10 Lbs |
