SKU:PRV-TW700Ti-CR

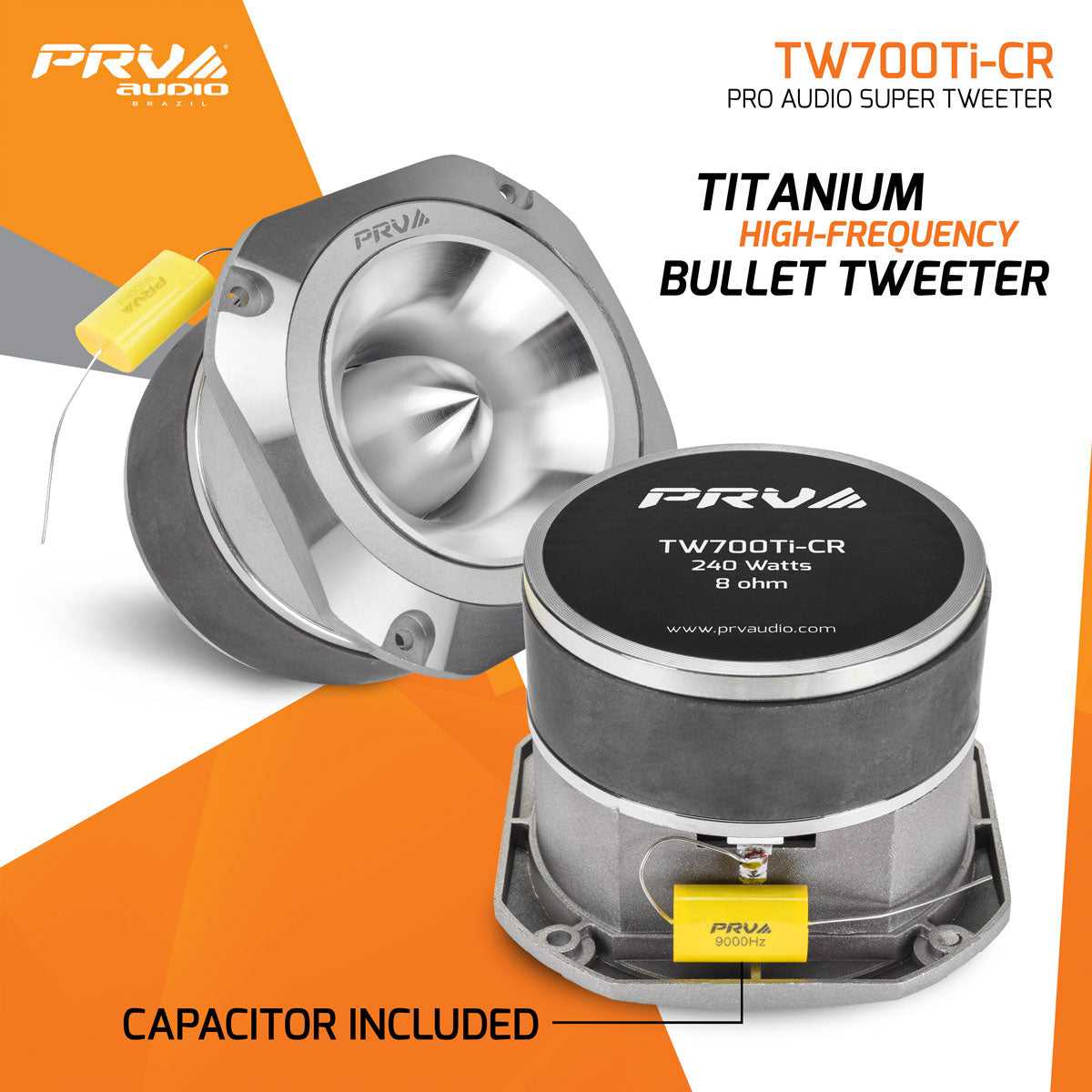

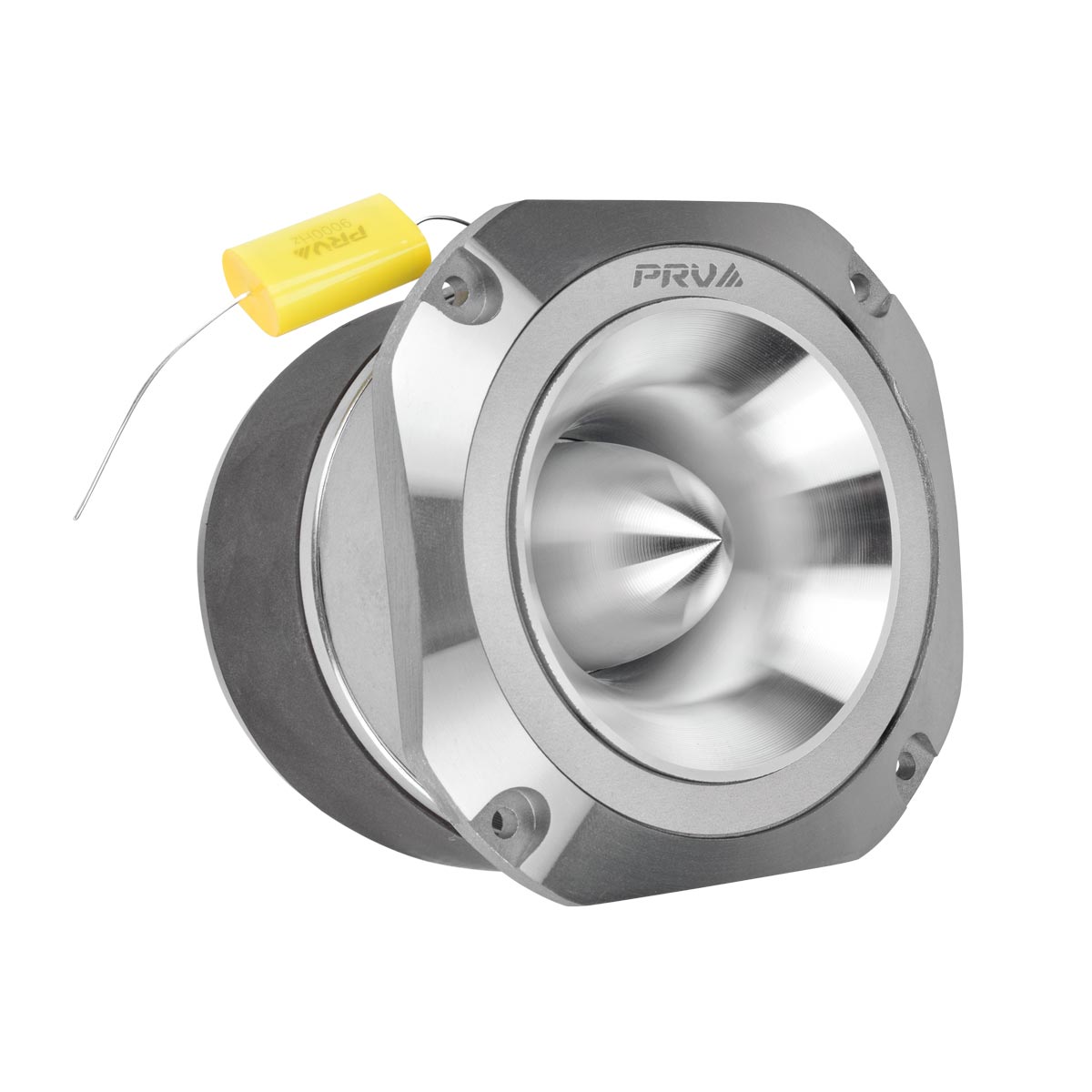

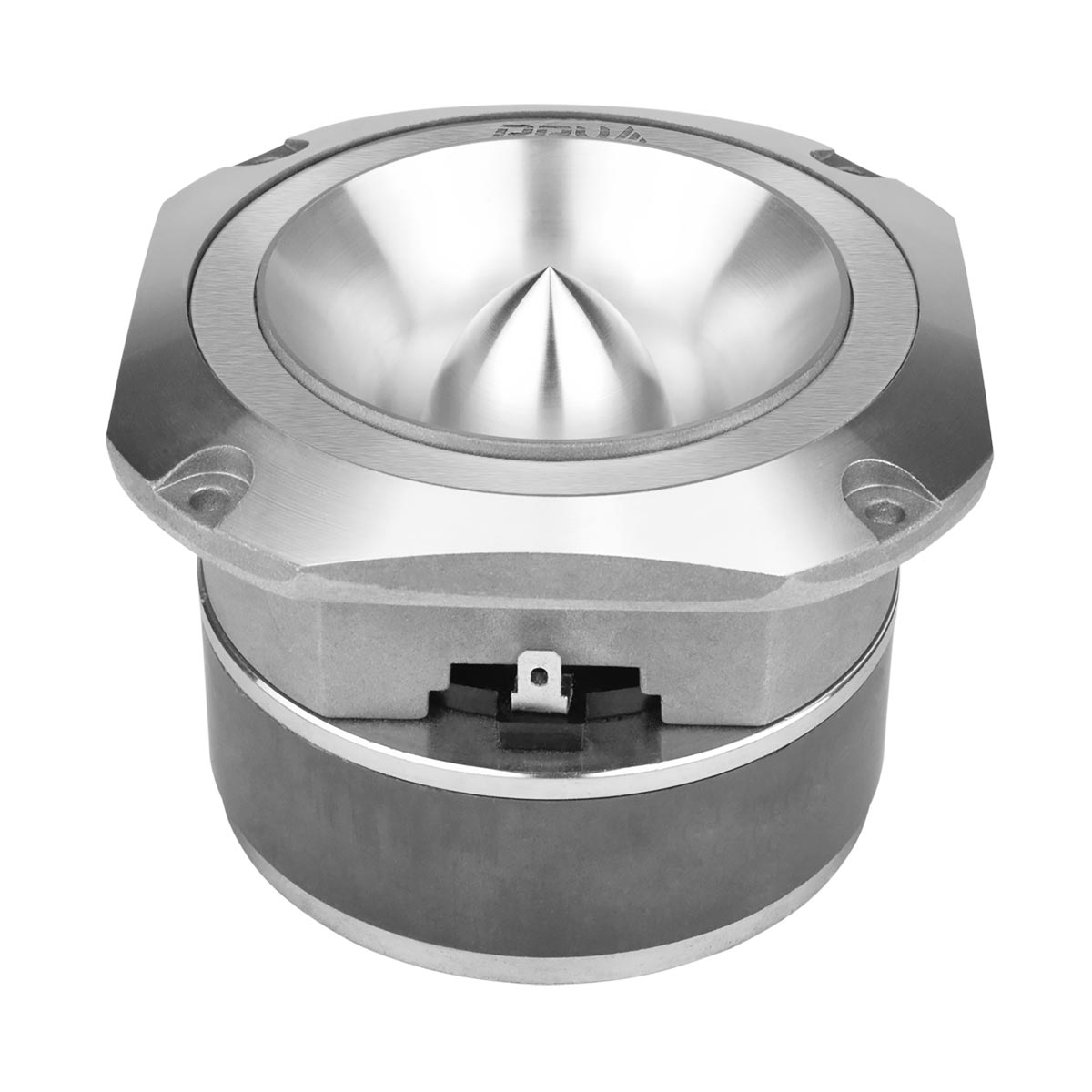

PRV AUDIO TW700Ti-CR Super Tweeter, 4" Titanium Bullet Super Tweeter 8 Ohm Chrome
About the Product
Add detail to any speaker with PRV Audio’s TW700Ti CHROME titanium bullet super tweeter! With high frequency response up to 20,000 Hz and a sensitivity of 107 dB at 1W/1m, the TW700Ti Series PRO Audio Tweeter can keep up with even the most demanding speaker systems.

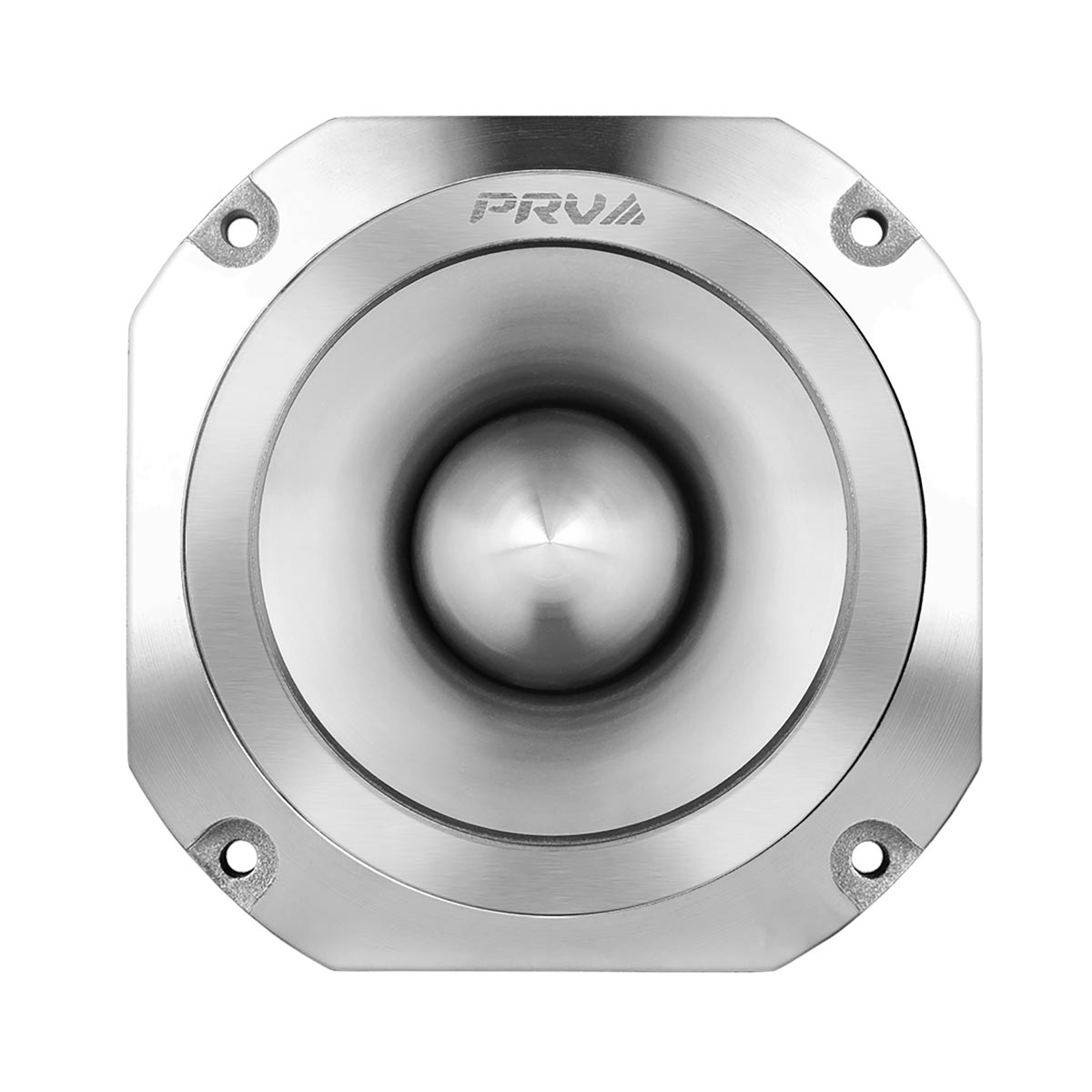

A square faceplate makes it easier to install, made from a strong aluminum horn, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.
- 4″ Square PRO Audio Super Tweeter – Built to Perform to add high output, high frequency response to large output systems
- High Temperature 1.5″ diameter voice coil capable of handling up to 240 Watts musical program power up to 240 Watts of amplifier RMS power
- Designed for high frequency reproduction at a high SPL level with low distortion thanks to its large motor.

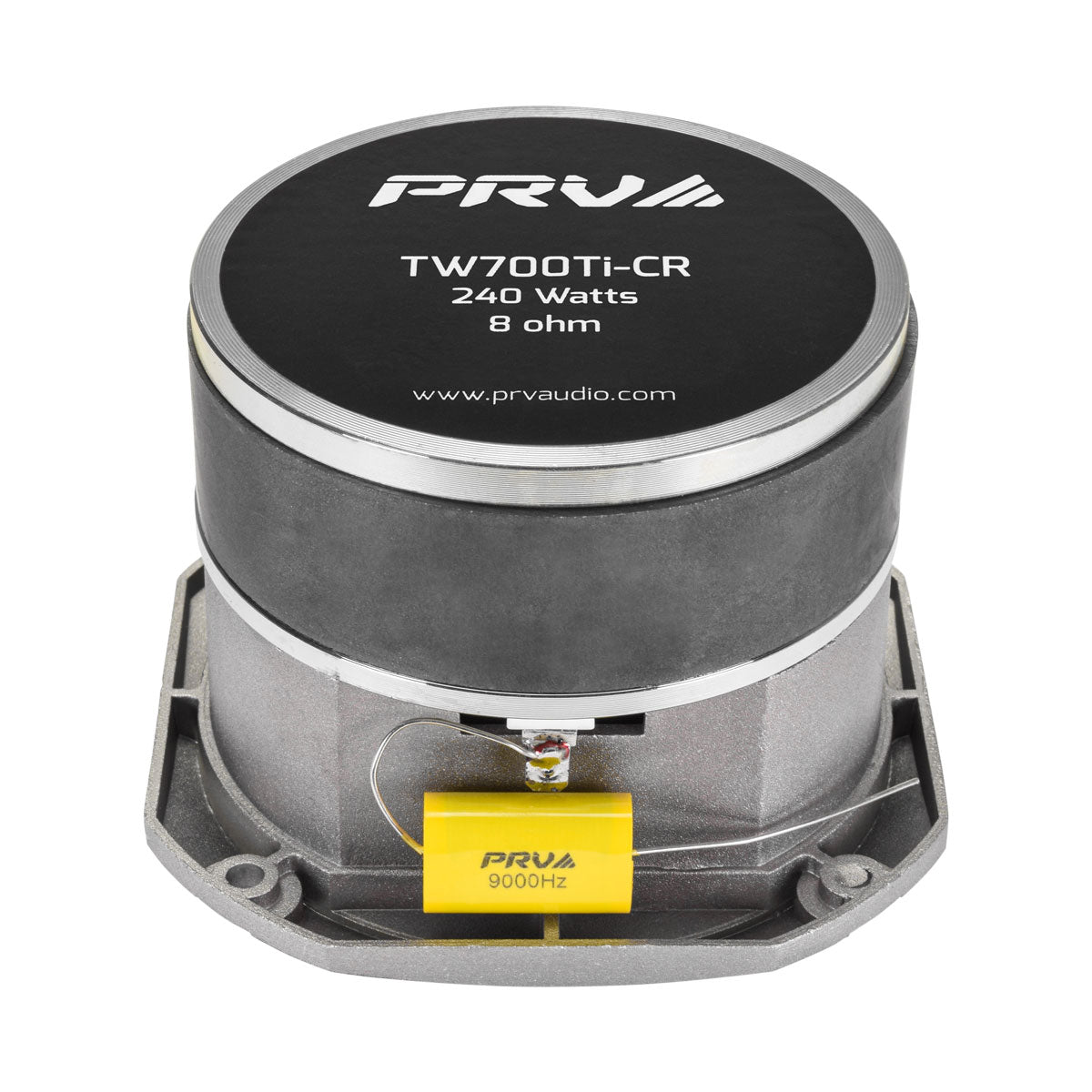

- The built-in capacitor acts as a crossover and attenuates the low frequencies for smooth frequency response.
GENERAL SPECIFICATIONS
| Nominal impedance | 8 Ohms |
| Nominal Power Handling | 120 Watts |
| Continuous Program Power | 240 Watts |
| Max Peak Power | 480 Watts |
| Sensitivity 2.83V at 1m | 107 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
5000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 3,500 – 20,000 Hz |
| Voice Coil Diameter | 1.5”(38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.60 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Depth | 2.97” (75.54 mm) |
| Mounting Depth | 2.55” (64.9 mm) |
| Overall Width | 4.05” (103 mm) |
| Overall Height | 4.05” (103 mm) |
| Cutout Diameter | 3.58” (91 mm) |
| Net Weight | 3.48 lbs (1.58 kg) |
| Shipping Weight | 3.62 lbs (1.64 kg) |
| Carton Dimensions W x L x H | 4.5” x 4.5” x 3.25” (114 x 114 x 82.5 mm) |
