SKU:PRV WGP14-50 GOLD CR

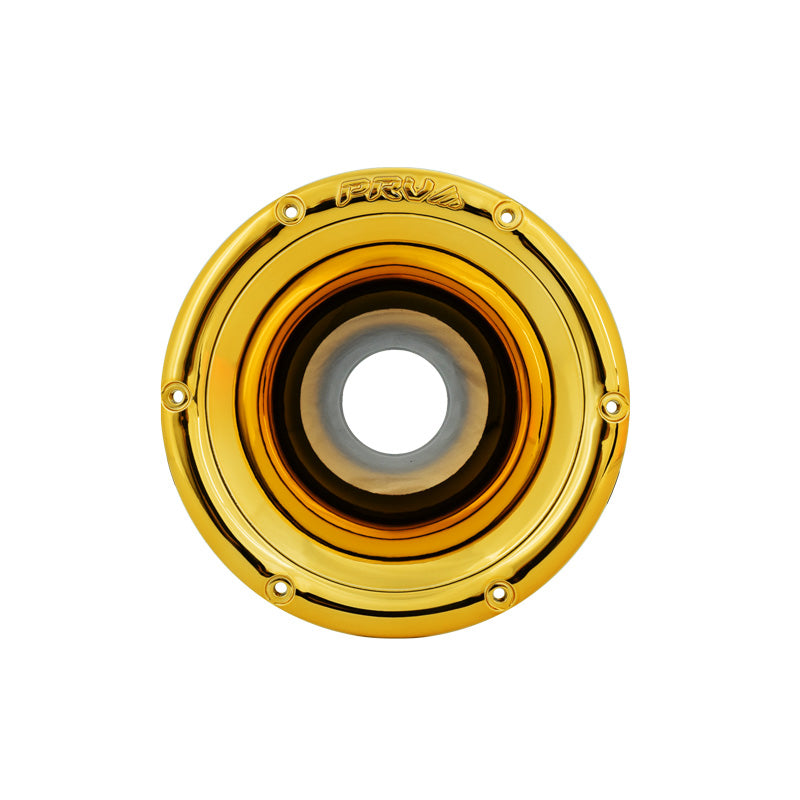

PRV WGP14-50 GOLD CR Waveguide
About the Product
Add a little color to your sound, in a good way, with PRV Audio’s WGP14-50 gold finished exponential horn, compatible with all 2″ Exit Bolt-On PRV Audio compression drivers.
Strong, lightweight construction supports the weight of the compression driver up to 25 lbs, with standard 4″ Bolt Circle on mount is compatible with our 2″ exit drivers.
The WGP14-50 Series is constructed from non-resonant ABS plastic making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 600 Hz.
- 5.30″ of mounting depth for installation in tight spaces
- 2″ Exit throat
- Non-resonant reinforced plastic construction
- Minimum recommended frequency of 600 Hz
- UV resistant Chrome Finish
GENERAL SPECIFICATIONS
| Throat Diameter | 2” (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.31″ 8 mm |
| Bolt Circle | 4″ 101.6 mm |
| Nominal Coverage | |
| Horizontal | 45° |
| Vertical | 45° |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Several Colors |
| Dimensions | |
| Height | 6.92″ (175.7 mm) |
| Width | 6.92″ (175.7 mm) |
| Depth | 5.30″ (134.6 mm) |
| Mounting Depth | 5.02″ (127.6 mm) |
| Baffle Cutout | |
| Diameter Circle | 5.75″ (146 mm) |
| Net weight | 0.51 lb (0.23 kg) |
