PRV WGP22-50

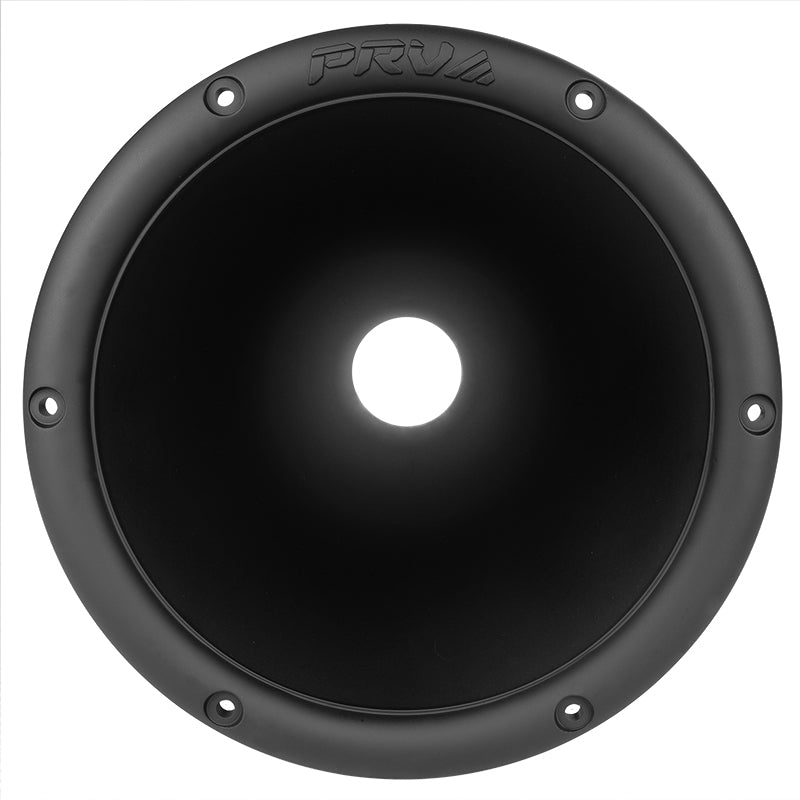

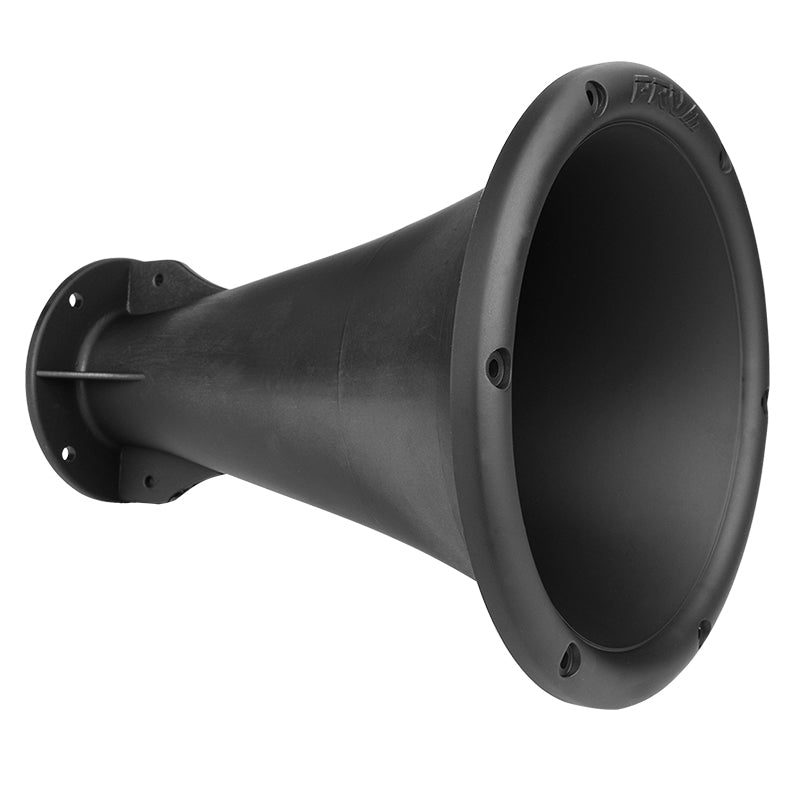

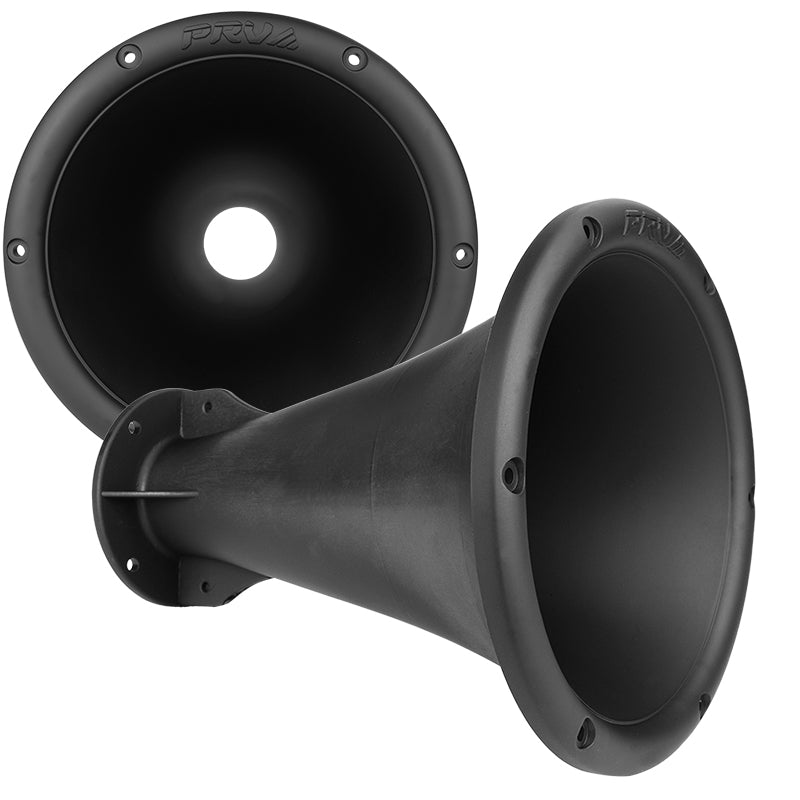

PRV WGP22-50 Waveguide 2" EXIT WAVEGUIDE

About the Product

2″ Exit – ABS Plastic Wave Guide – Bolt-on

  • 2” Throat Diameter
  • Light weight
  • Bolt-on
  • The 30° x 30° dispersion is suitable for direct focus output with a low 350Hz cutoff frequency

GENERAL SPECIFICATIONS

Throat Diameter 2” (50.8 mm)
Mounting Type Bolt-on
     Hole Dimensions 0.33″
8.3 mm
     Bolt Circle 4″
101.6 mm
Nominal Coverage
     Horizontal 30°
     Vertical 30°
Flare type Exponential
Material Plastic (ABS)
Finish / Coating Black
Dimensions
     Height 9.01″ (229 mm)
     Width 9.01″ (229 mm)
     Depth 10.86″ (275 mm)
     Mount Depth 10.32″ (262 mm)
Baffle Cutout
     Diameter 7.5″ (190.5 mm)
Net weight 1.25lb (0.57 kg)
