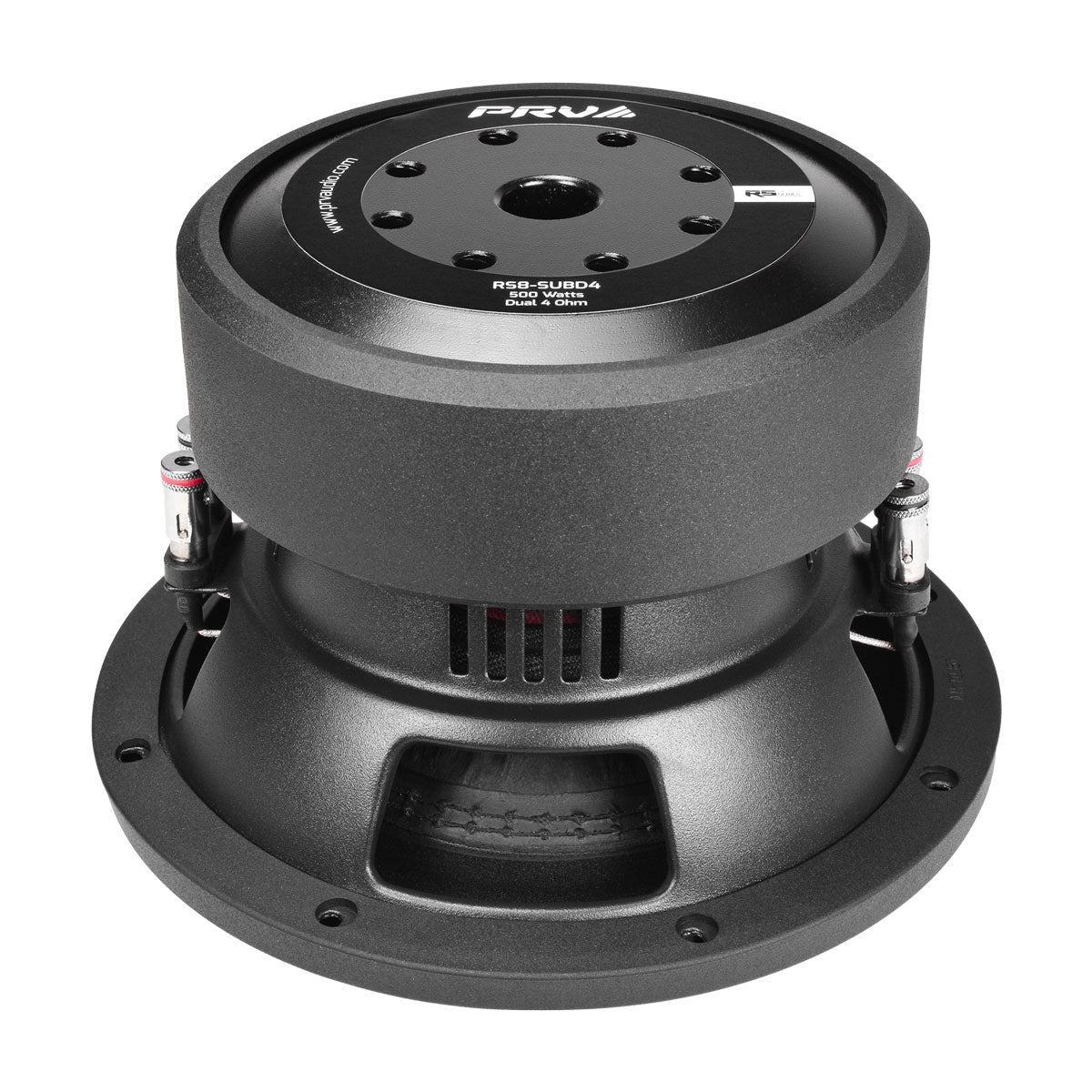

RS8-SUBD4 PRV 8” Car Subwoofer Dual 4 Ohm 500 Watts
SKU:RS8-SUBD4
RS8-SUBD4 PRV 8” Car Subwoofer Dual 4 Ohm 500 Watts
About the Product
PRV 8” Car Subwoofer RS8-SUB Dual 4 Ohm 500 Watts Double Stacked Magnet 14.5mm Xmax
For 15 years, PRV Audio has developed and marketed live PRO audio speakers, and is thrilled to introduce the RS Series bringing new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.
Add pure lows to your system, this 8″ car subwoofer RS8-SUB delivers responsive bass, thanks to its high Xmax. This sub was engineered and built with performance in mind, for pickup trucks, or any car you want to put a subwoofer in without sacrificing trunk space.
- Optimized for use in compact enclosures this subwoofer is ideal for under or behind seat truck boxes
- 4 layer high-temperature copper voice coil capable of handling 500 watts RMS program power, which makes high acoustic output
- High roll U surround gives an 14.5 mm of Xmax for low bass reproduction without any issues
- Side forced cooling system with vented back plate design for better heat dissipation
- Dual 4 Ohm, easy setup to connect two subs in parallel to 1 ohm
GENERAL SPECIFICATIONS
Nominal Diameter | 8″ (203 mm) |
Nominal impedance | 4 + 4 Ohm |
Nominal Power Handling | 250 Watts |
Continuous Program Power (RMS) | 500 Watts |
Max Peak Power | 1000 Watts |
Sensitivity 1.41V at 1m | 82 dB (Parallel VC) |
Voice Coil Diameter | 2.4″ (61.1 mm) |
Voice Coil Wire | Copper |
Voice Coil Winding Depth | 33.0 mm |
Former Material | Black Aluminum |
Magnetic Gap Depth | 8.0 mm |
Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
Equivalent Volume | Vas | 3.79 l |
Excursion (mathematical)*** | Xmax | 14.5 mm |
Free Air Resonance | Fs | 53.4 Hz |
Mechanical Factor | Qms | 8.13 |
Electrical Factor | Qes | 0.82 |
Total Factor | Qts | 0.75 |
Cone Area | Sd | 201 cm² |
Mechanical Mass | Mms | 132.2 g |
Bl Factor | Bl | 9.55 Tm |
Dc Resistance (Parallel VC) | Re | 1.7 Ohm |
Inductance | Le | 1.24 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 130.6 g |
Mechanical Compliance | Cms | 0.06 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
Overall Diameter | 8.58″ (218 mm) |
Front Mount Baffle Cutout | 7.40″ (188 mm) |
Mounting Depth | 4.96″ (126 mm) |
Overall Depth | 5.79″ (147 mm) |
Net Weight | 17.78 Lbs (6.25 kg) |
Shipping Weight | 15.43 Lbs (7.00 kg) |
Carton Dimensions W x L x H | 9.25″ x 9.25″ x 6.89″ (235 x 235 x 175 mm) |
