SKU:TPT-3000 2 Ohm

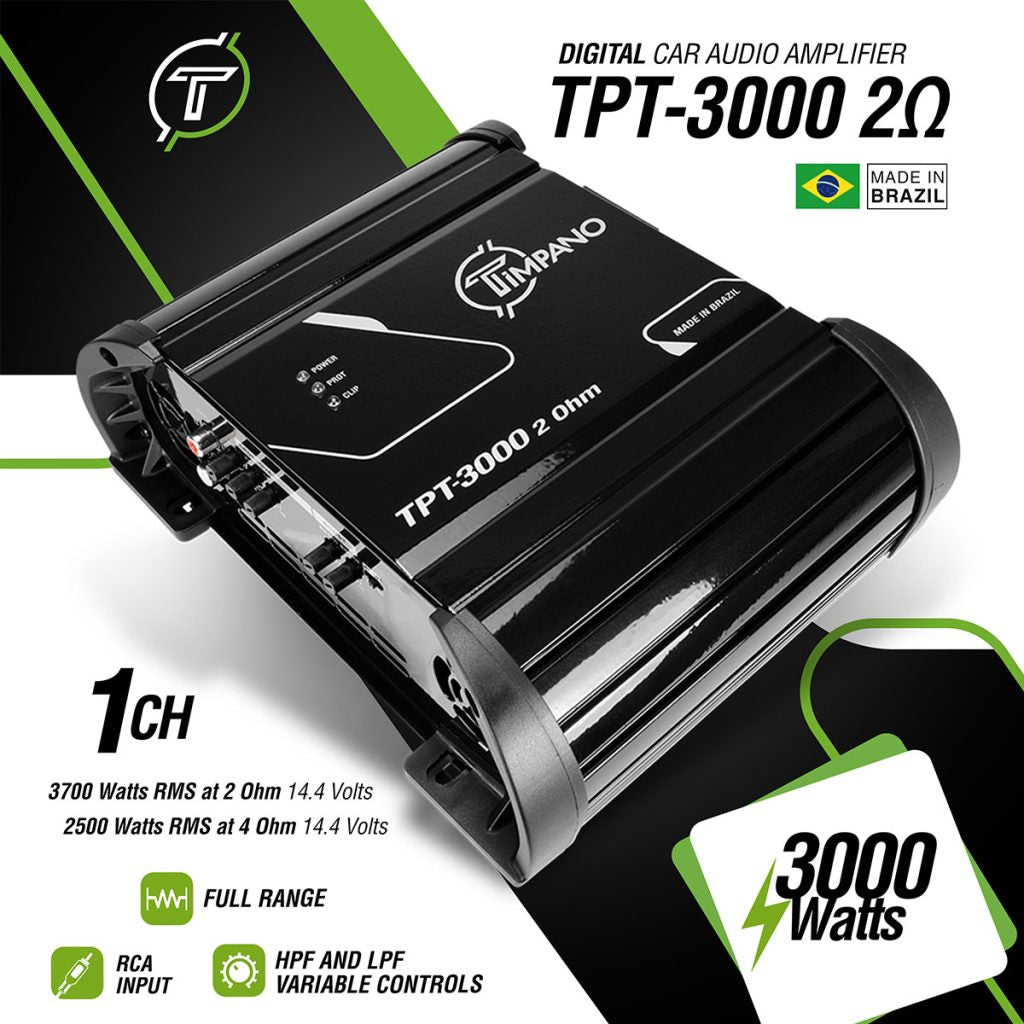

TPT-3000 2 Ohm Amplifier
About the Product
Small Footprint Technology! HD Sound Quality!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact fullrange amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% in a compact Class D fullrange amplifier.

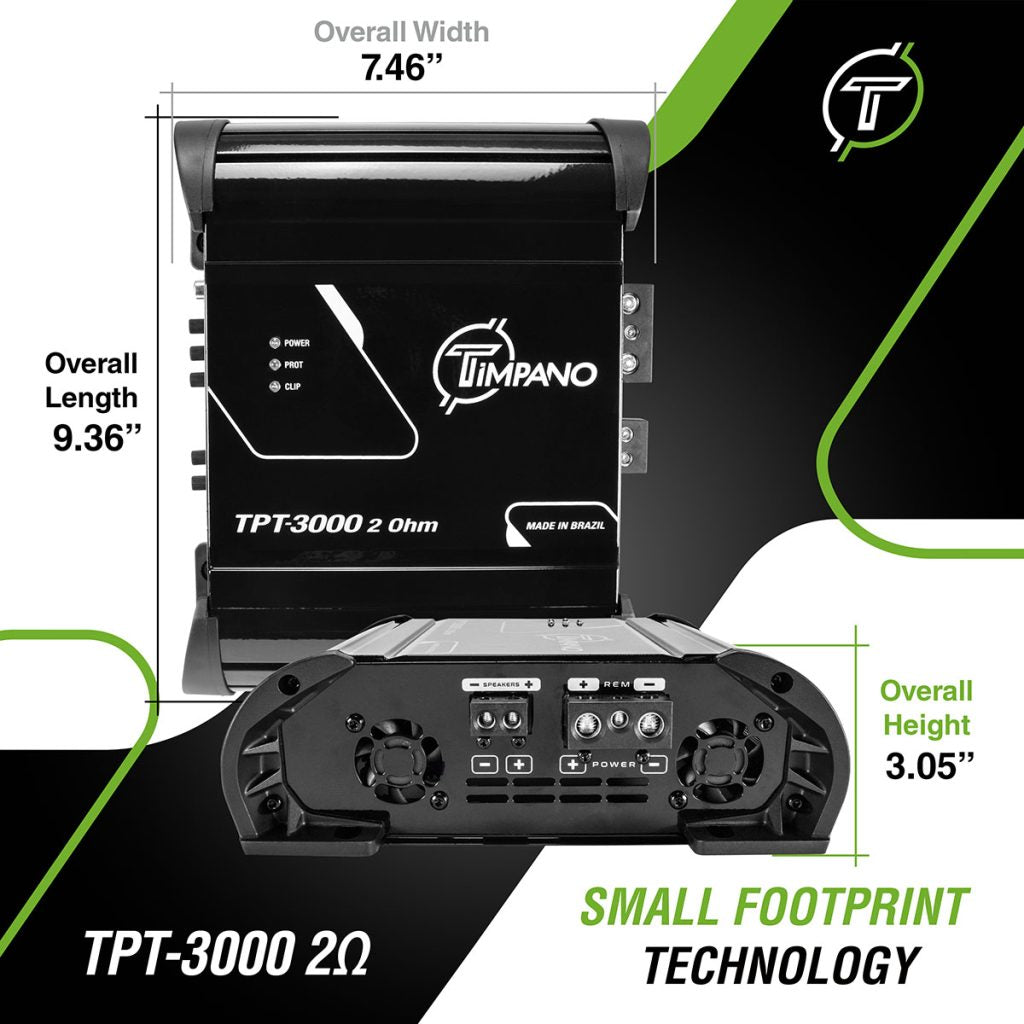

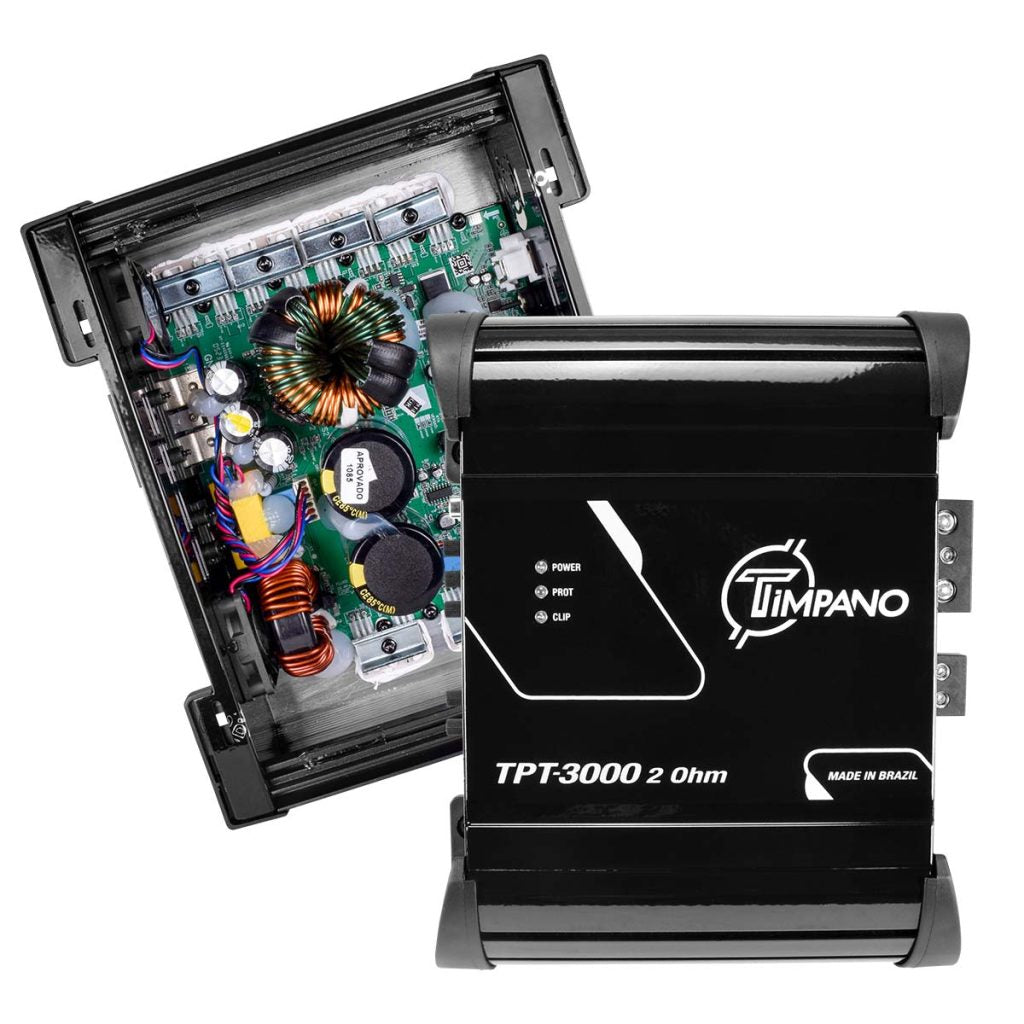

- COMPACT DESIGN: Digital class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 9.36″ depth x 7.46″ width x 3.05″ height
- POWER: This monoblock amplifier is designed to run your system with the power it needs to perform! 3000 Watts RMS power output at 2 Ohm 1 channel. Its high efficiency rate of 86% provides more power with less battery consumption.

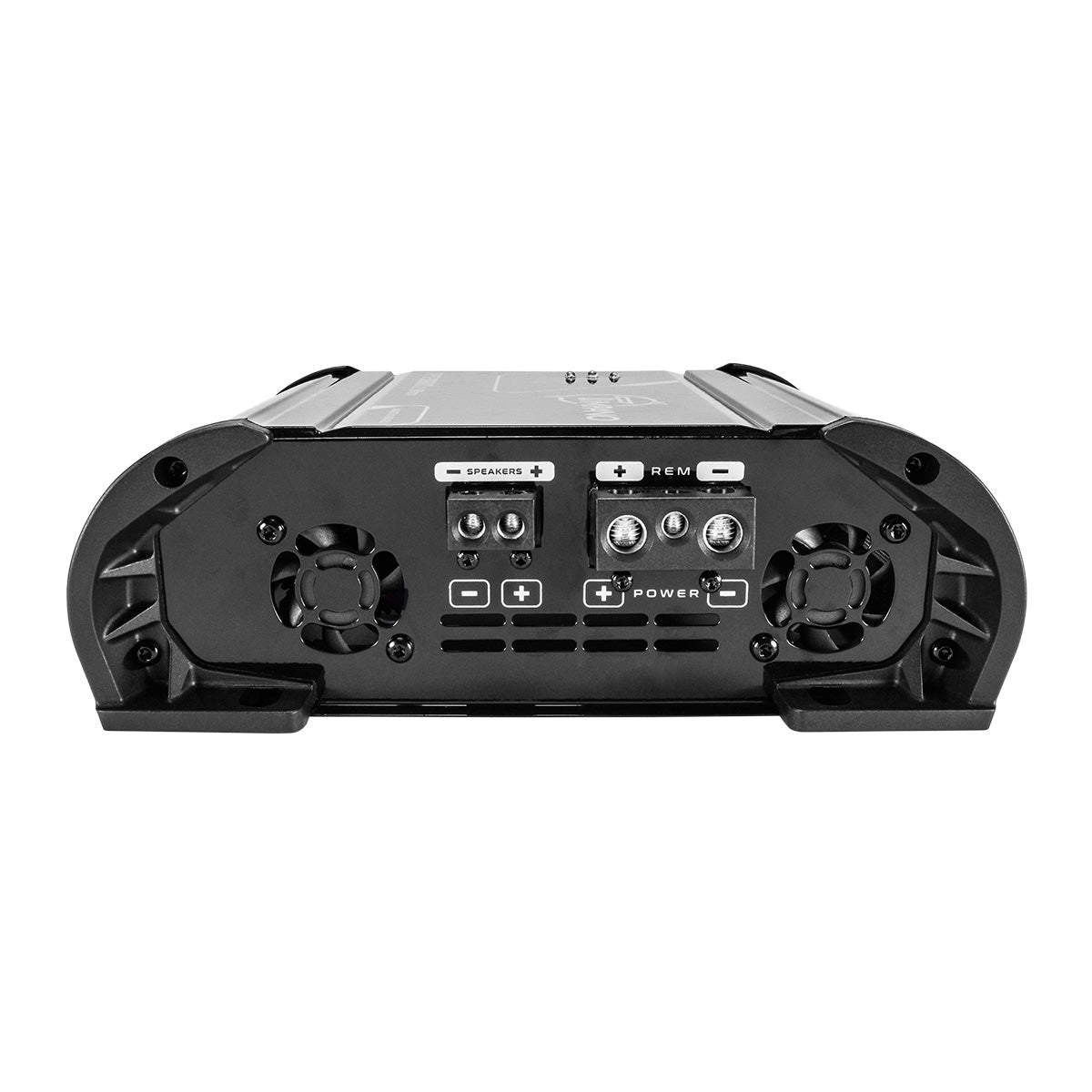

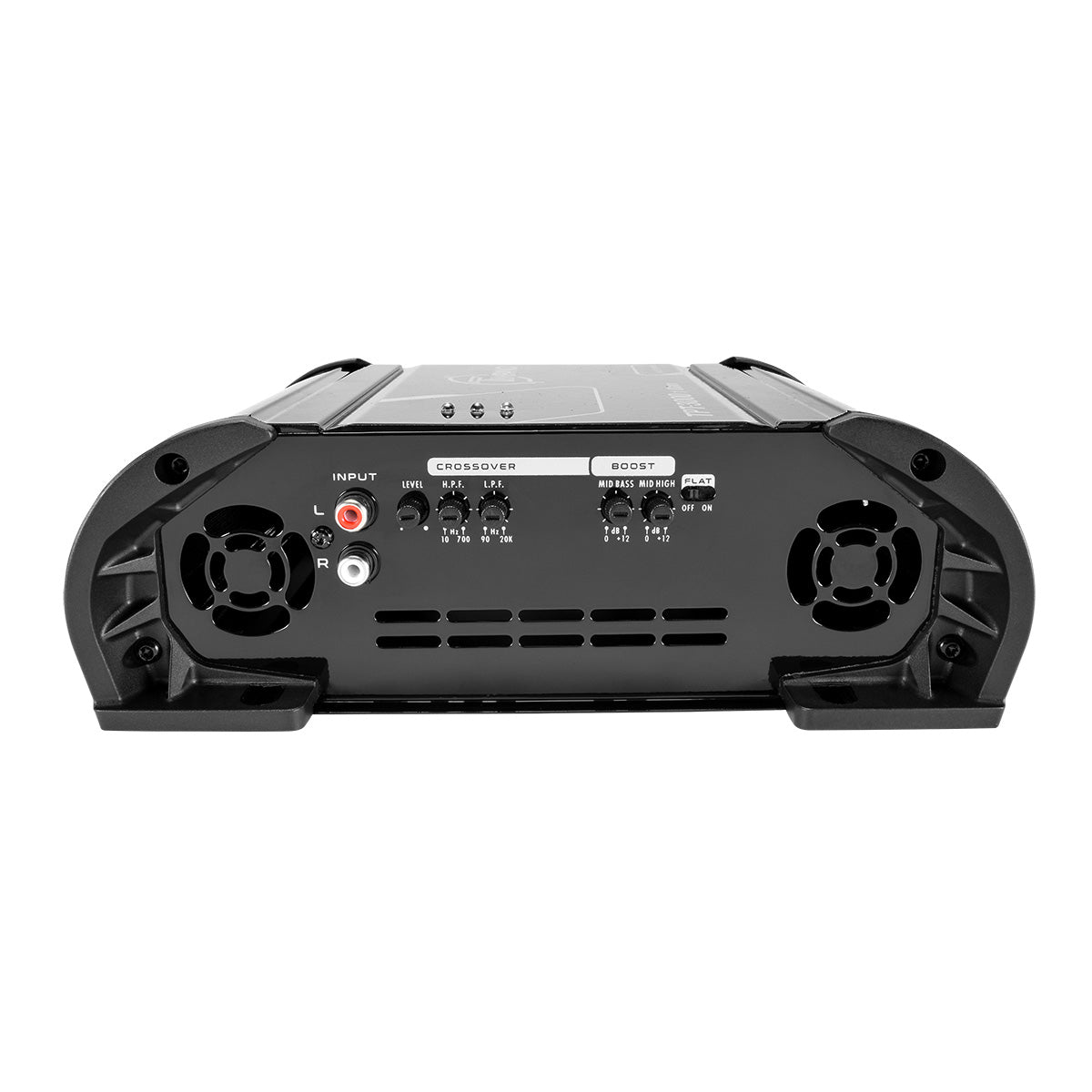

- FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your type of speaker with a HPF 10 to 700Hz and LPF 90 to 20,000Hz without a need for an external crossover or DSP. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
- TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 10 to 20,000Hz was used to give the best sound reproduction on this compact amplifier.
Additional Information:
Number of Channels: 1
3000 Watts RMS Power at 2 Ohm 12.6 Volts
2000 Watts RMS Power at 4 Ohm 12.6 Volts
Supply Voltage: 9V ~ 16V
Frequency Response: 10Hz ~ 20KHz
Crossover Low Pass: 90Hz ~ 20KHz
Crossover High Pass: 10Hz ~ 700Hz
Signal to Noise: > 90 dB
Input Impedance: 9.5K Ohm
Impedance Output: 2 Ohm
Musical Consumption: 150A
Dimensions (L x W x H): 9.36” x 7.46” x 3.05”
Weight: 3.54 Lbs
