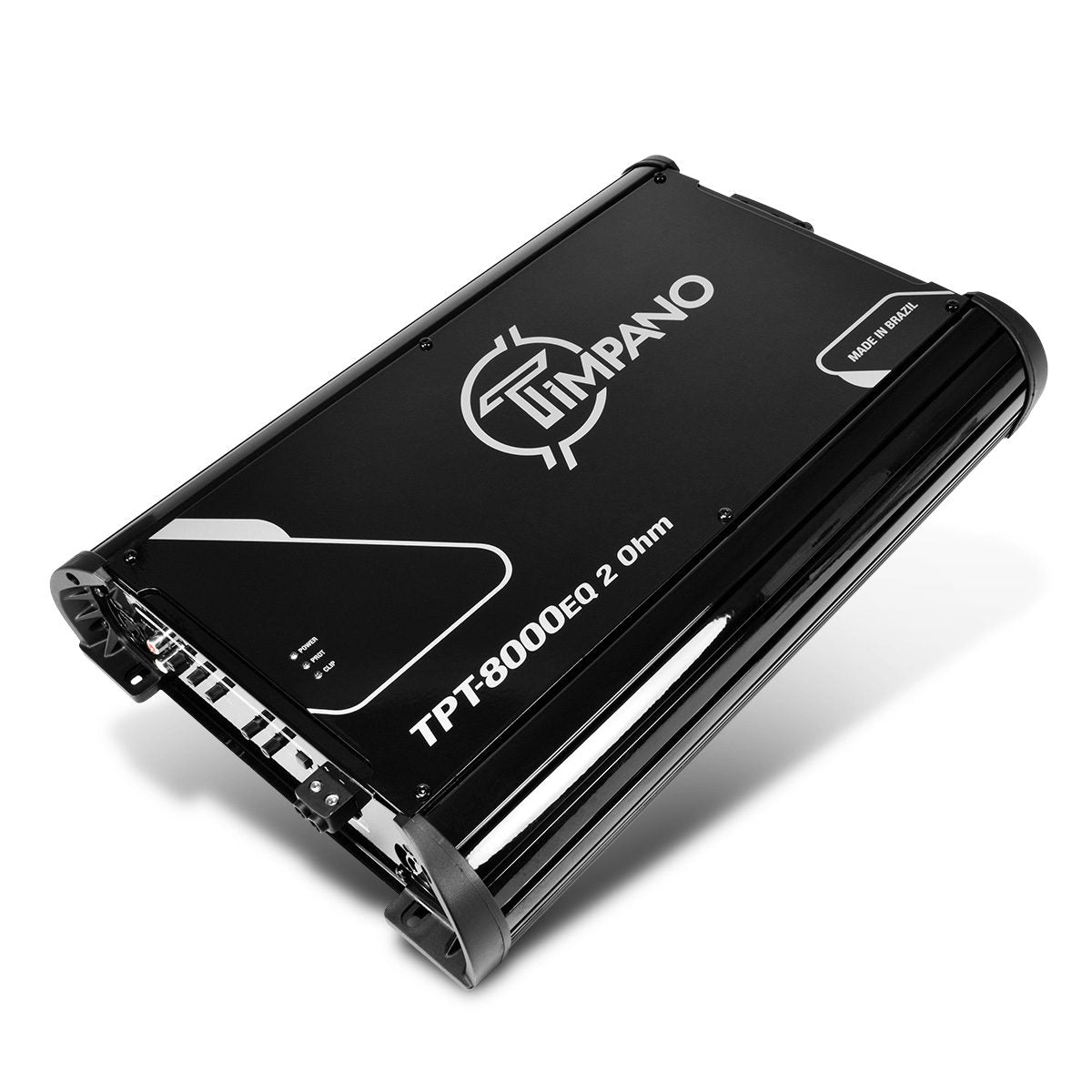

Timpano 1 Channel TPT-8000EQ 2 Ohms Car Audio Amplifier
About the Product
Timpano 1 Channel TPT-8000EQ 2 Ohms Car Audio Amplifier
Small Footprint Technology!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact fullrange amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D fullrange amplifier.
Additional Information:

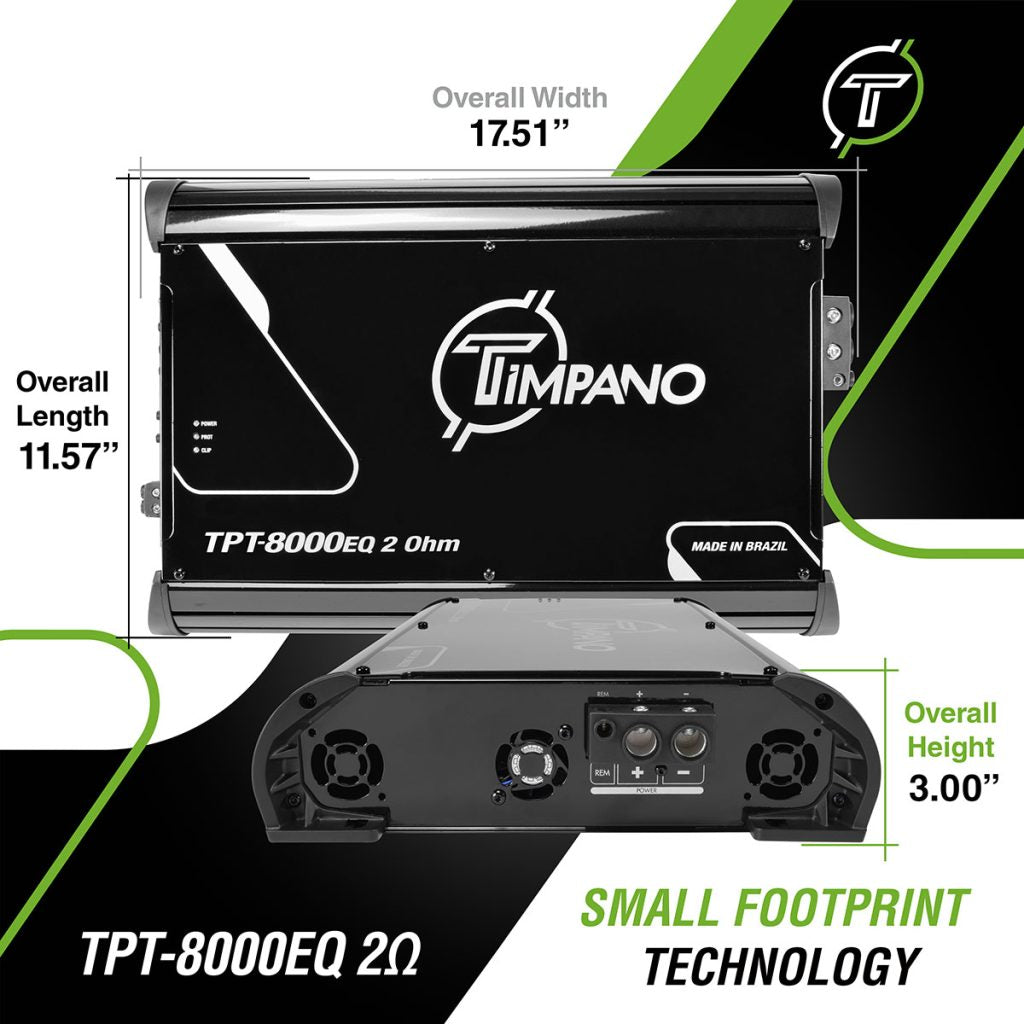

Number of Channels: 1 RMS Power at 2 Ohm 12.6 Volts: 8000 Watts RMS RMS Power at 4 Ohm 12.6 Volts: 5000 Watts RMS RMS Power at 2 Ohm 14.4 Volts: 8950 Watts RMS RMS Power at 4 Ohm 14.4 Volts: 6050 Watts RMS Supply Voltage: 9.5 ~ 15 Volts Frequency Response: 10Hz ~ 15KHz Crossover Low Pass: 50Hz ~ 15KHz Crossover High Pass: 10Hz ~ 700Hz Signal to Noise: > 90 dB Harmonic Distortion: < 0.9 % THD Input Sensitivity: 0.2 Volts Input Impedance: 26K Ohm Impedance Output: 2 Ohm Consumption with Signal Musical: 5.2A ~ 396A Consumption with Signal Bass: 5.2A ~ 790A Dimensions (L x W x H): 11.57” x 17.51” x 3” Weight: 14.3 Lbs
Features:

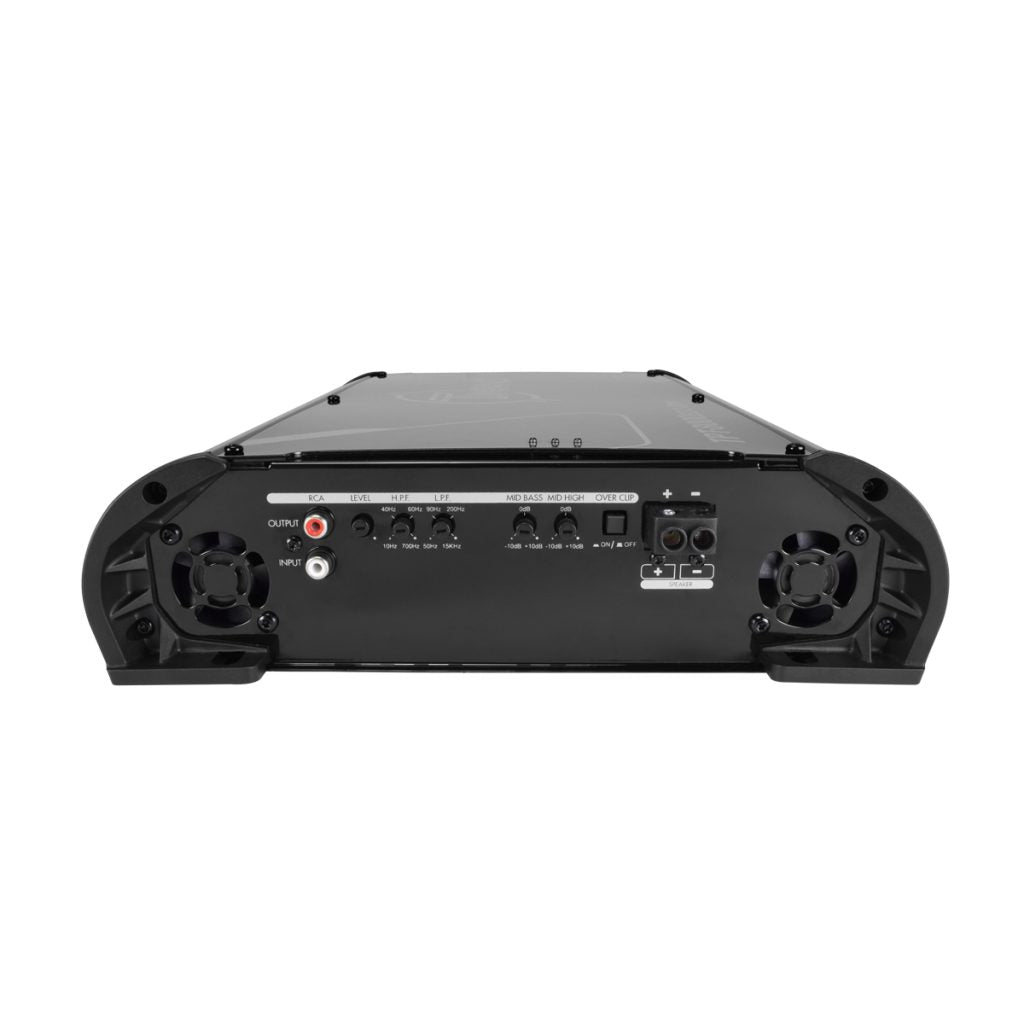

The TPT-8000EQ offer 1 channel with advanced individual equalization features for Bass, Midbass and Midhigh, plus the traditional Level, High Pass and Low Pass features. Its Full Range frequency response from 10Hz to 15KHz allows the installation of Subwoofers, Woofers, Drivers and Tweeters.
