SKU:TPT-T2500-15 D4

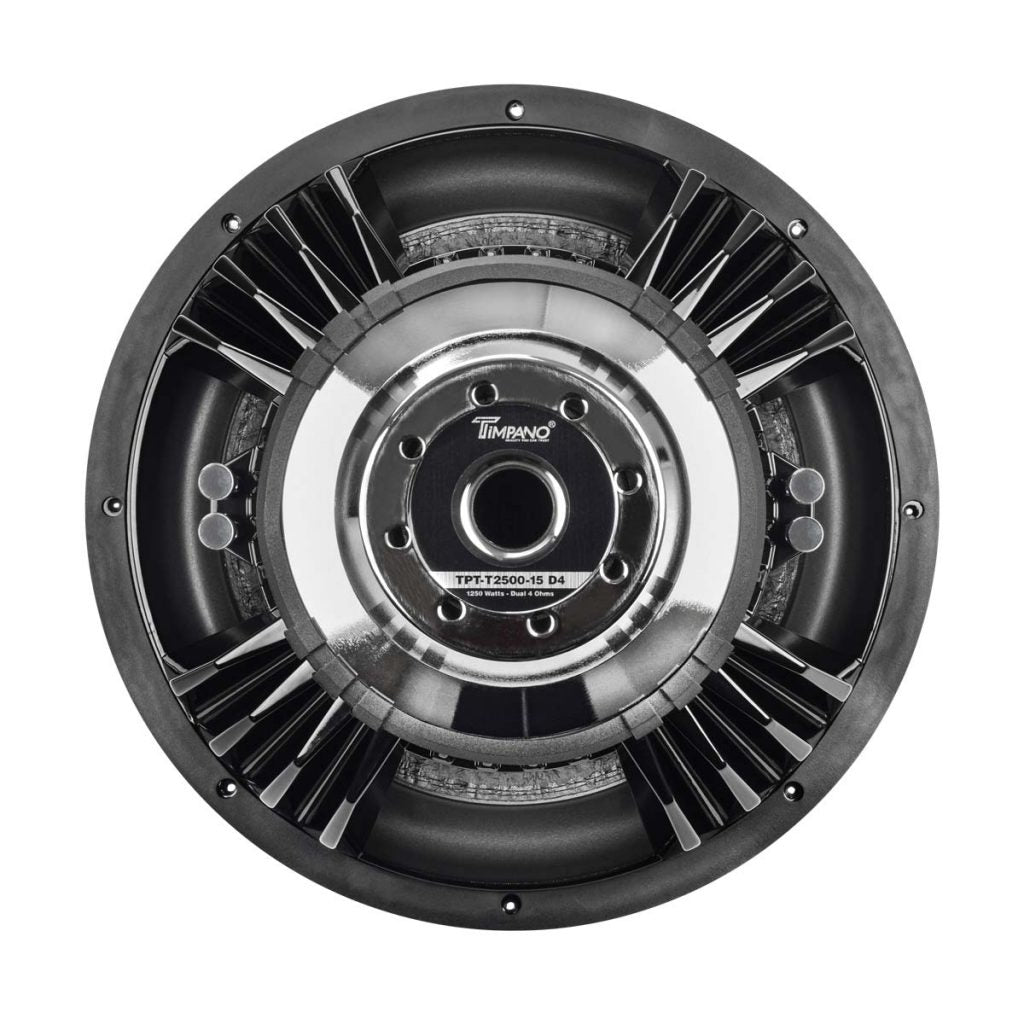

Timpano 15″ Car Audio Subwoofer 2500 Watts Dual 4 Ohm TPT-T2500-15 D4 High Performance

About the Product

Timpano 15″ Car Audio Subwoofer 2500 Watts Dual 4 Ohm TPT-T2500-15 D4 High Performance
– 4-Layer 3″ Voice Coil Made in USA
– Double Stacked Magnet Competition Grade Series with High Excursion

Entry level competition grade series, for the most extreme customers and the biggest builds!

Timpano T2500 Series was designed to bring the ultimate combination of performance, durability, quality and value. Featuring incredible linear excursion, with top-grade soft parts, American Made voice coils on a colossal cast aluminum styled basket creating a new standard for powerful systems.

  • COMPETITION GRADE COMPONENTS: Its double stacked magnet motor drivers a 3″ American made 4-layer CCAW coil on a black aluminum former all coated with high temperature black adhesive. A stiff reinforced non-pressed treated paper cone & high roll foam surround was used to ensure performance on the lowest tones of bass.
  • ENDURANCE: This sub is conservatively rated of 2,500 watts max power, guaranteeing to put out some crazy output. Equipped with a robust double-layered spider with, stitched-on XL tinsel lead wires, to hold a longer play time, maximizing durability.
  • HIGH EXCURSION: Bassheads searching for more lows! You can look forward to deep, Low, impact bass in a small enclosure with a generous 1.85″ peak-to-peak excursion. Xmax of 23.5 mm one-way and Max Xmech of 37 mm one-way.
  • FEATURES: TPT2500-15 D4 is a quality sub that fits in any audio enthusiast’s budget. Dual 4 Ohm American made voice coils. A chrome vented back plate and unique vented basket design enhances heat dissipation. Stitched cone reinforcement ensures long life.

All the top quality components featured in this sub, as well as its advanced 3-way air flow cooling system, are what ultimately allow for the incredible responsiveness & power handling.

Timpano T2500 series subwoofers will play deeper, with more dynamic range and increase output, after you properly break in your subwoofer. Its suspension is designed to provide a high level of excursion and linear control in ported boxes. A brand new sub will be a little stiff, but with a proper break in, the subwoofer soft parts will stretch out! Which means with less power power you will create the same output with more extended low bass tones.

Additional Information:

THIELE-SMALL PARAMETERS – Wired in Parallel Re 1.9 Ohm

Free Air Resonance Fs 35  Hz
Electrical Factor Qes 1.14
Equivalent Volume Vas 67.25 Liters
Total Factor Qts 1.01
Mechanical Factor Qms 9.05
Linear Excursion
Xmax 23.5 mm
Max Mechanical Excursion
Xmech 37 mm
Bl Factor Bl 10.69 Tm

Box Recommendations:

Type Box F3 Volume Port Size
Compact Sealed Enclosure 37 Hz 3.00 ft3 N/A
Compact Ported Enclosure 32 Hz 3.50 ft3 15″ H x 2.75″ W x 16″ Deep
Recommended Ported Enclosure 28 Hz 4.00 ft3 16” H x 2.75” W x 22” Deep
