SKU:TW350Ti-4 SLIM

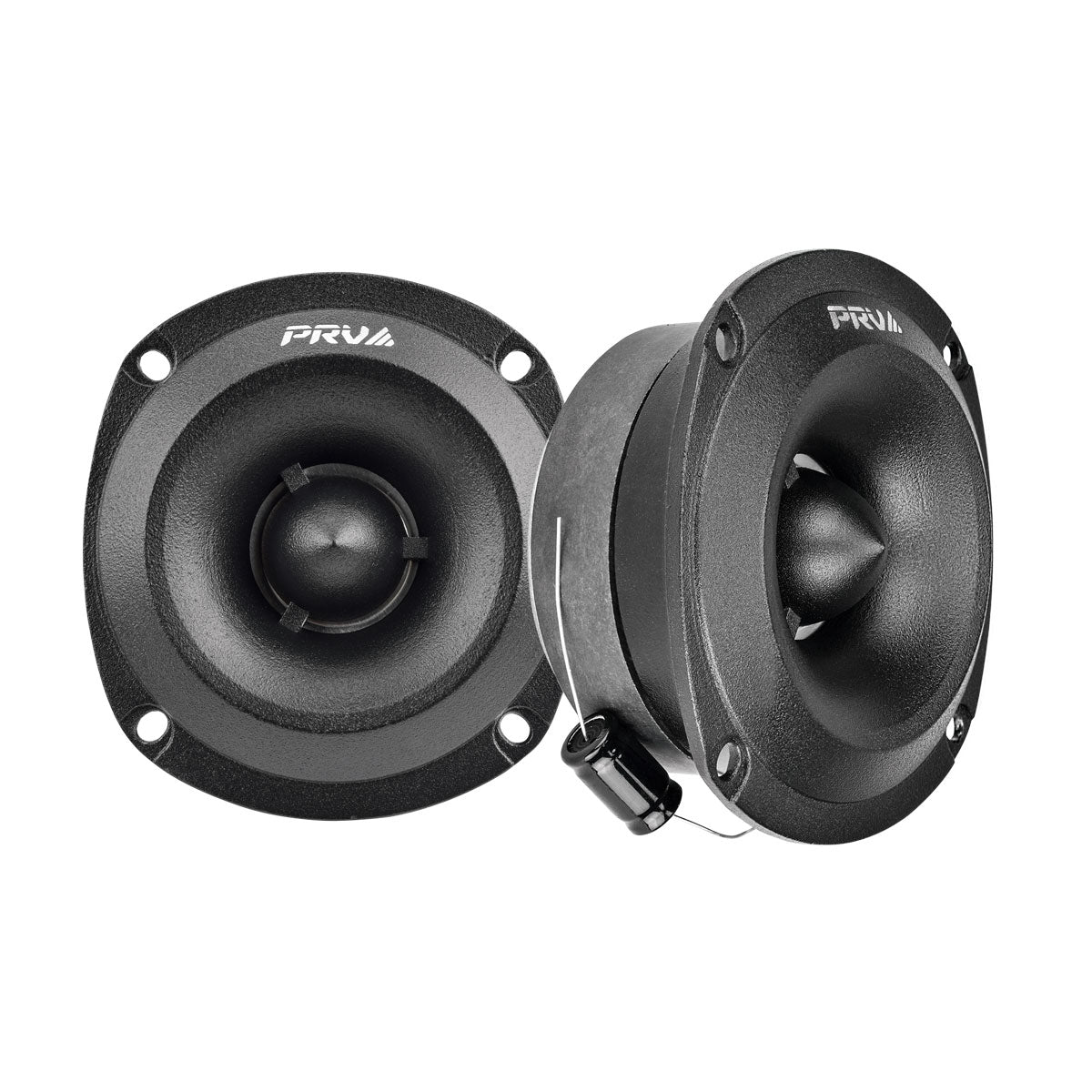

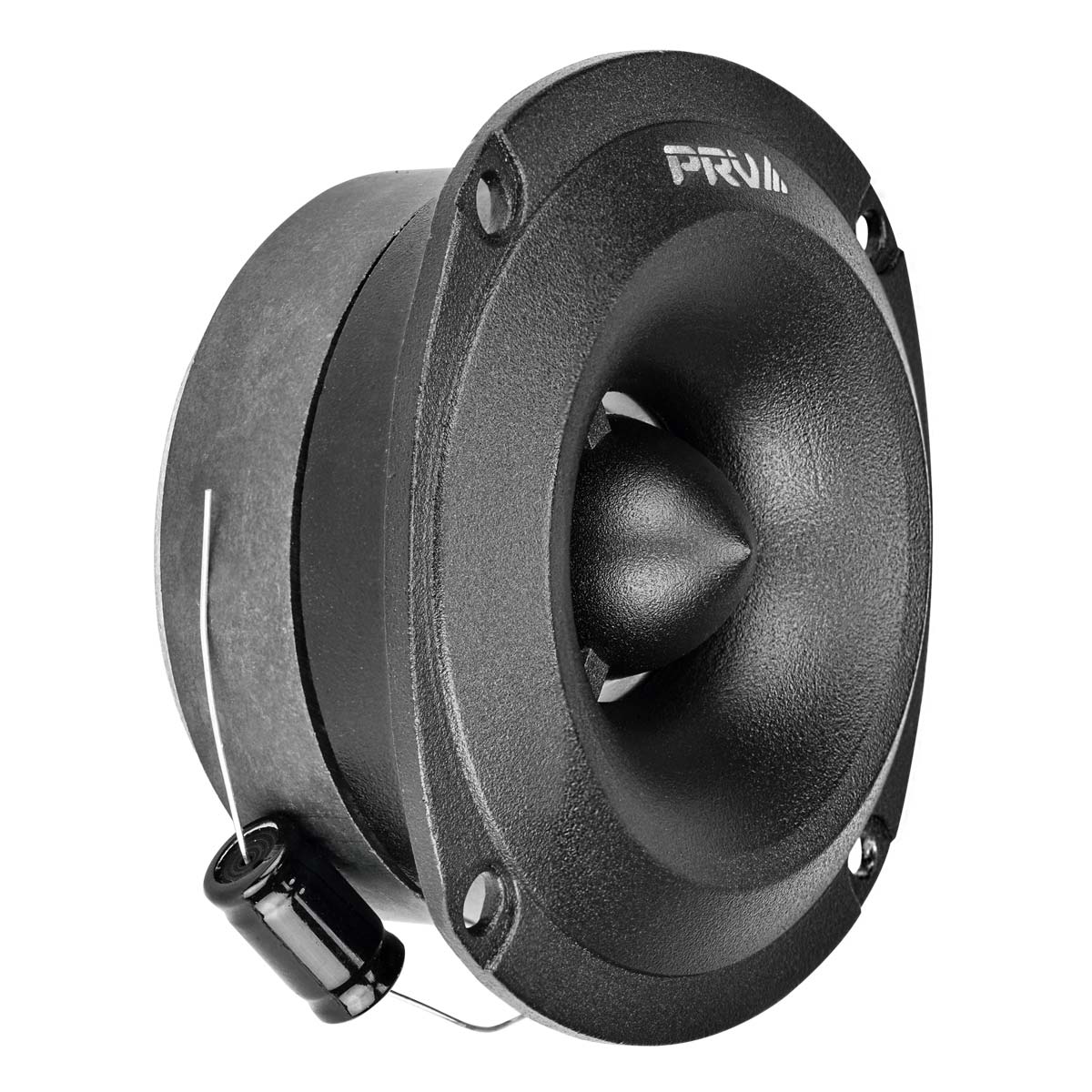

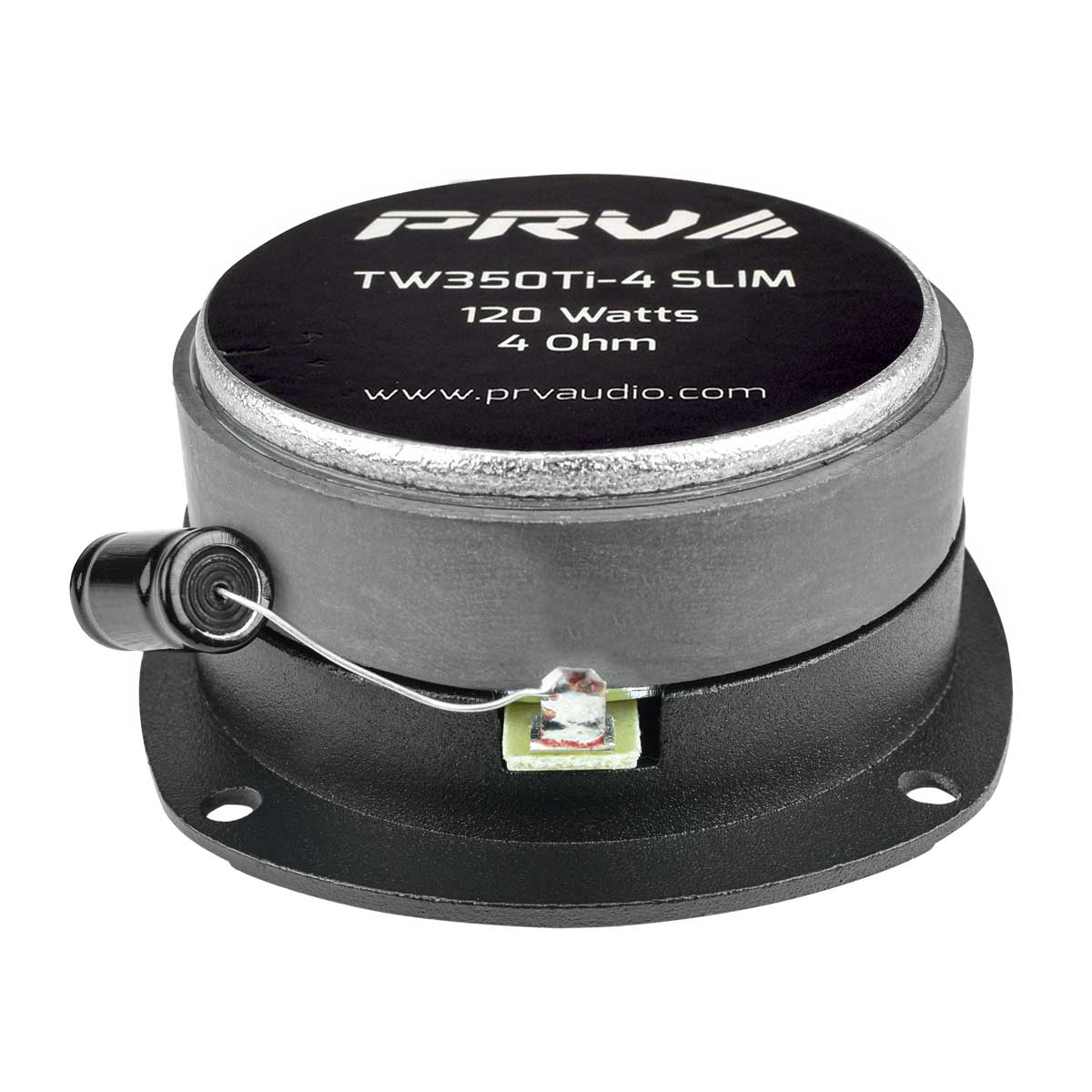

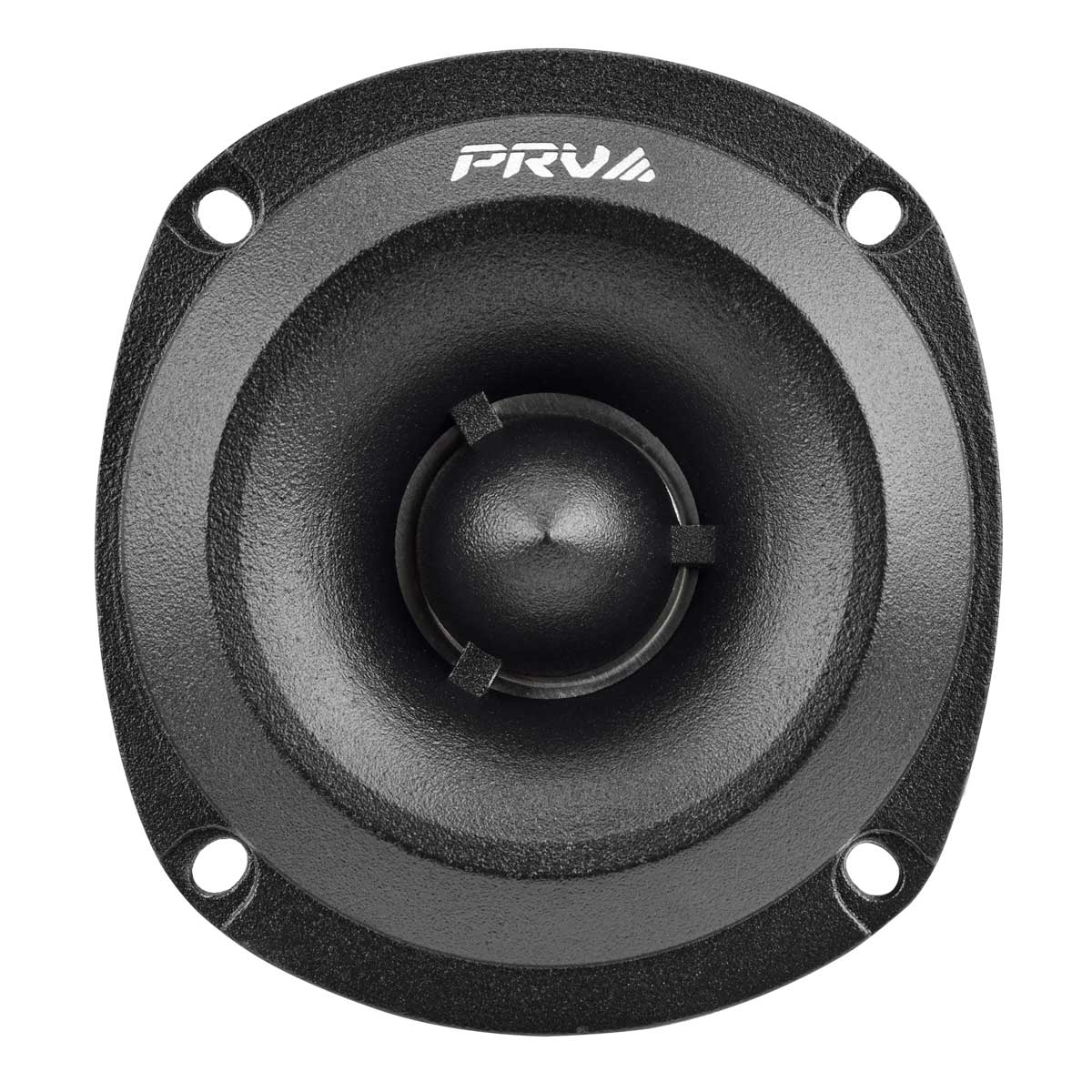

TW350Ti-4 SLIM PRV 3.5" SUPER BULLET TWEETER
About the Product
Add crystal clear sparkle to any speaker with TW350Ti-4 SLIM, a titanium bullet super tweeter from PRV Audio! Not only does this driver look as good as it sounds, but with an ultra shallow design, this tweeter is easy to mount anywhere!!
The PRV Audio TW350Ti-4 SLIM Super Bullet Tweeter offers a smooth response and is extremely high efficiency from mid range through high range frequencies. This tweeter is TW350Ti‘s little brother, which is already established as a popular choice for HIGH SPL super Tweeter.
Its Titanium diaphragm, on a Kapton former, is light, thin and durable, for long play applications, making this tweeter perfect for Pro Audio On Wheels® applications. Its sharp smooth sound is also ideal for applications where larger compression drivers may overpower a venue.
The TW350Ti-4 SLIM is designed with a cast aluminum frame to ensure quality sound and long lasting play in most any environment. Replacement Diaphragms are available.
- Low mass CCAW voice coil at 4 Ohm
- Crystal Clear High Frequency Response
- High Output – 104 dB sensitivity

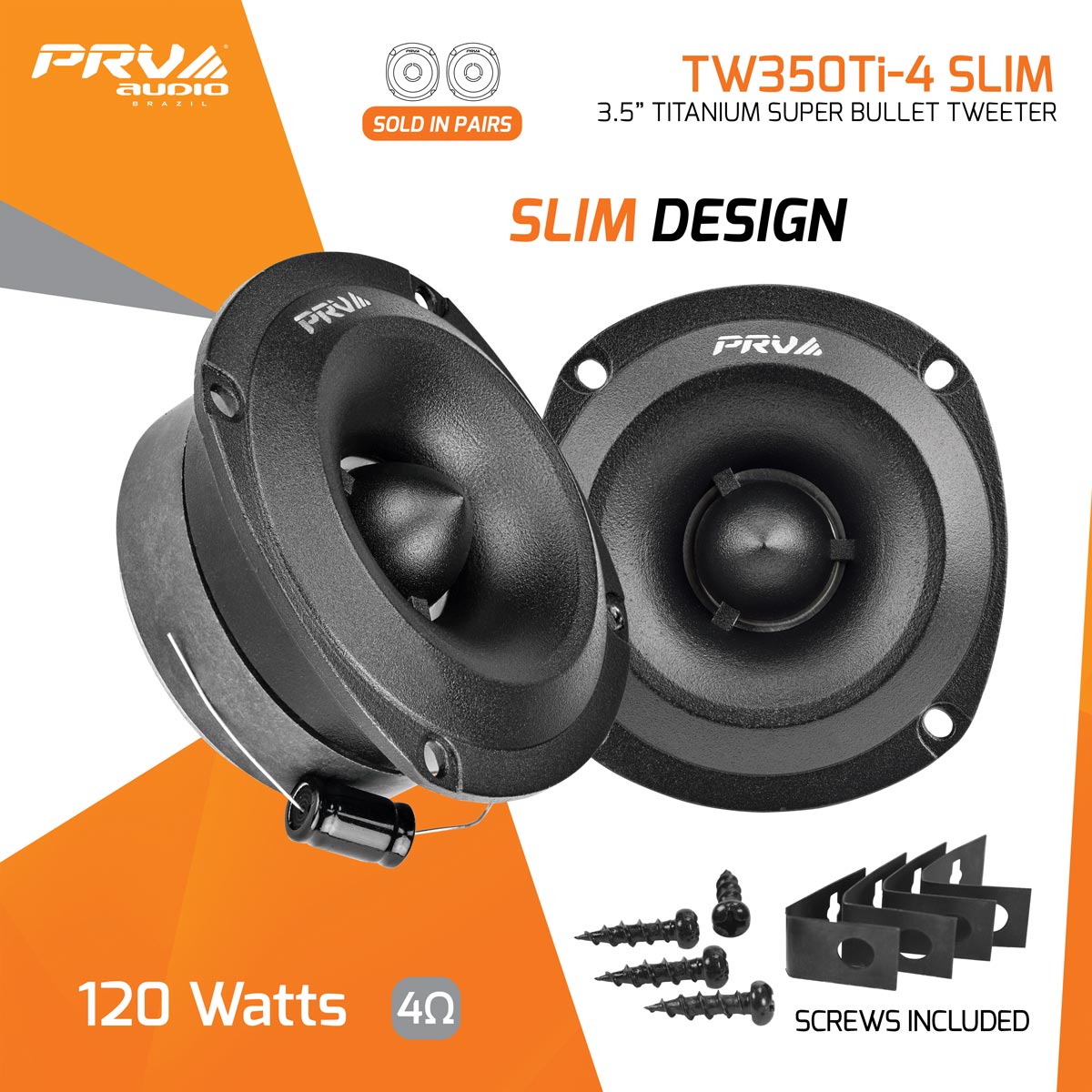

- Slim Design makes it easy to Mount
- Sold in Pairs
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohms |
| Nominal Power Handling* | 60 Watts |
| Continuous Program Power(RMS)** | 120 Watts |
| Max Peak Power*** | 240 Watts |
| Sensitivity 2.00V at 1m | 104 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
5000 Hz 12db Per Octave Crossover |
| Frequency Response at -10dB | 4,500 – 20,000 Hz |
| Voice Coil Diameter | 1.0” (25 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.45 T |
| Magnet Material | Ferrite |
EXTRA INFO

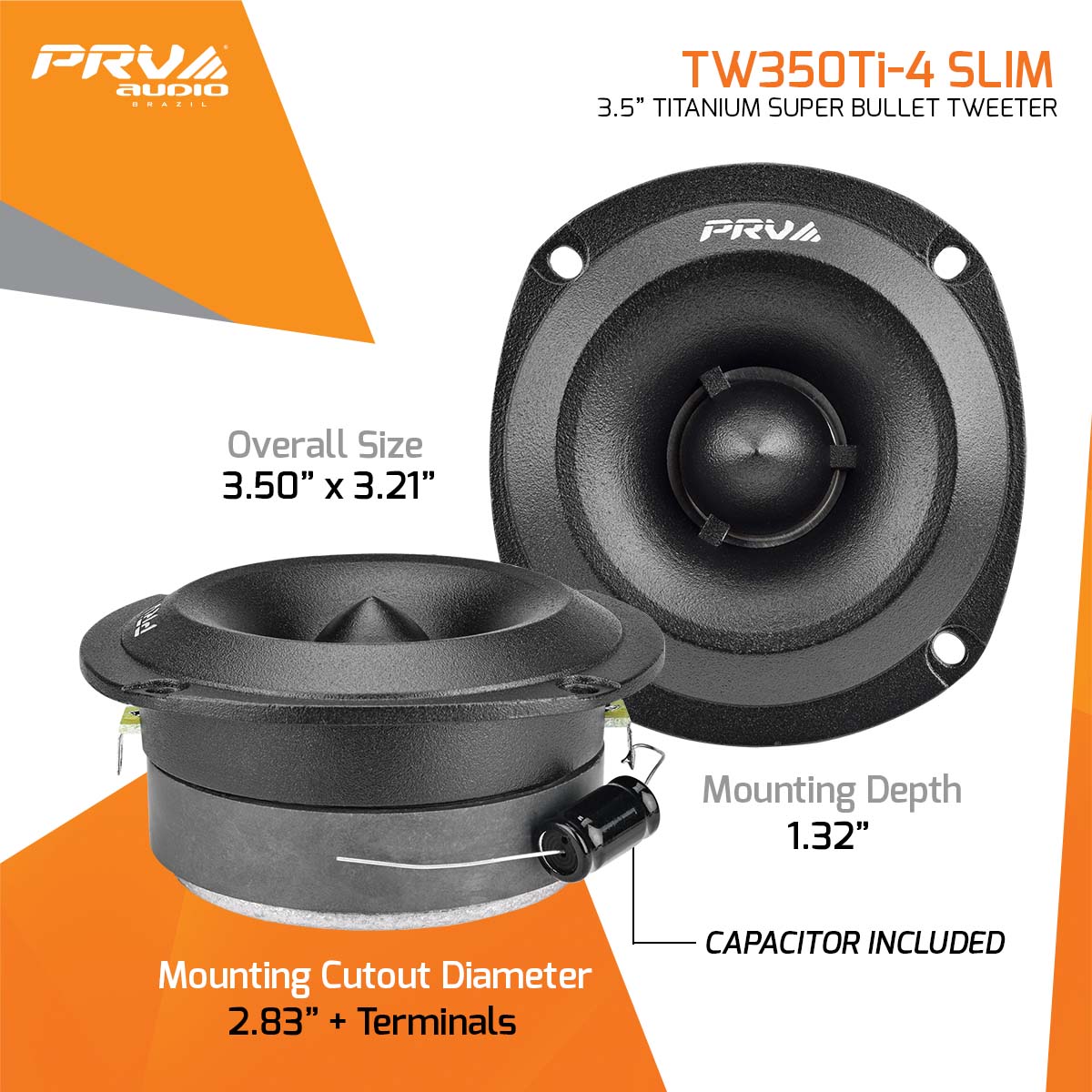

| Overall Depth | 1.67” (42.5 mm) |
| Mounting Depth | 1.32” (33.5 mm) |
| Overall Width | 3.21” (81.5 mm) |
| Overall Height | 3.50” (89 mm) |
| Cutout Diameter + Terminals | 2.83” (75 mm) |
| Net Weight | 1.37 lbs (0.62 kg) |
| Shipping Weight | 1.47 lbs (0.67 kg) |
| Carton Dimensions W x L x H | 3.75” x 7.10” x 2.00” (95 x 180 x 50 mm) |
