SKU:WG2500Ti

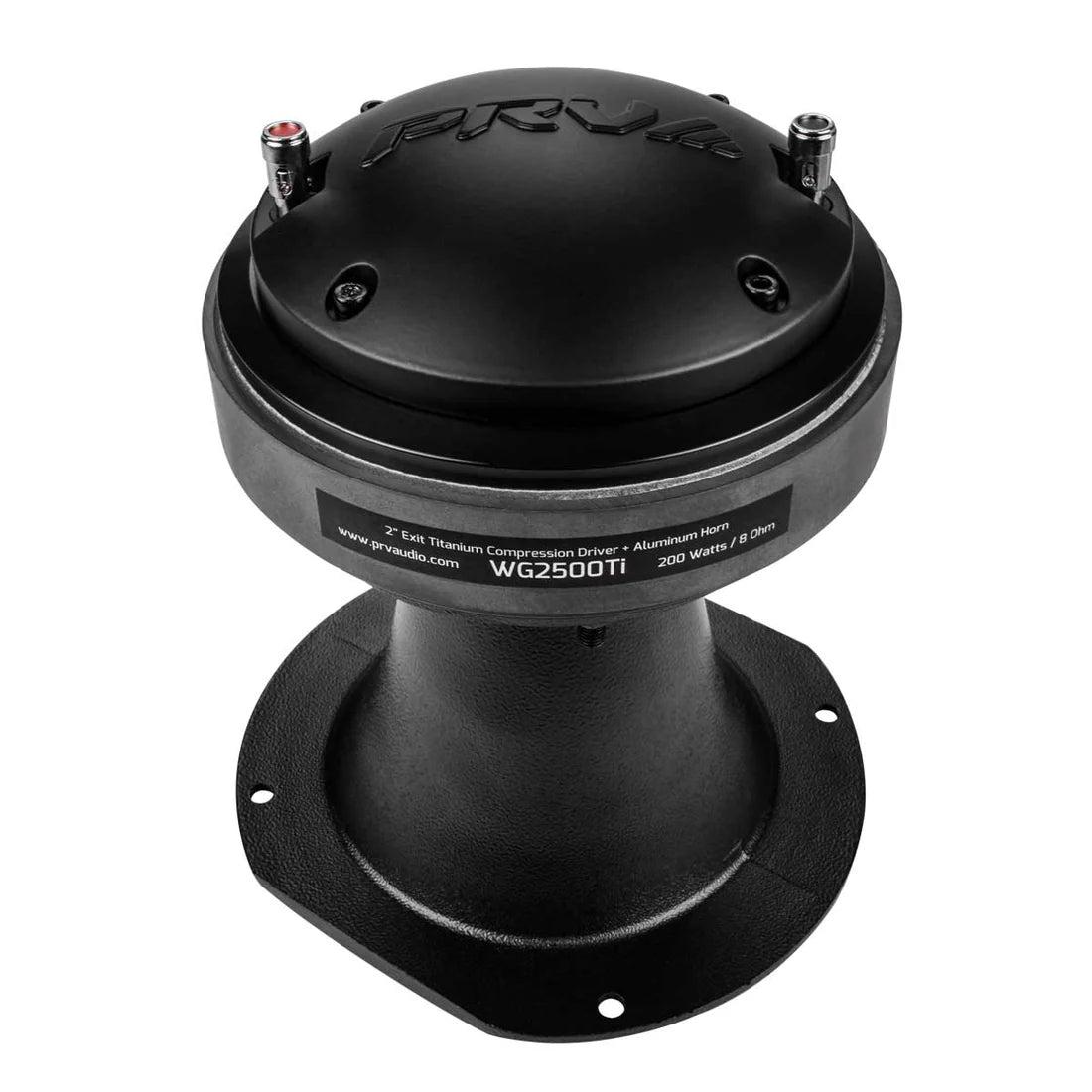

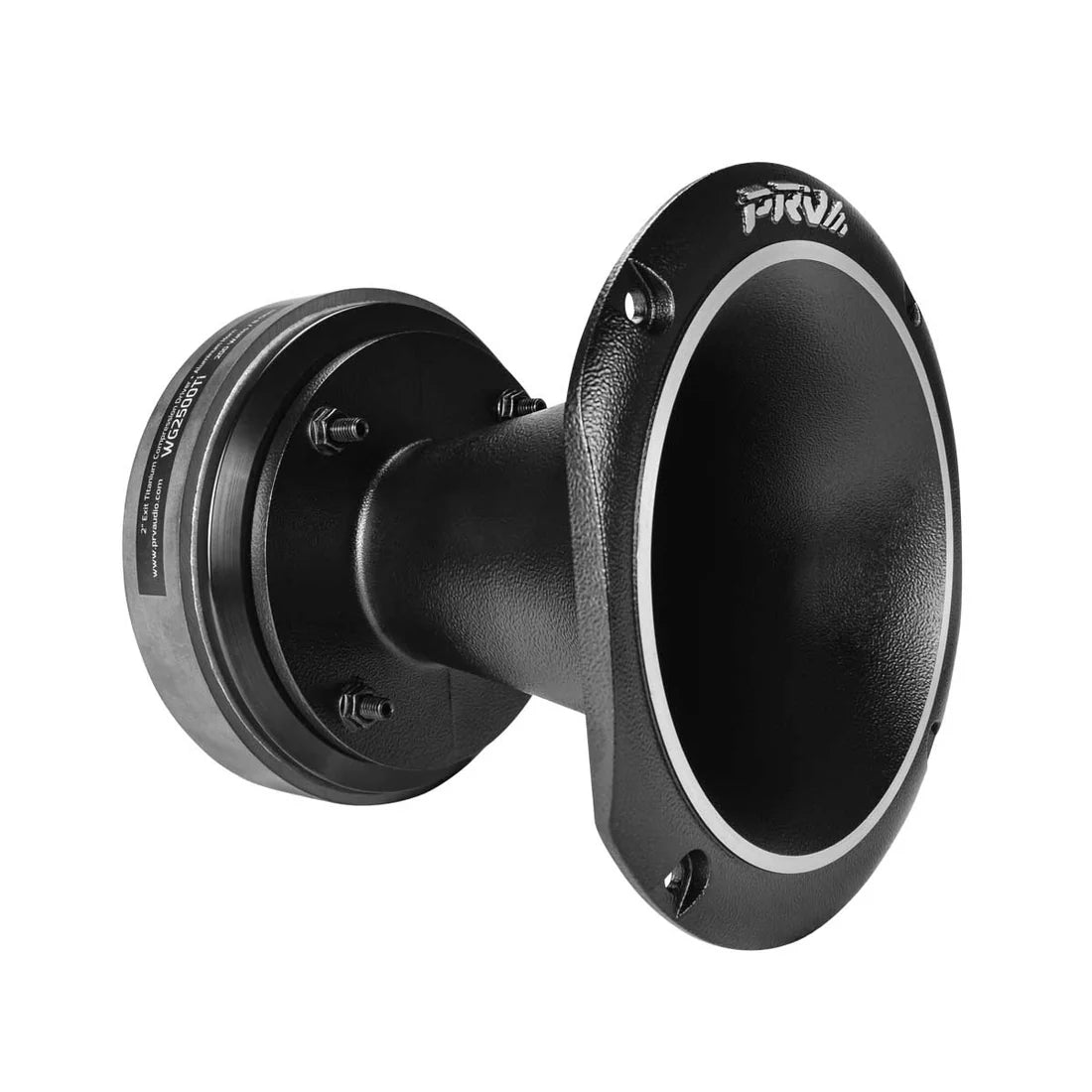

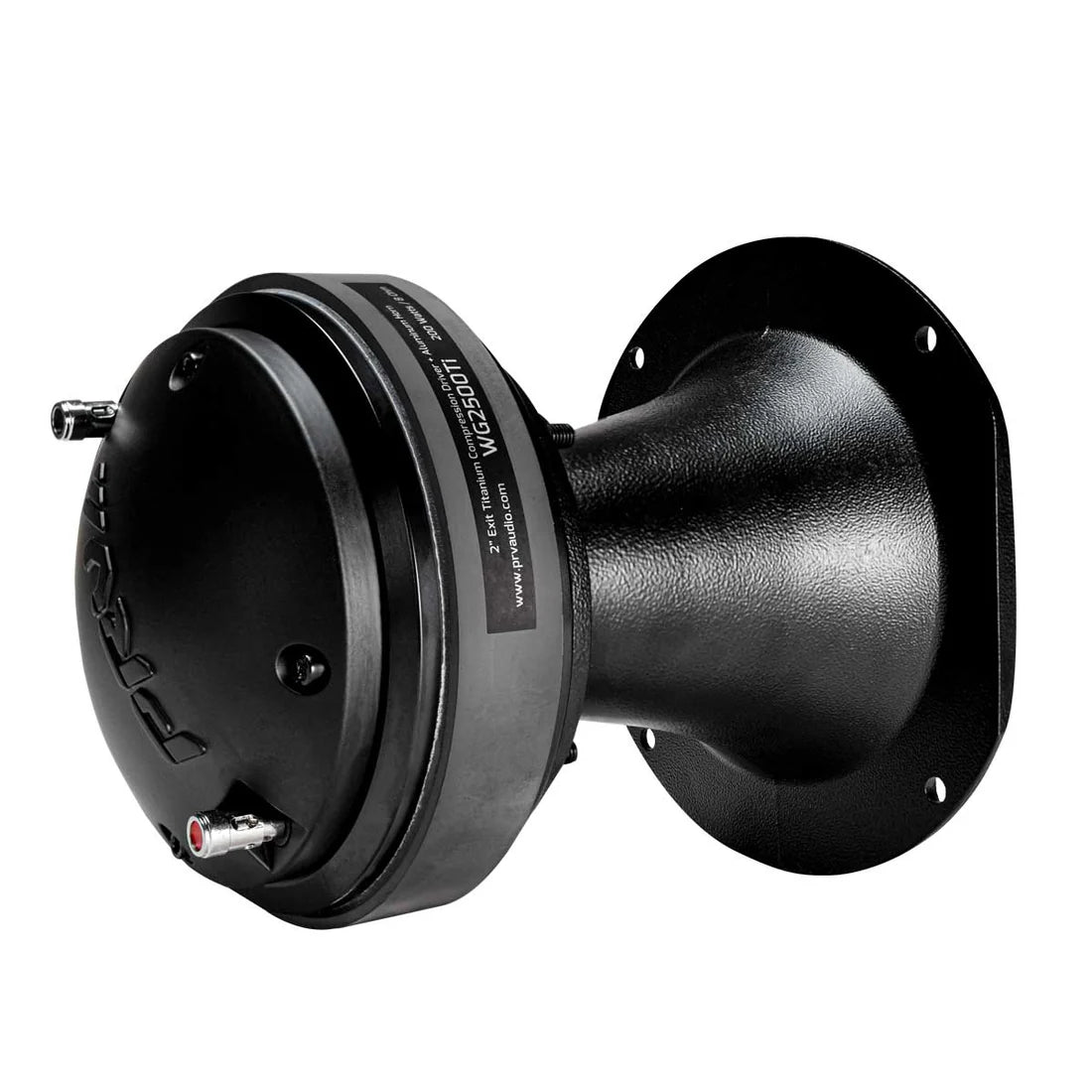

WG2500Ti PRV 2" Exit High Frequency Compression Driver With Horn

About the Product

The WG2500Ti is a unique combo featuring a Titanium Pro Audio compression driver with a 2” exit waveguide that features a special 2.5” size voice coil allowing accurate reproduction through 17kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

  • 2″ Exit Titanium diaphragm with 2.5″ Voice coil
  • Type: Combo – Driver + Horn WG14-50CR
  • Nominal Impedance: 8 Ohm
  • 200 Watts Continuous Program Power (RMS)
  • Extremely high efficiency is perfect for high output systems

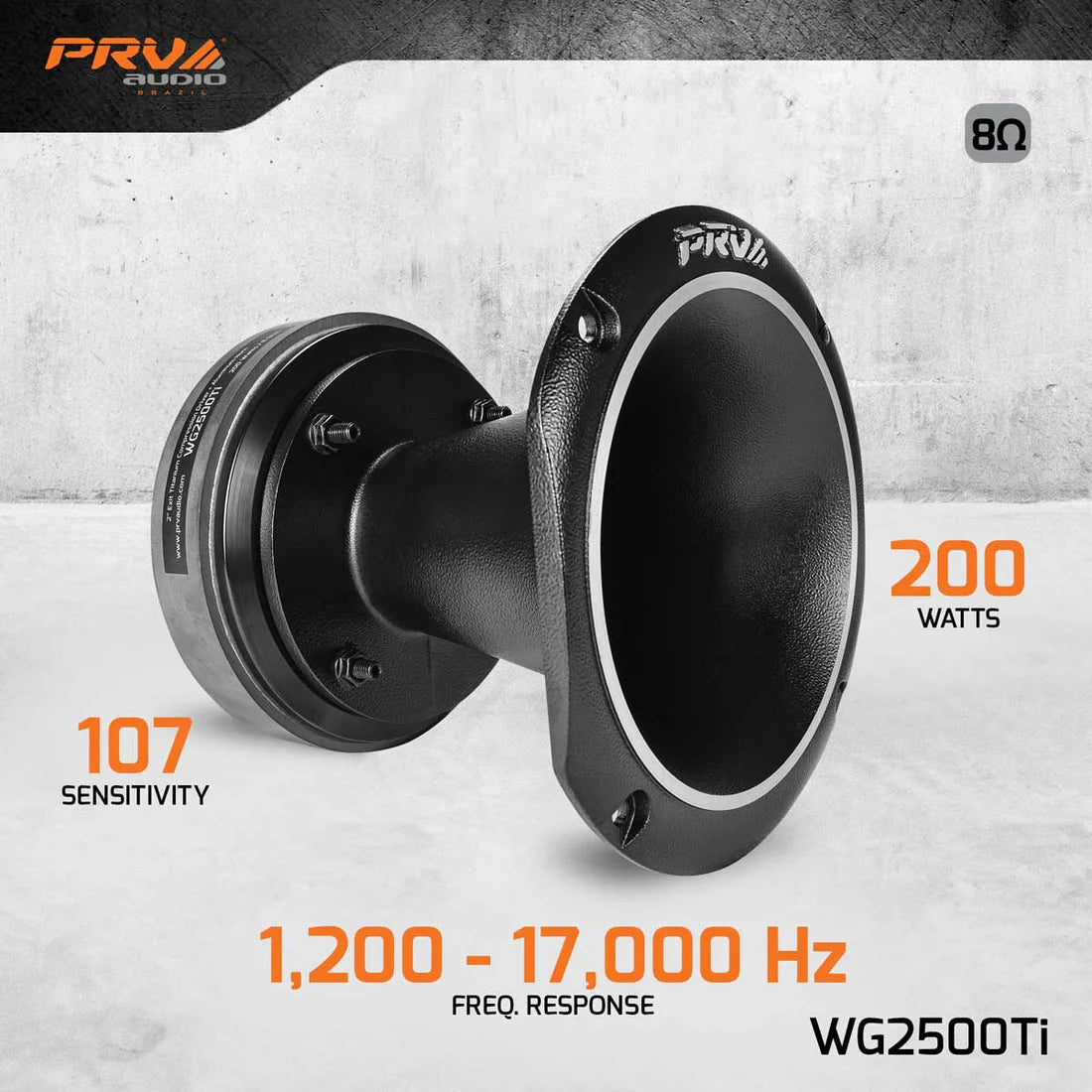

GENERAL SPECIFICATIONS

Exit Throat Diameter 2” (50 mm)
Nominal Impedance 8 Ohm
Nominal Power Handling* 100 Watts
Continuous Power Handling (RMS)** 200 Watts
Max Peak Power*** 400 Watts
Sensitivity 2.83V at 1m 107 dB
Recommended Hi Pass Crossover For Full Power Handling 1700 Hz 12db Per Octave Crossover
Frequency Response at -10dB 1,200 – 17,000 Hz
Voice Coil Diameter 2.5″ (65 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 21.1 T
Magnet Material Ferrite

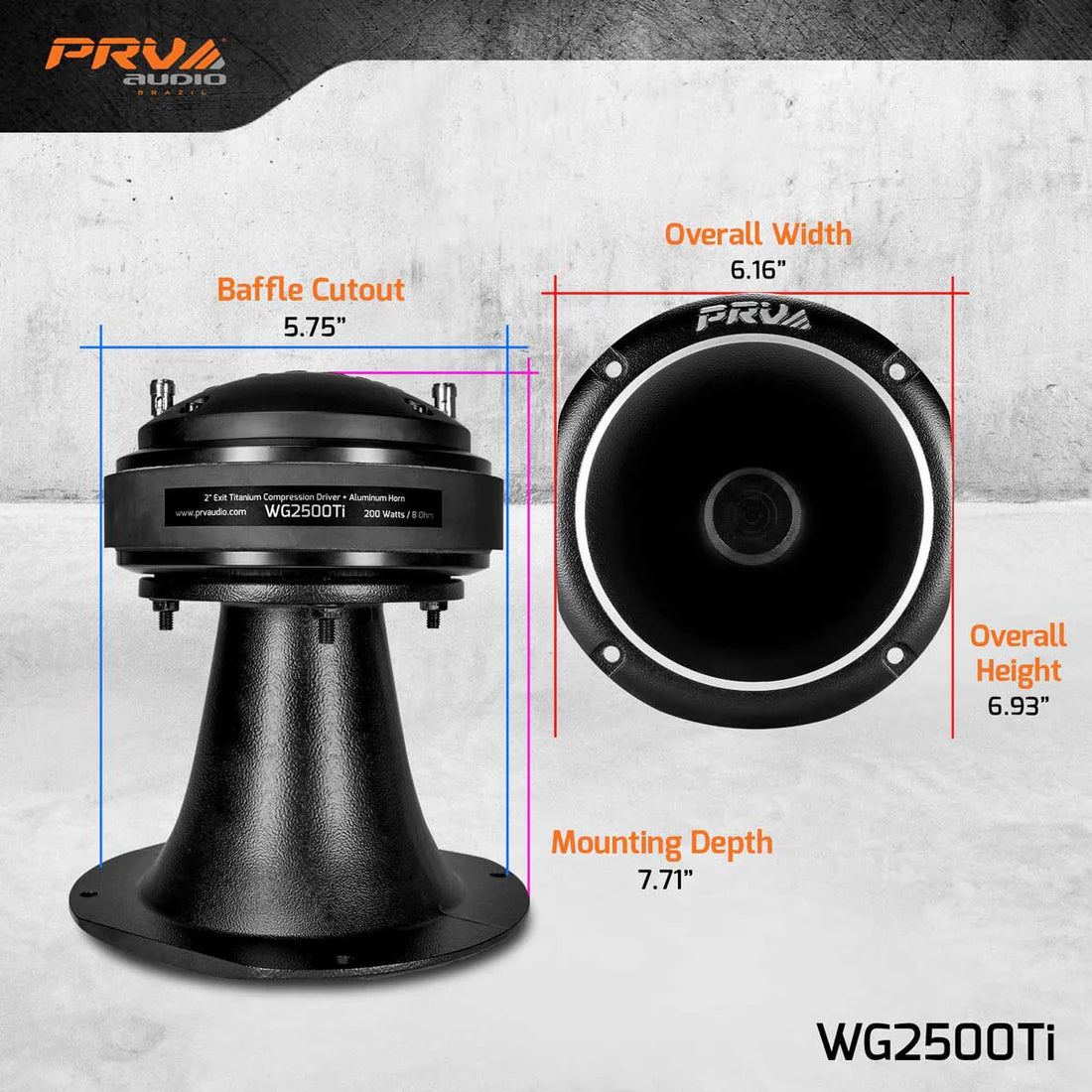

EXTRA INFO

Overall Depth 8.07” (205 mm)
Mounting Depth 7.71” (196 mm)
Overall Width 6.16″ (156.5 mm)
Overall Height 6.93″(176mm)
Baffle Cutout 5.75” (146 mm)
Net Weight 10.32lbs (4.68 kg)
Shipping Weight 11.02lbs (5.00 kg)
Carton Dimensions W x L x H 8.26” x 7.58” x 9.45” (210 x 190 x 240 mm)
