SKU:8MR400

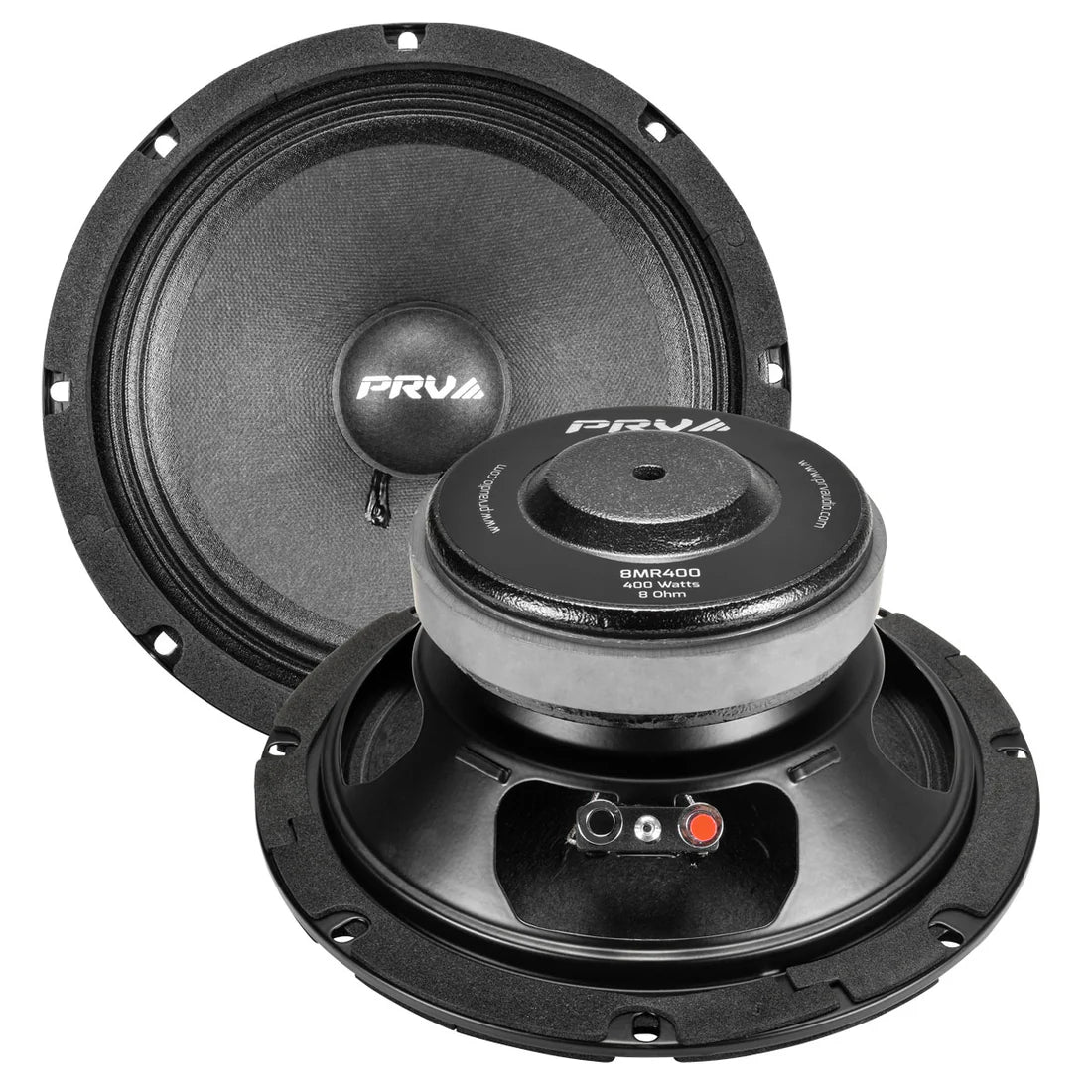

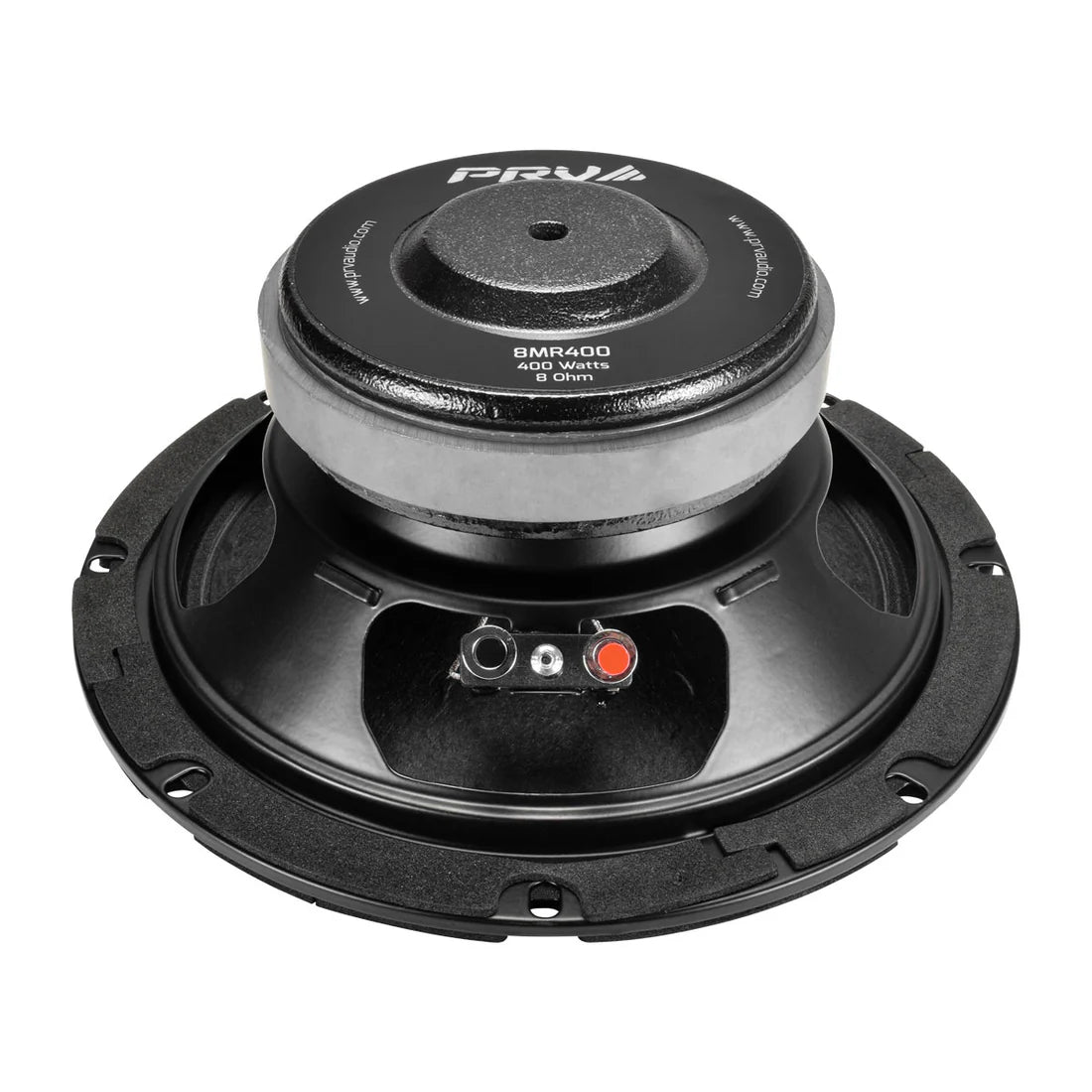

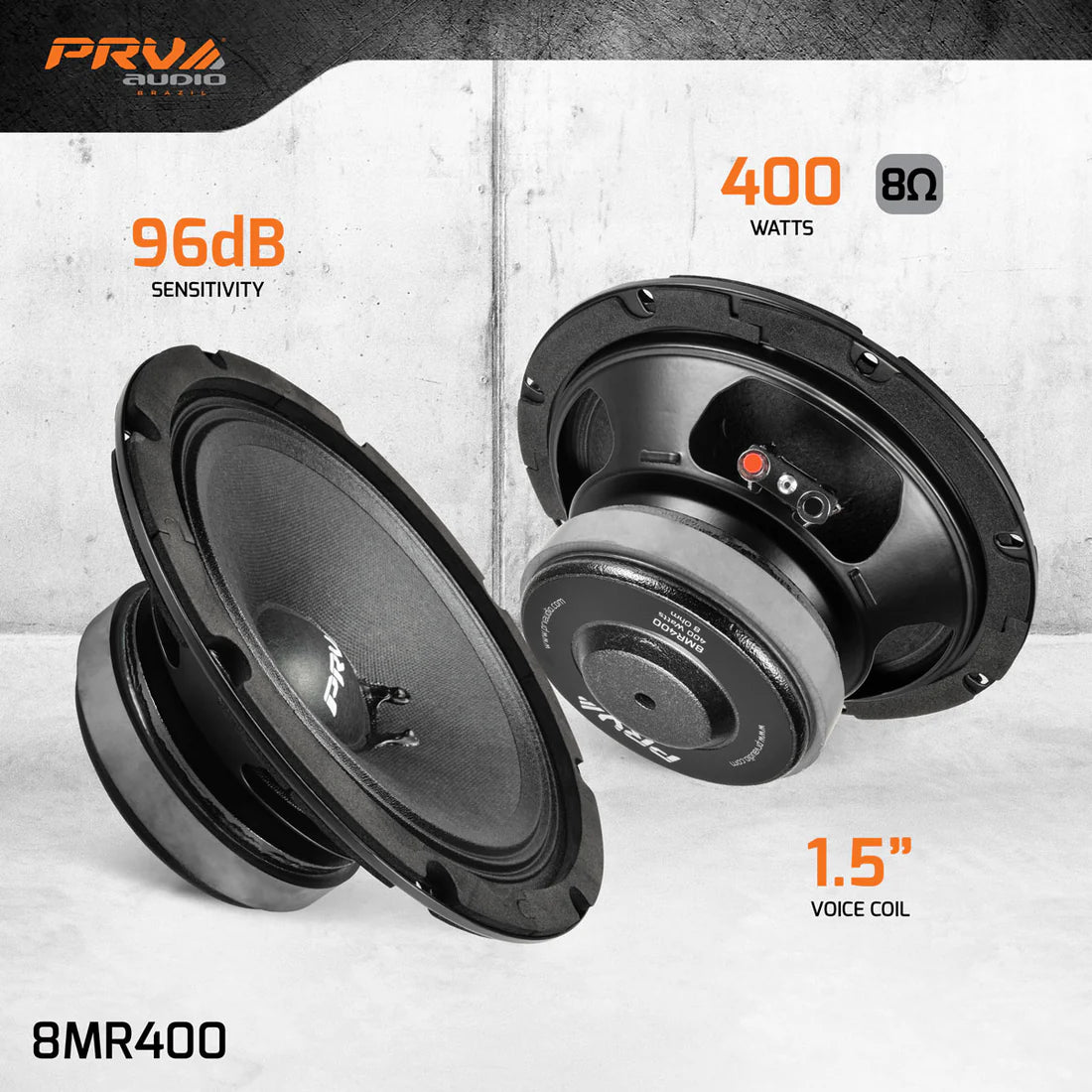

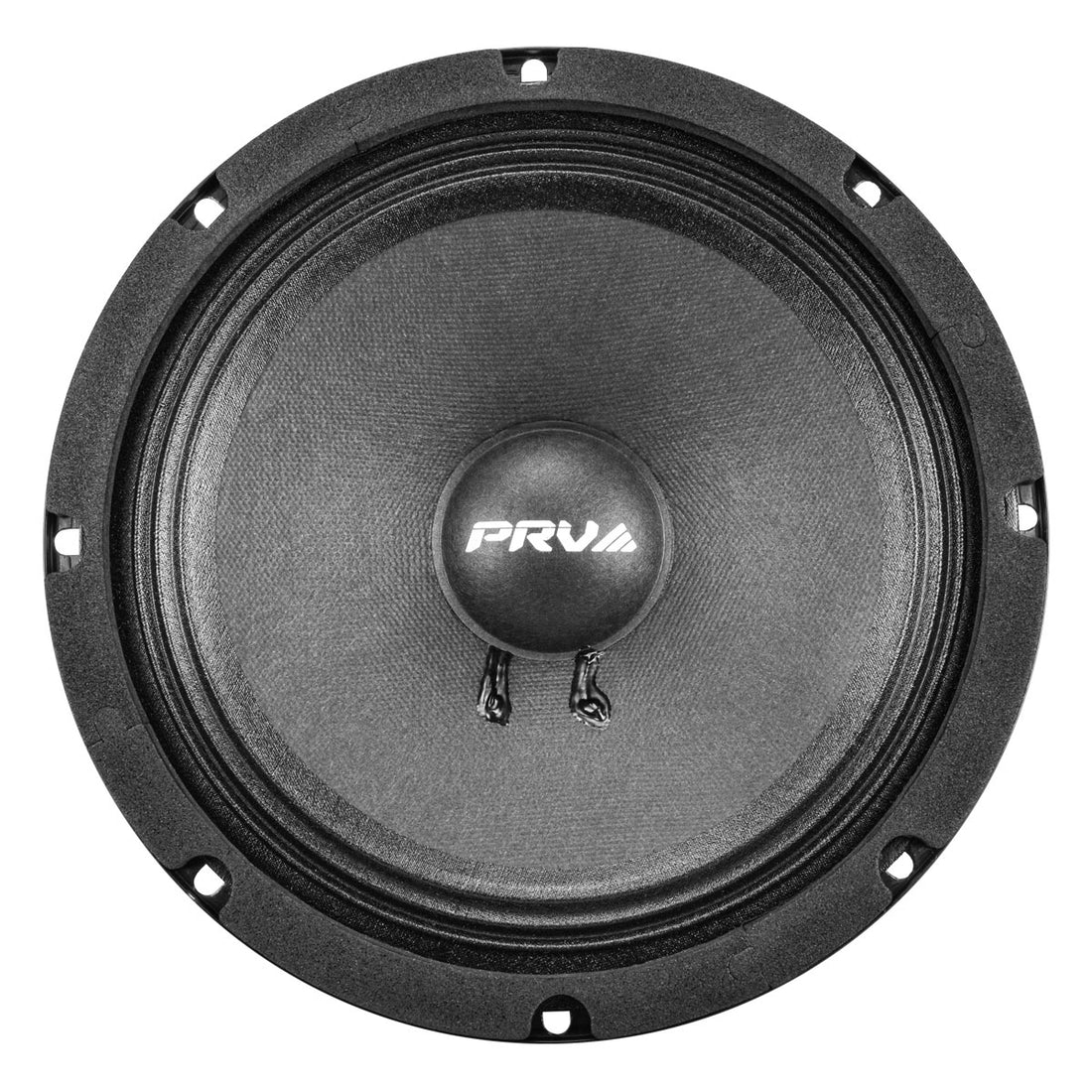

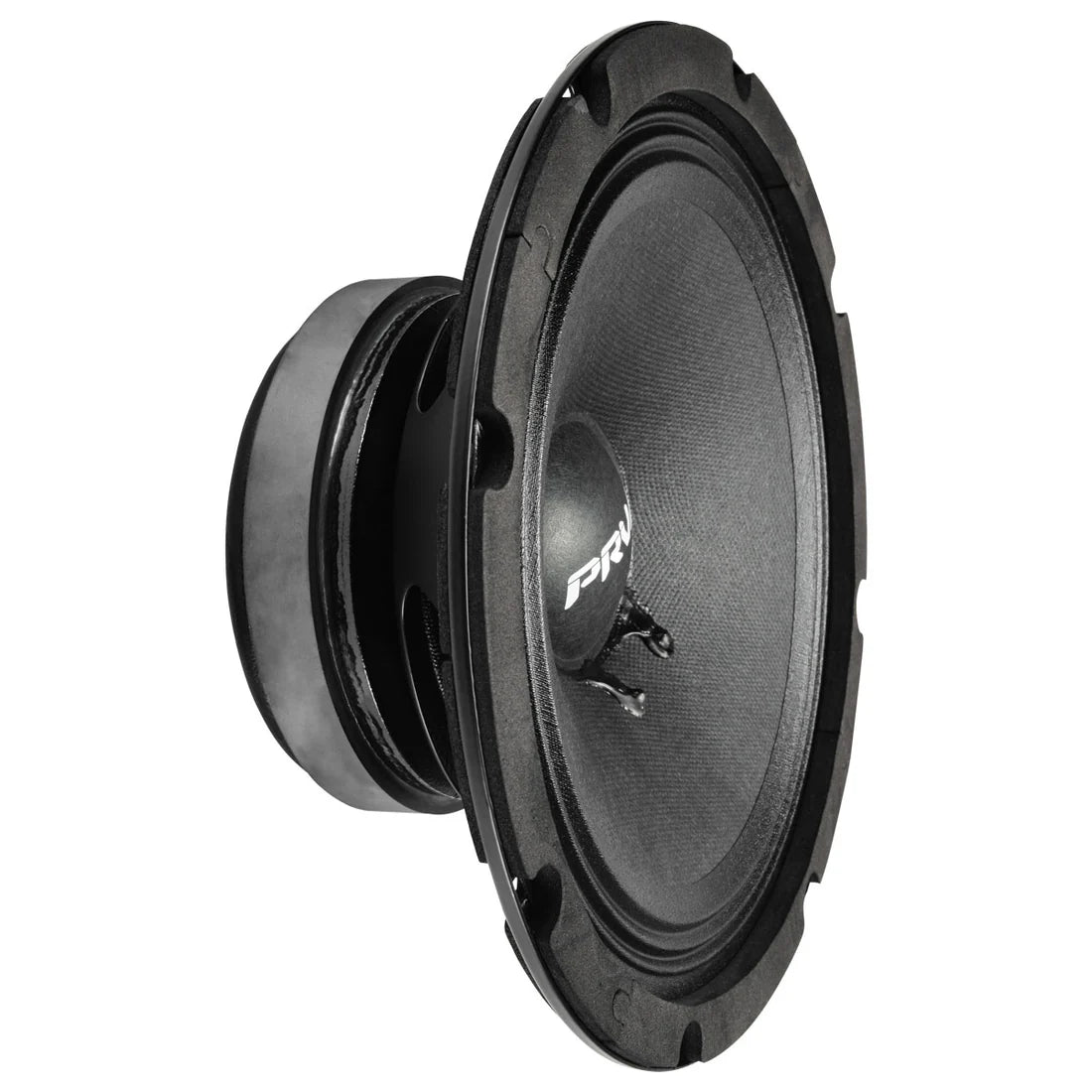

8MR400 PRV 8″ Midrange Speaker
About the Product
PRV 8″ Midrange Speaker 8MR400 PRO Audio 400 Watts / 8 Ohm
Bringing back the true value of PRO audio speakers with this economy 8″ midrange, not only will it perform amazingly well for its price, but it will also truly show our advanced technology on PRO Audio speakers!
Bringing to you an option that offers the lowest price without sacrificing performance.
- Perfect balance between value and performance
- Lightweight paper cone with triple cloth surround, gives high efficiency 96 dB
- Great value for professional, high output home audio, and car audio applications. 8 Ohm Voice coil.
- Recommended tuning with our DSP – 120Hz BT18 / 7000Hz BT18
Its compact design allows for easy installation in any space, making it versatile and suitable for various audio setups. Featuring a compact push terminal for easy, quick installation.
PRV 8MR400 8″ professional midrange speaker is purpose-built to cover from 90 Hz to 7,500 Hz in three-way speakers, but also works great as a door speaker in car audio applications. Easy to blend in with any 10″ or 12″ midbass and a super tweeter.
GENERAL SPECIFICATIONS
| Nominal Diameter | 8″ (203 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 200 Watts |
| Continuous Program Power (RMS) | 400 Watts |
| Max Peak Power | 800 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 125Hz** **12db Per Octave Crossover |
| Frequency Response at -10DB | 90 – 7,500 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 12.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 20.23 l |
| Excursion (mathematical)*** | Xmax | 4.00 mm |
| Free Air Resonance | Fs | 78.2 Hz |
| Mechanical Factor | Qms | 8.52 |
| Electrical Factor | Qes | 0.56 |
| Total Factor | Qts | 0.52 |
| Cone Area | Sd | 222 cm² |
| Mechanical Mass | Mms | 14.05 g |
| Bl Factor | Bl | 8.15 Tm |
| Dc Resistance | Re | 5.4 Ohm |
| Inductance | Le | 0.42 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 12.18 g |
| Mechanical Compliance | Cms | 0.295 mm/N |
EXTRA INFO

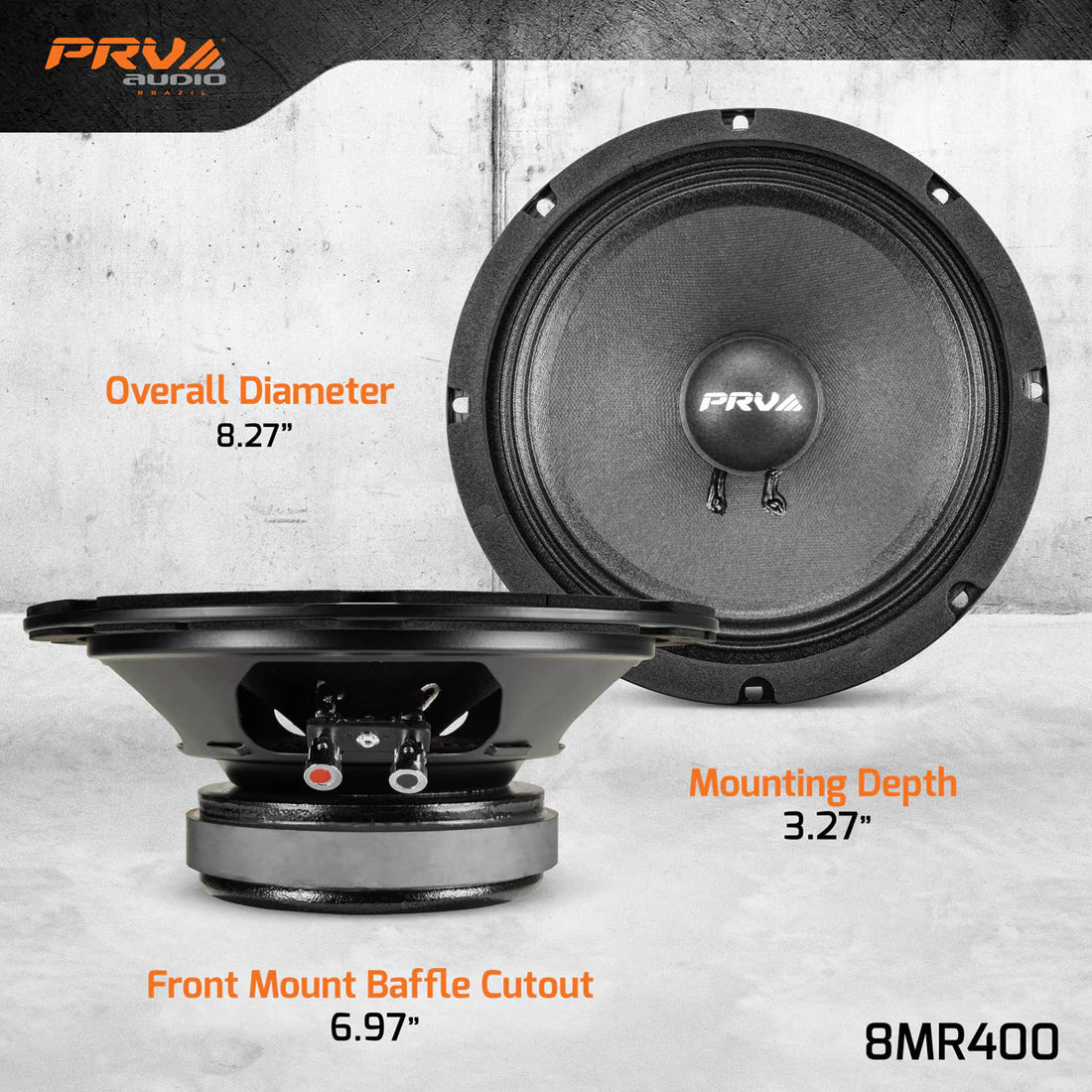

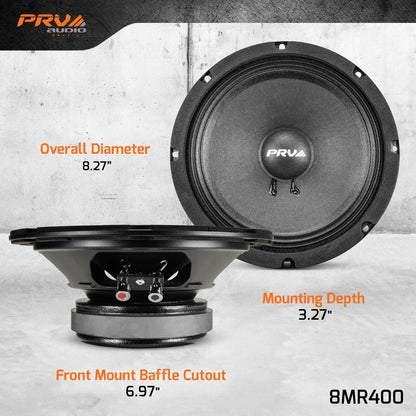

| Overall Diameter | 8.27″ (210 mm) |
| Front Mount Baffle Cutout | 6.97″ (177 mm) |
| Mounting Depth | 3.27″ (83 mm) |
| Overall Depth | 3.58″ (91 mm) |
| Net Weight | 4.85 Lbs (2.20 kg) |
| Shipping Weight | 5.45 Lbs (2.48 kg) |
| Carton Dimensions W x L x H | 9.05″ x 9.05″ x 3.98″ (230 x 230 x 100 mm) |
