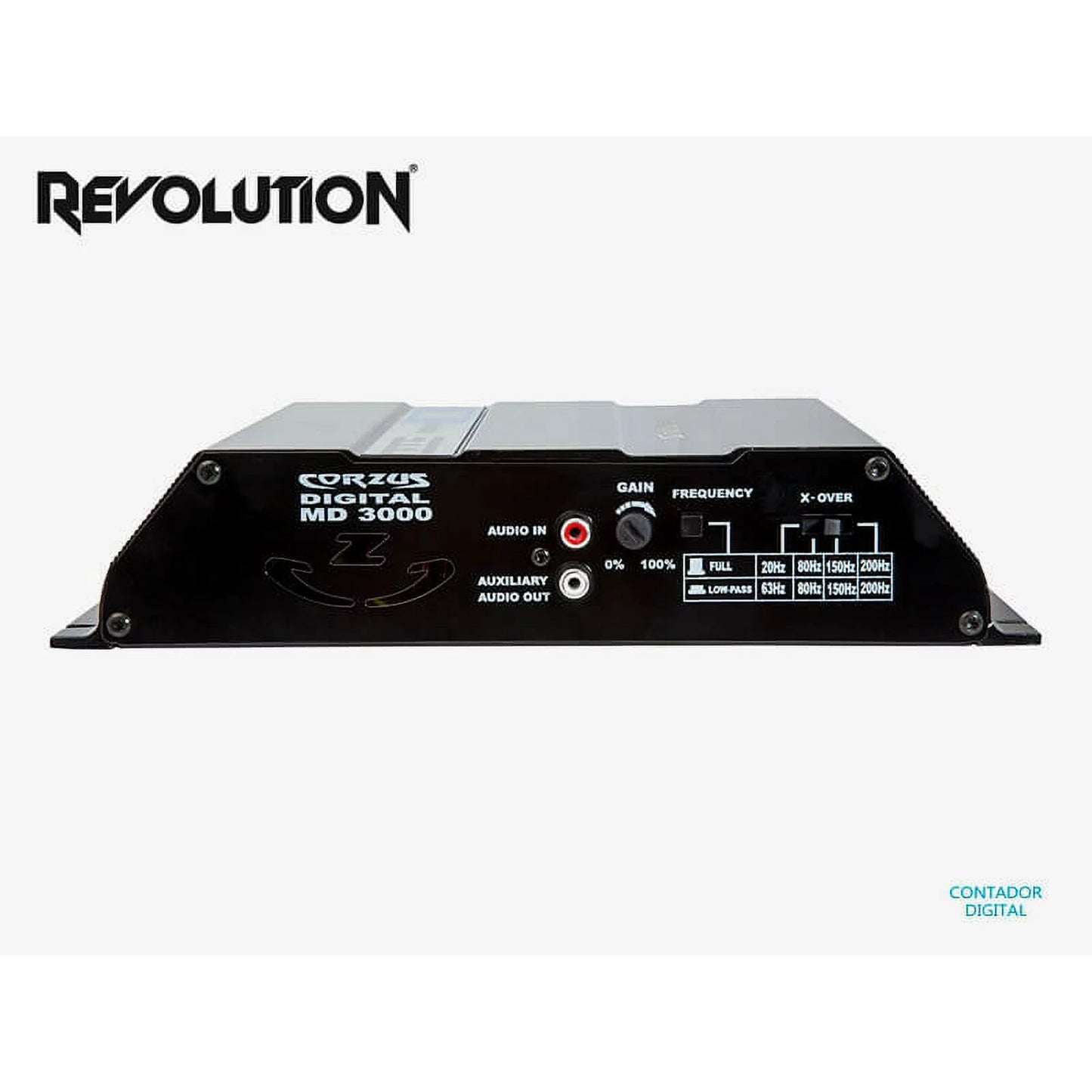

Corzus MD3000 3K W 1 Channel 1 Ohm

The Corzus MD3000 is a 1 channel amplifier with total power of 3000 Watts RMS Digital Class D , of very high efficiency and low noise emission controlled by DSP (digital signal processor). It has extreme audio quality and Full Range (Sinusoidal) frequency response from 20Hz to 8 kHz, active full range and low-pass crossover with frequency selectable in 4 options. Subsonic filter, RCA inputs and various protections managed by the DSP and Display Indicator.

Corzus MD3000 1 OHM Version

Power RMS Total 3000 Watts

Power RMS A 1 Ohms 3000 Watts

SYNODAL Frequency Response (THD 0.01%) FROM 20Hz TO 8KHz (-3dB)

Cutting Frequency of the Cross0ver Full Range Selectable Between Full Range, 80Hz, 150Hz AND 200KHz

Crossover Cutting Frequency Selected Low-Pass Between 63Hz, 80Hz, 150Hz AND 200Hz

Minimum Output Impedance 1 Ohms

Maximum Output Distortion (THD) 0.01%

Temperare Protection 80 ° C

Maximum Consumption 300 A

Digital Display Incorporated To The Equipment * SIM

Operation Voltage (OPERATING ENTRY VOLTAGE) 10.0Vdc to 15.0Vdc

Protection Voltage (LIMIT ENTRY VOLTAGE) 8.0VDC to 16.0V DC

RCA INPUT Sensitivity (AUDIO SIGNAL NECESSARY TO GET MAXIMUM POWER) 0.5 Vrms To 5 Vrms
