SKU:C-MD3000-2

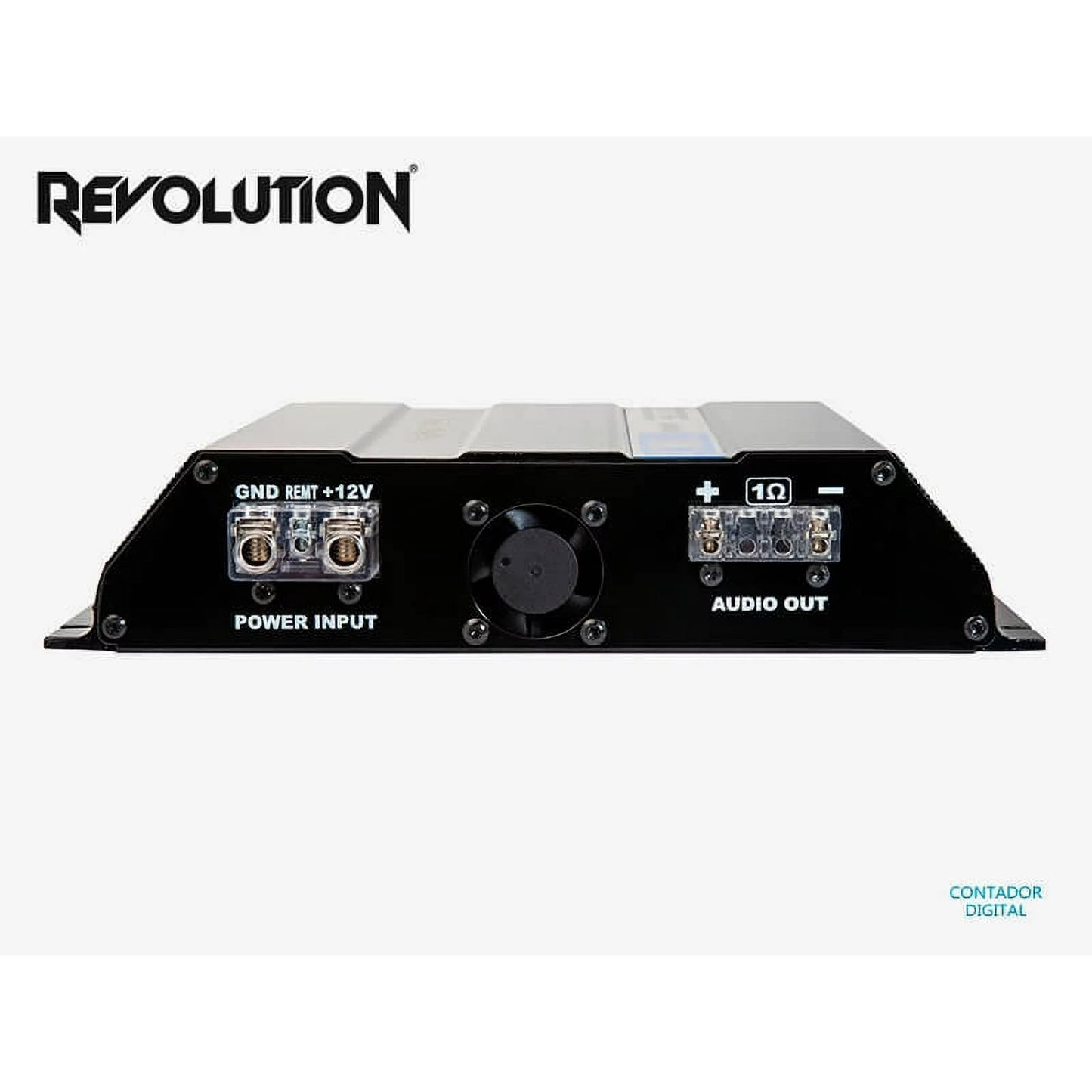

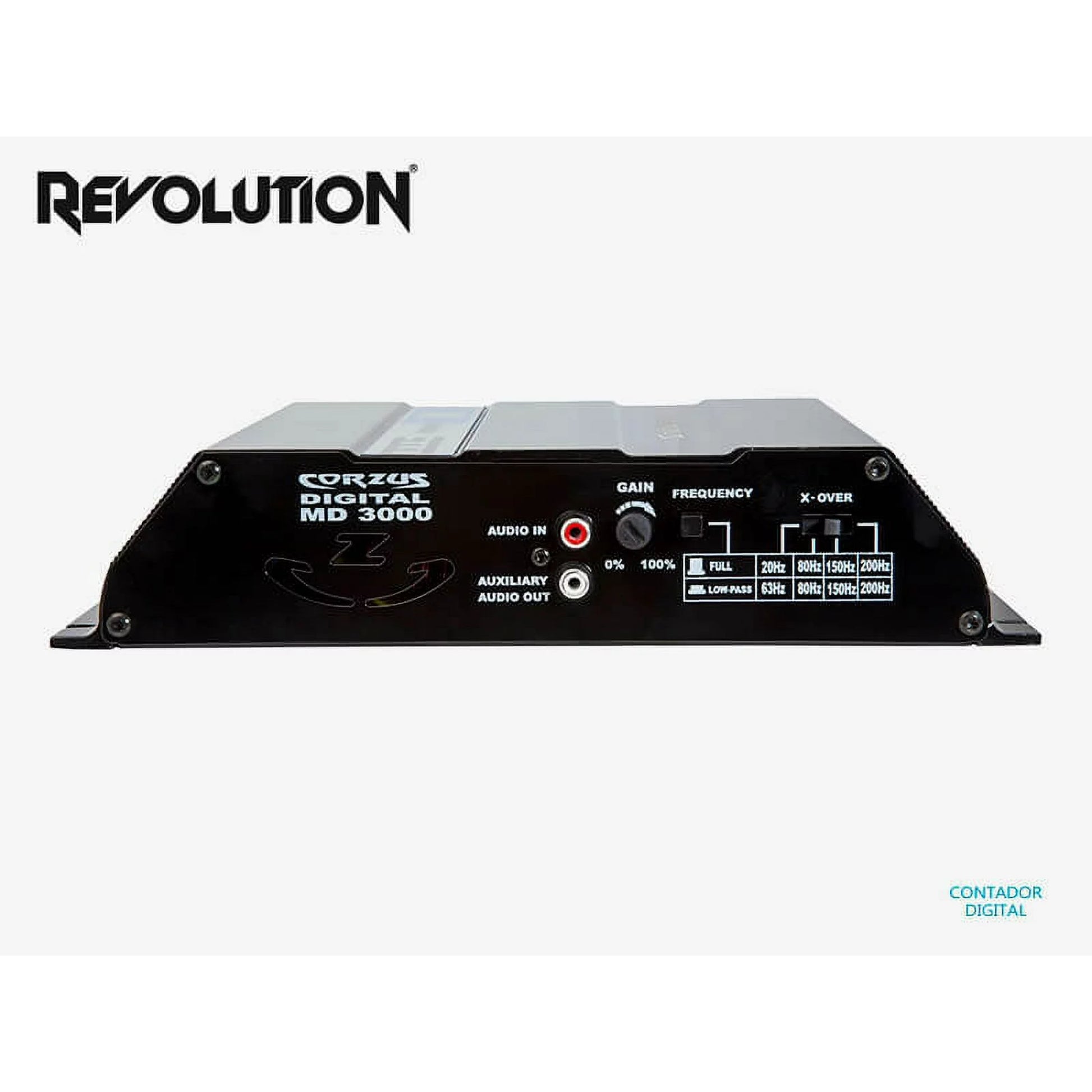

Corzus MD3000 3K W 1 Channel 2 Ohm
About the Product
The Corzus MD3000 is a 1 channel amplifier with a total power of 3000 Watts RMS Digital Class D, very high efficiency and low noise emission controlled by DSP (digital signal processor). It features extreme audio quality and full-range frequency response from 20Hz to 8KHz, full range and low-pass active crossover with selectable frequency in 4 options. Subsonic filter, RCA inputs and various protections managed by the DSP and Display Indicator.
POWER RMS TOTAL 3000 WATTS
CHANNEL: 1
POWER RMS A 2 OHMS 3000 WATTS
POWER RMS A 4 OHMS 1500 WATTS
SINUSOIDAL FREQUENCY RESPONSE (THD 0.01%) FROM 20Hz TO 8KHz (-3dB)
CUTTING FREQUENCY OF THE CROSSOVER FULL RANGE SELECTABLE BETWEEN FULL RANGE, 80Hz, 150Hz AND 200KHz
CROSSOVER CUTTING FREQUENCY SELECTED LOW-PASS BETWEEN 63Hz, 80Hz, 150Hz AND 200Hz
MINIMUM OUTPUT IMPEDANCE 2 OHMS
MAXIMUM OUTPUT DISTORTION (THD) 0.01%
TEMPERATURE PROTECTION 80 ° C
MAXIMUM CONSUMPTION 300 A
DIGITAL DISPLAY INCORPORATED TO THE EQUIPMENT * SIM
OPERATION VOLTAGE (OPERATING ENTRY VOLTAGE) 10.0Vdc to 15.0Vdc
PROTECTION VOLTAGE (LIMIT ENTRY VOLTAGE) 8.0VDC to 16.0V DC
RCA INPUT SENSITIVITY (AUDIO SIGNAL NECESSARY TO GET MAXIMUM POWER) 0.5Vrms To 5Vrms
WEIGHT 4.4 Kg."
