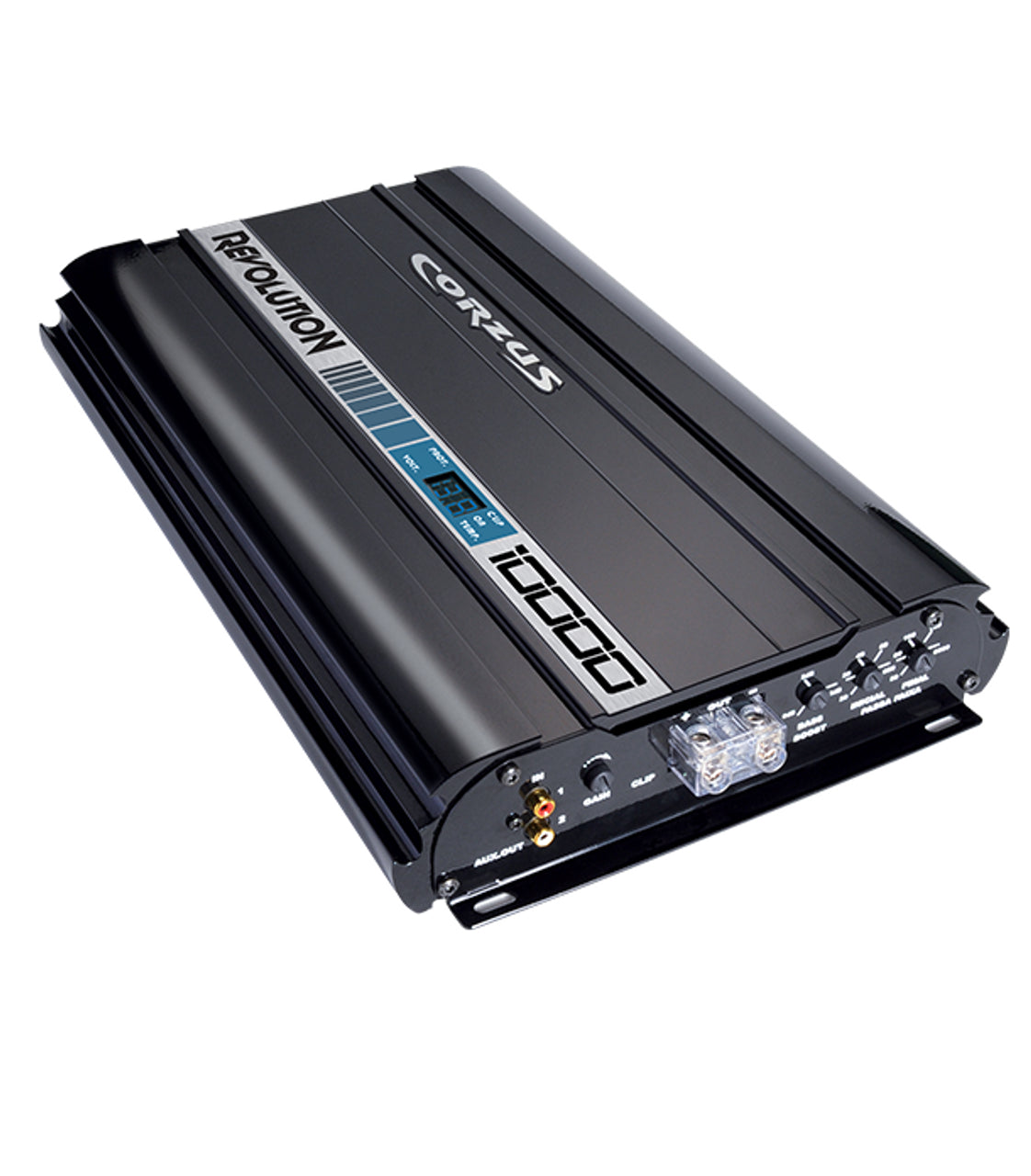

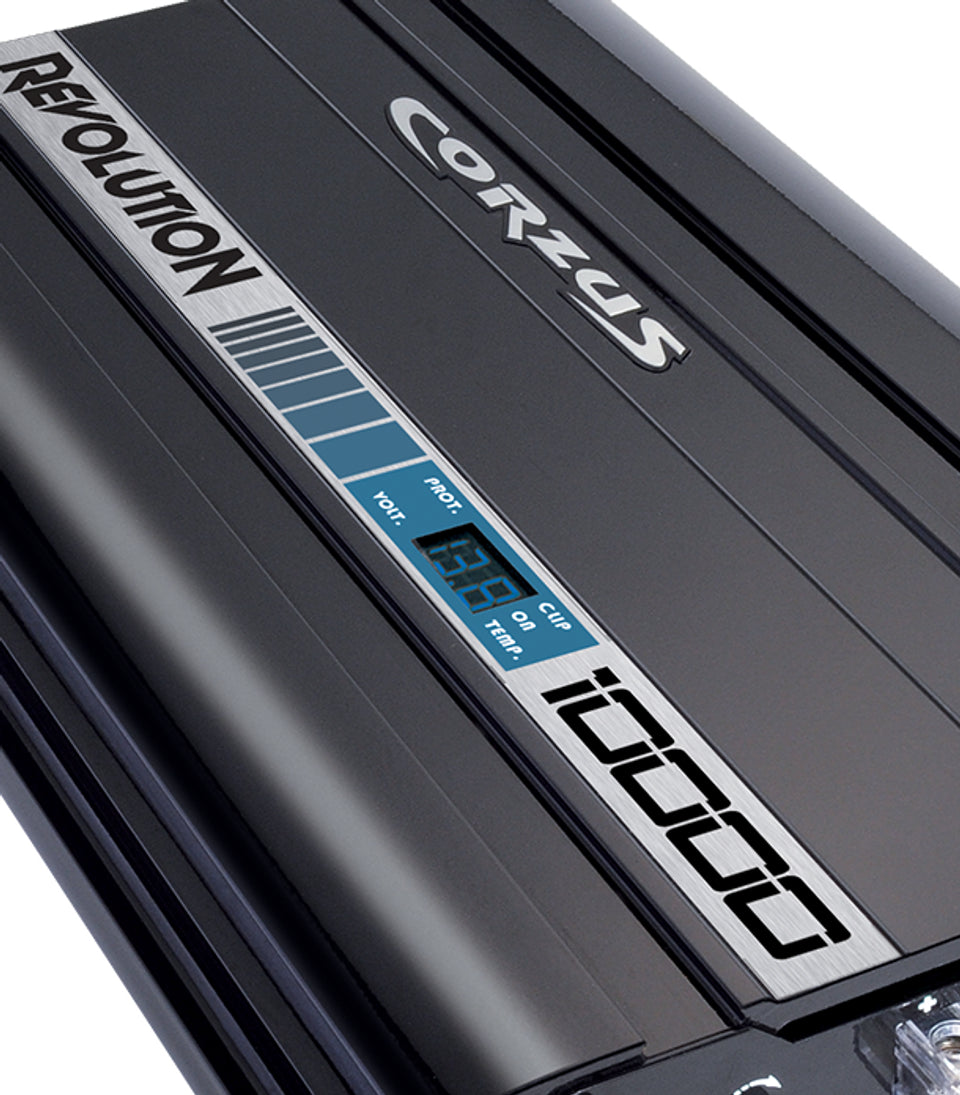

CORZUS REVOLUTION MD-10000 10K W RMS 1 Channel 1-Ohm Car Audio Amplifier

CORZUS REVOLUTION MD10000 10K W RMS 1 Channel 1-Ohm

Technical information: 1-OHM Version

RMS power at 1 OHM 10000 Watts

RMS power at 2 OHMS 5000 Watts

Sinusoidal Frequency Response (THD 0.01%) from 20 Hz to 8 KHz (-3db)

Crossover FullRange Cutoff Frequency Variable Between 50 HzA 8 KHz

Crossover Low Pass cut-off frequency ranging from 20Hz to 500Hz

Bass Boost 0 to 6 6dB 60 Hz

Minimum output impedance 1 OHM

Maximum Output Distortion (THD) 0.1%

85c temperature protection

800A Max Consumption

AC output voltage 140 V

Operating Voltage (Operating Input Voltage) 10Vdc To 15Vdc

Protection Voltage (Limit Input Voltage) 9.0Vdc To 16Vdc

RCA Input Sensitivity 0.5Vrms to 5Vrms

Weight 9.4kg

Height: 59.1 mm

Width: 270 mm

Length: 439 mm"
