SKU:C-MD5000-2

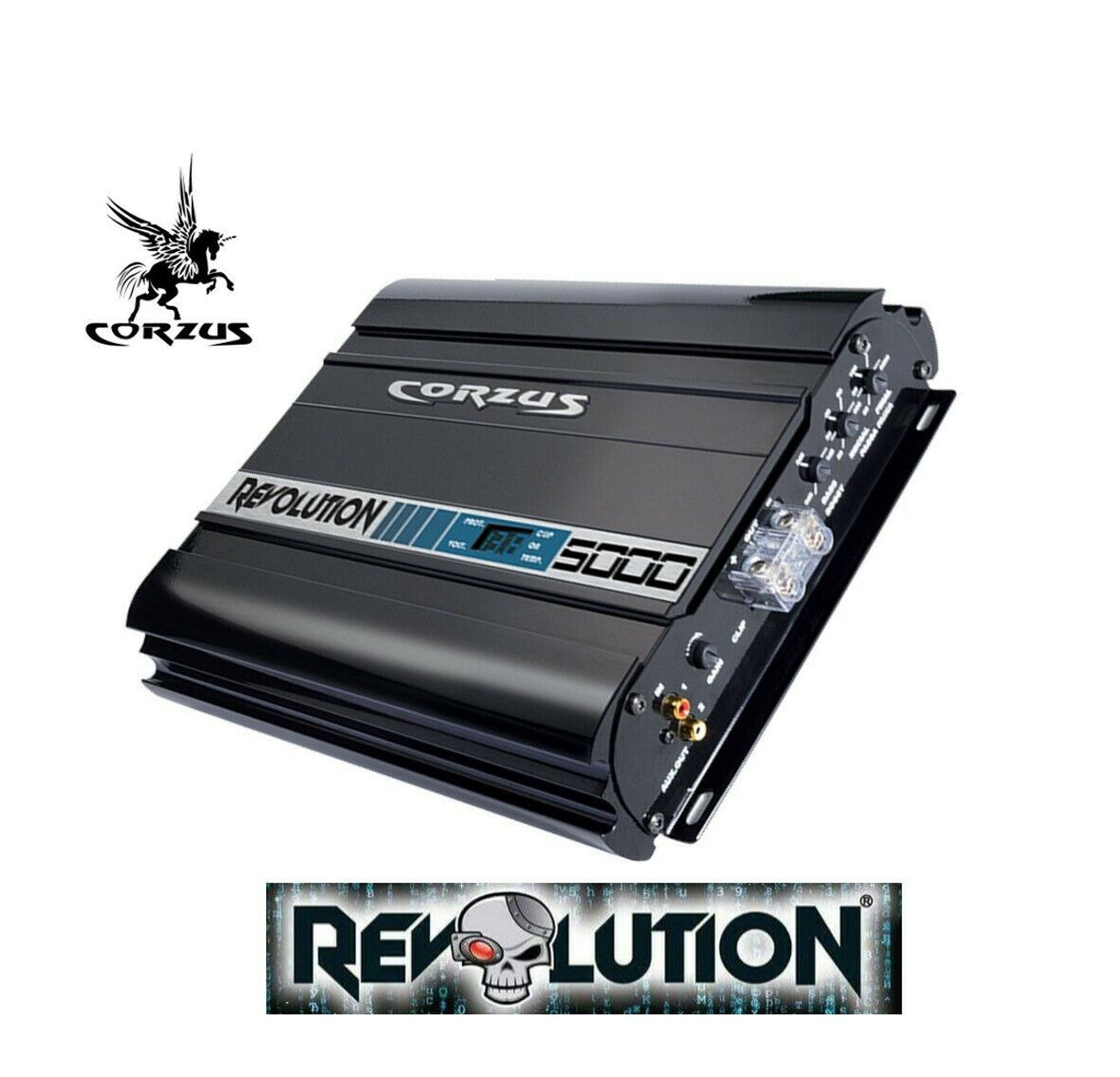

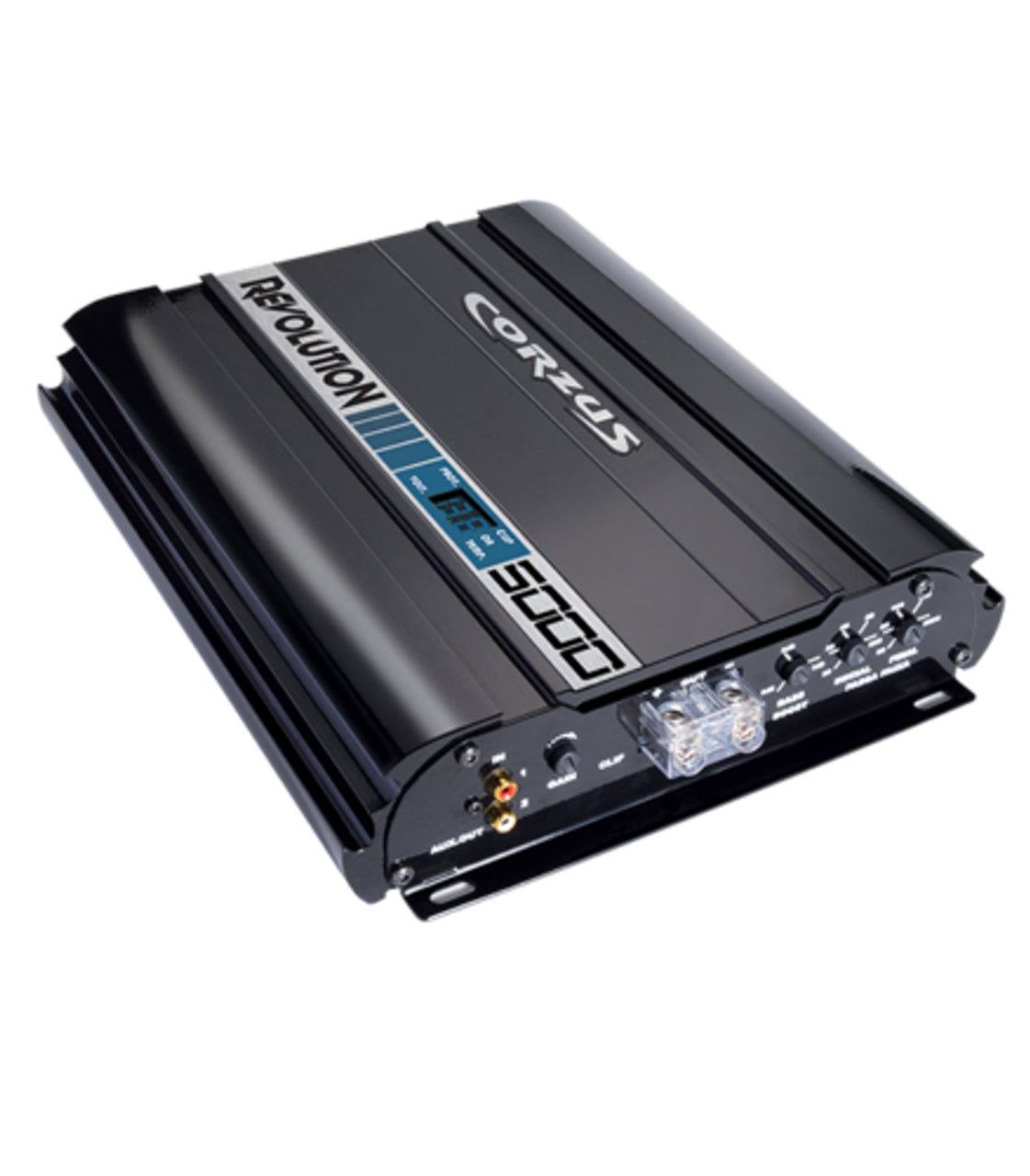

CORZUS REVOLUTION MD-5000 5000W RMS 1 Channel 2-Ohm Car Audio Mono 5K Amplifier
About the Product
"CORZUS REVOLUTION MD5000 5000W RMS 1 Channel 2-Ohm Car Audio Amplifier
Technical information: 2-OHMS Version
RMS power at 2 OHMS 5000 Watts
RMS power at 4 OHMS 2500 Watts
Sinusoidal Frequency Response (THD 0.01%) from 20 Hz to 8 KHz (-3db)
Crossover FullRange Cutoff Frequency Variable Between 50 HzA 8 KHz
Crossover Low Pass cut-off frequency ranging from 20Hz to 500Hz
Bass Boost 0 to 6 6dB 60 Hz
Minimum output impedance 1 OHM
Maximum Output Distortion (THD) 0.1%
85c temperature protection
Max consumption 400A
AC output voltage 86 V
Operating Voltage (Operating Input Voltage) 10Vdc To 15Vdc
Protection Voltage (Limit Input Voltage) 9.0Vdc To 16Vdc
RCA Input Sensitivity 0.5Vrms to 5Vrms
Weight 6.4kg
Height: 59.1mm
Width: 270mm
Length: 298mm"
