SKU:PRV-10W650A

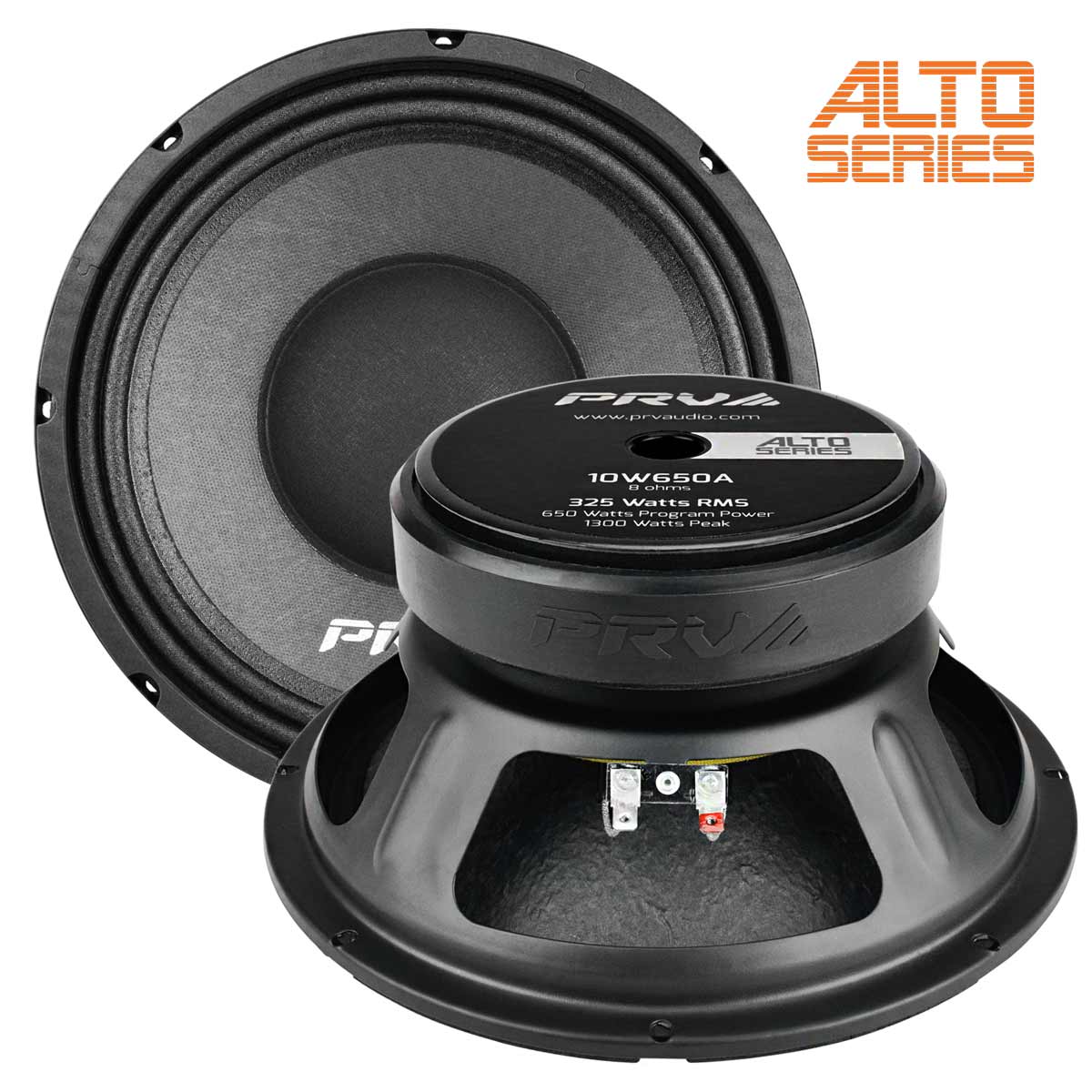

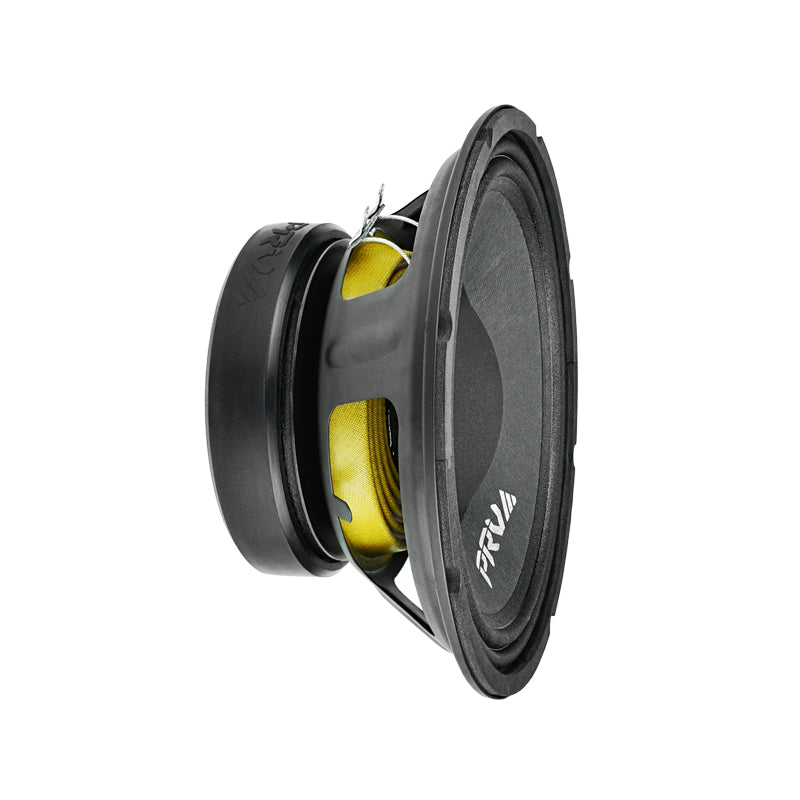

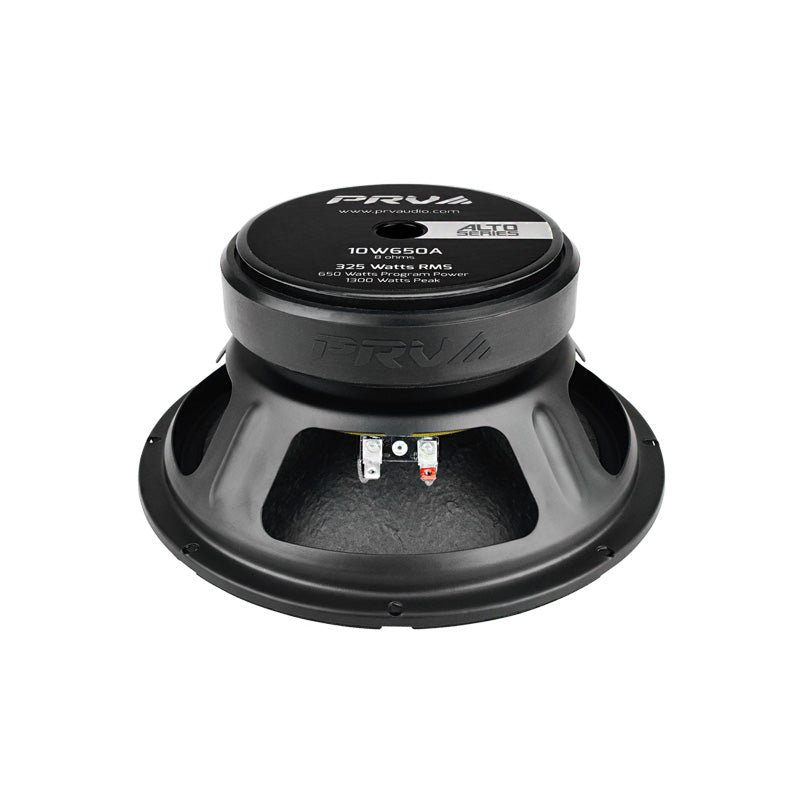

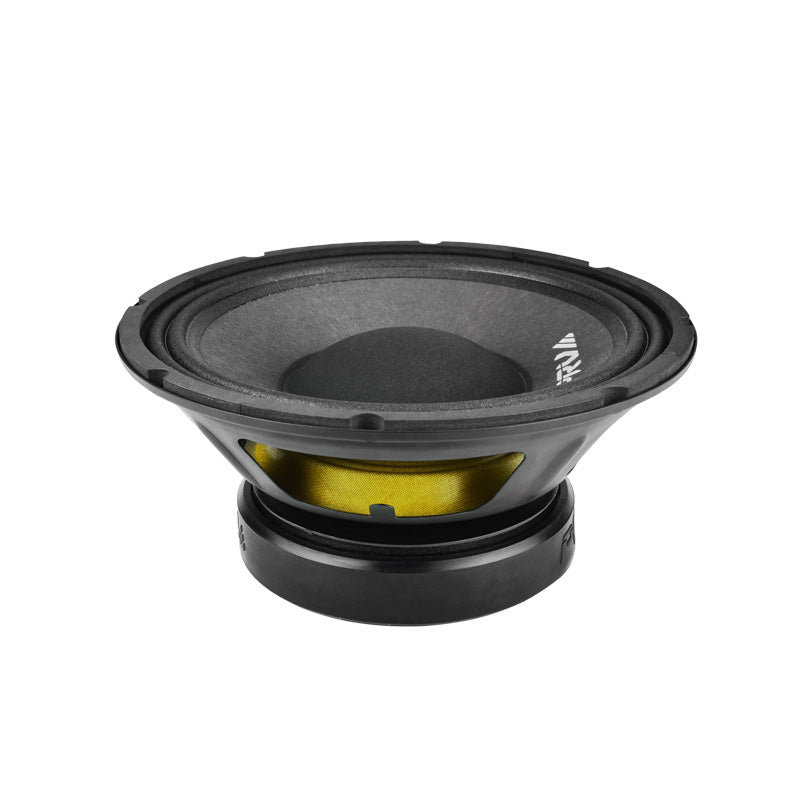

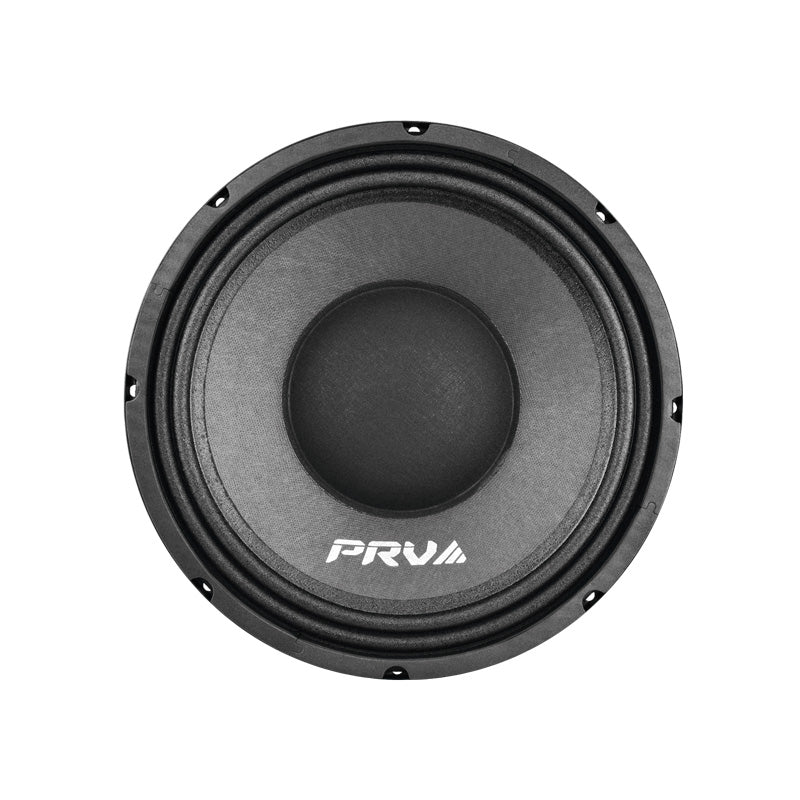

PRV AUDIO 10 Inch Woofer 10W650A-4 650 Watts Program Power
About the Product
High fidelity meets high output — PRV Audio ALTO Series Woofers. Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. That’s why PRV Audio’s Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic.
- Nominal Impedance: 8 Ohms
- 650 Watts Program RMS power makes high acoustical output
- 75 to 5,500 Hz frequency response makes this midbass/woofer suitable for two or three-way designs
- Capable of extreme output levels with 97 dB sensitivity
- Voice Coil Diameter: 2.5″
GENERAL SPECIFICATIONS
| Nominal Diameter | 10″ (254 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 325 Watts |
| Program Power | 650 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 150 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 75 – 5,500 Hz |
| Voice Coil Diameter | 2.5″ (65.5 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 13.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 34.04 l |
| Excursion (mathematical)*** | Xmax | 4.50 mm |
| Free Air Resonance | Fs | 72.31 Hz |
| Mechanical Factor | Qms | 16.34 |
| Electrical Factor | Qes | 0.47 |
| Total Factor | Qts | 0.46 |
| Cone Area | Sd | 415 cm² |
| Mechanical Mass | Mms | 34.04 g |
| Bl Factor | Bl | 14.09 Tm |
| Dc Resistance | Re | 6.1 Ohms |
| Inductance | Le | 0.79 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 29.24 g |
| Mechanical Compliance | Cms | 0.142 mm/N |
EXTRA INFO
| Overall Diameter | 10.10” (257 mm) |
| Front Mount Baffle Cutout | 9.25” ( 235 mm) |
| Mounting Depth | 4.3” (110 mm) |
| Overall Depth | 4.72” (120 mm) |
| Net Weight | 10.49 Lbs (4.75 kg) |
| Shipping Weight | 11.25 Lbs (5.10 kg) |
| Carton Dimensions W x L x H | 11.02” x 11.02” x 5.98” (280 x 280 x 152 mm) |
