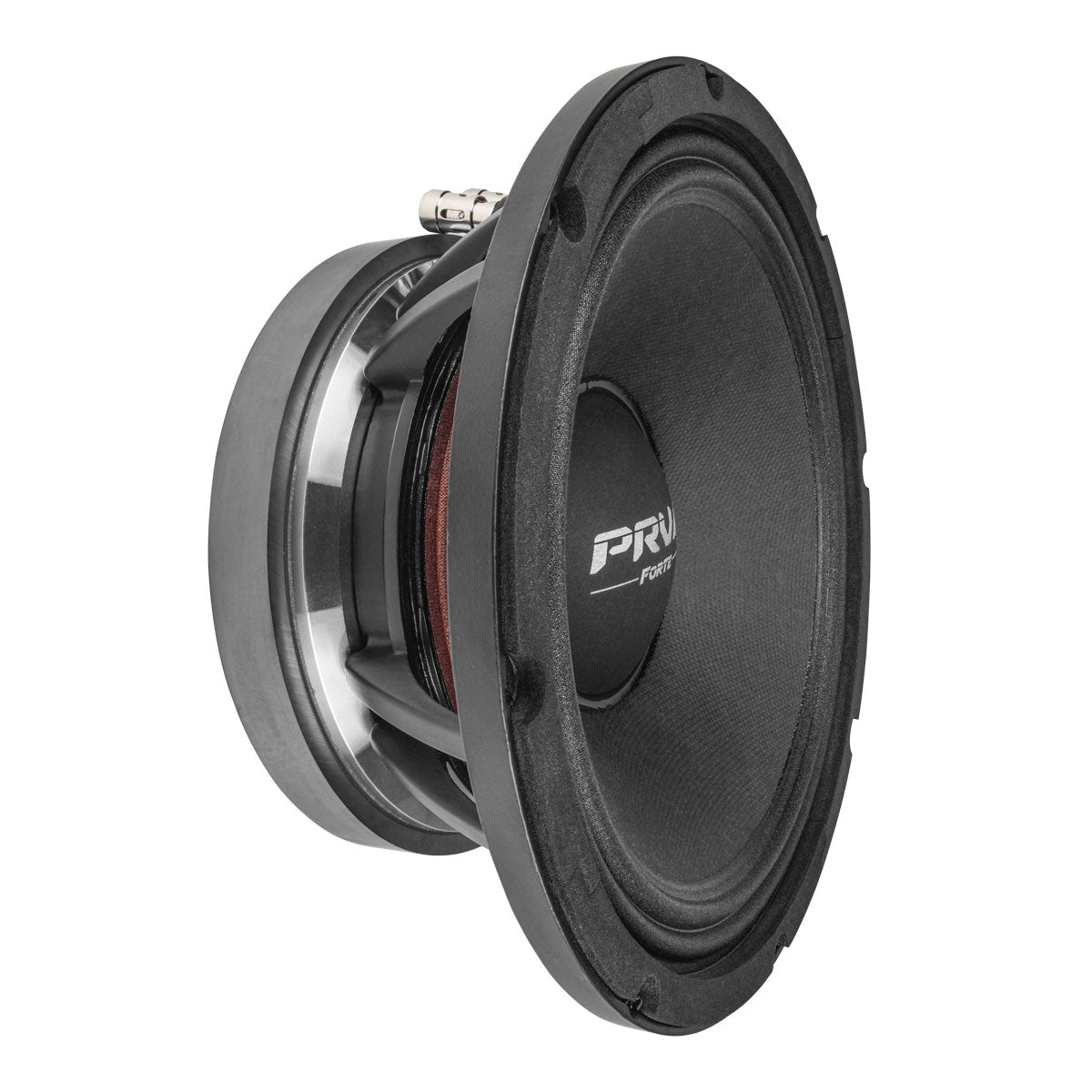

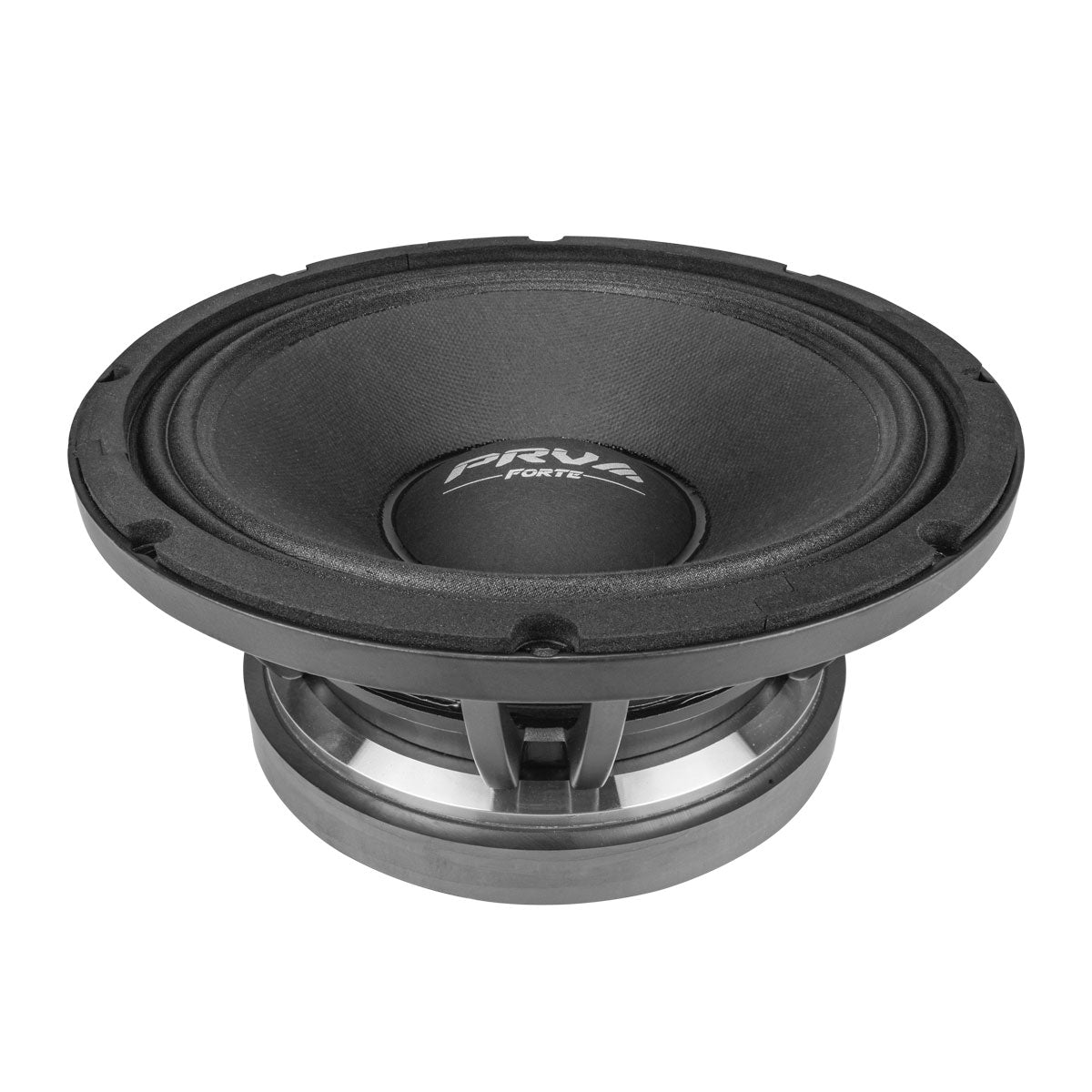

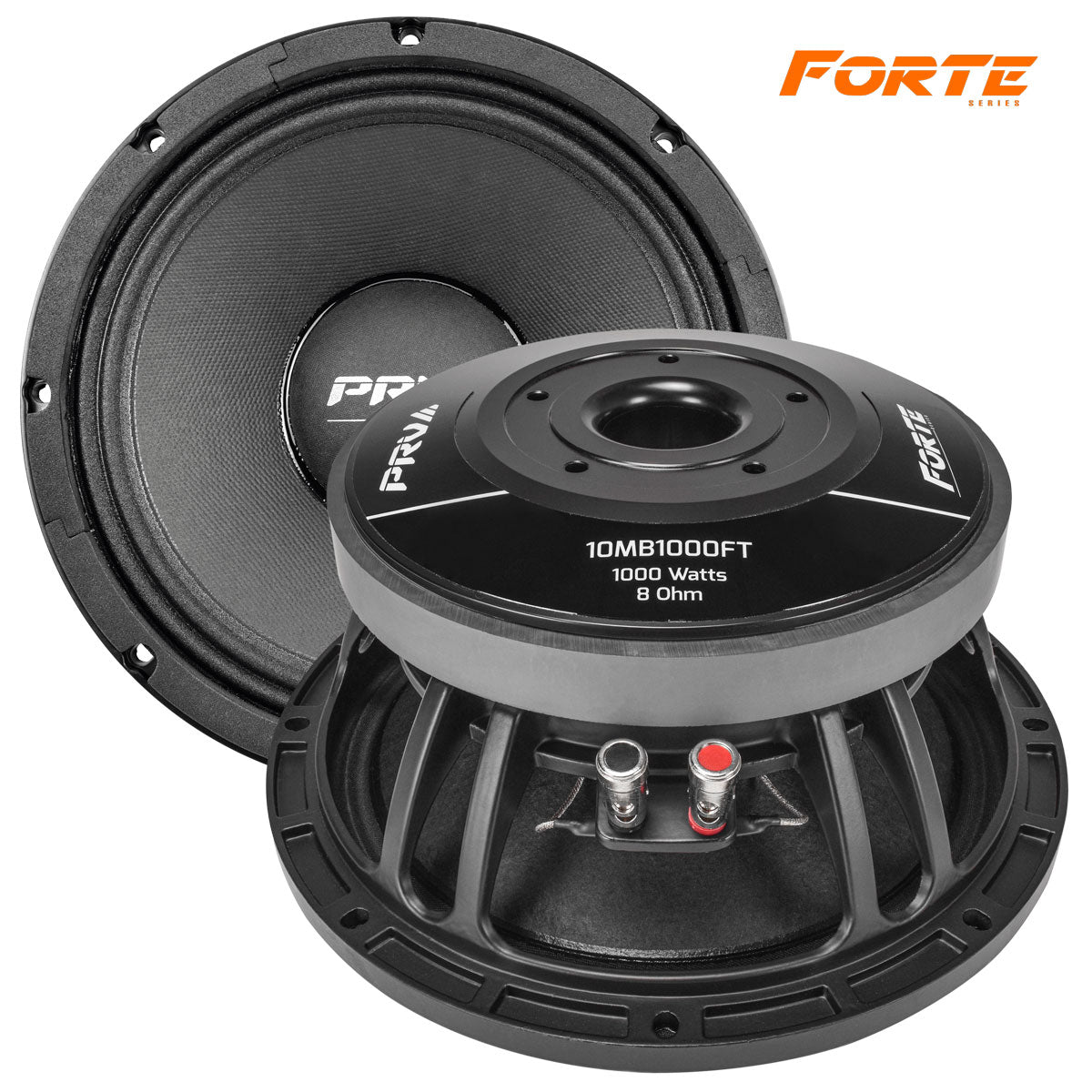

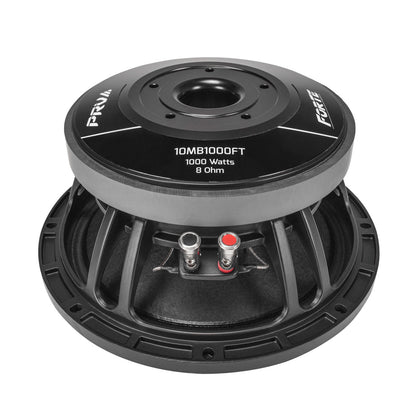

PRV AUDIO 10MB1000FT 10 Inch Midbass Speaker

About the Product

Combining high output with low distortion midbass response, PRV Audio’s 10MB1000FT 10″ professional midbass loudspeaker is the perfect choice for high-powered sound reinforcement speakers, stage monitors, and even high SPL PROAudioOnWheels systems.

A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key. The 10MB1000FT is a rugged 10″ midbass that combines midbass punch and mid clarity at remarkable SPL output with low distortion and extended midbass response. Optimized for use in compact enclosures, this mid bass speaker is built to perform on low midbass frequencies with authority, while providing a smooth vocal response and useful response up to 7,000 Hz, making it a great choice for larger 2 and 3 way systems.

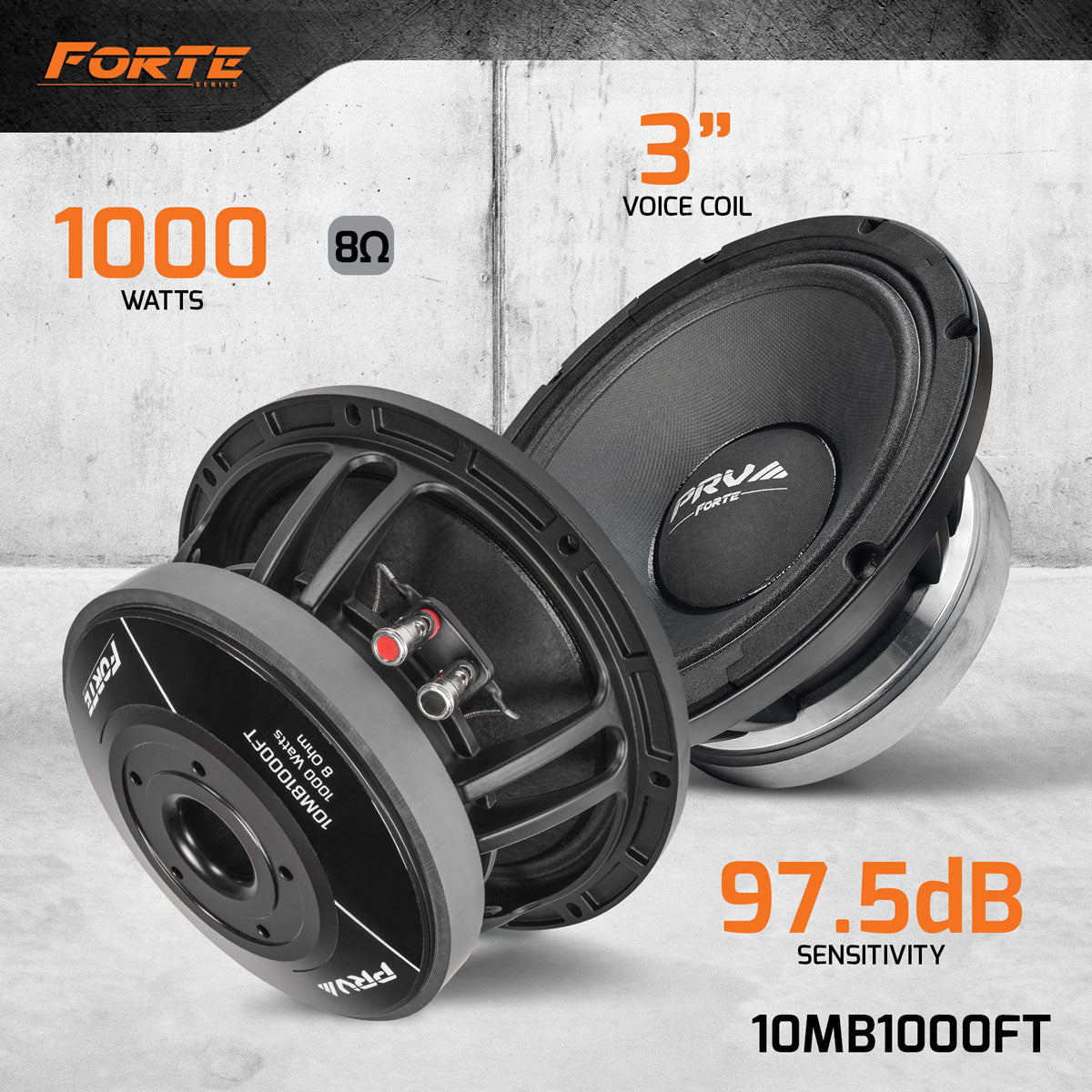

  • 3″ Inside/Out copper clad aluminum wire on glass fiber former for hi-temp performance, 8 ohms
  • Ventilated voice coil gap reduces power compression
  • High Xmax for more midbass output
  • 1000 watts continuous program power rating makes the high acoustical output
  • Built to Perform! It will stand up to considerable use and abuse.

GENERAL SPECIFICATIONS

Nominal Diameter 10″ (254 mm)
Nominal impedance 8 Ohms
Nominal Power Handling* 500 Watts
Continuous Program Power (RMS)** 1000 Watts
Max Peak Power*** 2000 Watts
Sensitivity 2.83V at 1m 97.5 dB
Recommended Hi Pass Crossover For Full Power Handling 120 Hz 12db Per Octave Crossover
Frequency Response 75- 7,000 Hz
Voice Coil Diameter 3″ (75 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 16.5 mm
Former Material Glass Fiber
Magnetic Gap Depth 9.5 mm
Frame Material Die Cast Aluminum



THIELE-SMALL PARAMETERS

Equivalent Volume Vas 32.3 l
Excursion (mathematical)*** Xmax 5.87 mm
Free Air Resonance Fs 75.0 Hz
Mechanical Factor Qms 12.41
Electrical Factor Qes 0.33
Total Factor Qts 0.32
Cone Area Sd 380 cm²
Mechanical Mass Mms 28.10 g
Bl Factor Bl 14.49 Tm
Dc Resistance Re 5.3 Ohm
Inductance Le 0.26 mH at 1 kHz
Mechanical Mass Without Air Mmd 23.30 g
Mechanical Compliance Cms 0.160 mm/N



EXTRA INFO

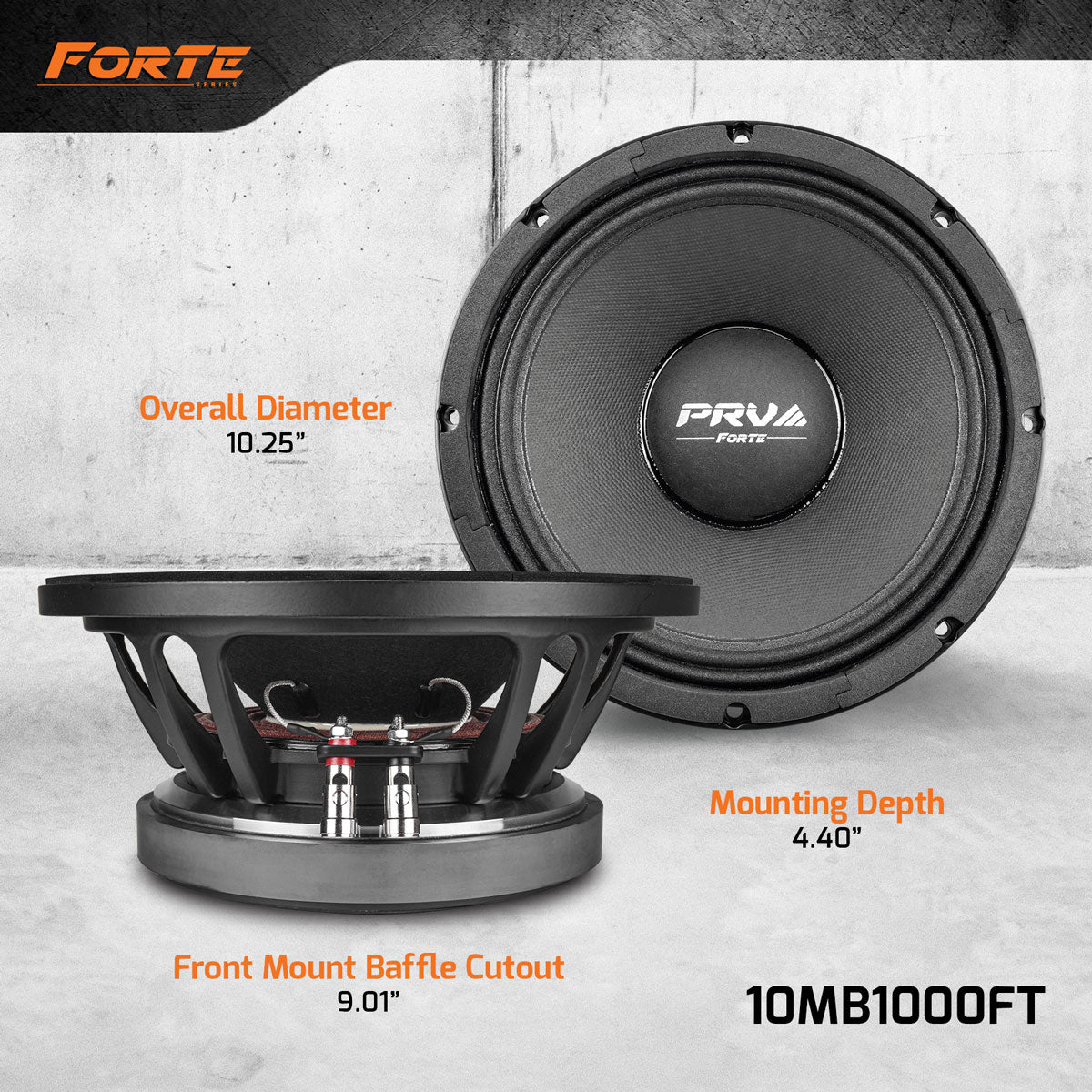

Overall Diameter 10.25” (260.5 mm)
Front Mount Baffle Cutout 9.01” (229 mm)
Mounting Depth 4.40” (111.5 mm)
Overall Depth 4.96” (126 mm)
Net Weight 15.0 Lbs (6.8 kg)
Shipping Weight 16.6 Lbs (7.54 kg)
Carton Dimensions W x L x H 11.61”x 11.61” x 6.30” (295 x 295 x 160mm)
