SKU:6MR200A

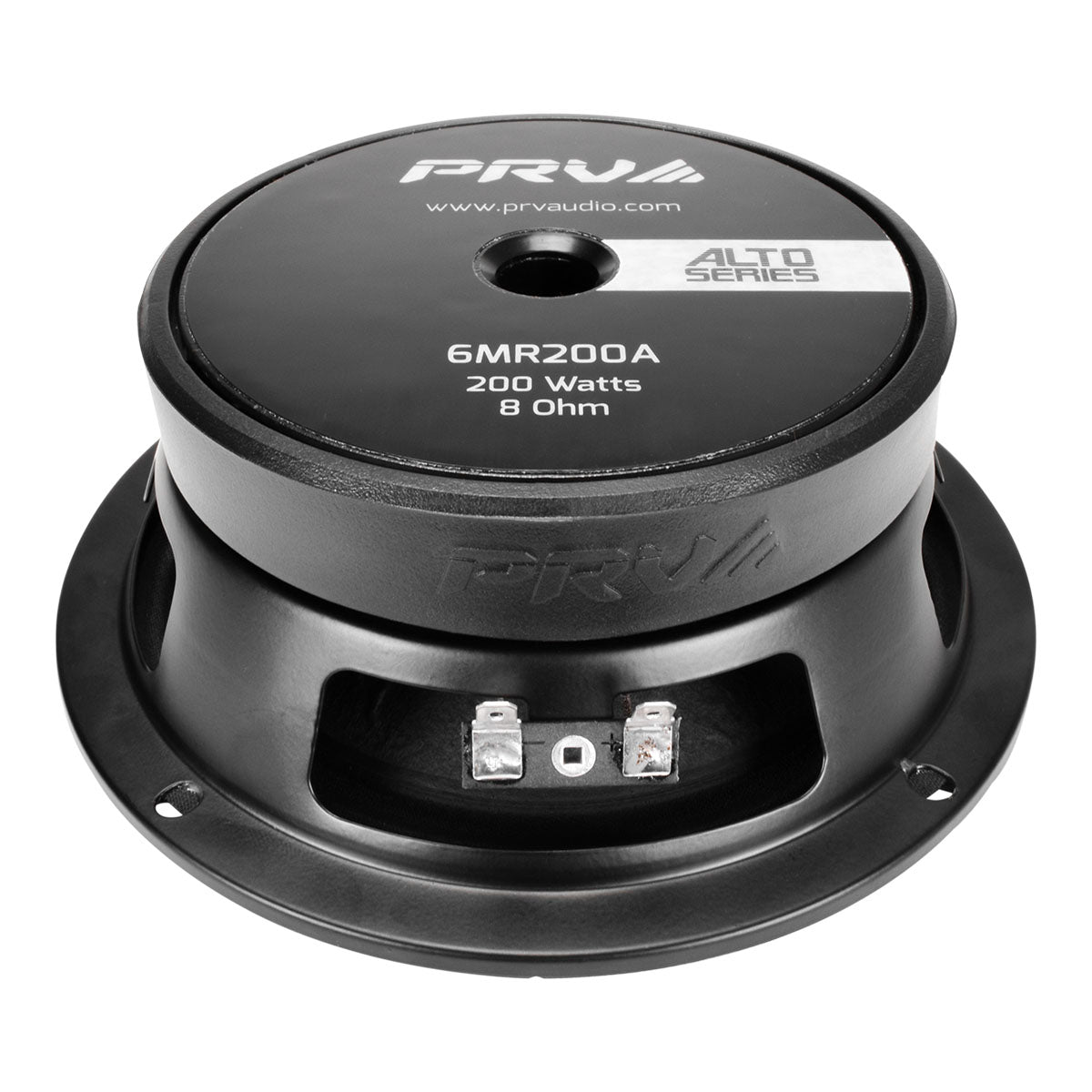

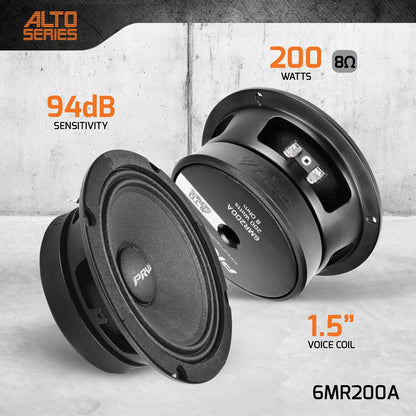

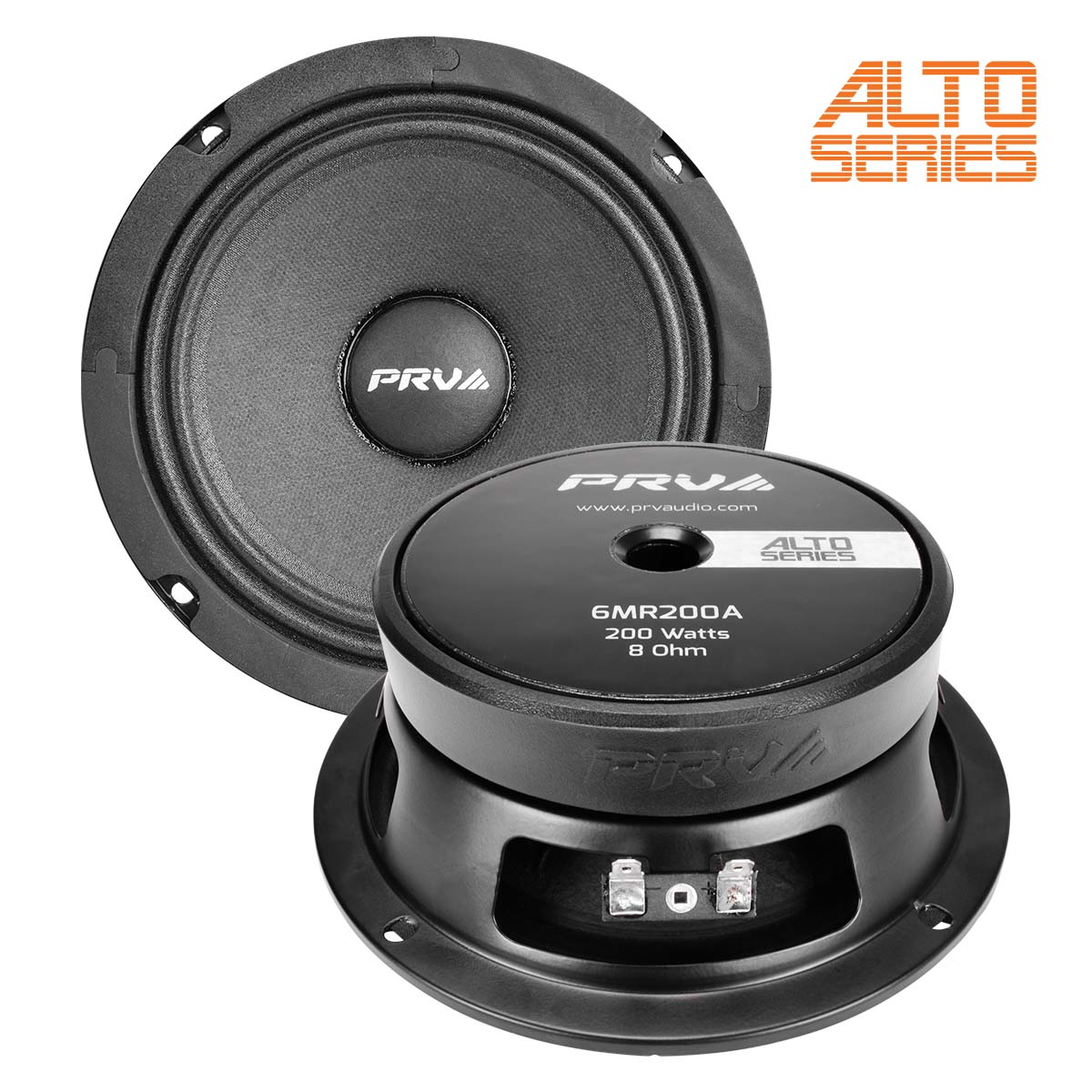

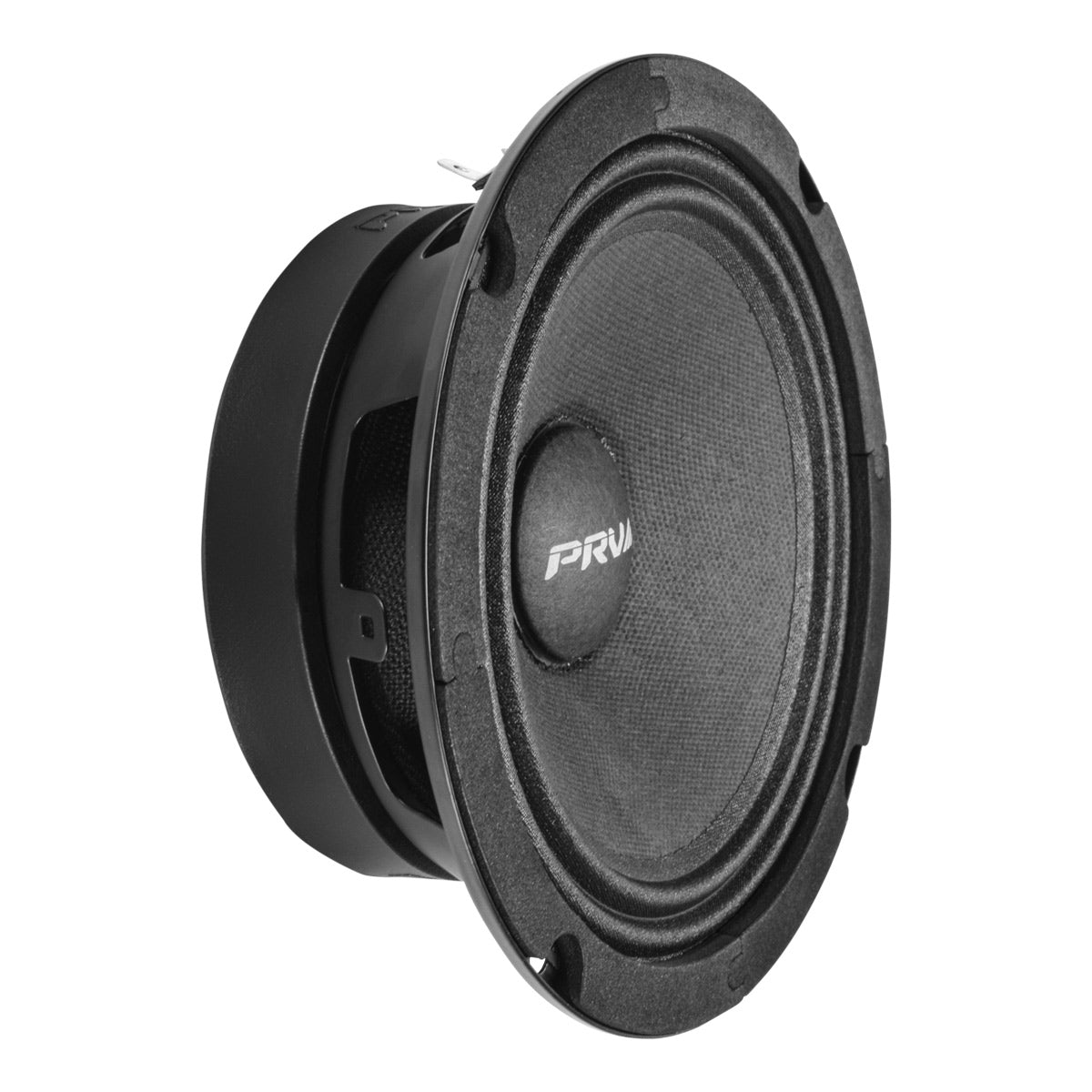

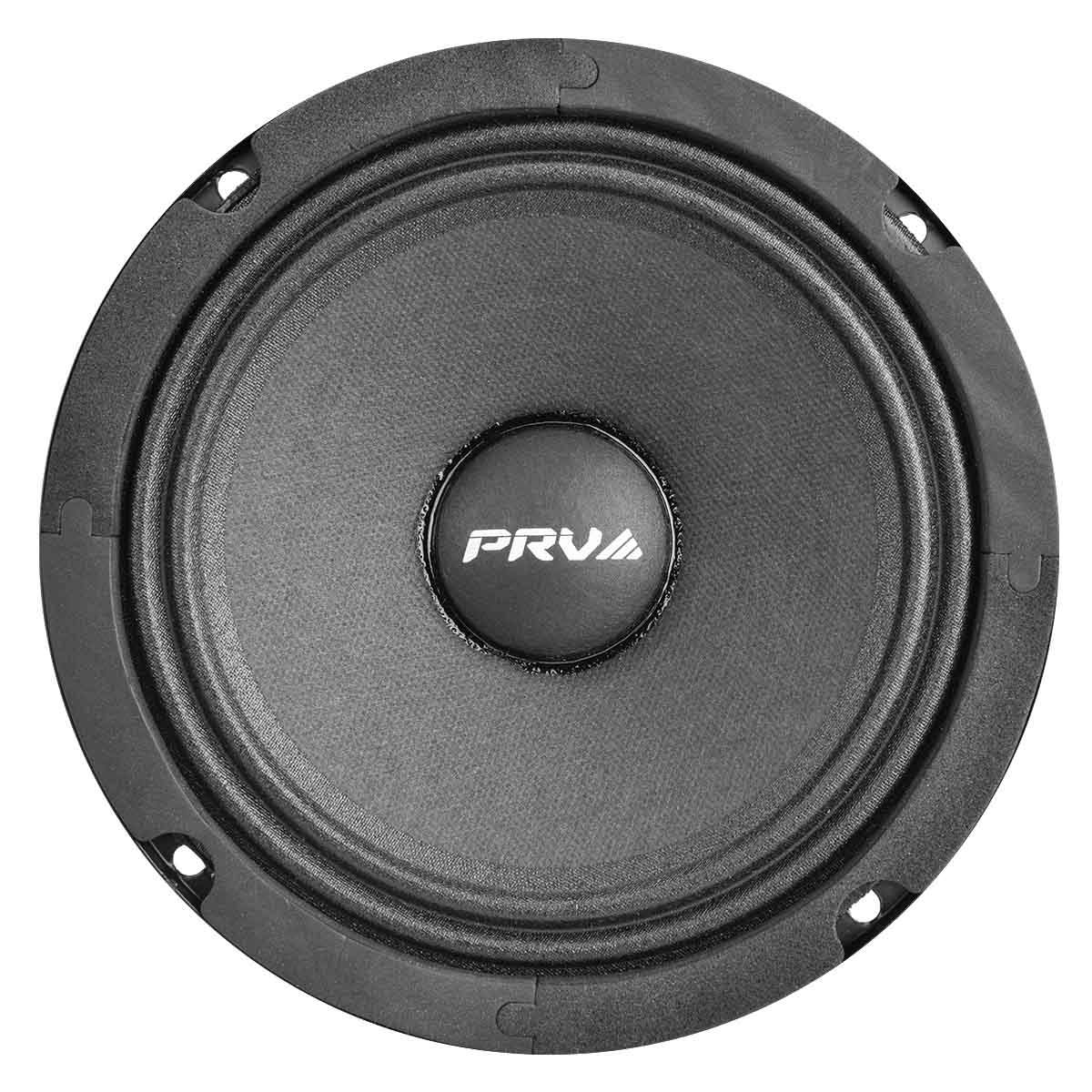

6MR200A | 6.5" MIDRANGE LOUDSPEAKER
$24.91 USD
$24.91 USD
$31.14 USD
Sale
Sold out
Couldn't load pickup availability
About the Product
PRV Audio’s ALTO series were carefully crafted and voiced to reproduce a natural, smooth sound while remaining dynamic. To get the superior fidelity, a special composite cone is used to smooth frequency response and to keep the moving mass low, increasing the efficiency.
- 6.5″ PRO audio Midrange speaker designed for Low Frequencies with shallow profile
- 200 watts RMS program power gives capability of high acoustical output with small amplifier
- Impressive choice for high output home, car, and professional audio systems – 8 Ohm Impedance
- Smooth response through the mid-bass and vocal range at at loudest volumes
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.83V at 1m | 94 dB |
|
Recommended Hi Pass Crossover* *For Full Power Handling |
150 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 155 – 11,000 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 8.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 3.16 l |
| Excursion (mathematical)*** | Xmax | 2.62 mm |
| Free Air Resonance | Fs | 114.1 Hz |
| Mechanical Factor | Qms | 13.16 |
| Electrical Factor | Qes | 1.28 |
| Total Factor | Qts | 1.17 |
| Cone Area | Sd | 137 cm² |
| Mechanical Mass | Mms | 10.1 g |
| Bl Factor | Bl | 6.27 Tm |
| Dc Resistance | Re | 5.5 Ohms |
| Inductance | Le | 0.26 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 9.02 g |
| Mechanical Compliance | Cms | 0.120 mm/N |
EXTRA INFO

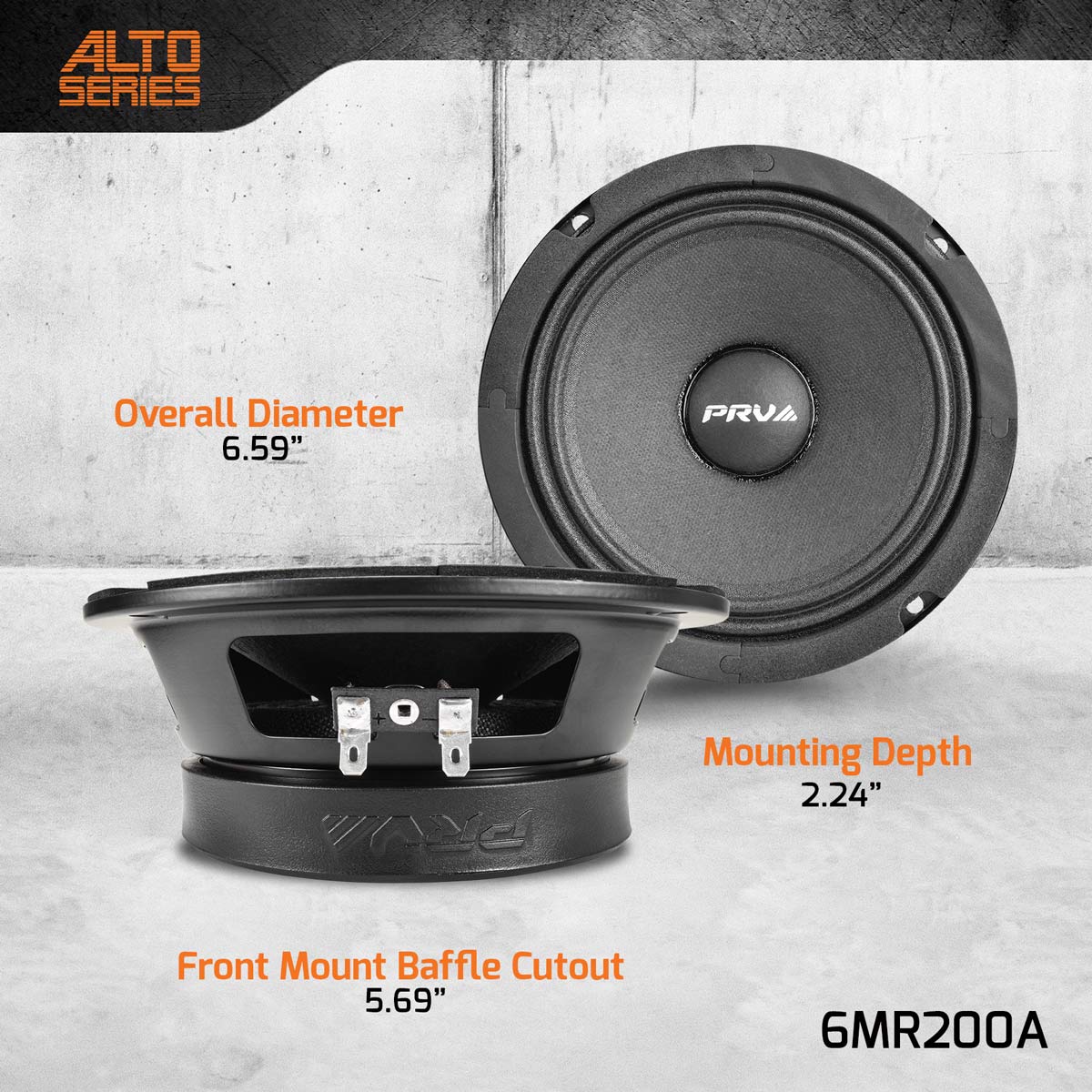

| Overall Diameter | 6.59″ (167.5 mm) |
| Front Mount Baffle Cutout | 5.69″ (144.5 mm) |
| Mounting Depth | 2.24″ (57 mm) |
| Overall Depth | 2.5″ (63.5 mm) |
| Net Weight | 3.52 Lbs (1.60 kg) |
| Shipping Weight | 3.79 Lbs (1.75 kg) |
| Carton Dimensions W x L x H | 7.40″ x 7.48″ x 4.45″ (188 x 190 x 113 mm) |
