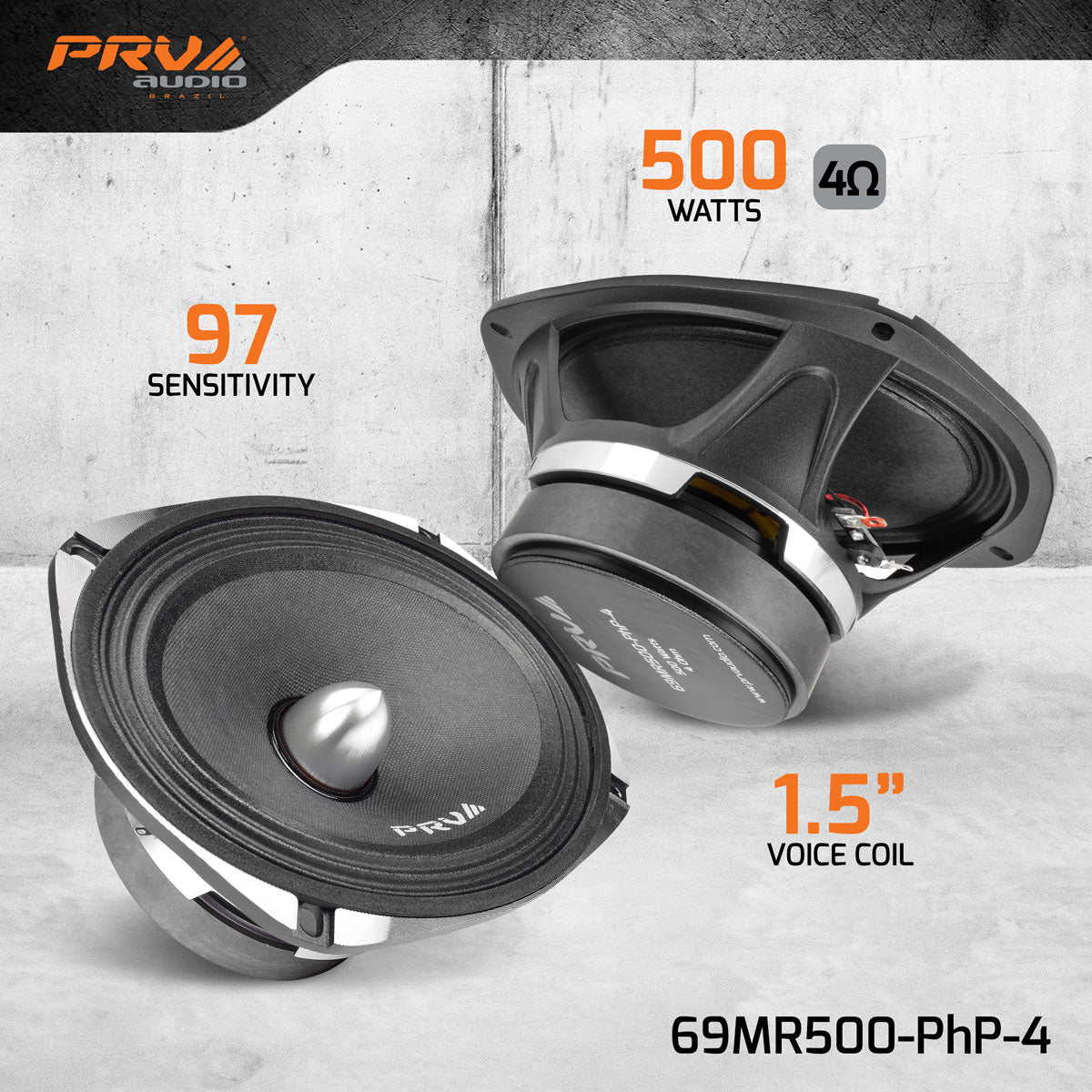

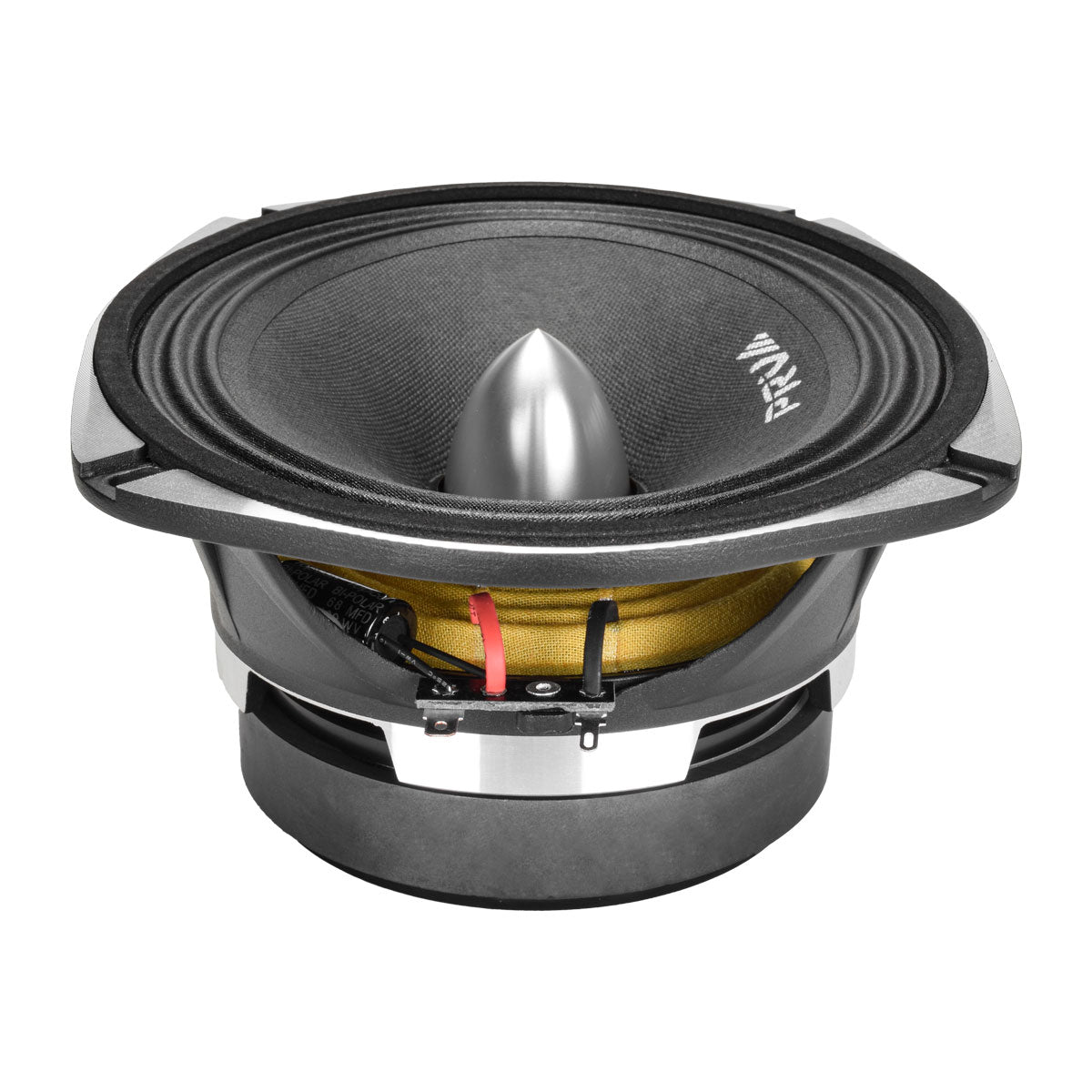

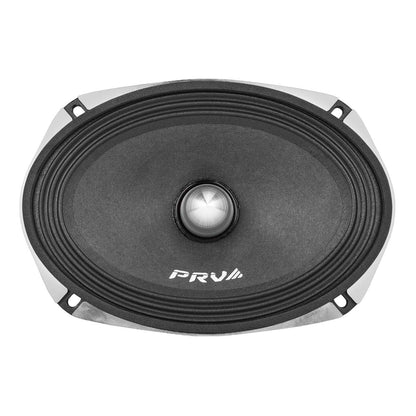

PRV AUDIO 6x9 Inch Midrange Speaker 69MR500-PhP-4 500 Watts Program Power
About the Product
PRV Audio’s 69MR500-PhP-4 midrange loudspeaker offers outstanding durability and a smooth midrange response through 12 kHz. It is a great option for three way system requiring additional midrange support.
It includes a 1 kHz high-pass filter to ensure the best possible fidelity while protecting the driver in high power car audio installations. A high-power ceramic magnet is attached to a sturdy, reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment, while the phase plug provides incredibly smooth, high frequency response.
Nominal Impedance: 4 Ohms
Rated AES Power Handling (RMS): 250 Watts
Program Power: 500 Watts
Sensitivity (1W/1m): 97 dB
Voice Coil Diameter: 1.5″
GENERAL SPECIFICATIONS

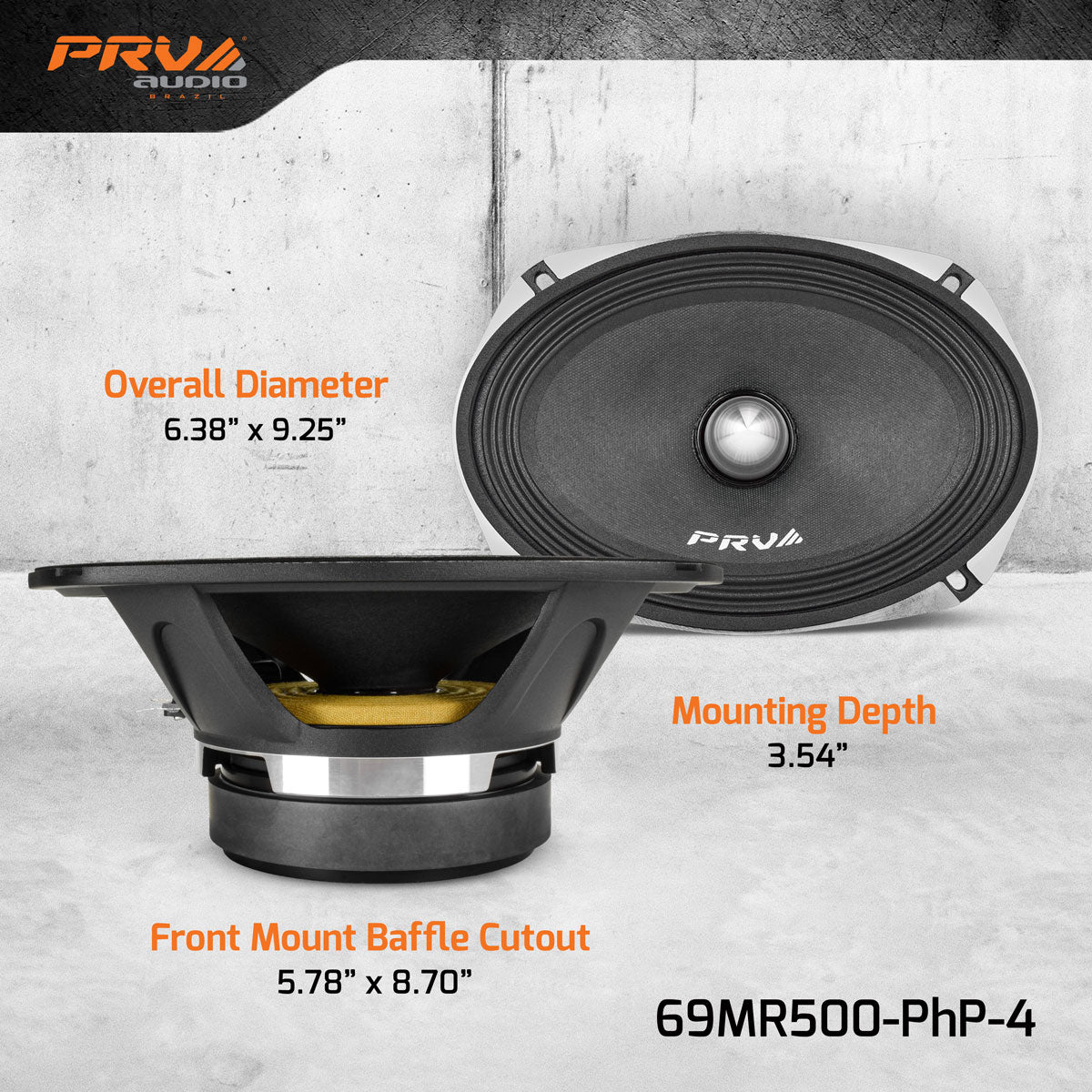

Nominal Diameter
6 x 9″ (152 x 228 mm)
Nominal impedance
4 Ohms
Rated AES Power Handling (RMS)
250 Watts
Program Power
500 Watts
Sensitivity 2.00V at 1m
97 dB
Recommended Hi Pass Crossover** **For Full Power Handling
