SKU:PRV-69MR500CF-NDY-4 (PAIR)

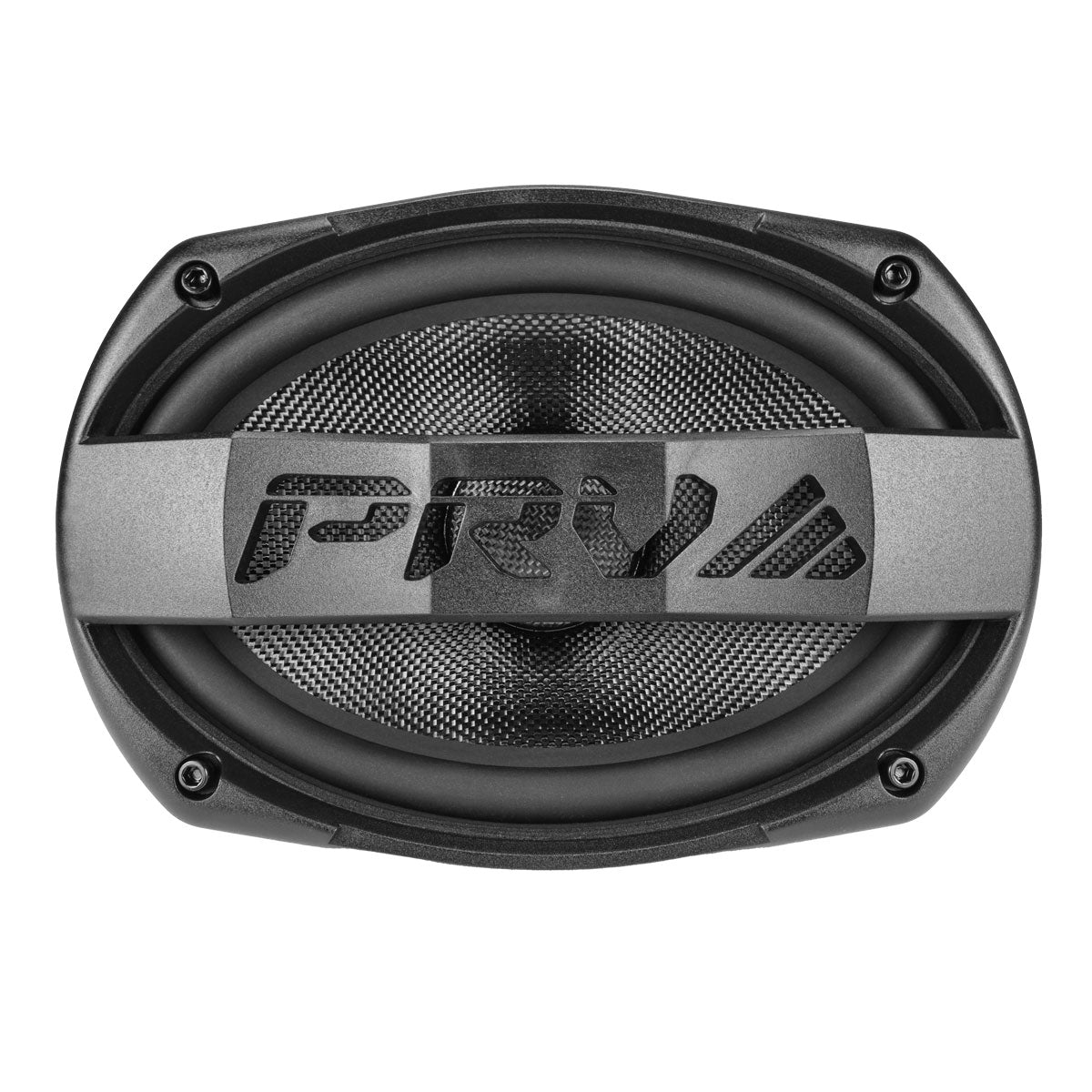

PRV AUDIO Carbon Fiber 6x9 Midrange Speaker 500 Watts 4 Ohm Neodymium 69MR500CF-NDY-4 (PAIR)
About the Product
The MR500CF-NDY series was designed for Power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment!
- Water Resistant with true PRO audio mid range performance
- Damped carbon fiber cone lowers moving mass and minimizes unwanted resonances
- Low inductance and extended frequency response
- Powerful neodymium magnet structure features distortion-canceling fixtures
- Fast transient response, minimal tonal coloration, and deep, dynamic mid bass
- Sold in pairs – Grill and screws are included
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″x9″ (152 x 228 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling | 250 Watts |
| Continuous Program Power (RMS) | 500 Watts |
| Max Peak Power | 1000 Watts |
| Sensitivity 2.00V at 1m | 96 dB |
| Recommended High Pass Crossover** **For Full Power Handling | 110 Hz* *12db Per Octave Crossover |
| Frequency Response | 100 – 13,000 Hz |
| Voice Coil Diameter | 2″ (50.8 mm) |
| Voice Coil Wire | CCAW |
| Former Material | Kapton |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 8.95 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 91.0 Hz |
| Mechanical Factor | Qms | 15.81 |
| Electrical Factor | Qes | 0.36 |
| Total Factor | Qts | 0.35 |
| Cone Area | Sd | 216 cm² |
| Mechanical Mass | Mms | 22.34 g |
| Bl Factor | Bl | 10.92 Tm |
| Dc Resistance | Re | 3.4 Ohms |
| Inductance | Le | 0.05 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 20.54 g |
| Mechanical Compliance | Cms | 0.136 mm/N |
