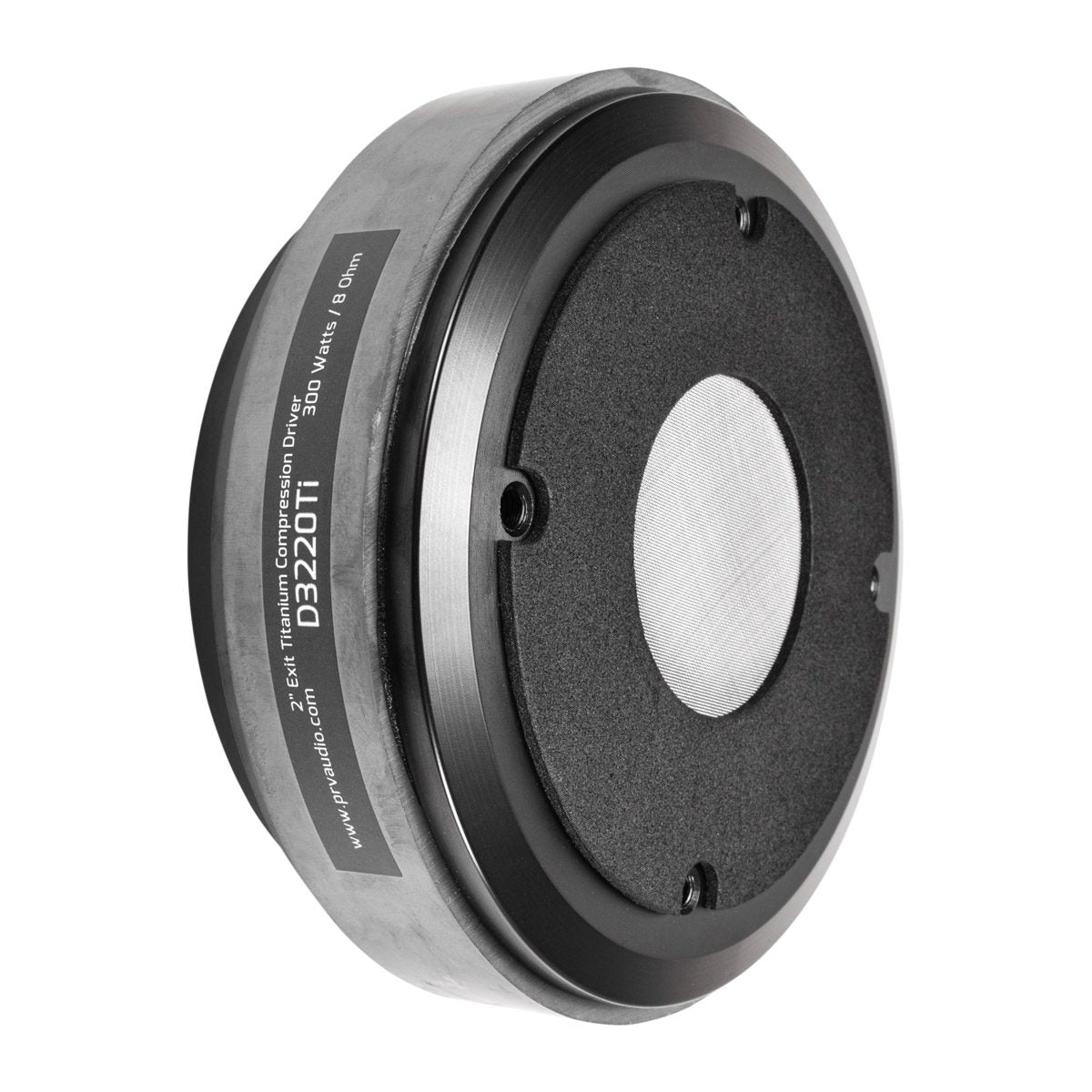

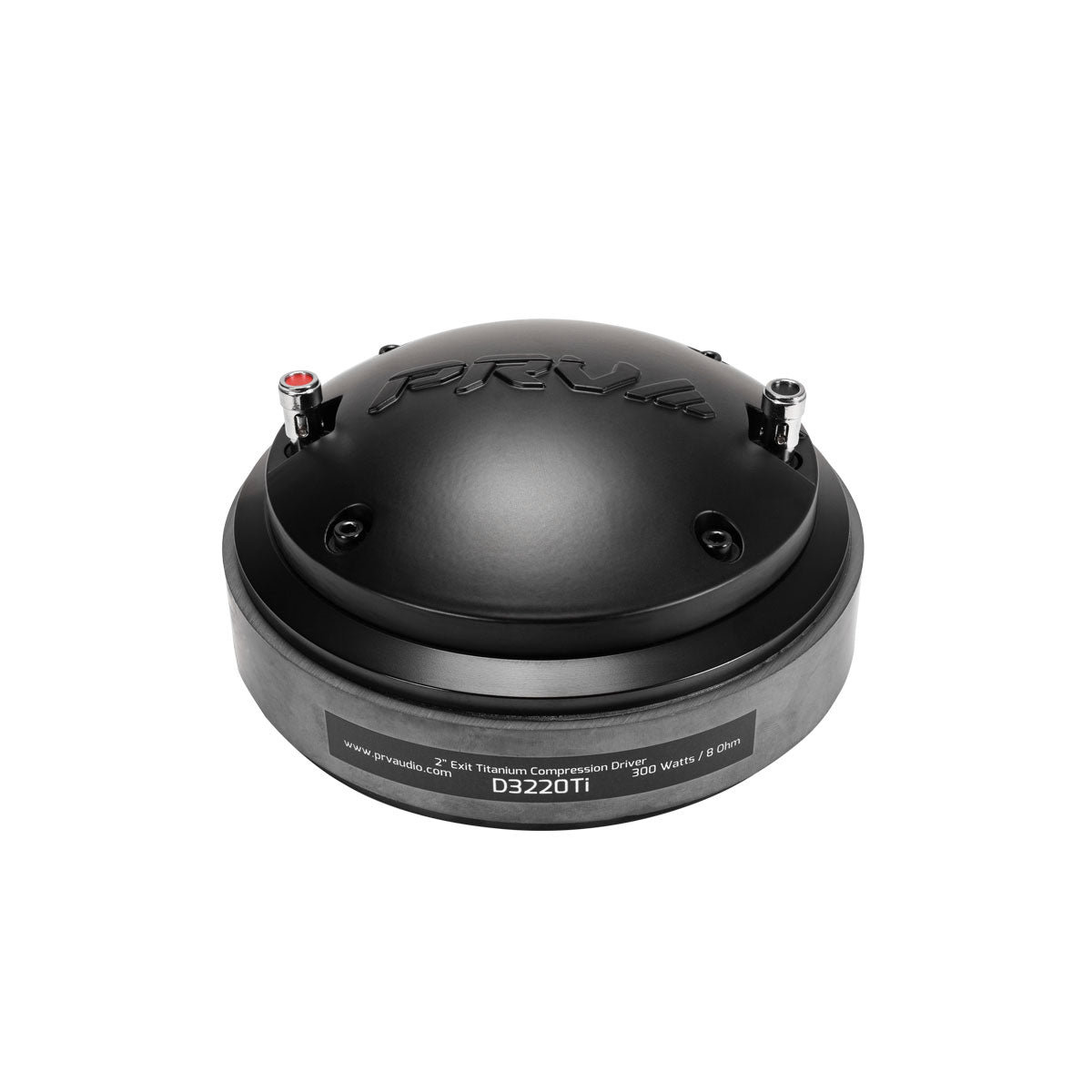

PRV D3220Ti Driver 2" Exit High Frequency Compression Driver

About the Product

Innovative technology for 3 inch compression drivers, the new high-strength compact motor, allows you to keep a large voice coil without sacrificing performance. With a smaller design and as powerful as ever, this high frequency 2″ exit driver is taking the industry to the next level!

The new D3220Ti design still retains the same diaphragm design as the previous model. This offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1200 to 17,000 Hz) with an emphasis on the critical upper frequency range.

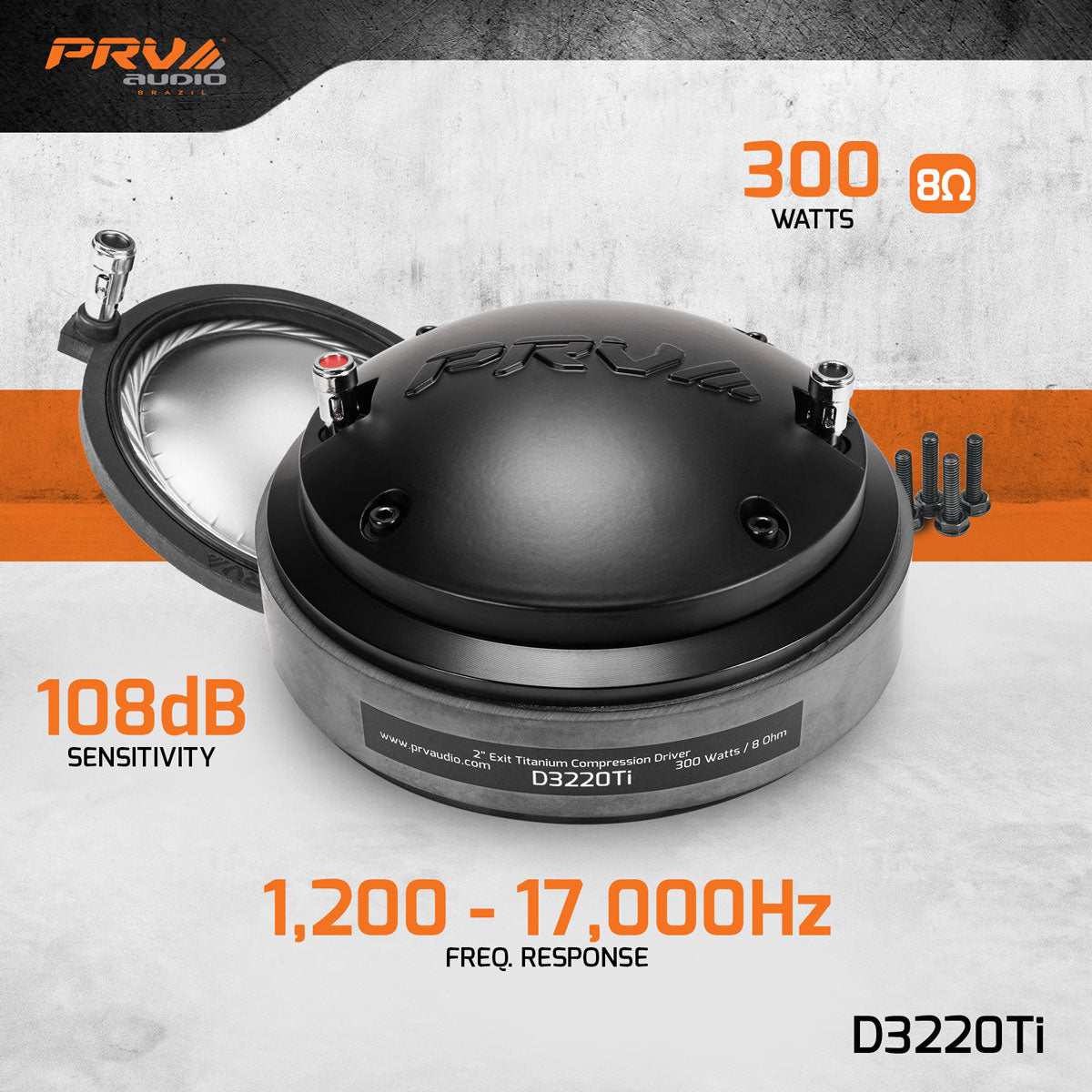

  • Pure Titanium diaphragm with large 3″ Voice Coil, providing the lowest possible moving mass with excellent efficiency – 108 dB Sensitivity.

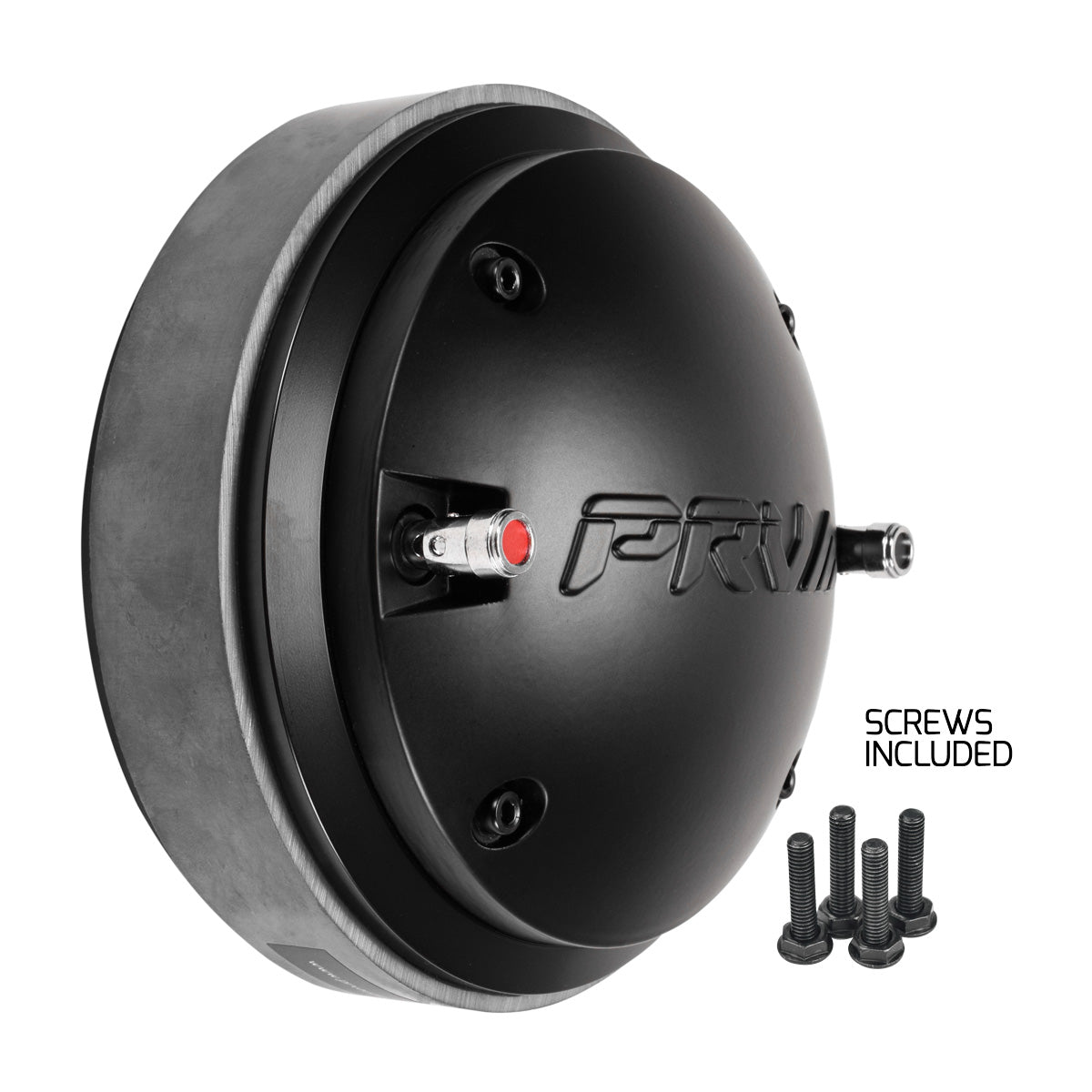

  • Works great with any Shallow Horn from WGP14-50X Series – Perfect as compression driver for car audio. Mounting hardware is included.
  • 2 Inch Exit horn Driver with crystal clear, high impact highs response from 1200 to 17,000 Hz
  • PRO Audio high frequency driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.

GENERAL SPECIFICATIONS

Exit Throat Diameter 2” (50 mm)
Nominal impedance 8 Ohm
Nominal Power Handling* 150 Watts
Continuous Program Power(RMS)** 300 Watts
Max Peak Power*** 600 Watts
Sensitivity 2.83V at 1m 108 dB
Recommended Hi Pass Crossover
For Full Power Handling
1400 Hz
12db/oct Crossover
Frequency Response at -10dB 1,200 – 17,000 Hz
Voice Coil Diameter 3” (76 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.77 T
Magnet Material Ferrite



EXTRA INFO

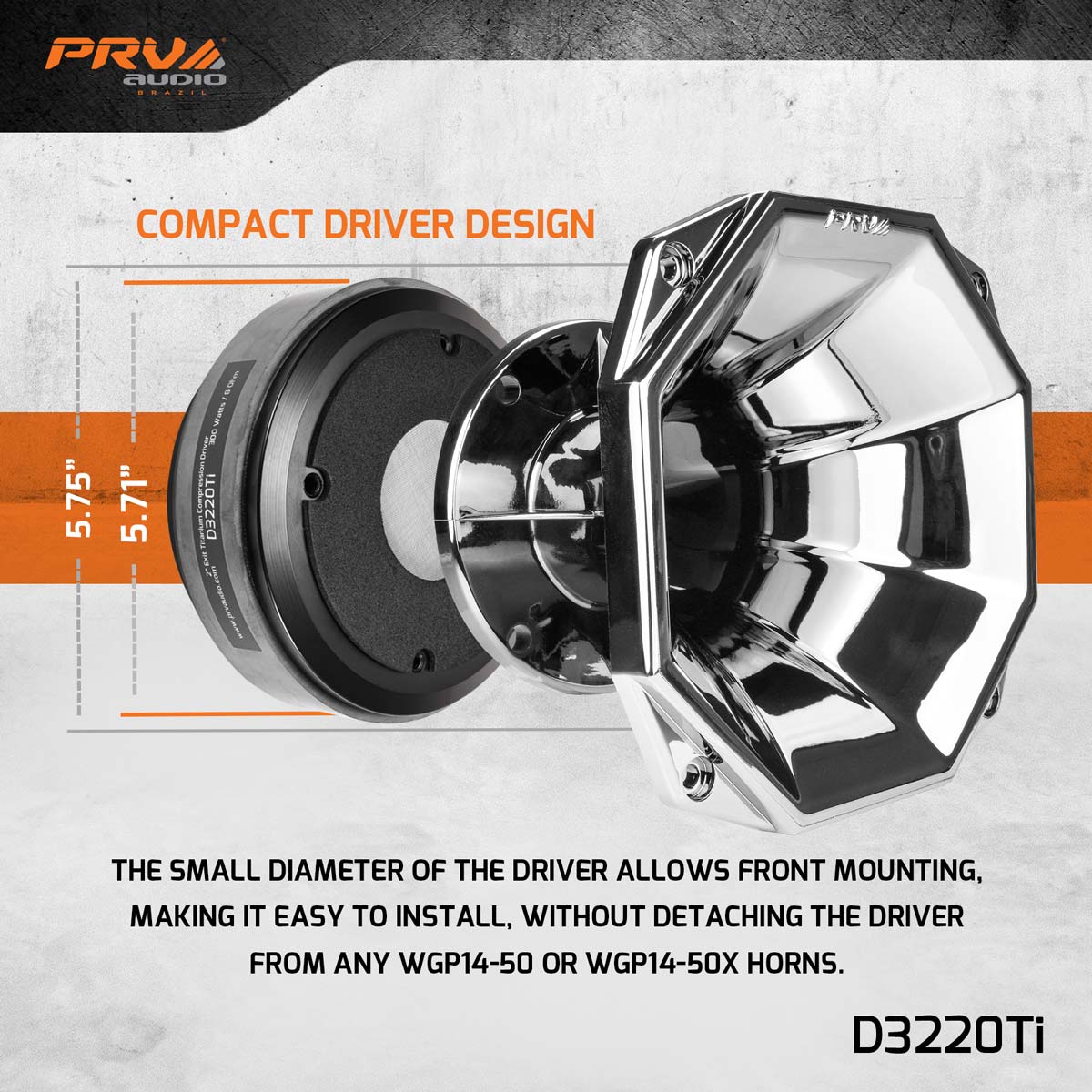

Overall Diameter 5.71″ (145 mm)
Overall Depth 3.0″ (76 mm)
Mounting Bolt circle M6 x 4″ (102 mm)
Net Weight 8.9 lbs (4.0 kg)
Shipping Weight 9.35 lbs (4.25 kg)
Carton Dimensions W x L x H 6.89″ x 6.3″ x 4.0″ (175 x 160 x 102 mm)
