SKU:PRV-D3220Ti-Nd

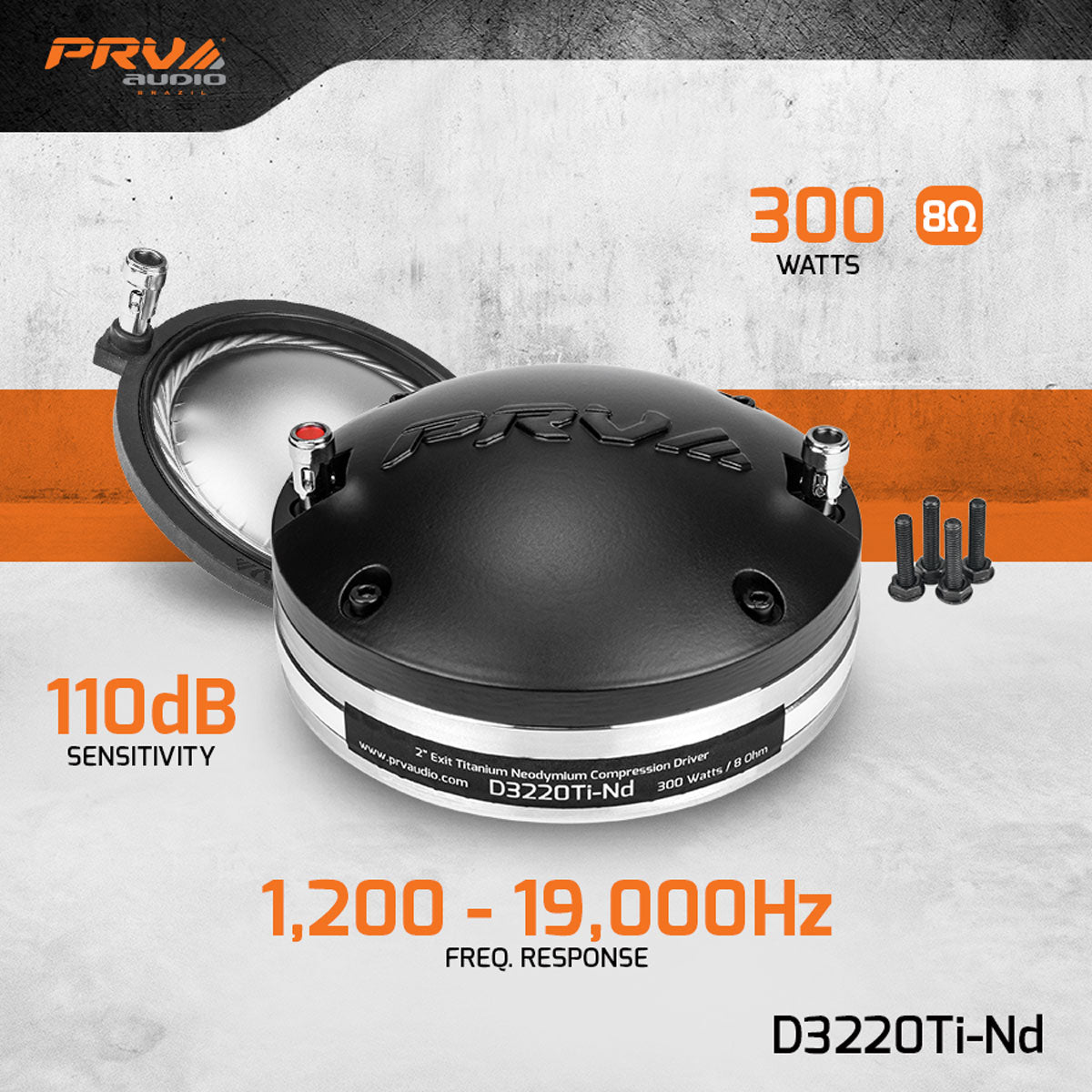

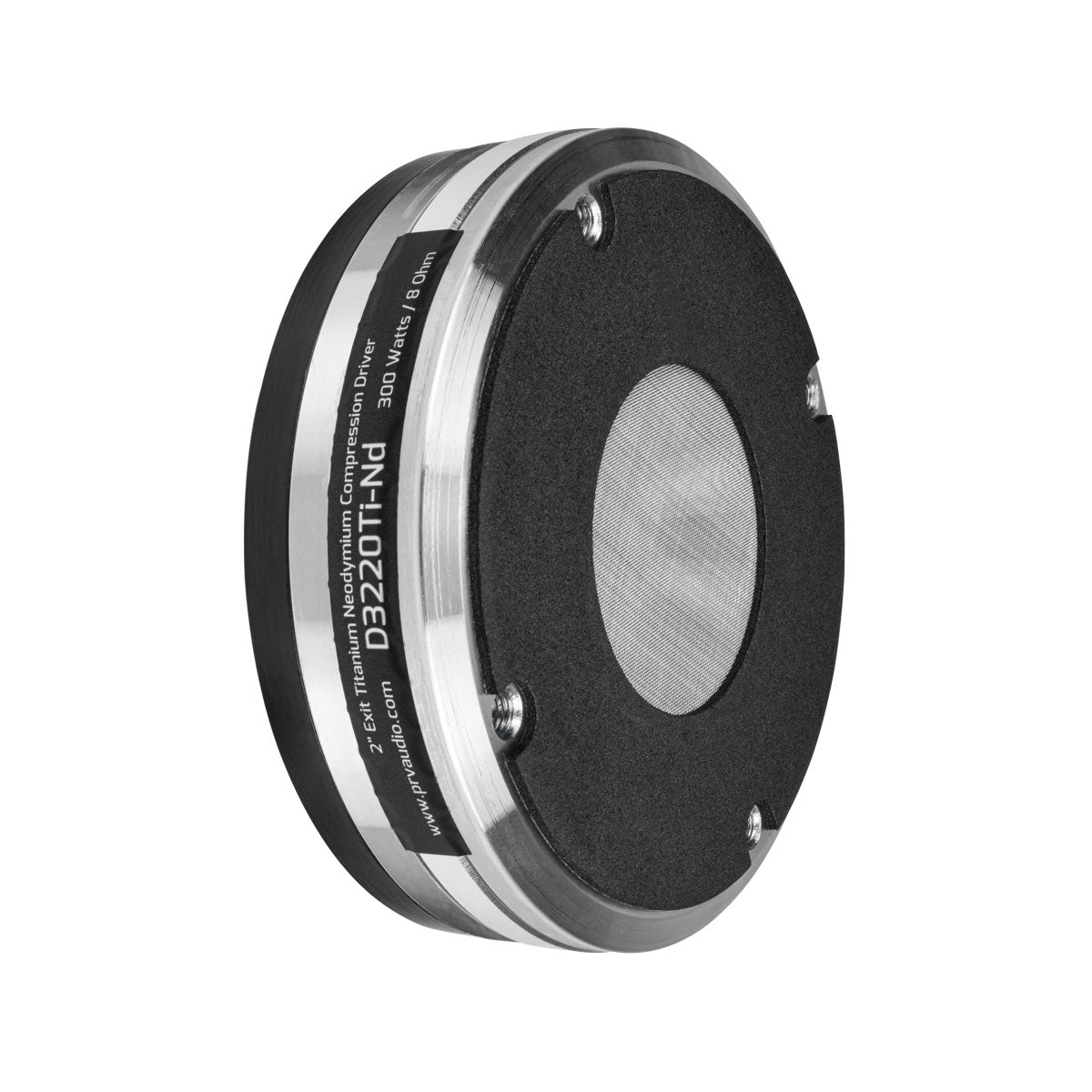

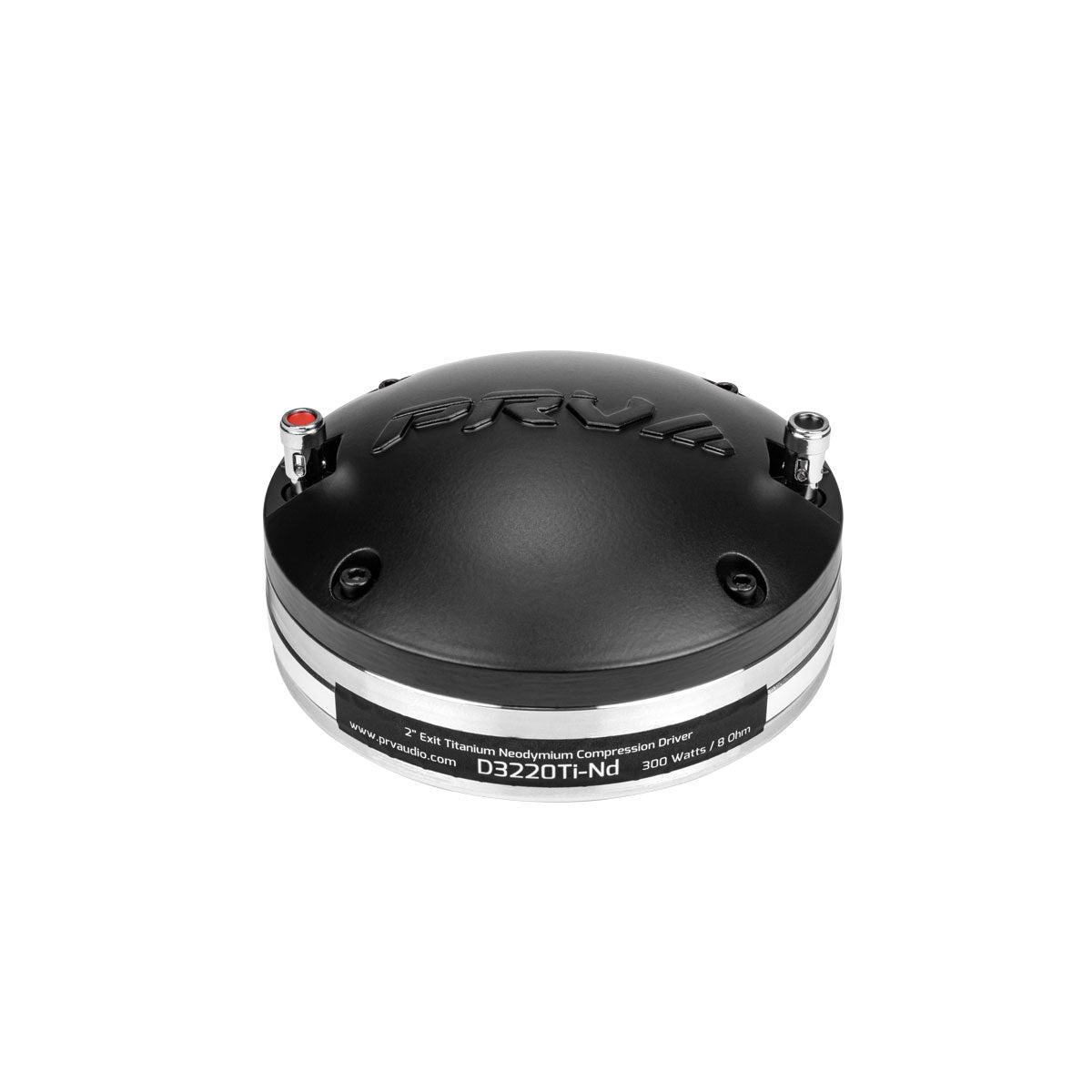

PRV AUDIO D3220Ti-Nd 2" Exit Titanium Neodymium 300 Watts Pro Audio Compression Driver 3"

About the Product

nnovative technology for 3 inch compression drivers, featuring Powerful neodymium motor for minimal size and weight, allows you to keep a large voice coil without sacrificing performance.

The D3220Ti-Nd has quickly become the most popular choice for car audio competition due to its impressive power-to-size ratio and ability to deliver crystal-clear high frequencies. With this innovative technology, car audio enthusiasts can now achieve unparalleled sound quality and performance in their vehicles.

Built around a pure Titanium diaphragm, this driver offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1200 to 19,000 Hz) with an emphasis on the critical upper frequency range.

  • Pure Titanium diaphragm with large 3″ Voice Coil, providing the lowest possible moving mass with excellent efficiency – 110 dB Sensitivity.
  • Extremely powerful neodymium magnet for minimal size and weight without sacrificing output capability

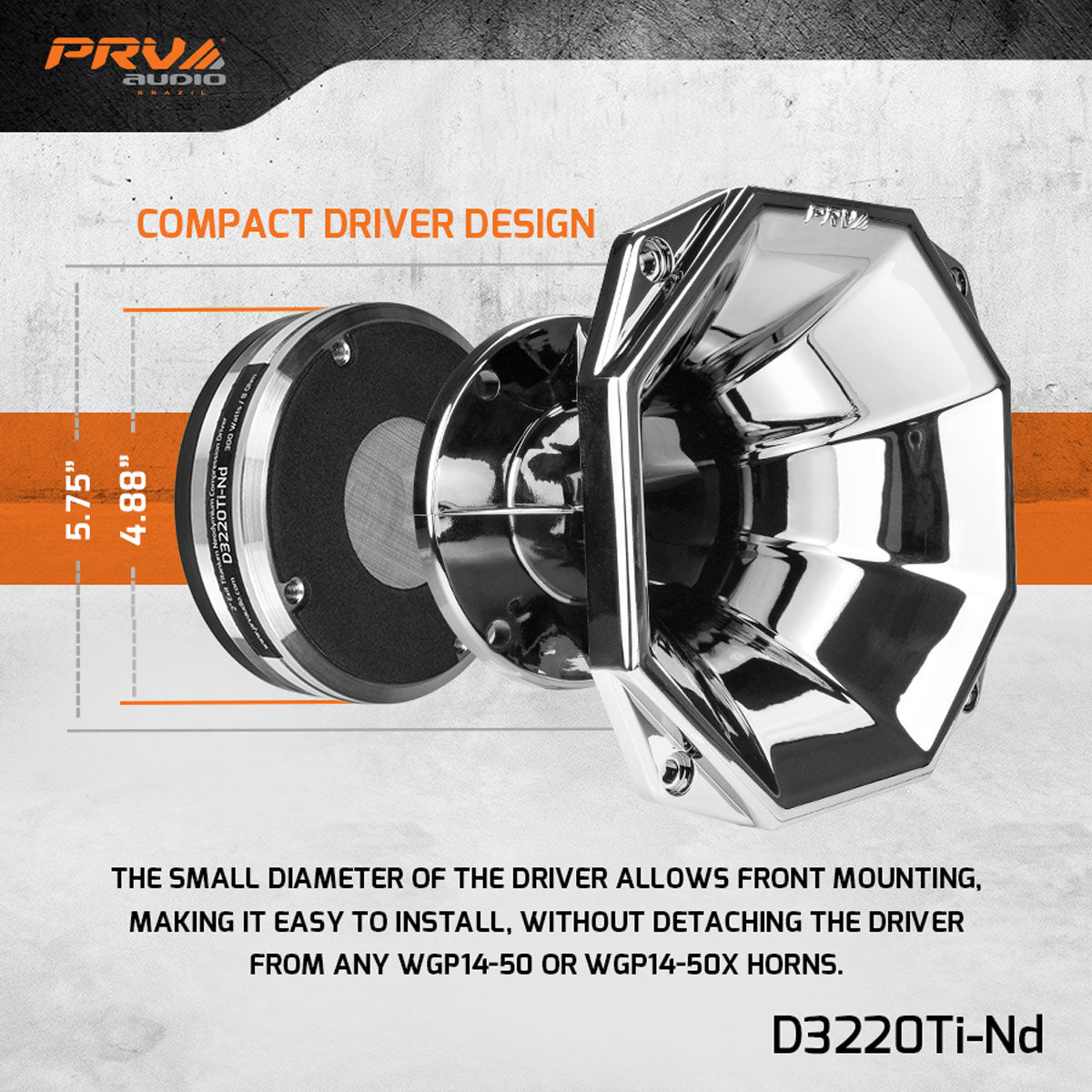

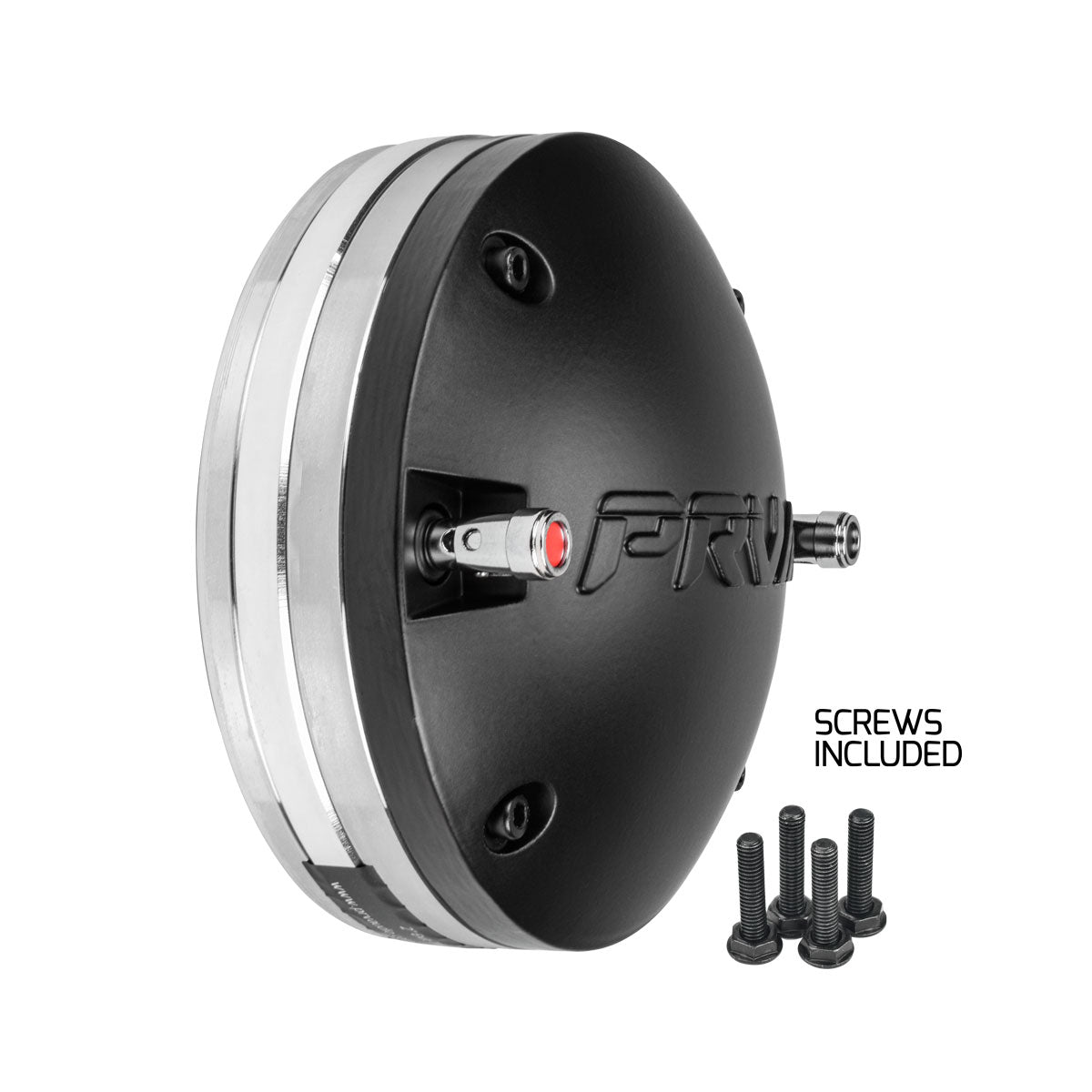

  • Works great with any Shallow Horn WGP14-50X Series – Perfect as compression driver for car audio. Mounting hardware is included.
  • 2 Inch Exit horn Driver with crystal clear, high impact highs response from 1200 to 19,000 Hz
  • PRO Audio high frequency driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.

GENERAL SPECIFICATIONS

Exit Throat Diameter 2” (50 mm)
Nominal impedance 8 Ohm
Nominal Power Handling* 150 Watts
Continuous Program Power(RMS)** 300 Watts
Max Peak Power*** 600 Watts
Sensitivity 2.83V at 1m 110 dB
Recommended Hi Pass Crossover
For Full Power Handling
1400 Hz
12db/oct Crossover
Frequency Response at -10dB 1,200 – 19,000 Hz
Voice Coil Diameter 3” (76.2 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.80 T
Magnet Material Neodymium



EXTRA INFO

Overall Diameter 4.88″ (124 mm)
Overall Depth 2.21″ (56 mm)
Mounting Bolt circle M6 x 4″ (102 mm)
Net Weight 5.0 lbs (2.27 kg)
Shipping Weight 5.27 lbs (2.39 kg)
Carton Dimensions W x L x H 5.71″ x 5.71“ x 3.35″
(145 x 145 x 85 mm)
