SKU:PRV-D4400Ti

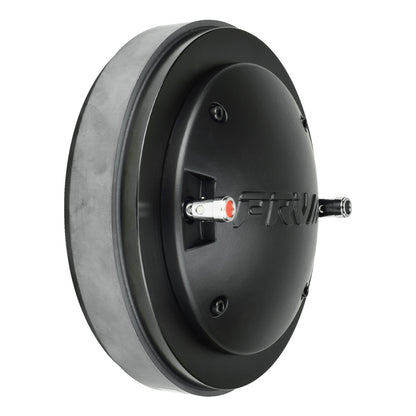

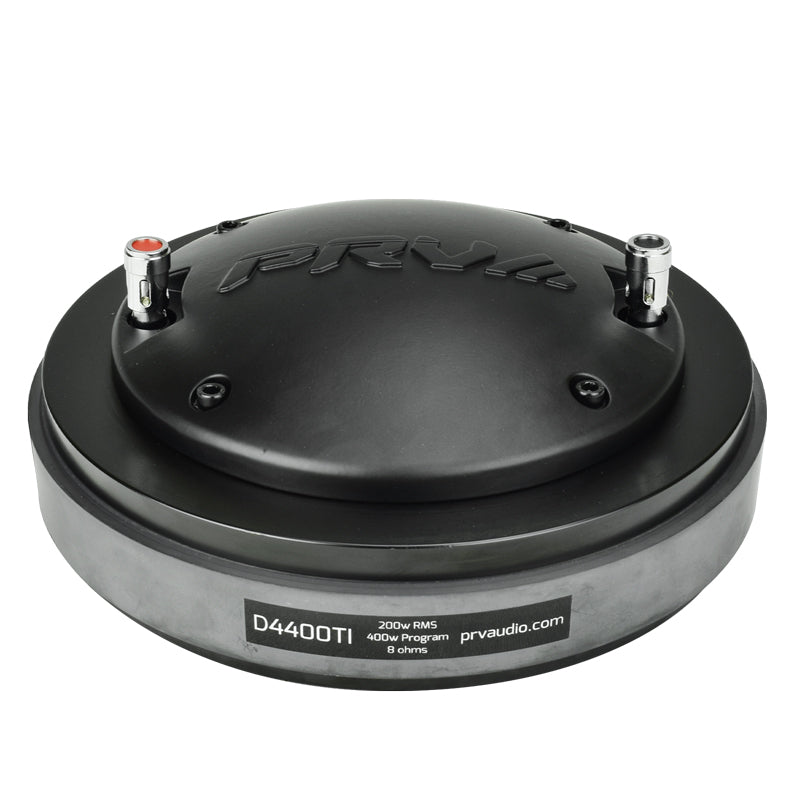

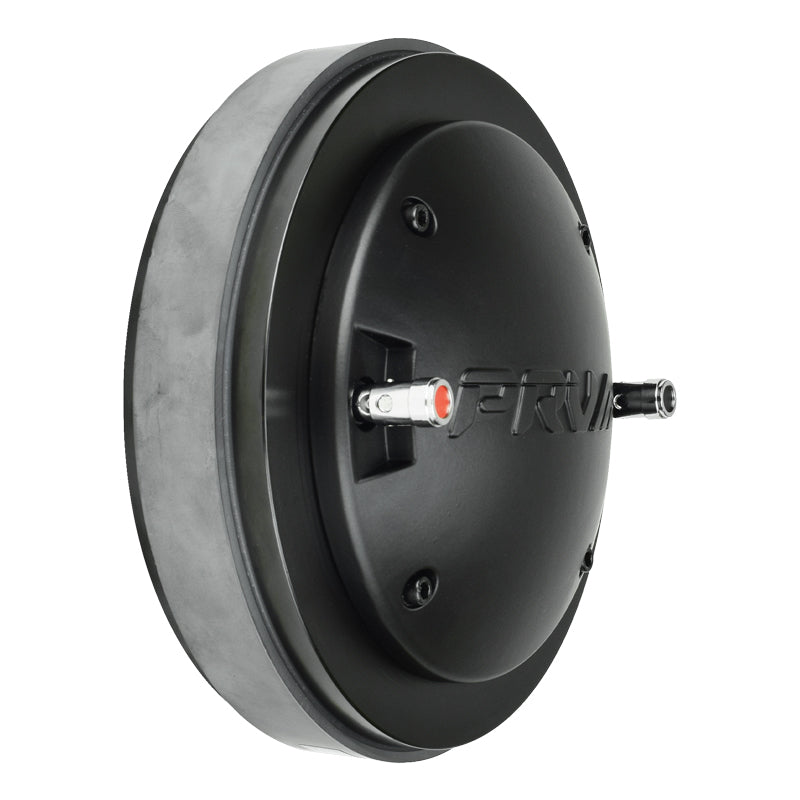

PRV D4400Ti 2" Exit High Frequency Compression Driver
About the Product
The D4400Ti 2” exit Titanium High Frequency Driver is the latest improved version of our D4260Ti. The new improved magnet and plates design result in more energy into the gap, higher sensitivity, lower distortion and better overall performance. These modifications combined result in better control diaphragm displacement and deformation.
The D4400Ti is designed to ensure a quality sound and long lasting play in your large environment applications.
- Throat Diameter: 2″
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 200 Watts
- Program Power: 400 Watts
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 200 Watts |
| Program Power | 400 Watts |
| Sensitivity 2.83V at 1m | 110 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
1600 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,000 – 17,000 Hz |
| Voice Coil Diameter | 4”(101.6 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.85 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 7.86” (199.75 mm) |
| Overall Depth | 3.18” (81 mm) |
| Mounting Bolt Circle | M6x4 4” (101.6 mm) |
| Net Weight | 19.20 lbs (8.70 kg) |
| Shipping Weight | 21.16 lbs (9.60 kg) |
| Carton Dimensions W x L x H | 8.66” x 8.66” x 4.60” (220 x 220 x 117 mm) |
