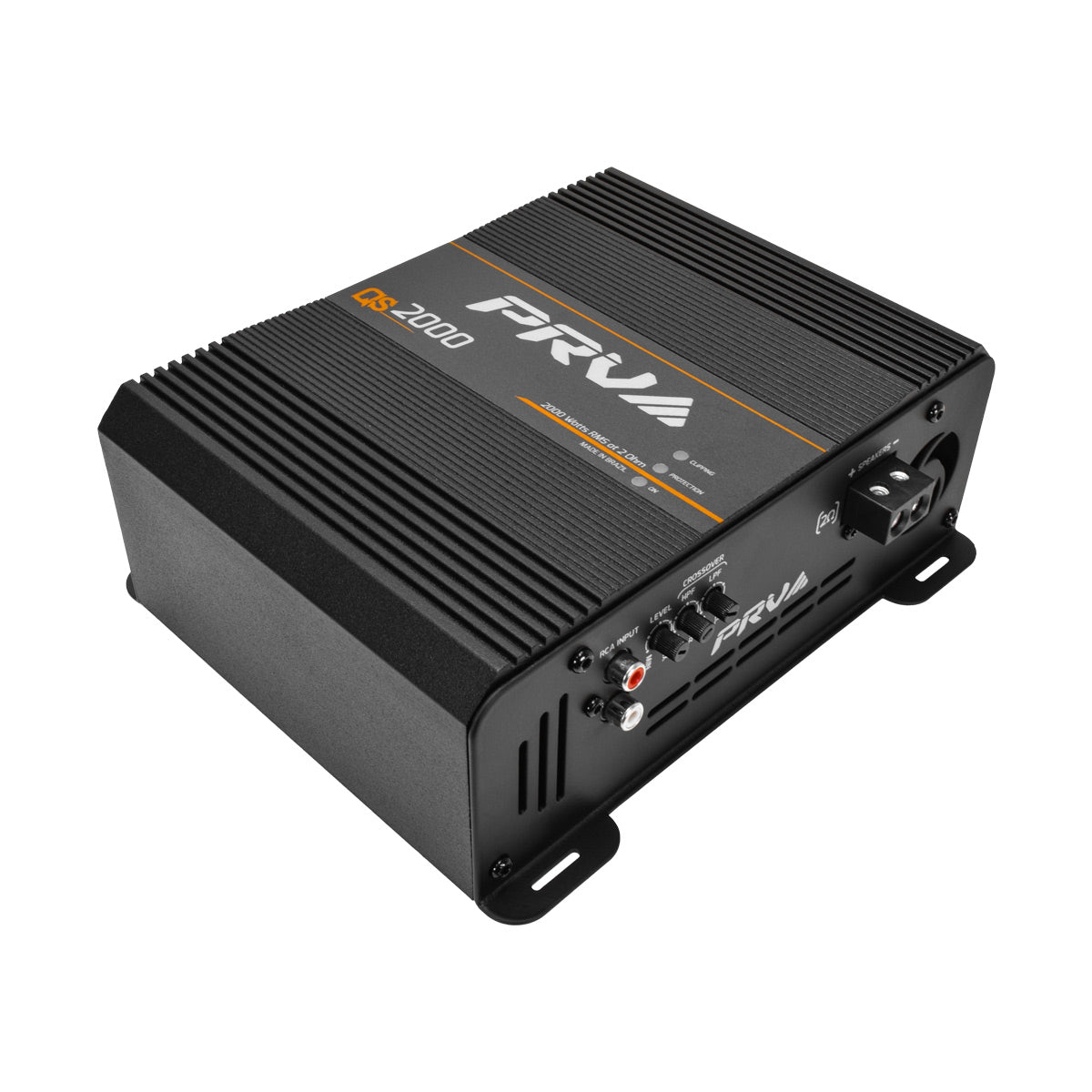

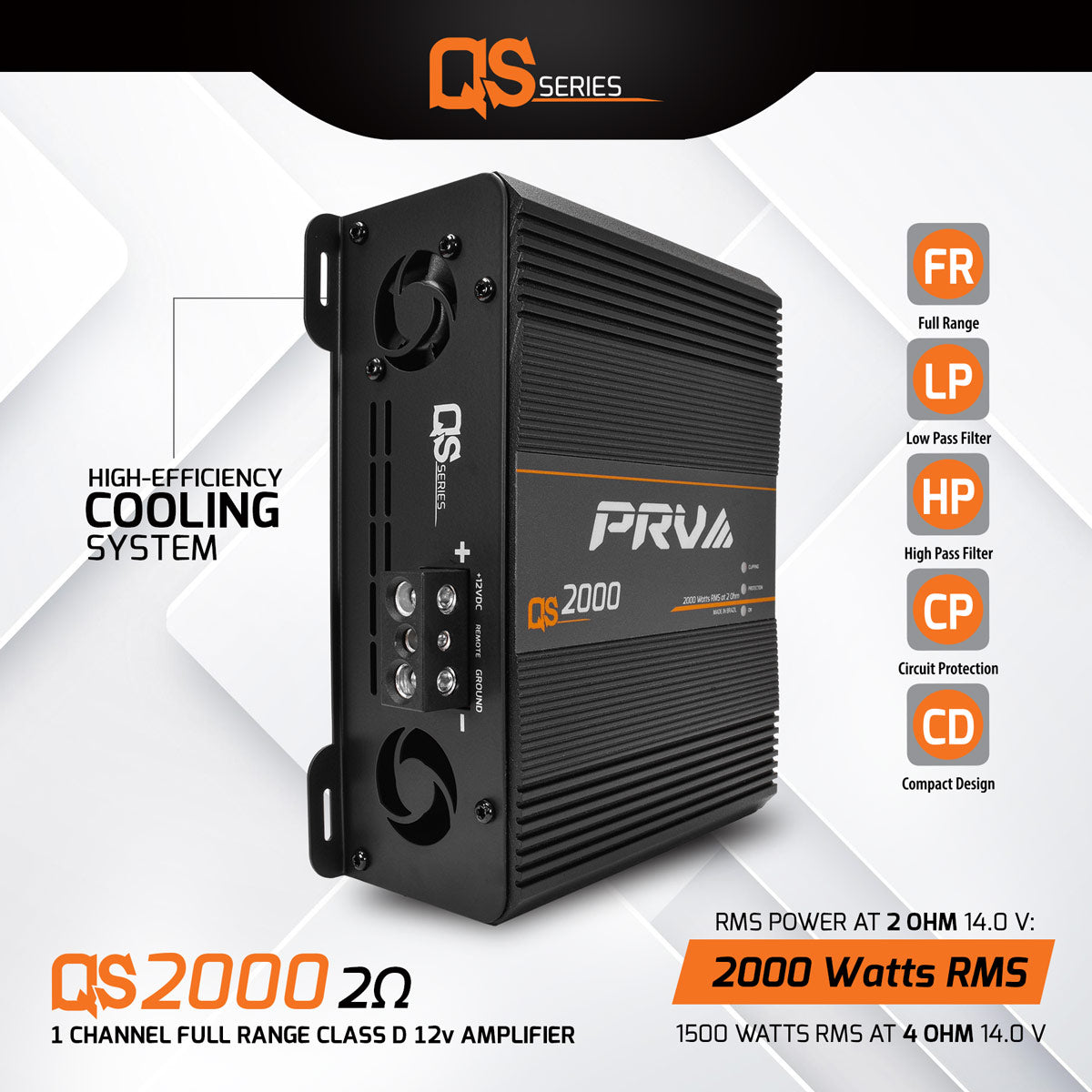

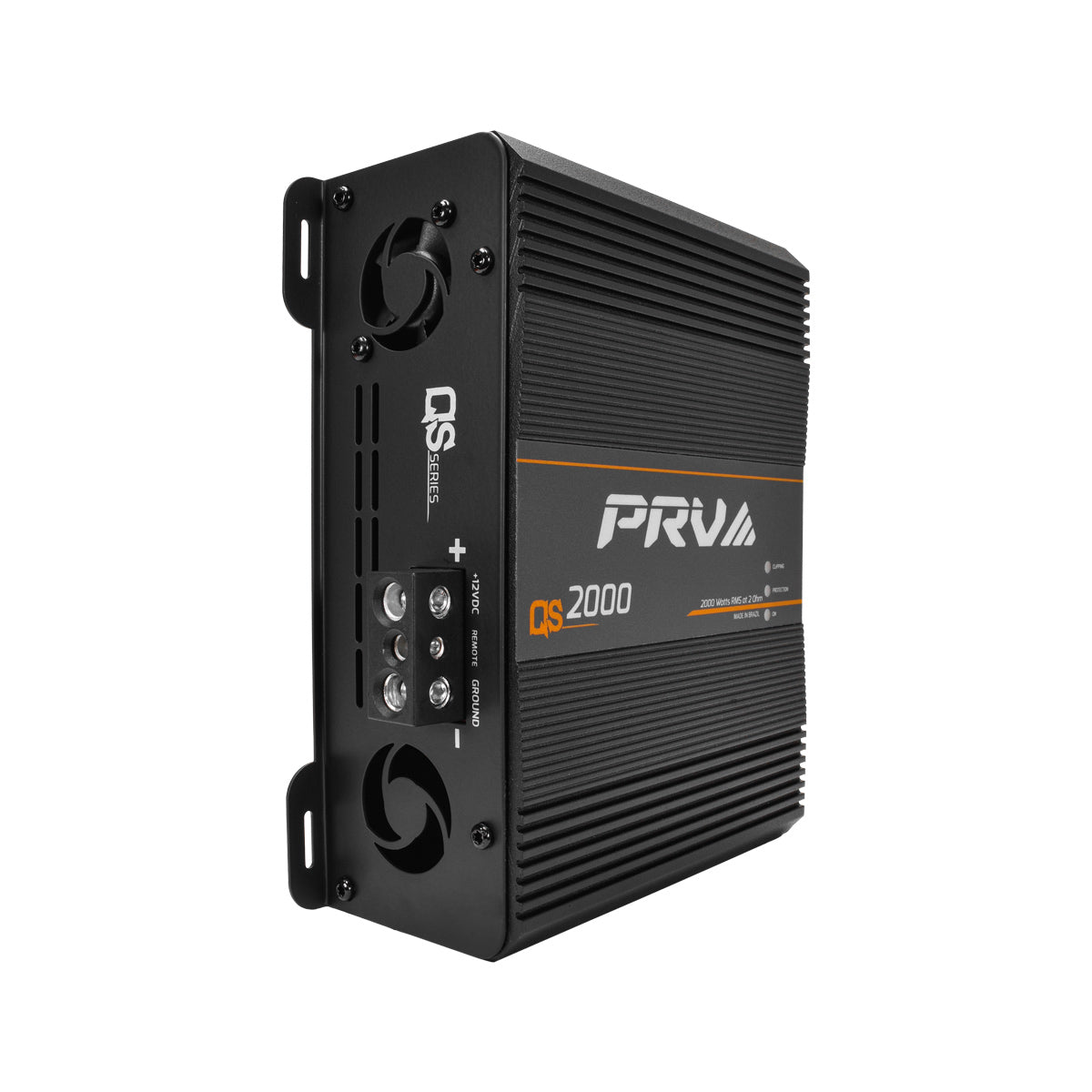

QS Series amplifiers are all about efficient design capable of full-range frequency response at a great price!
The QS2000 features a regulated power supply that is able to constantly deliver power and provides an unsurpassed efficiency rate of 80–90% in a small aluminum heatsink.
2000 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology
1 Channel car audio amplifier stable at 2 Ohm gives you the benefit of wiring multiple speakers and dividing the power.
Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicle’s electrical system!

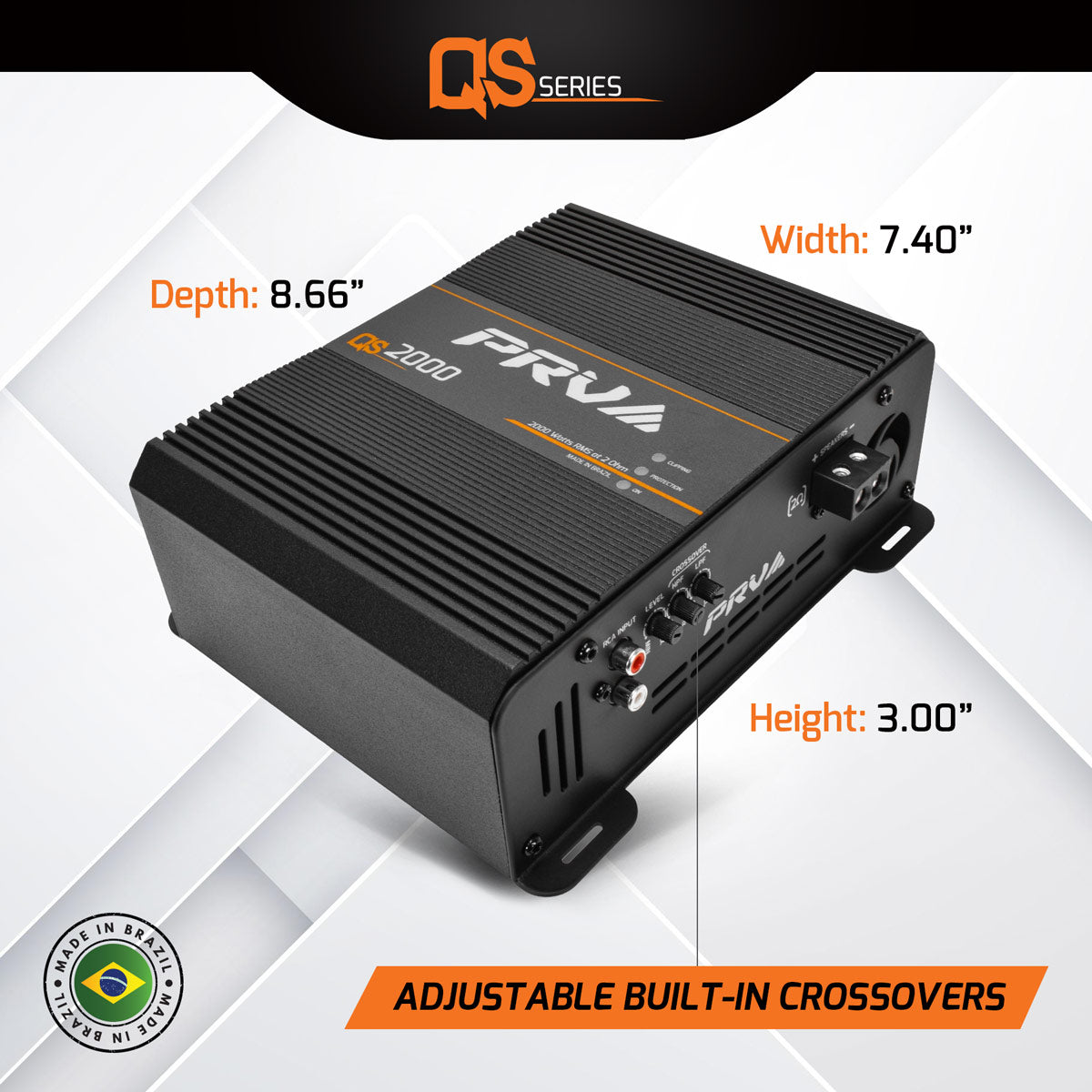

A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle:7.40″ Wide x 8.66″ Length x 3.00″ Height

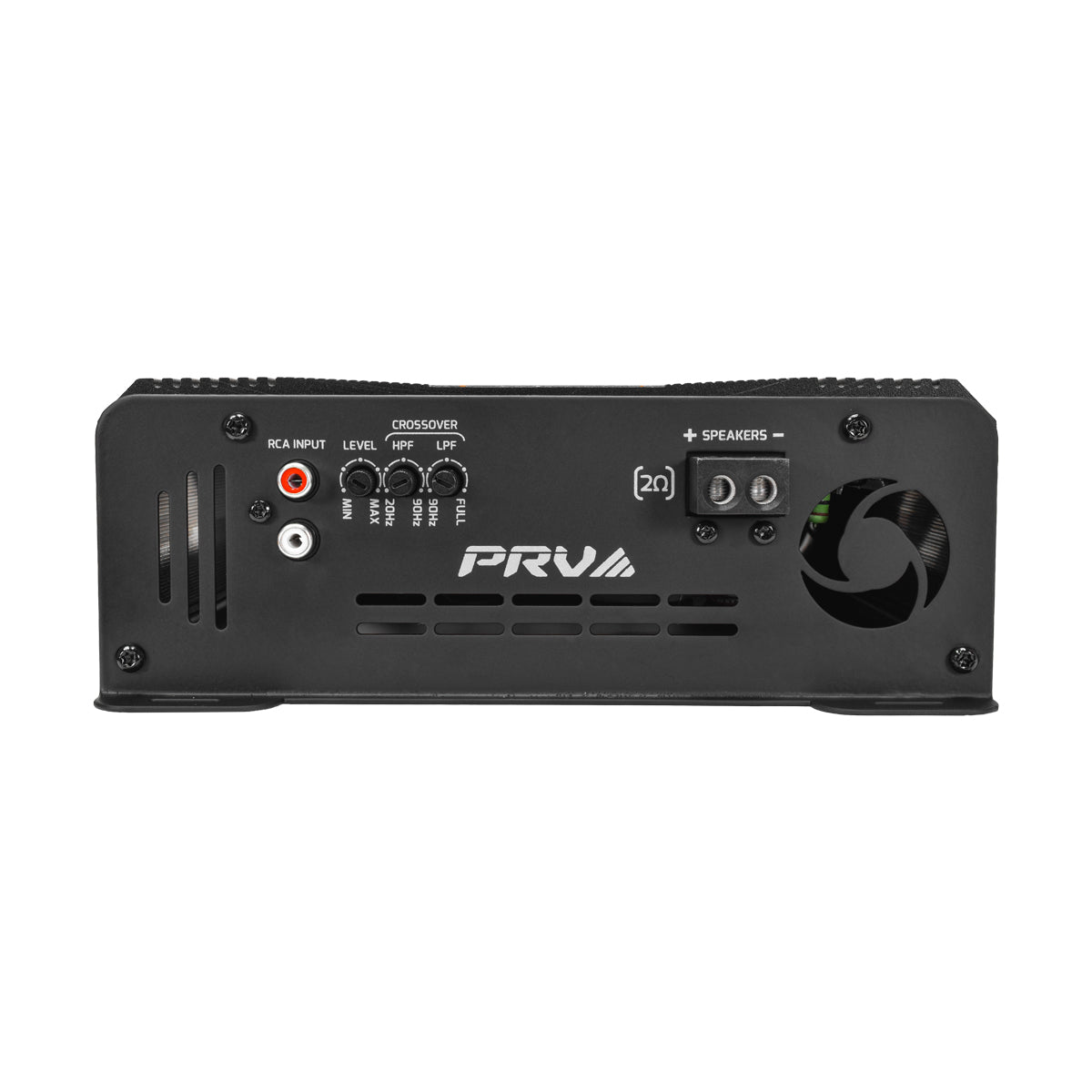

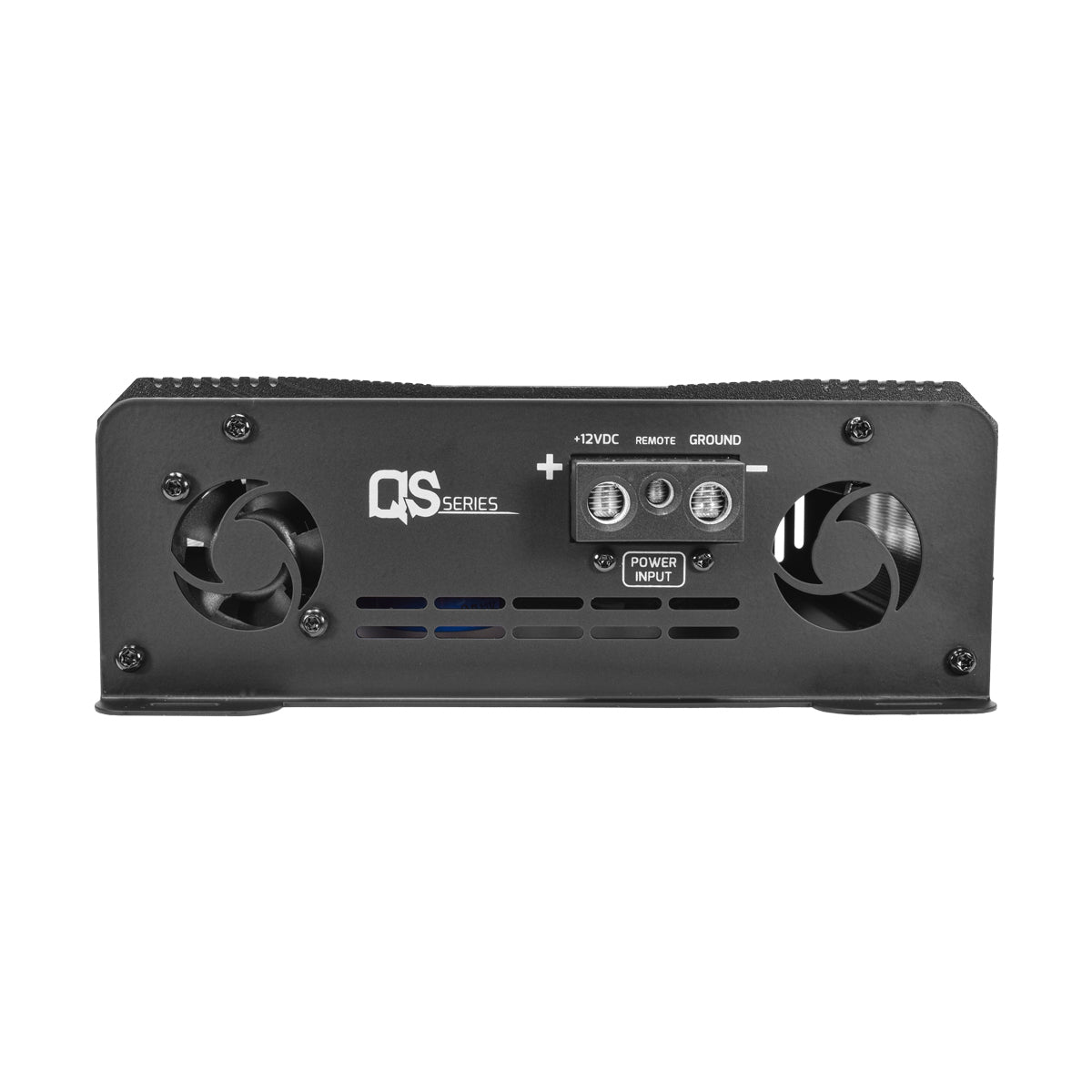

4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.
Channels
1 Channel
Rated RMS Power at 14.0 V at 2 Ohm
2000 Watts
Rated RMS Power at 14.0 V at 4 Ohm
1500 Watts
GENERAL SPECIFICATIONS
Impedance
2 Ohm
Channels
1 Channel
Rated RMS Power at 14.0 V at 2 Ohm
2000 Watts
Rated RMS Power at 14.0 V at 4 Ohms
1500 Watts
Average Efficiency
81%
Operating Voltage
9 to 16 Volts
Musical Current Draw
105 A
Minimum Power Wire Input
(OFC) 4 Gauge
Protection Fuse or Circuit Breaker
150 Amps
Minimum Speaker Wire Output
14 Gauge
Frequency Response(-3dB)
20 – 20,000 Hz
Min. Input Sensitivity for Max. Output
200 mV
Signal Input
1 Pair RCA
Signal to Noise
>90 dB
Protection System
Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
