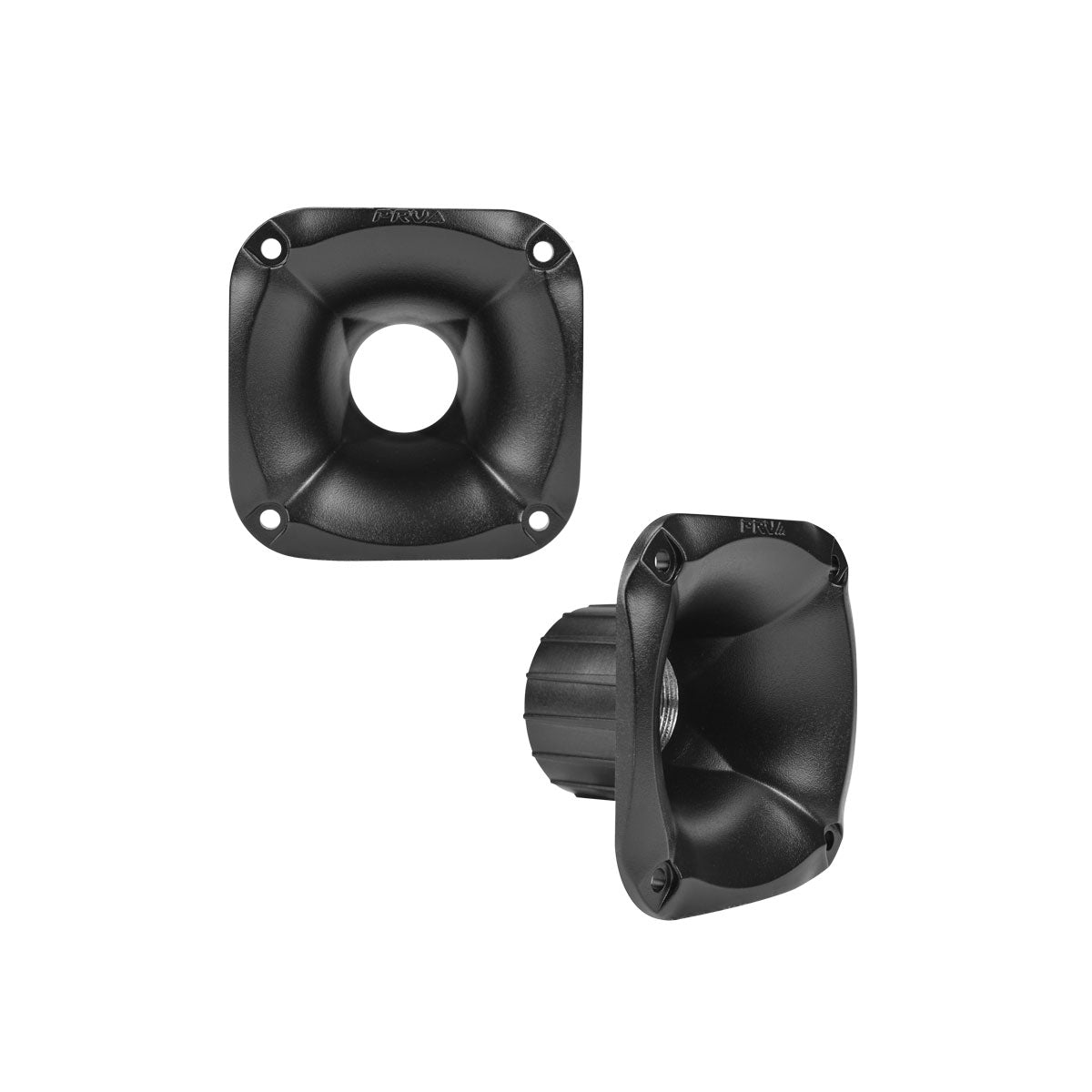

PRV WG08-25 Waveguide 1" EXIT MINI WAVEGUIDE

About the Product

Screw-on mini waveguide WG08-25 from PRV Audio is an exponential horn to consider! At 1.72″ of depth, this horn makes installation easy in tight spaces.

A standard 1-3/8″-18 TPI Screw on mount is compatible with any PRV 1″ exit screw-on compression drivers. The WG08-25 is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1600 Hz.

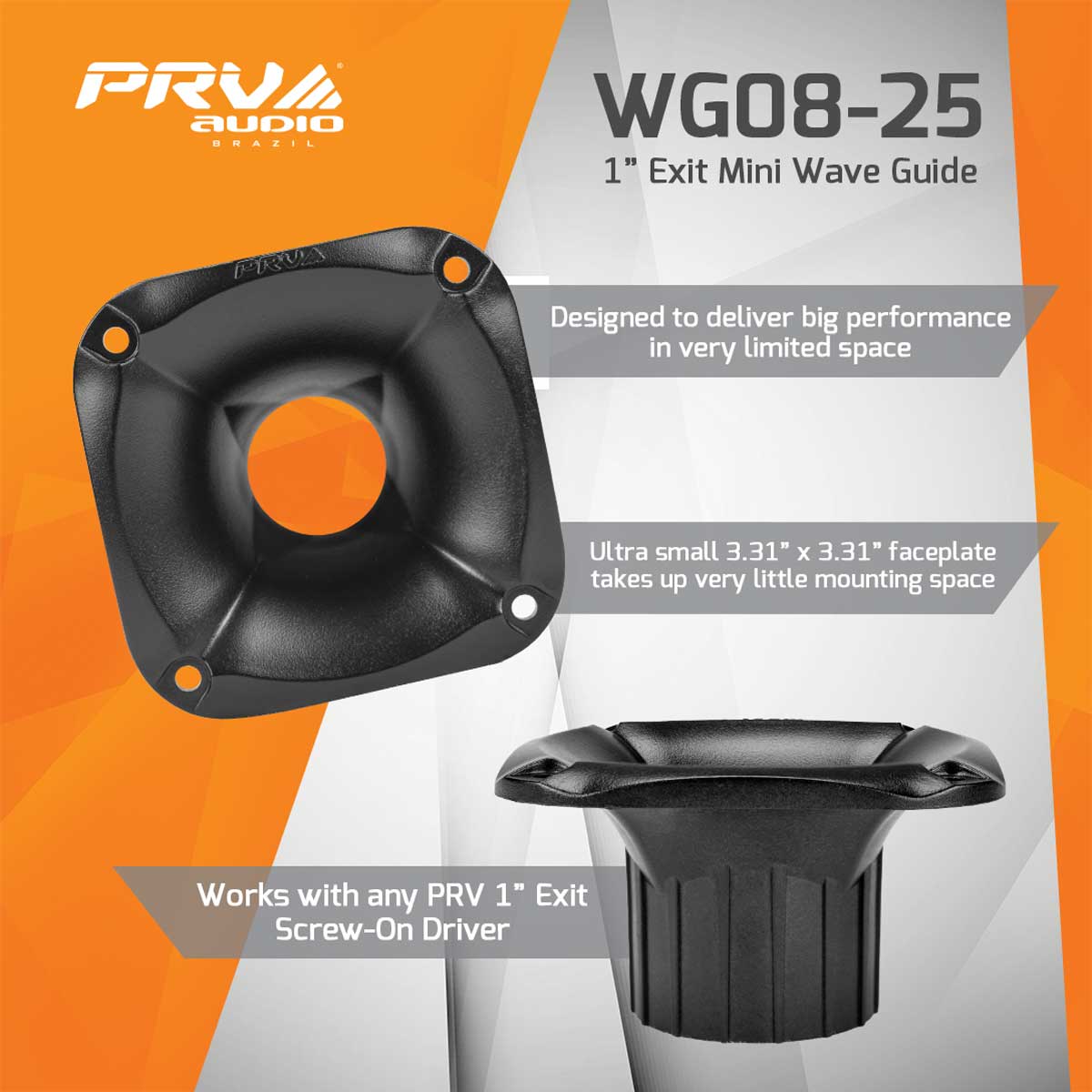

  • Its slim mounting depth of 1.72″, with an ultra small 3.31″ x 3.31″ faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
  • Designed to deliver big performance in very limited space, when you add any PRV 1″ Exit Driver to it.
  • Its 90° x 90° dispersion pattern is ideal for short throw applications
  • Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
  • Recommended minimum crossover frequency of 1,600 Hz

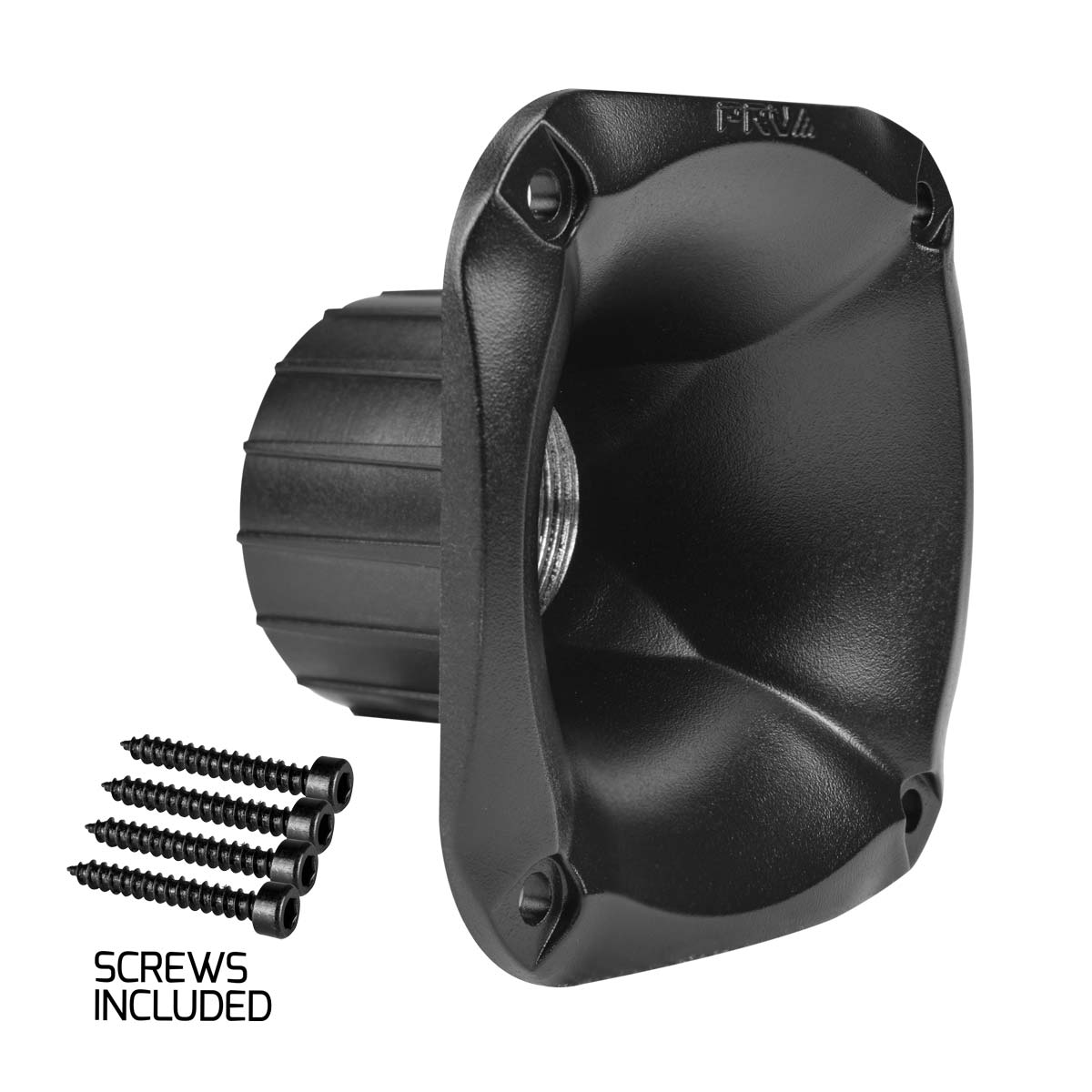

  • Includes 4x screws

GENERAL SPECIFICATIONS

Throat Diameter 1” (25.4mm)
Mounting Type Screw-on
Thread dimensions 1-3/8″
Nominal Coverage
     Horizontal 90°
     Vertical 90°
Flare type Exponential
Material Plastic (ABS)
Finish / Coating Black

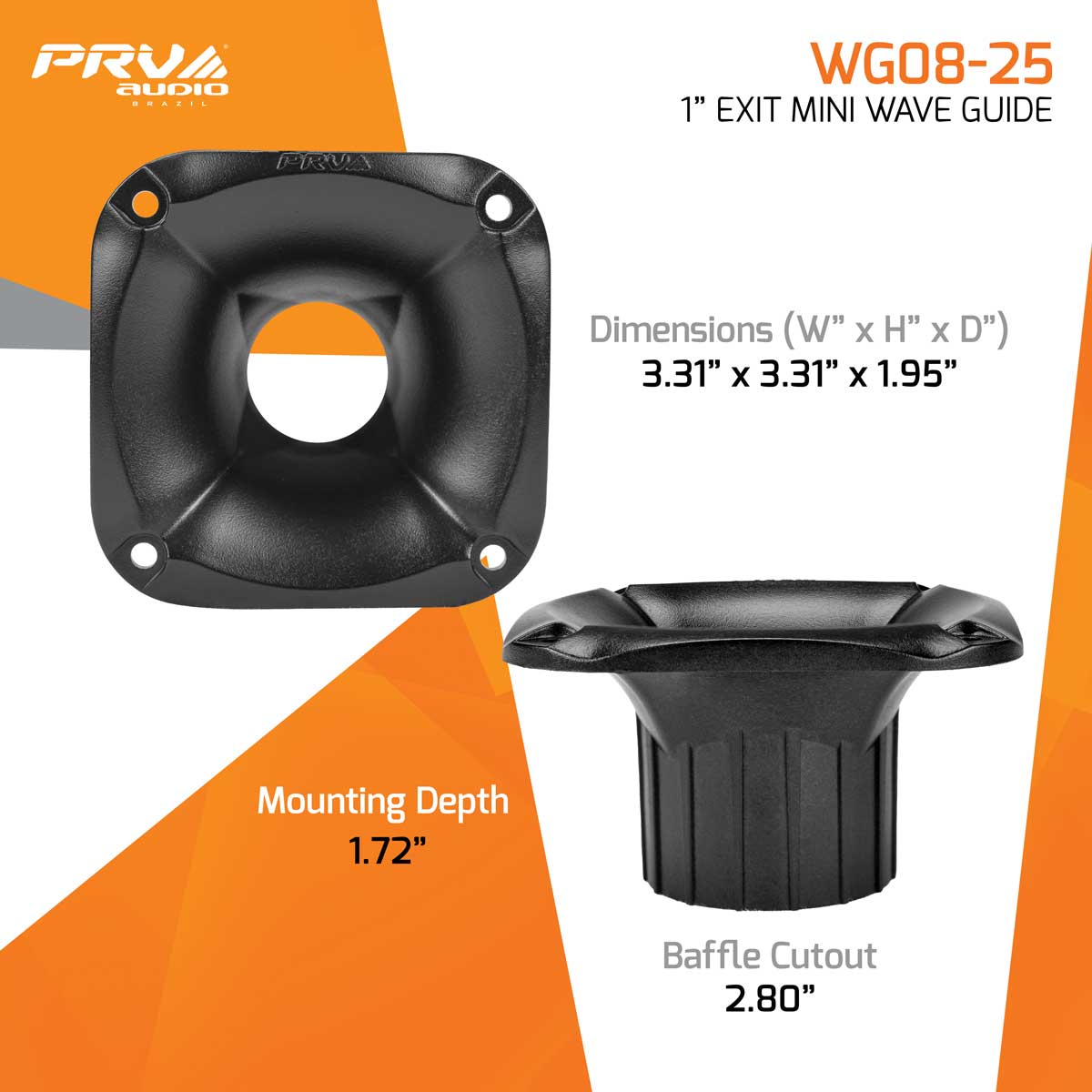

Dimensions
     Height 3.31″ (84mm)
     Width 3.31″ (84mm)
     Depth 1.95″ (49.5mm)
     Mount Depth 1.72″ (43.5mm)
Baffle Cutout
     Width 2.80″ (71mm)
     Height 3.31″ (84mm)
Net weight 0.13lb (0.06kg)
