SKU:PRV WG45-50

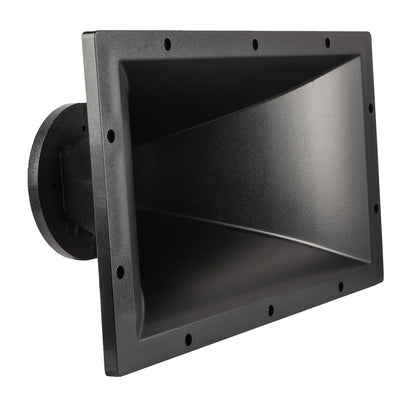

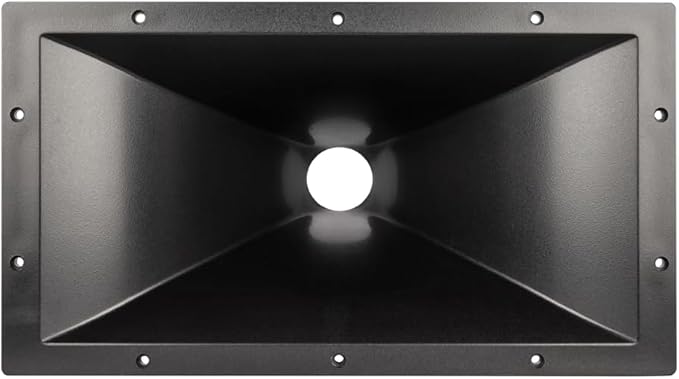

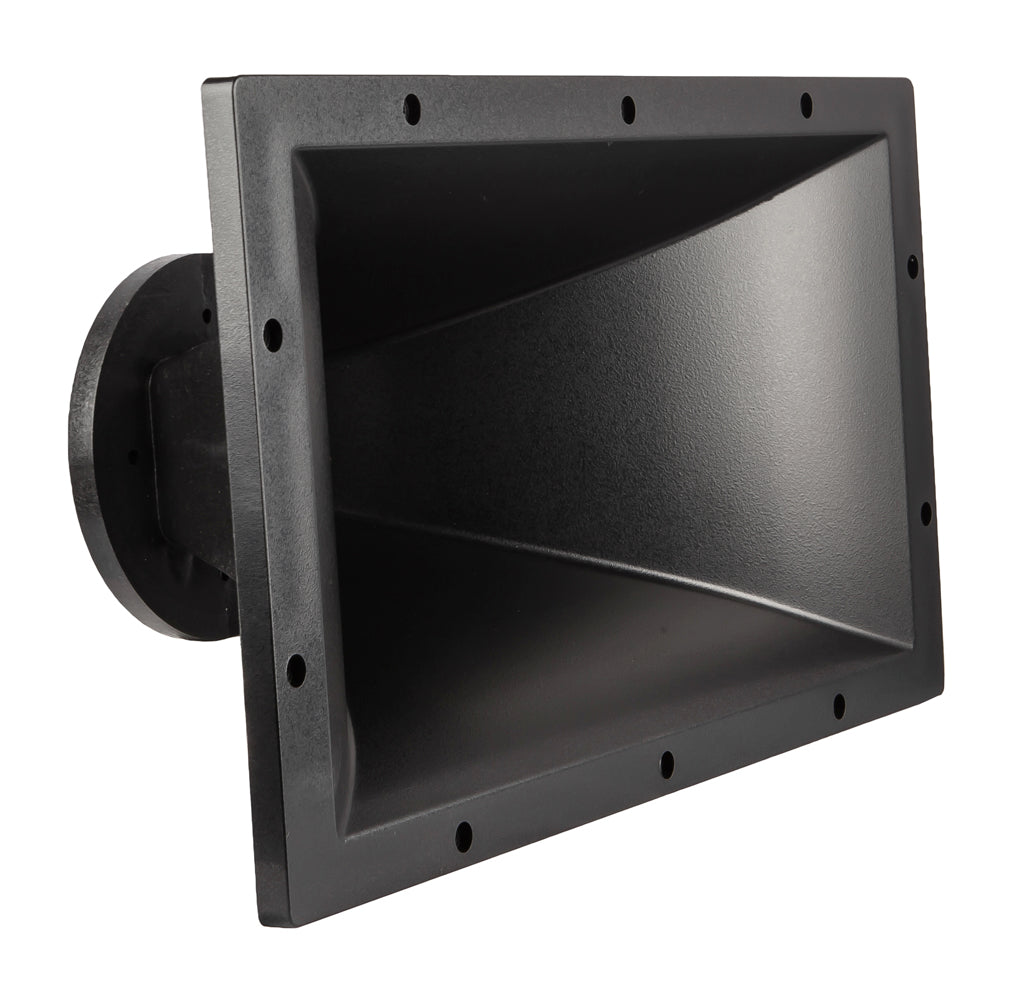

PRV WG45-50 Waveguide

About the Product

2″ Exit – ABS Plastic Wave Guide – Bolt-on


  • 2” Throat Diameter
  • Bolt-on
  • 90° x 40° Nominal Coverage

GENERAL SPECIFICATIONS

Throat Diameter 2” (50.8 mm)
Mounting Type Bolt-on
     Hole Dimensions 0.24″ x 0.31″
6 x 8 mm
     Bolt Circle 3.62″ to 4.25″
92 to 108 mm
Nominal Coverage
     Horizontal 90°
     Vertical 40°
Flare type Exponential
Material Plastic (ABS)
Finish / Coating Black
Dimensions
     Height 9.84″ (250 mm)
     Width 17.71″ (450 mm)
     Depth 7.95″ (202 mm)
     Mount Depth 7.48″ (190 mm)
Baffle Cutout
     Width 15.75″ (400 mm)
     Height 8.46″ (215 mm)
Net weight 3.63lb (1.69 kg)
