SKU:PRV WGP14-50X SLIM

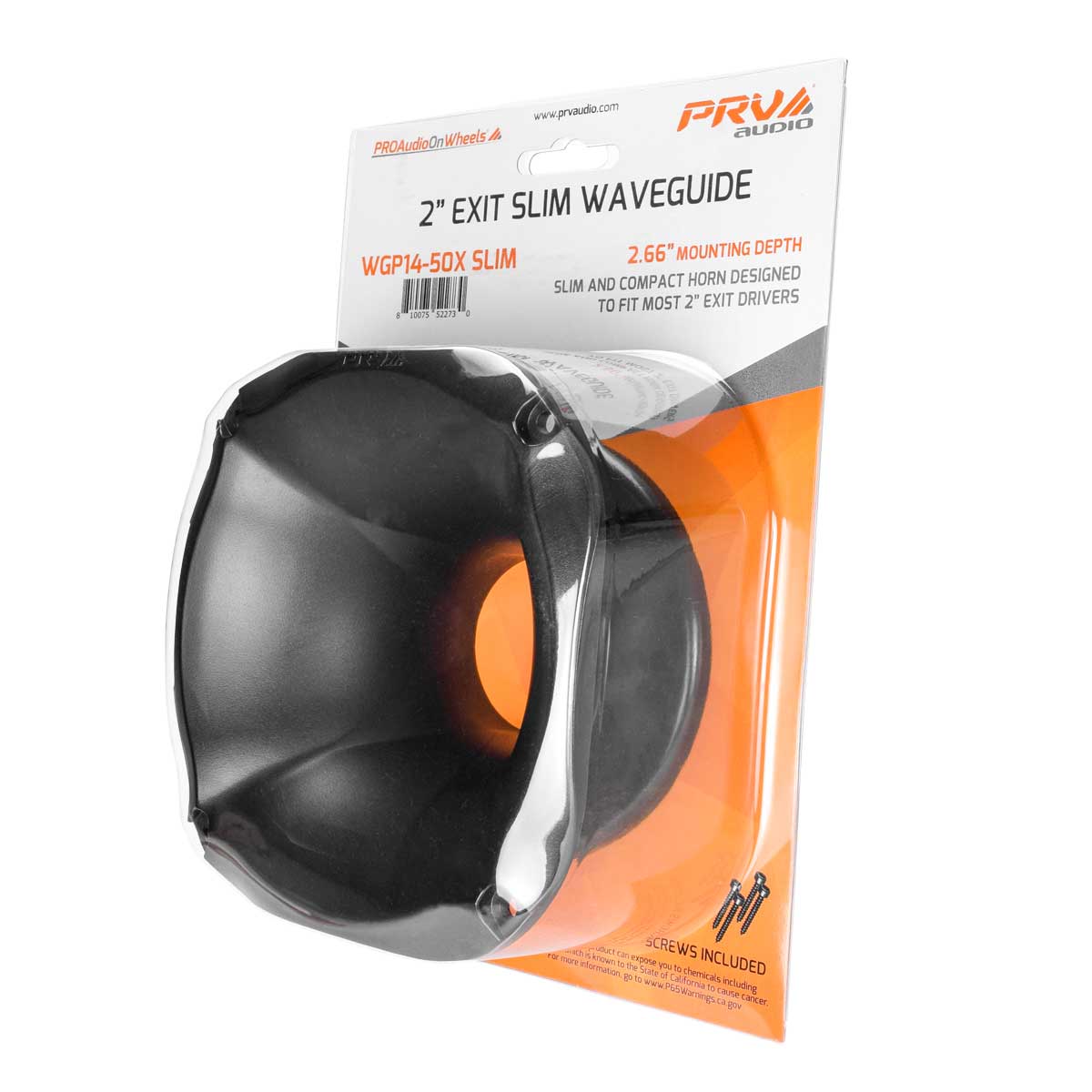

PRV WGP14-50X SLIM Waveguide

About the Product

2″ Bolt-on slim waveguide WGP14-50X SLIM from PRV Audio is an exponential horn to consider for your 2″ Exit Compression Driver! At 2.66″ of mounting depth, this horn makes installation easy in tight spaces.

A standard 4 bolts mount is compatible with most 2″ compression drivers. The WGP14-50X SLIM is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1400 Hz.

  • Its slim mounting depth of 2.66″, with a standard 6.14″ x 6.14″ faceplate, takes up very little mounting depth, allowing you to mount a compression driver with very little mounting depth.
  • Designed to deliver big performance in very limited space, when you add any PRV 2″ Exit Driver to it.
  • Its 60° x 60° dispersion pattern is ideal for short throw applications
  • Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
  • Recommended minimum crossover frequency of 1,400 Hz
  • Includes 4x screws

GENERAL SPECIFICATIONS

Throat Diameter 2” (50.8 mm)
Mounting Type Bolt-on
Hole Dimensions 0.31″ 8 mm
Bolt Circle 4″ 102 mm
Nominal Coverage
Horizontal 60°
Vertical 60°
Flare type Hybrid
Material Plastic (ABS)
Finish / Coating Black
Dimensions
Height 6.14″ (156.0 mm)
Width 6.14″ (156.0 mm)
Depth 2.97″ (75.5 mm)
Mounting Depth 2.67″ (67.9 mm)
Baffle Cutout
Diameter Circle 5.59″ (142 mm)
Net weight 0.42 lb (0.19 kg)
