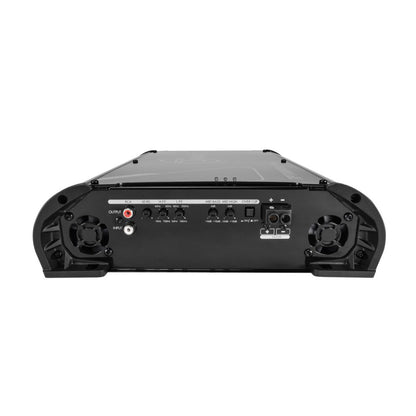

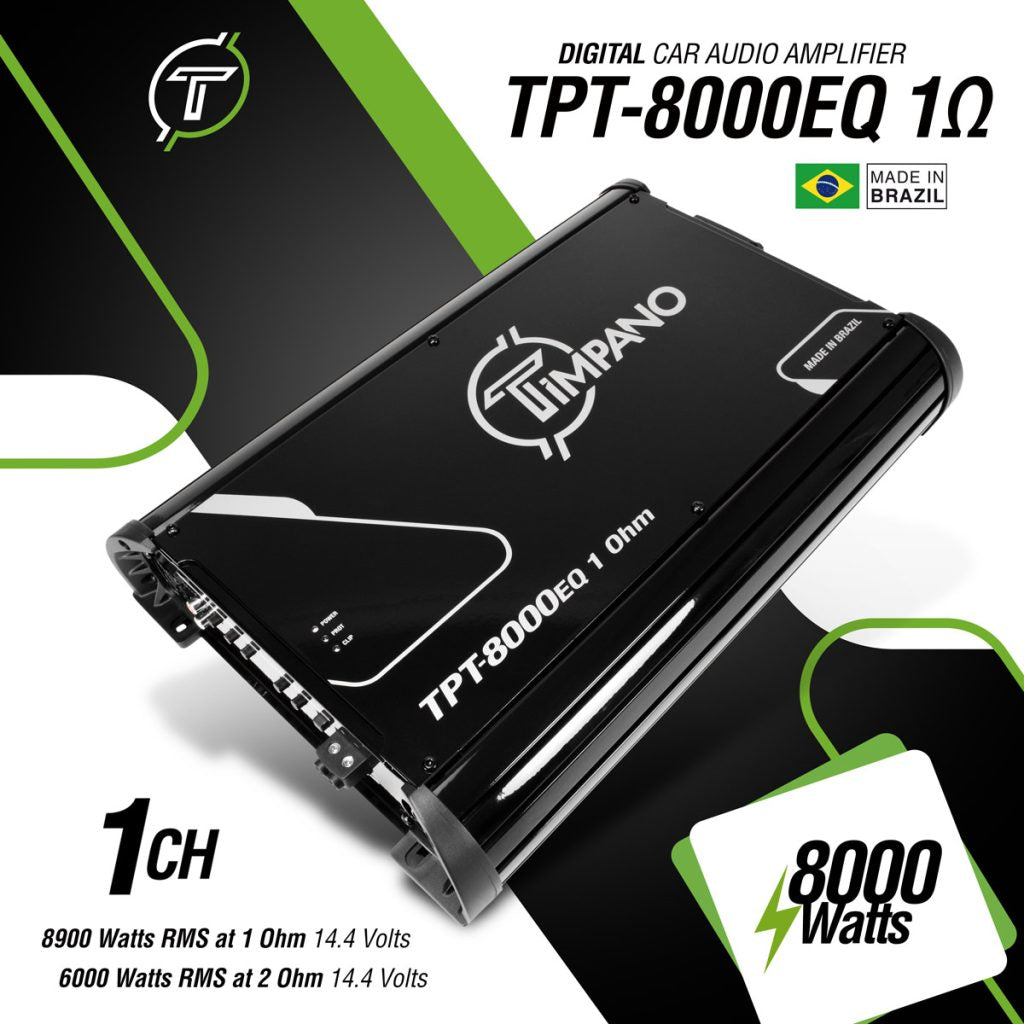

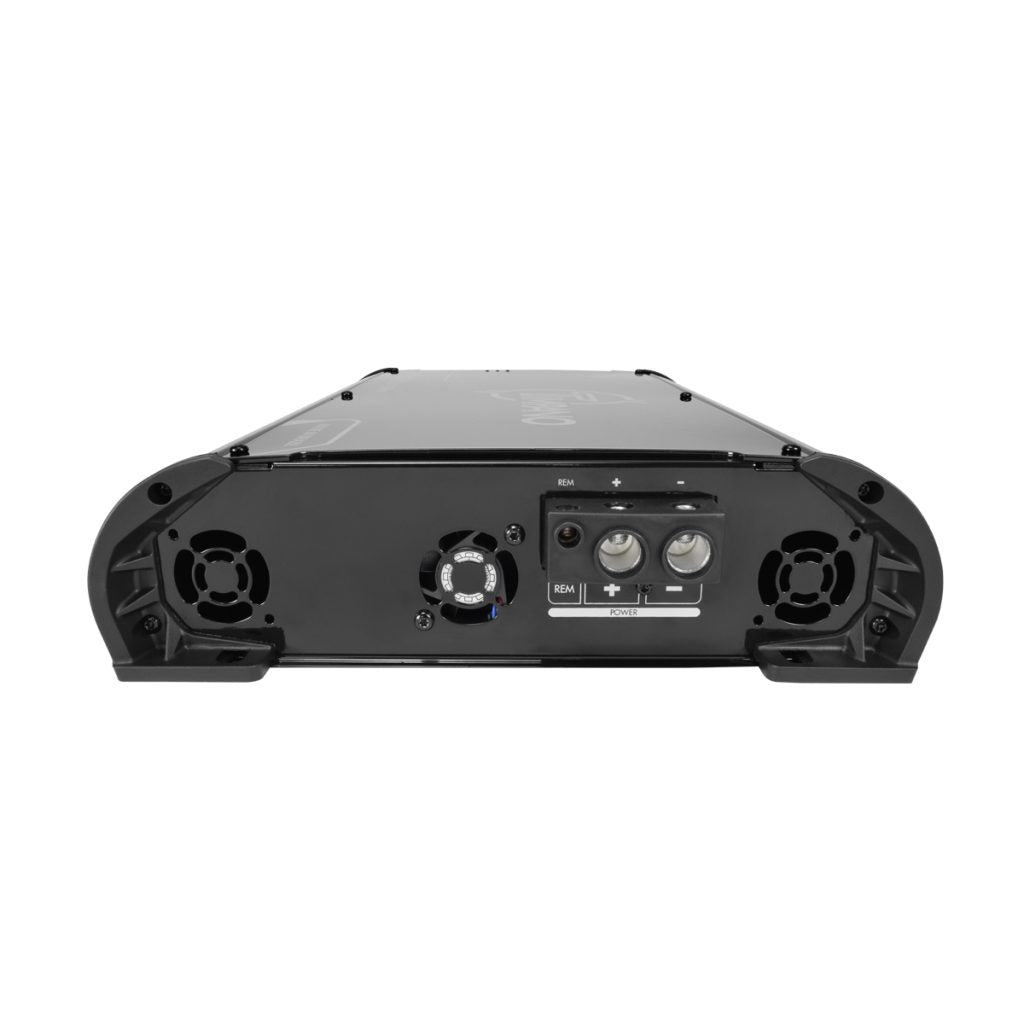

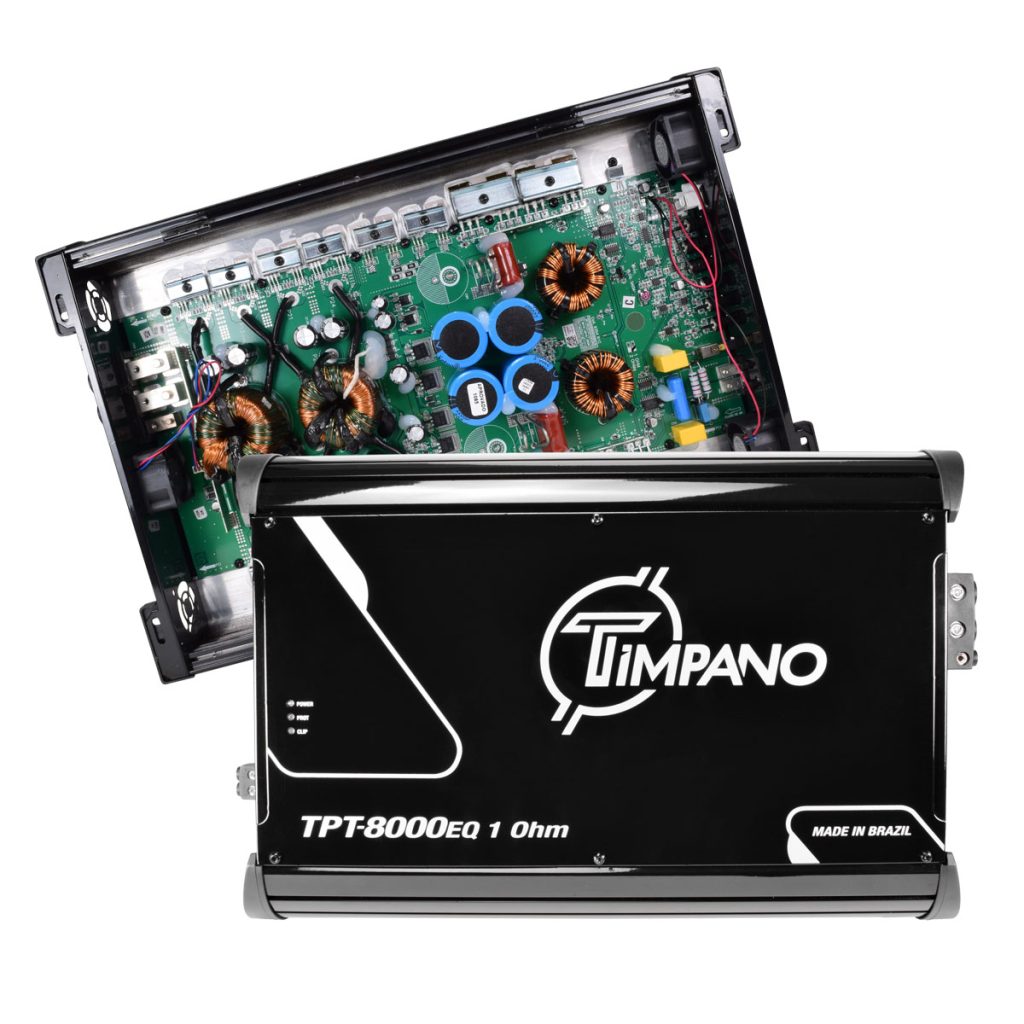

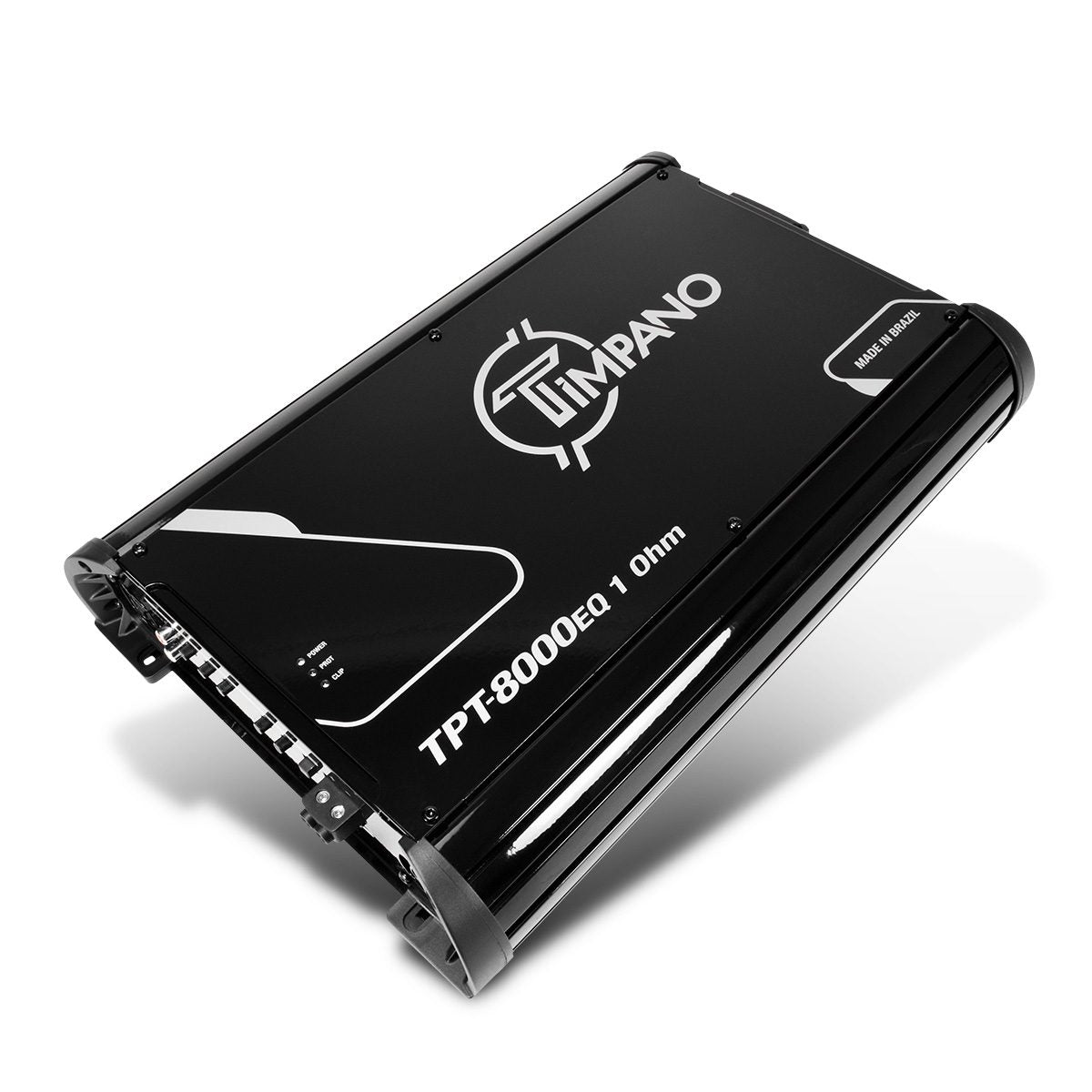

Timpano 1 Channel TPT-8000EQ 1 Ohm Car Audio Amplifier
About the Product
Timpano 1 Channel TPT-8000EQ 1 Ohm Car Audio Amplifier
Small Footprint Technology!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D fullrange amplifier.
Additional Information:

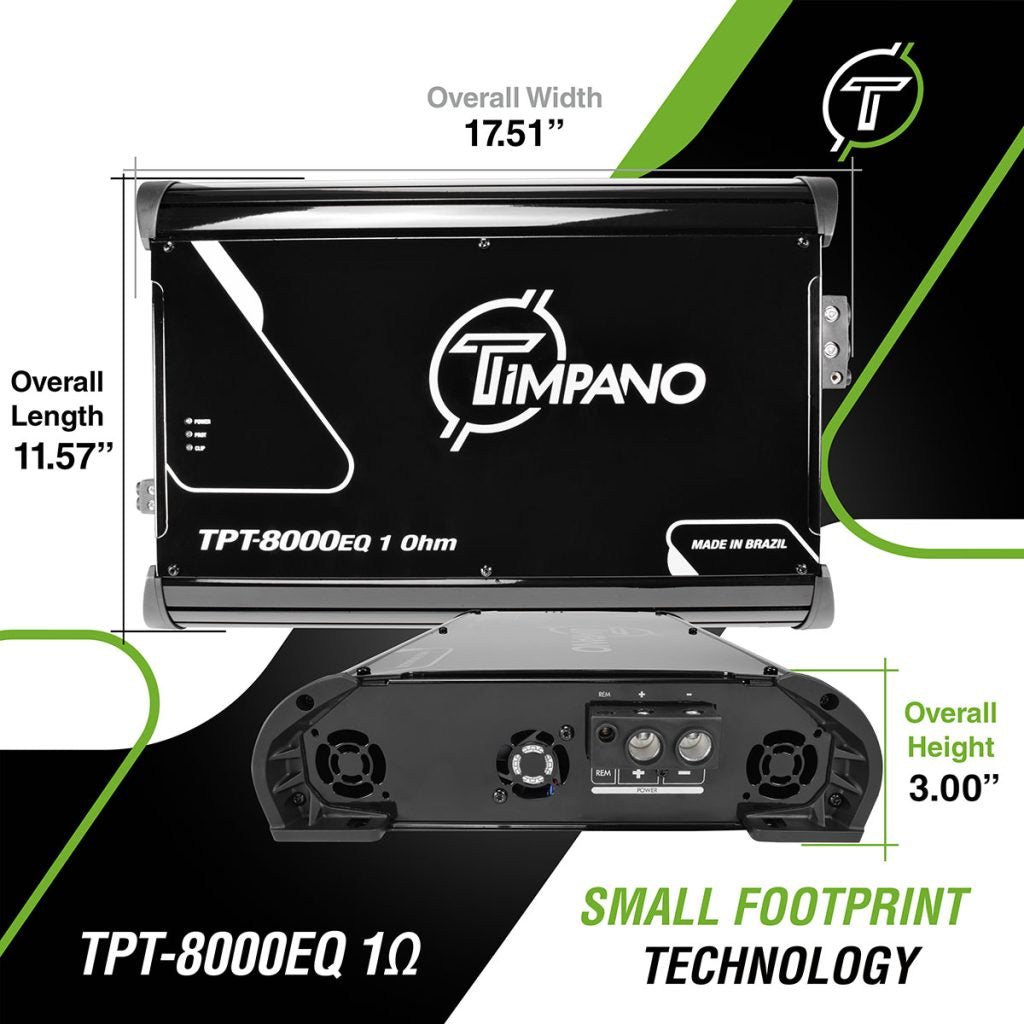

Number of Channels: 1 RMS Power at 1 Ohm 12.6V: 8000W RMS RMS Power at 2 Ohm 12.6V: 5100W RMS RMS Power at 4 Ohm 12.6V: 3030W RMS RMS Power at 1 Ohm 14.4V: 8900W RMS RMS Power at 2 Ohm 14.4V: 6000W RMS RMS Power at 4 Ohm 14.4V: 4000W RMS Supply Voltage: 9.5 ~ 15V Frequency Response: 10Hz ~ 15KHz Crossover Low Pass: 50Hz ~ 15KHz Crossover High Pass: 10Hz ~ 700Hz Signal to Noise: > 90 dB Harmonic Distortion: < 0.9 % THD Input Sensitivity: 0.2V Input Impedance: 25K Ohm Impedance Output: 1 Ohm Consumption with Signal Musical: 5.2A ~ 396A Consumption with Signal Bass: 5.2A ~ 790A Dimensions (L x W x H): 11.57” x 17.51” x 3” Weight: 13.9 Lbs
