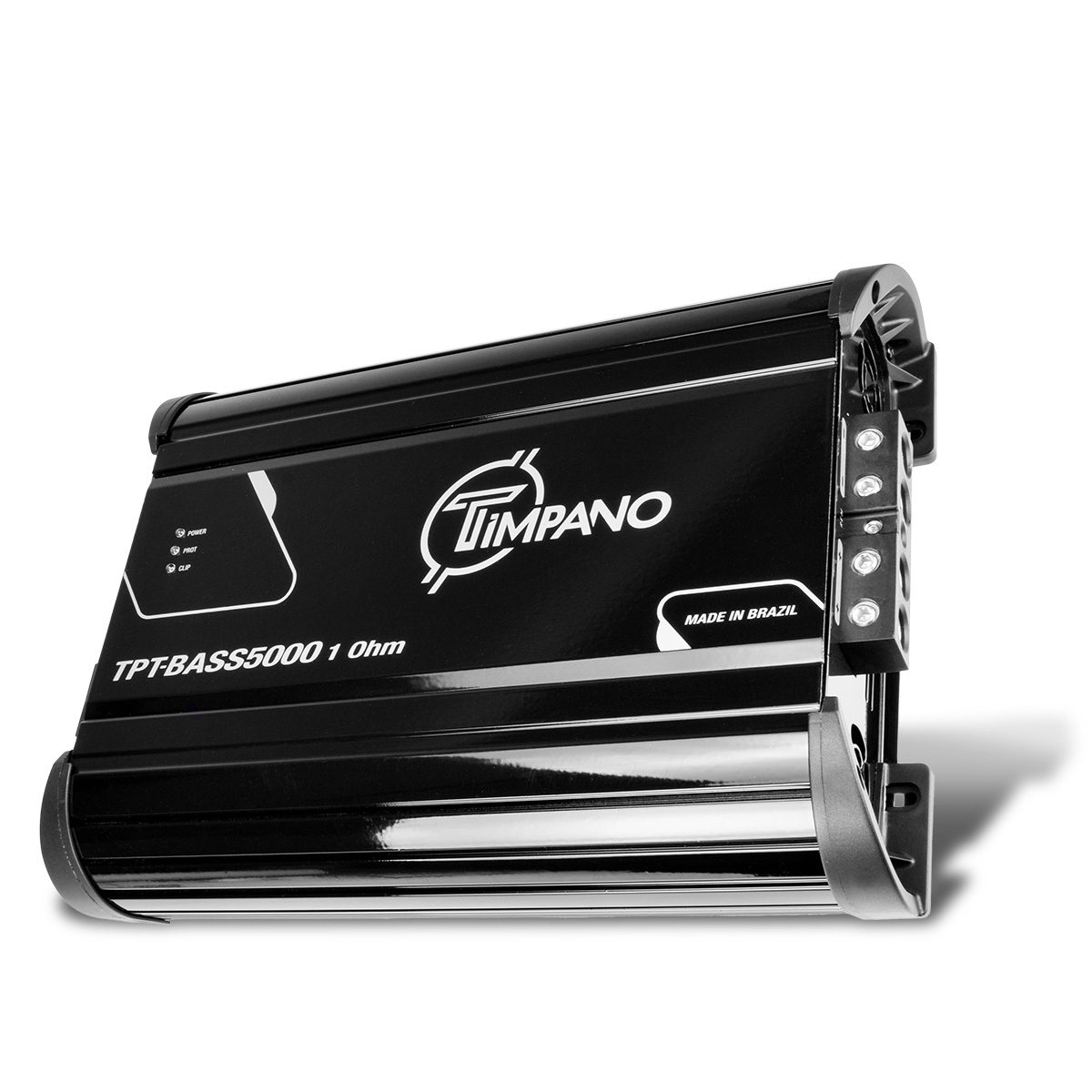

Timpano 5000 Watts Car Audio Bass Amplifier TPT-BASS5000 1 Ohm

About the Product

Timpano 5000 Watts Car Audio Bass Amplifier TPT-BASS5000 1 Ohm – 12 volts Monoblock Class D Car Amp

Anybody in need of a car audio bass amplifier that can fit just about anyplace in their car and won’t break the bank should consider this Timpano Bass Series car amplifier.

  • POWER: This monoblock Car Audio amplifier is designed to run your system with the power it needs to perform! 5000 Watts RMS power exclusive for BASS and SUB BASS applications. Its high efficiency provides more power with less battery consumption.

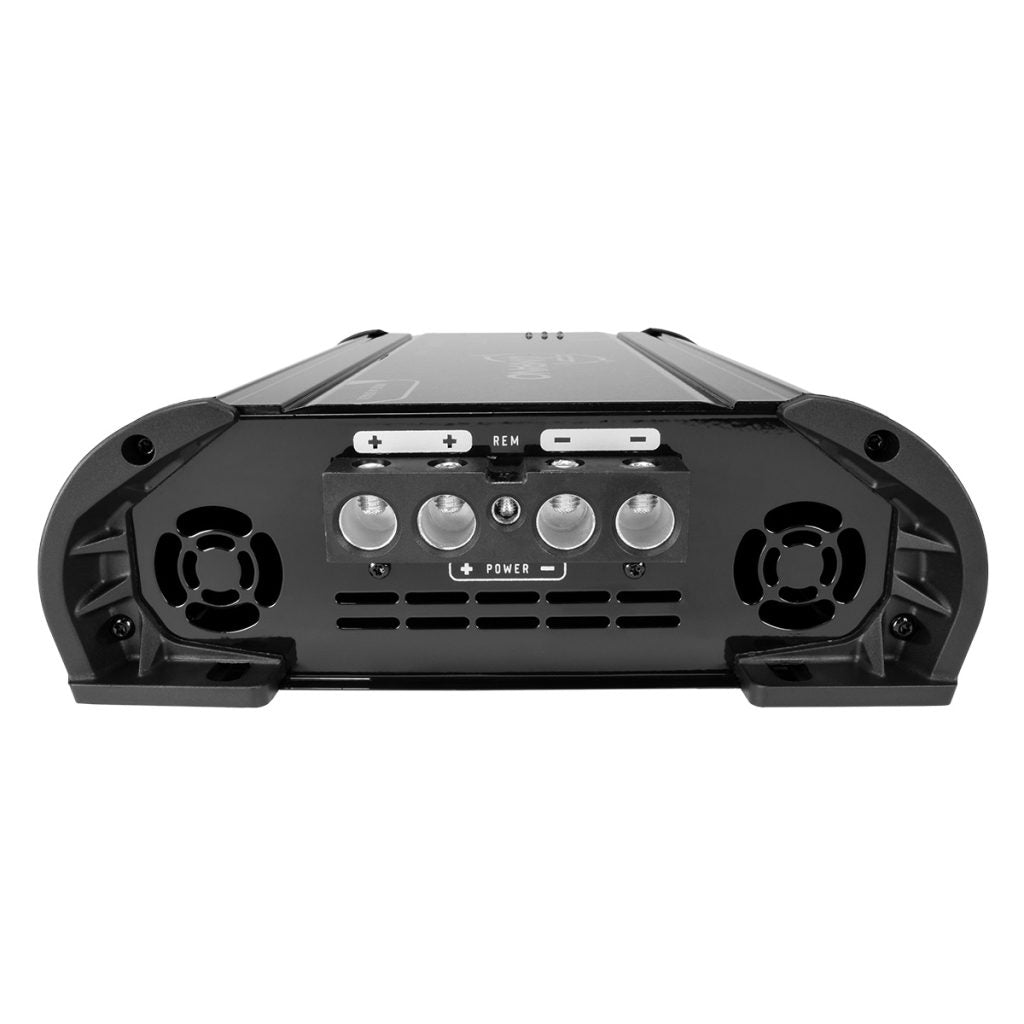

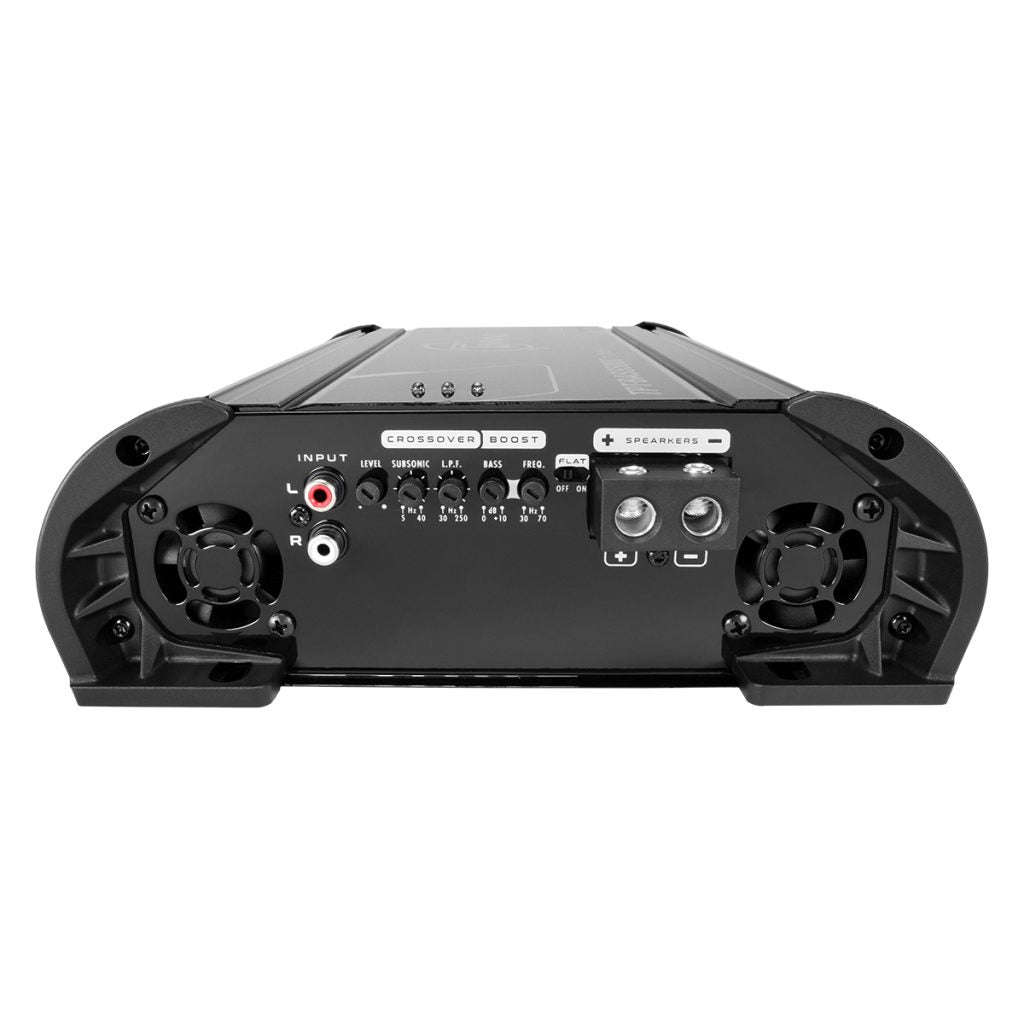

  • FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your subwoofer with a SUBSONIC filter 5 to 40Hz and LPF 30 to 250Hz without a need for an external crossover or DSP. Fine tune it according to your box with variable frequency dial and BASS BOOST at choose frequency up to +10 dB. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
  • DESIGN: Digital full bridge class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 9.36″ depth x 12.85″ width x 3.05″ height
  • TECHNOLOGY: This bass amplifier features power, clipping and protection LED indicators on top + intelligent 4-way protection circuitry. Smart and Silent Coolers ensure efficient and noise-free operation of the amplifier.

The BASS Series from Timpano combines half-bridge amplifier engineering with the newest semiconductor technologies. Utilizing them, higher power-to-footprint ratios are possible, and the more compact chassis created for this technology does not degrade the output power or stability.

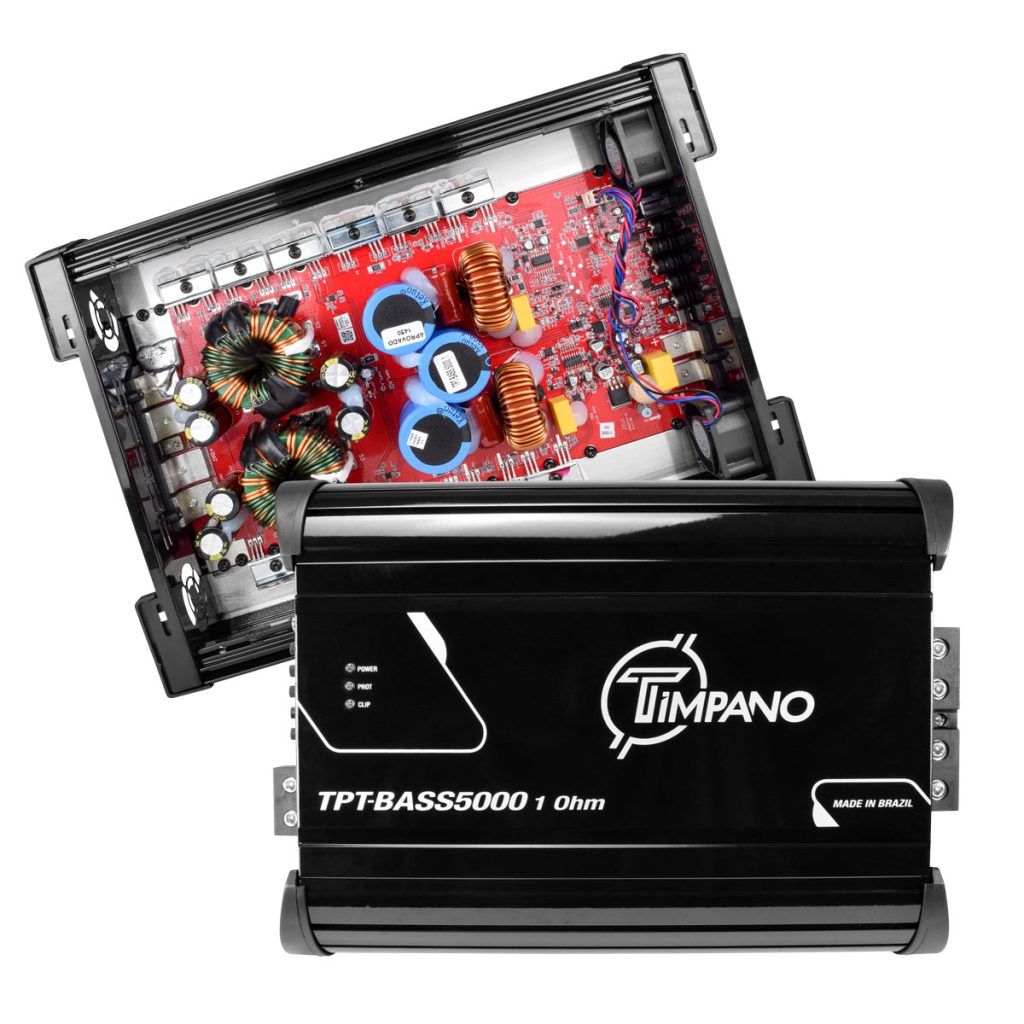

To handle even the most demanding bass sessions, this amplifier comes with sturdy heatsink, heavy duty power and ground inputs, high current PCBs, and premium internal components.

Additional Information:

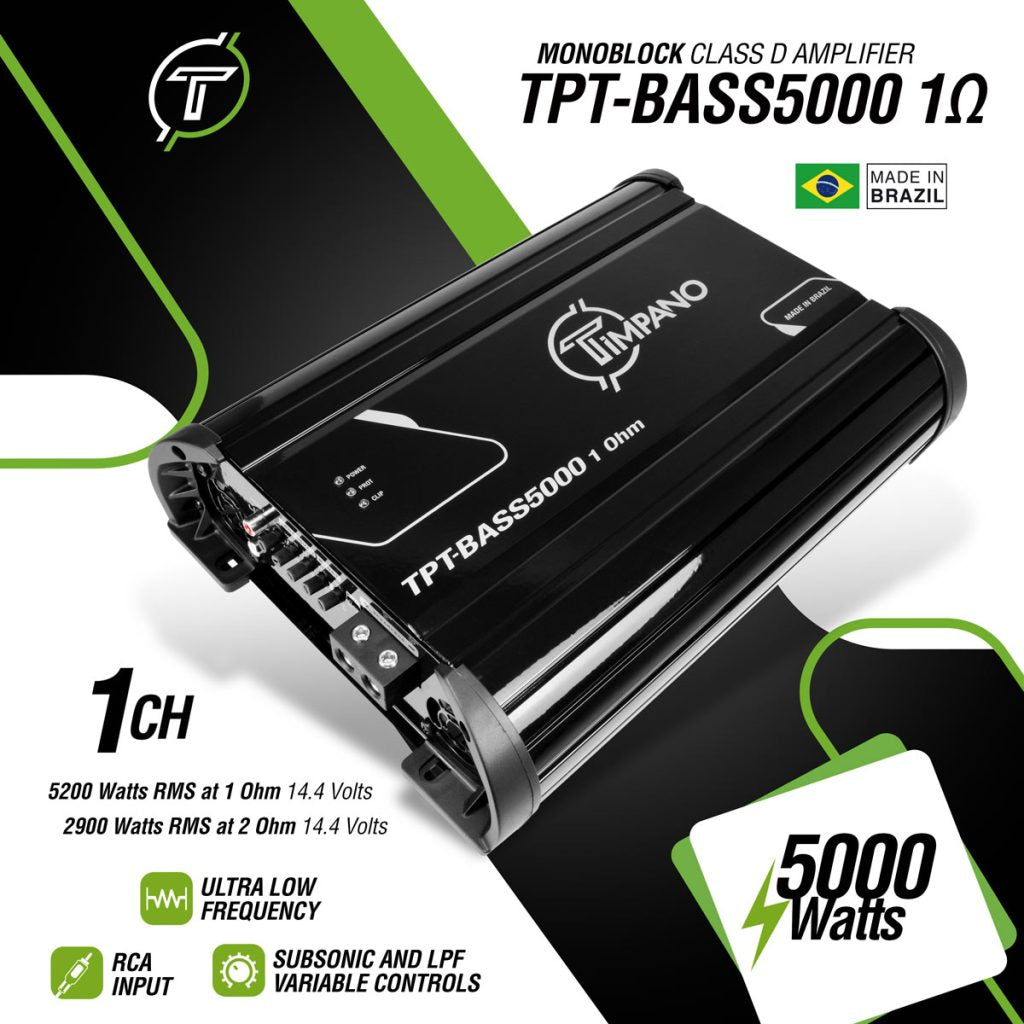

Number of Channels: 1
5200 Watts RMS Power at 1 Ohm 14.4Volts
2900 Watts RMS Power at 2 Ohm 14.4 Volts
Supply Voltage: 9V ~ 17V
Frequency Response: 5Hz ~ 600Hz
Flat Switch – ON ( no Crossover Filters ) 5Hz ~ 600Hz
Crossover Low Pass Filter: 30Hz ~ 250KHz
Crossover Subsonic Filter: 5Hz ~ 40Hz
Bass Boost Freq: 30Hz ~ 70Hz
Bass Boost Gain: 0 dB ~ +10 dB
Signal to Noise: > 90 dB
Impedance Output: 1 Ohm
Musical Consumption: 228A
Bass Consumption: 456A

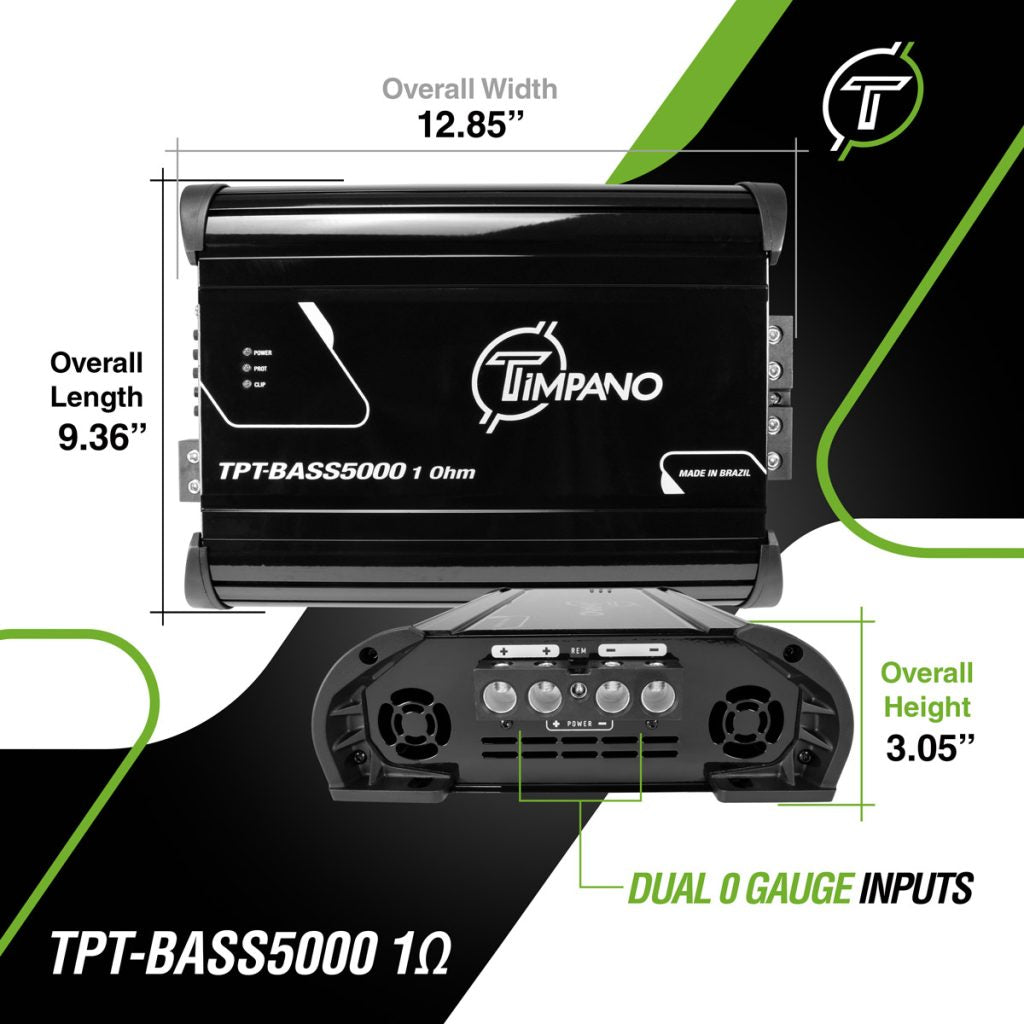

Dimensions (L x W x H): 9.36” x 12.85” x 3.05”
Weight: 8.87 Lbs
