- Titanium diaphragm with a 1.5″ voice coil
- They handle 300 watts RMS to provide continuous high output levels
- High sensitivity output designed for pro audio systems
Built In Crossover – Capacitor that acts as a crossover to attenuate low end frequencies that might otherwise harm the super tweeters.
These tweeters are capable of generating high end frequencies at extremely loud volume, to keep up in the high SPL systems. Built with high strength magnet and a pure titanium diaphragm are designed to reproduce the brightest and crispest sound.
Specs:
900 Watts Max Power per pair / 450 Watts each
300 Watts RMS Power per pair / 150 Watts each
Impedance: 8 Ohm each tweeter
Sensitivity: 107 dB
Frequency Response: 3,500 – 20,000Hz
Titanium Diaphragm with a 1.5″ voice coil
Recommended High Pass Filter on TPT-SP4BT DSP, Based on Power per Tweeter
7500 Hz under 225 Watts of Amplifier RMS Power with 18dB Slope
6000 Hz under 150 Watts of Amplifier RMS Power with 12dB Slope

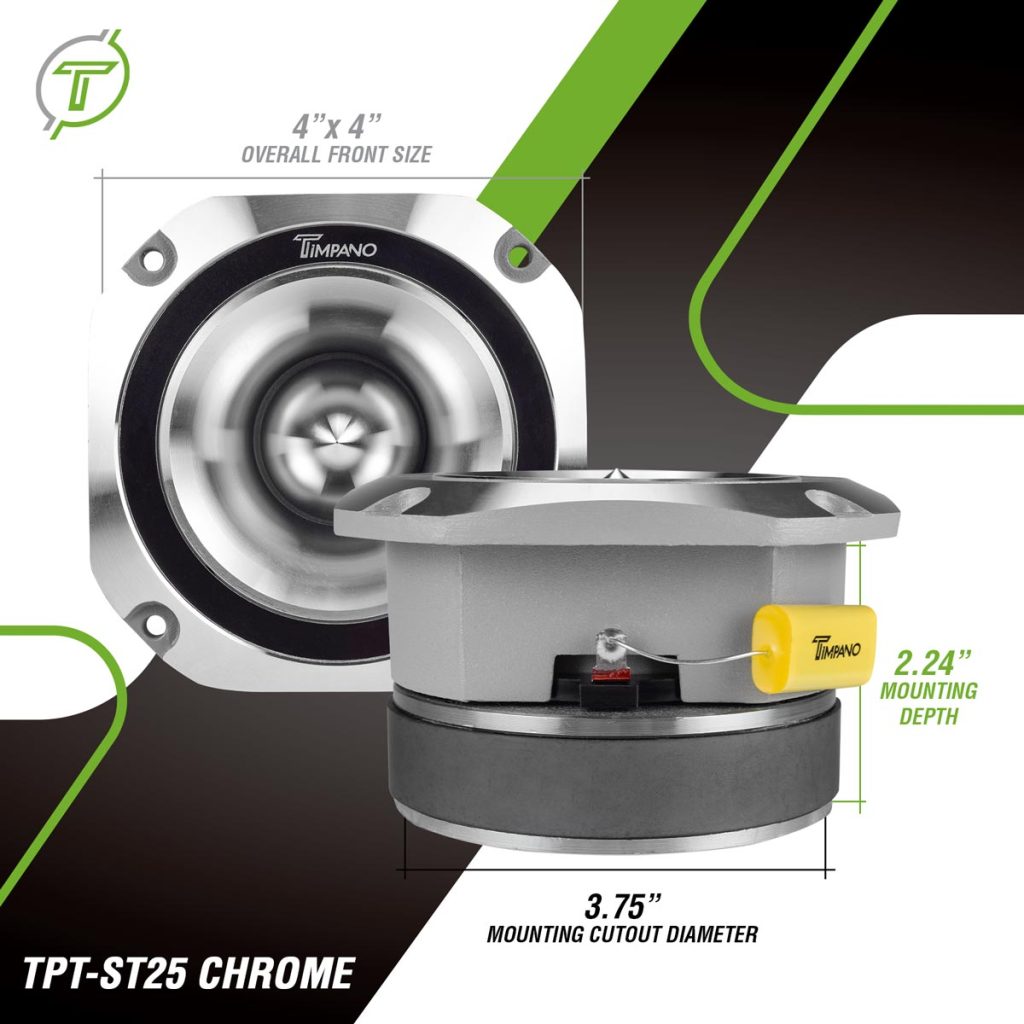

Sizing:
Mounting Depth: 2.24”
Mounting Cutout Diameter: 3.75″
Overall Size: 4″ x 4″ x 2.68″
Weight: 2.65 Lbs each tweeter

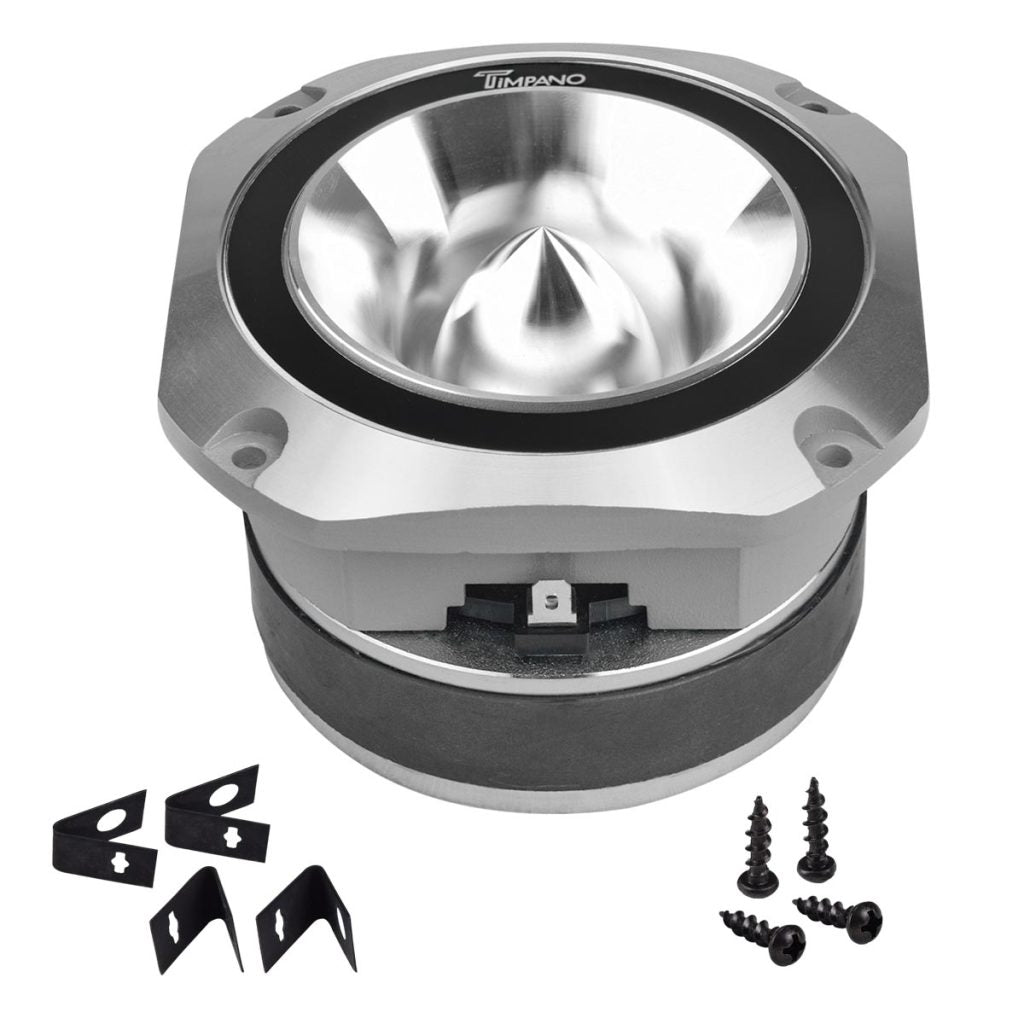

Accessories Included:
8x Mounting Screws

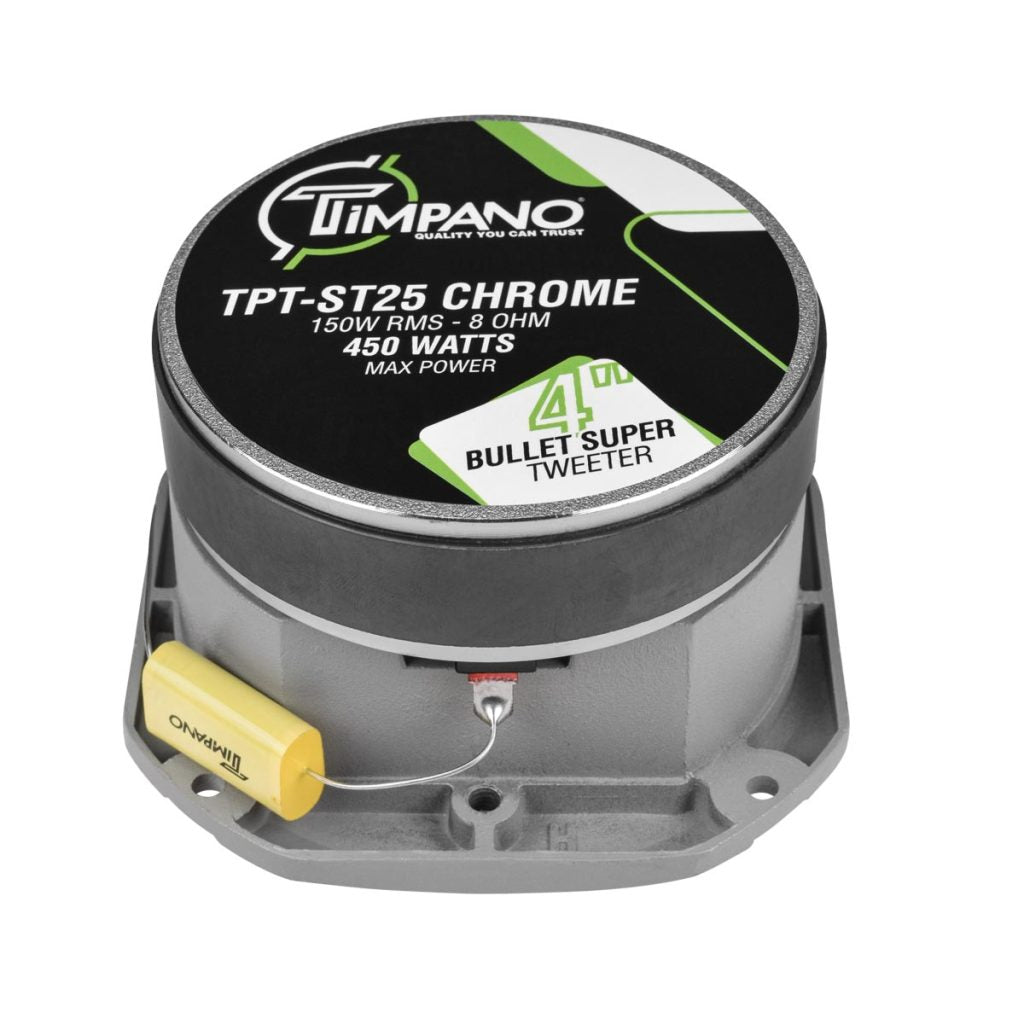

HPF Capacitor attached per tweeter
1x Timpano Logo Sticker
